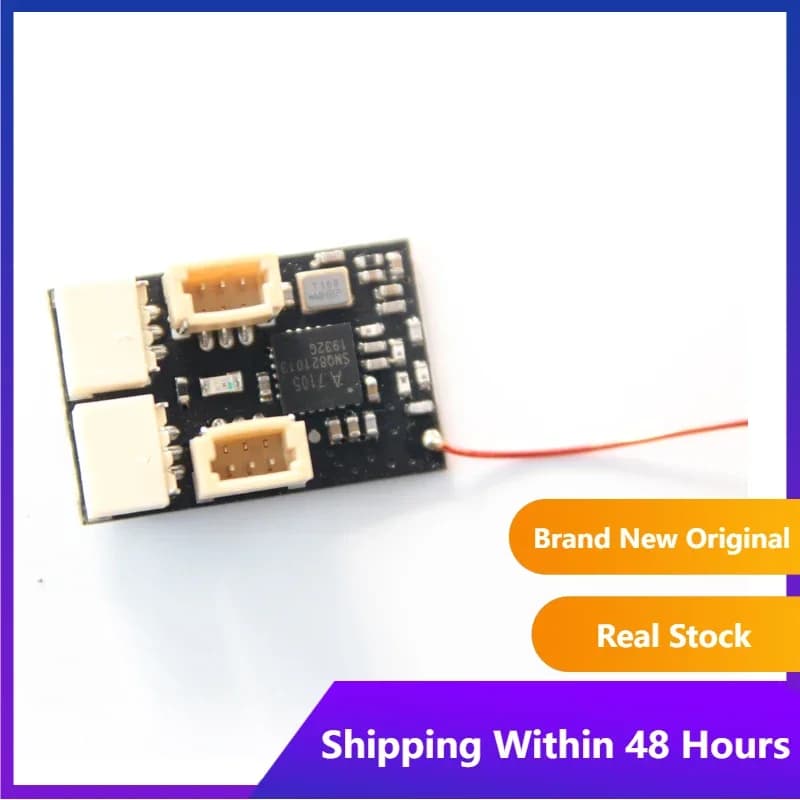

MA-RX42-A 2.4G Micro FLYSKY AFHDS 2A/3A 8CH Receiver PPM PWM Built-in 5A Brushed ESC for RC Micro Airplanes

Description:
Item Name: Receiver
Input Voltage: 3V - 5.5V

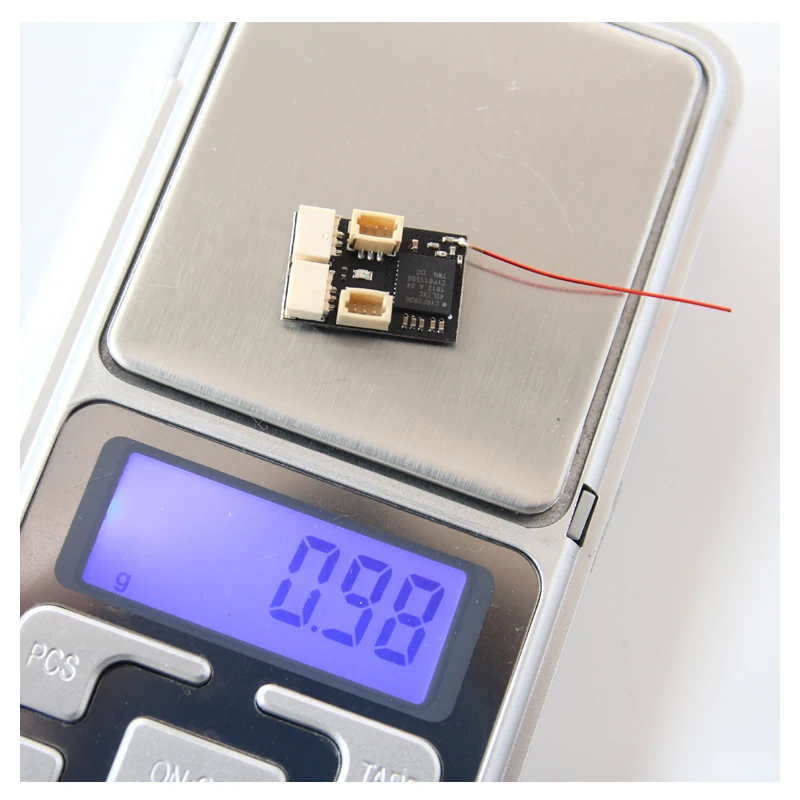

Weight: 1g
Dimension: 18.5x12x6.5mm
Connector Size: JST 1.0mm
Socket Size: 1.25mm 2P
Version: AFHDS 2A or AFHDS
Compatible for Flysky i6, i6X, i6S Transmiter
This receiver cable need to soldering by yourself.
Features:
Support Fuss FLYSKY two encoding methods, one is the old AFHDS mode, and the other is AFHDS 2A second generation encoding technology. Two modes, four channels in standard mode (PWM) mode with 5A brushed ESC; eight channels in multi-axis flight control (PPM) mode, working voltage: 3-5V, interface using 1.0mm JST, and horizon The interface is the same, and a 1.0mm 3P plug wire is randomly sent.

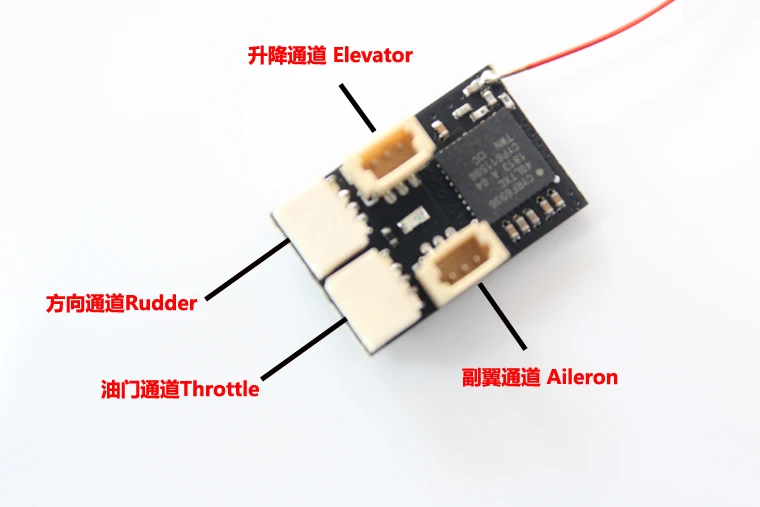

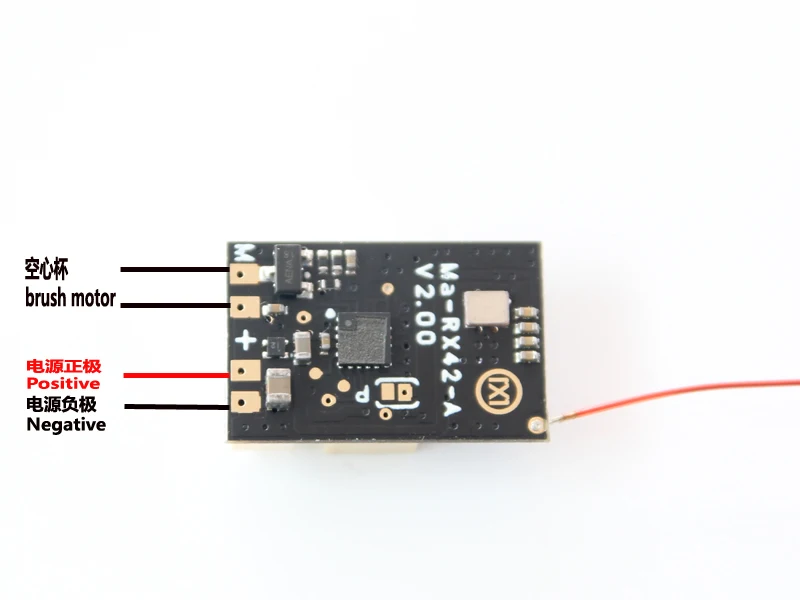

The Micro Compatible Flysky receivers is newly designed miniature compatible receivers for miniature model aircraft. They offer 4 independent output interfaces and a built-in 5A brushed ESC output interface. They also support PPM signal output.
The AFHDS 2A protocol first energizes the receiver. After the receiver LED flashes quickly, the transmitter is turned on. The receiver's red LED is always on, indicating that the frequency is successful. The AFHDS 2A protocol can be used to return the receiver's operating voltage.
The AFHDS protocol is slightly different: after the power-on receiver LED flashes quickly, the transmitter is turned on, and the receiver LED changes from fast flash to slow flash. At this time, the transmitter is turned off and on again, and the receiver remains unchanged. At this time, the receiver LED Always bright, can be used normally!
Note:
No suitable for conventional wide voltage servos.
Reverse power supply will damage the receiver.
When use 1S battery, please use low voltage micro servo.

Package Included:
1x receiver
