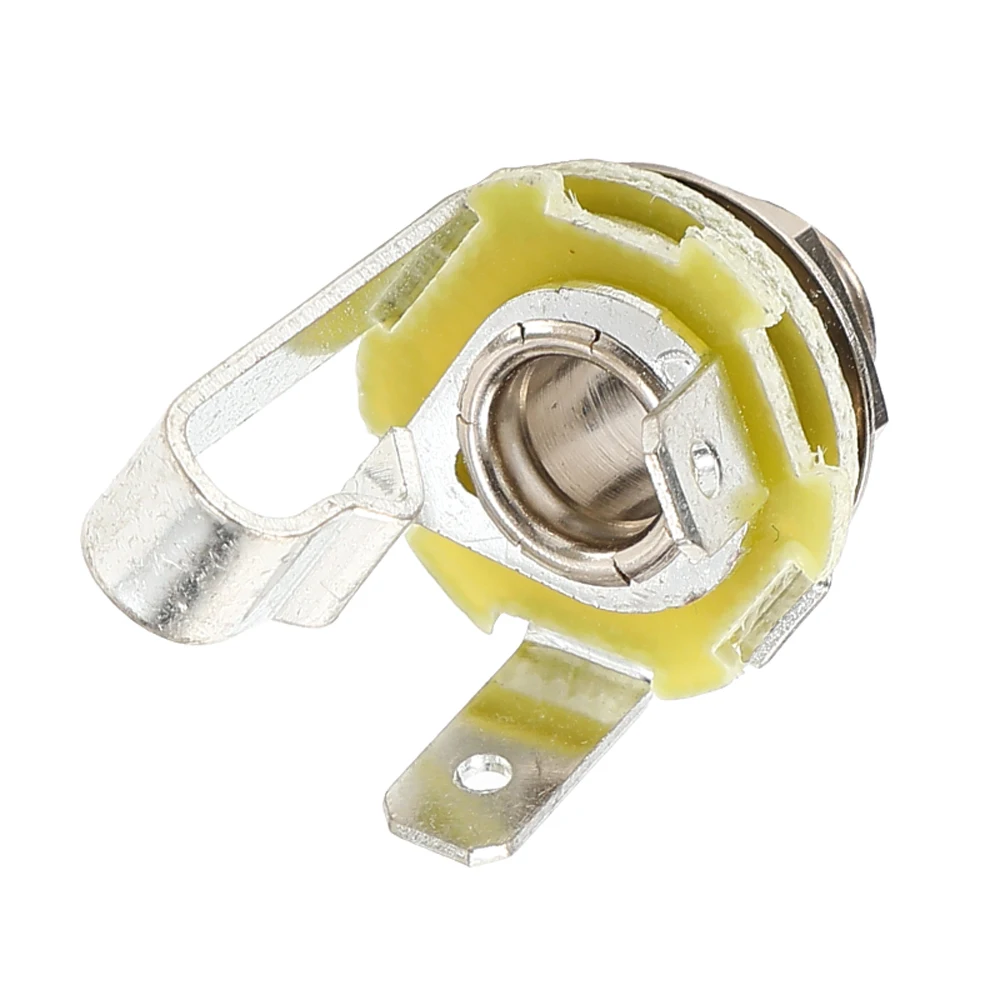

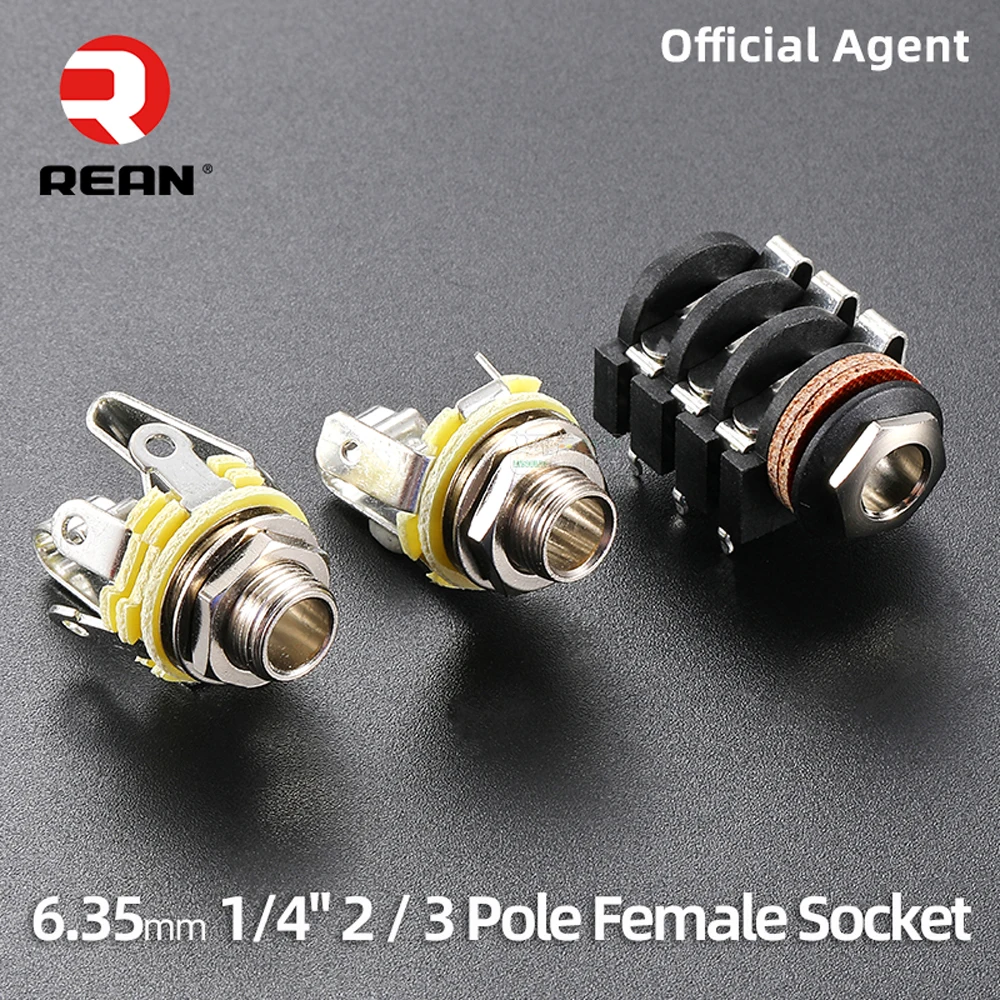

Neutrik's REAN TRS Stereo 6.35mm Metal Female Jack 3 Pole NYS230 Audio Panel Mounting Socket 1/4" TS Mono Jack,PCB Socket NYS215

P​acking:  ​

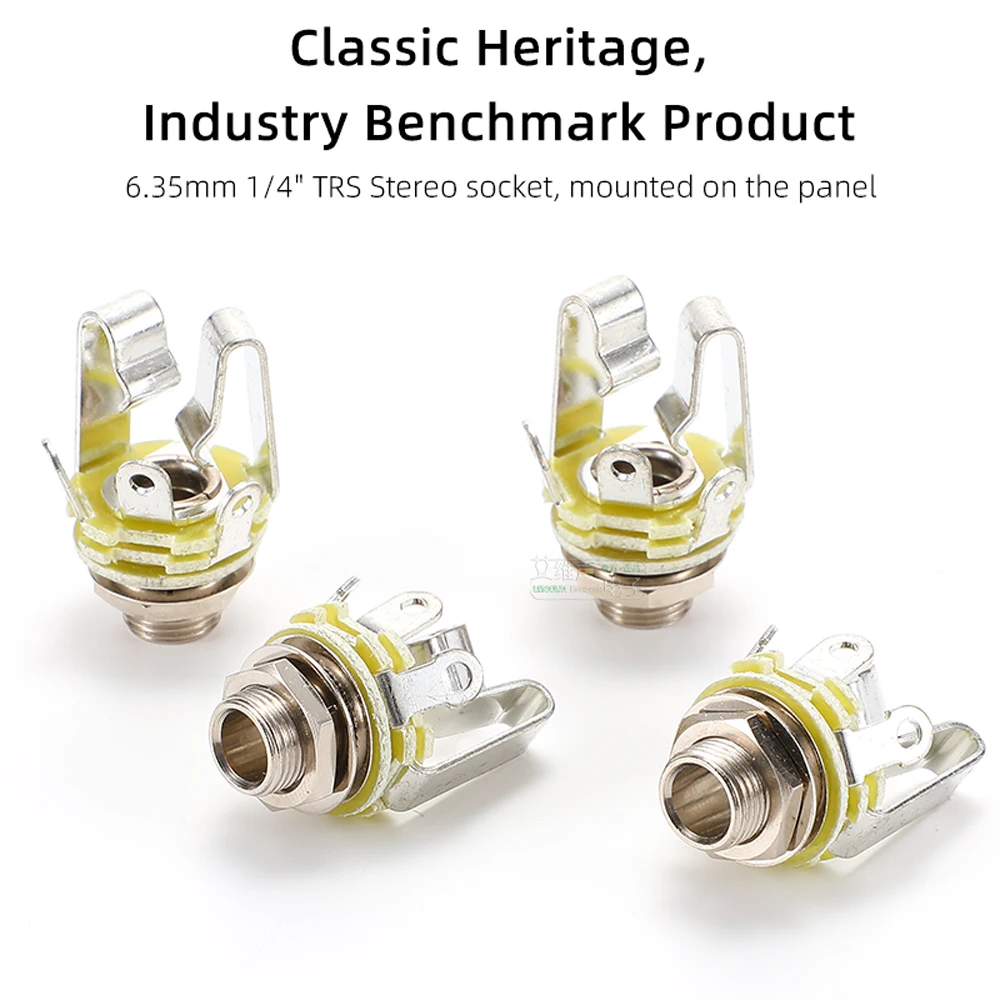

* NYS230 Stereo 3 Pole:   1 PCS of NYS230, OR  10 PCS of NYS230 （according to the option you buy）

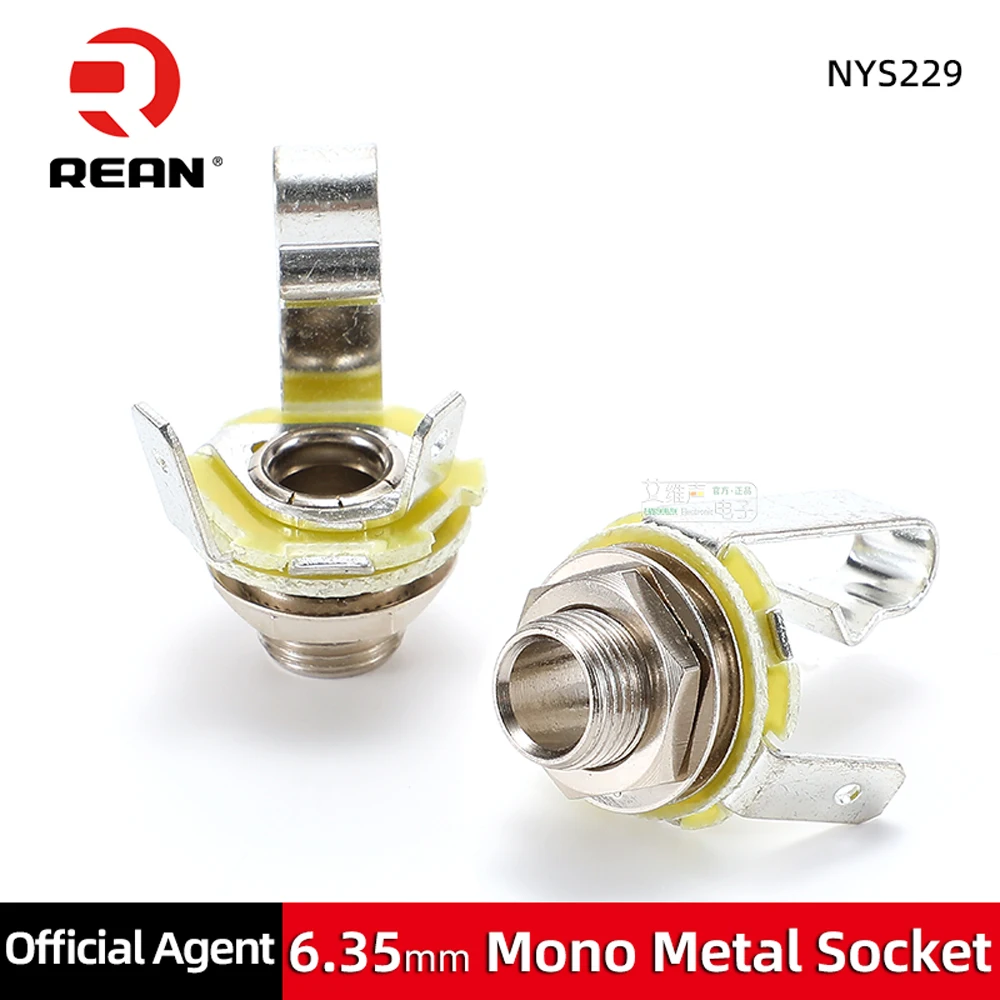

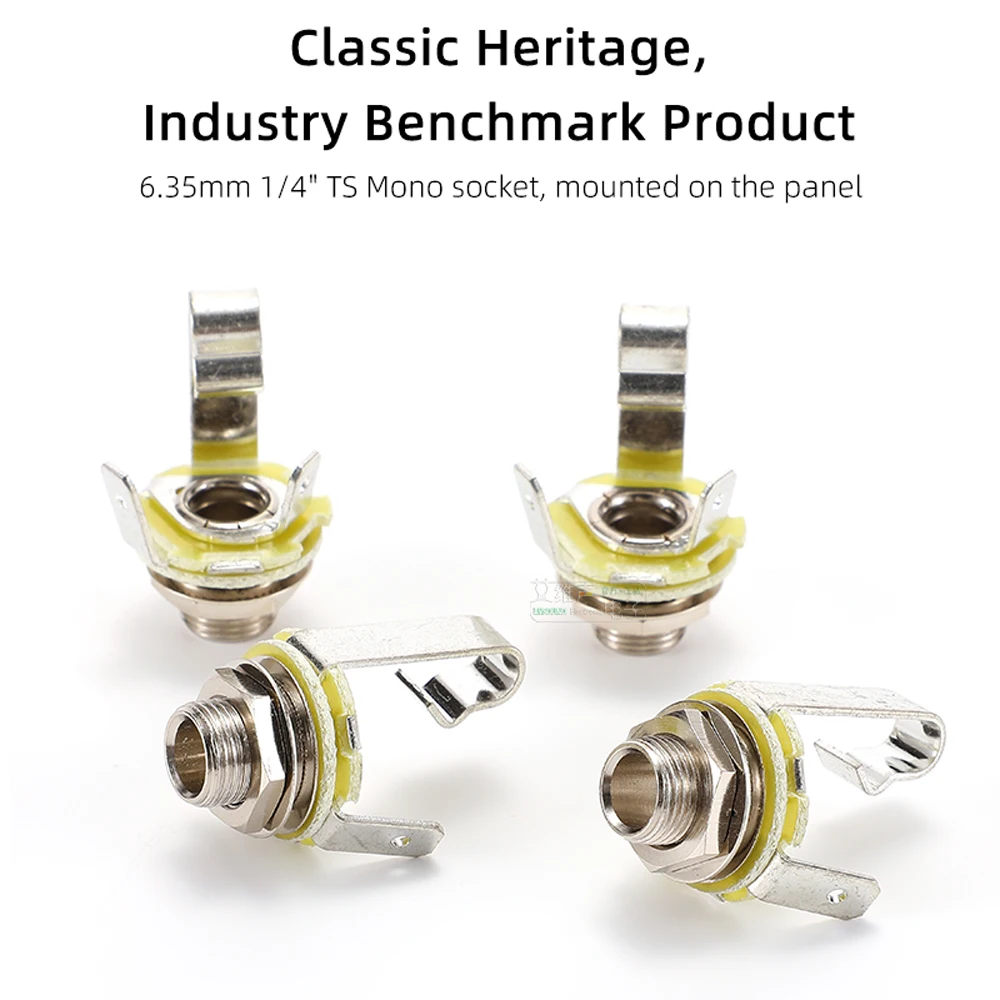

* ​NYS229 Mono 2 Pole:   1 PCS of NYS229, OR  10 PCS of NYS229 （according to the option you buy）

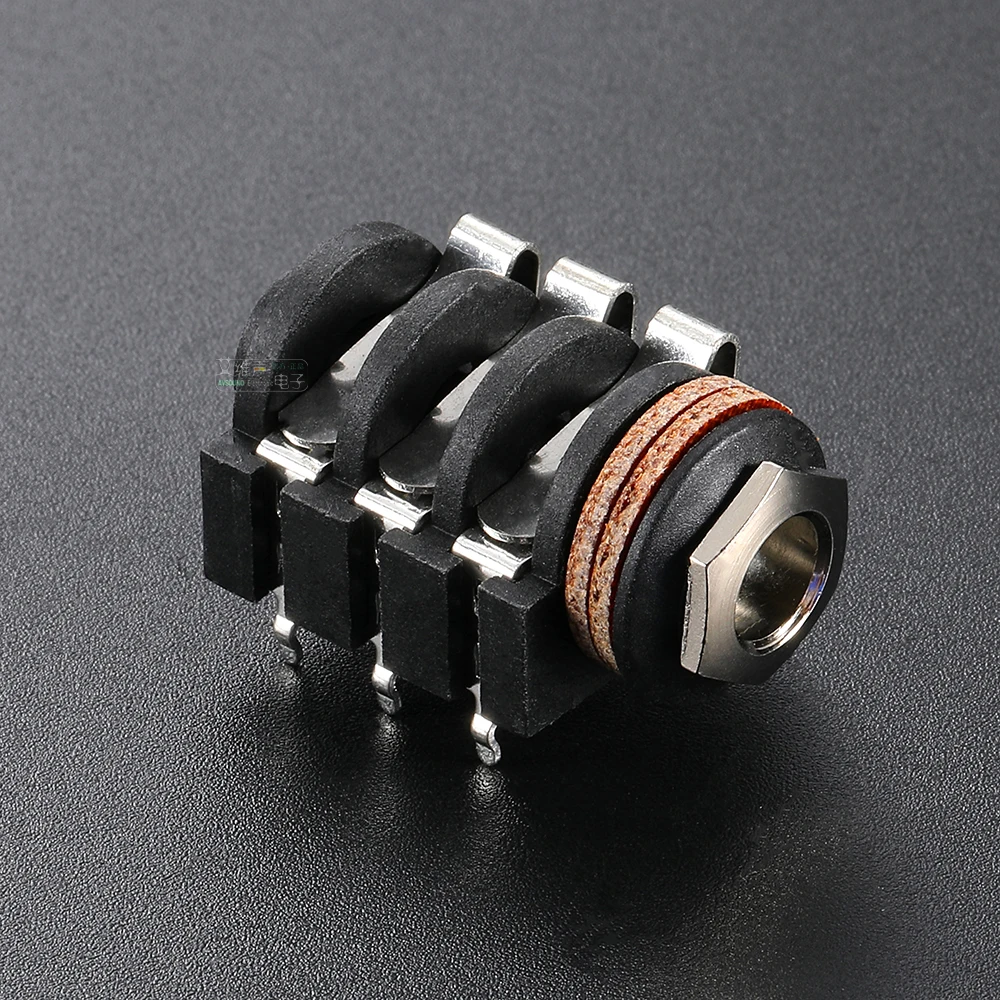

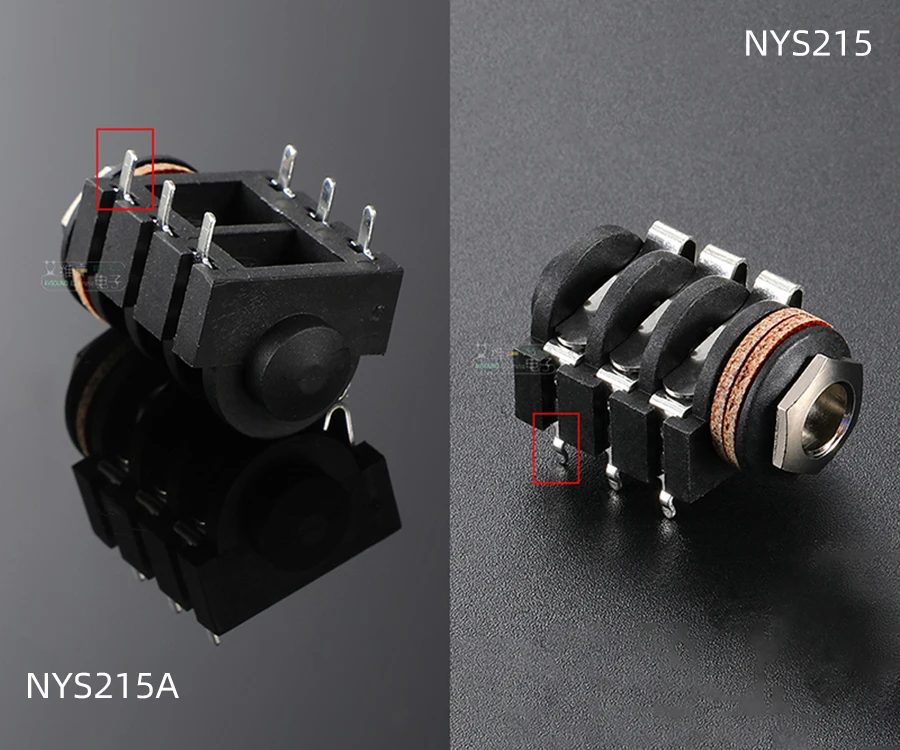

* NYS215 Stereo 3 Pole:
1 PCS of NYS215 / NYS215A(Random shipping),
OR
10 PCS of NYS215 / NYS215A (Random shipping)
（Quantities: according to the option you buy）

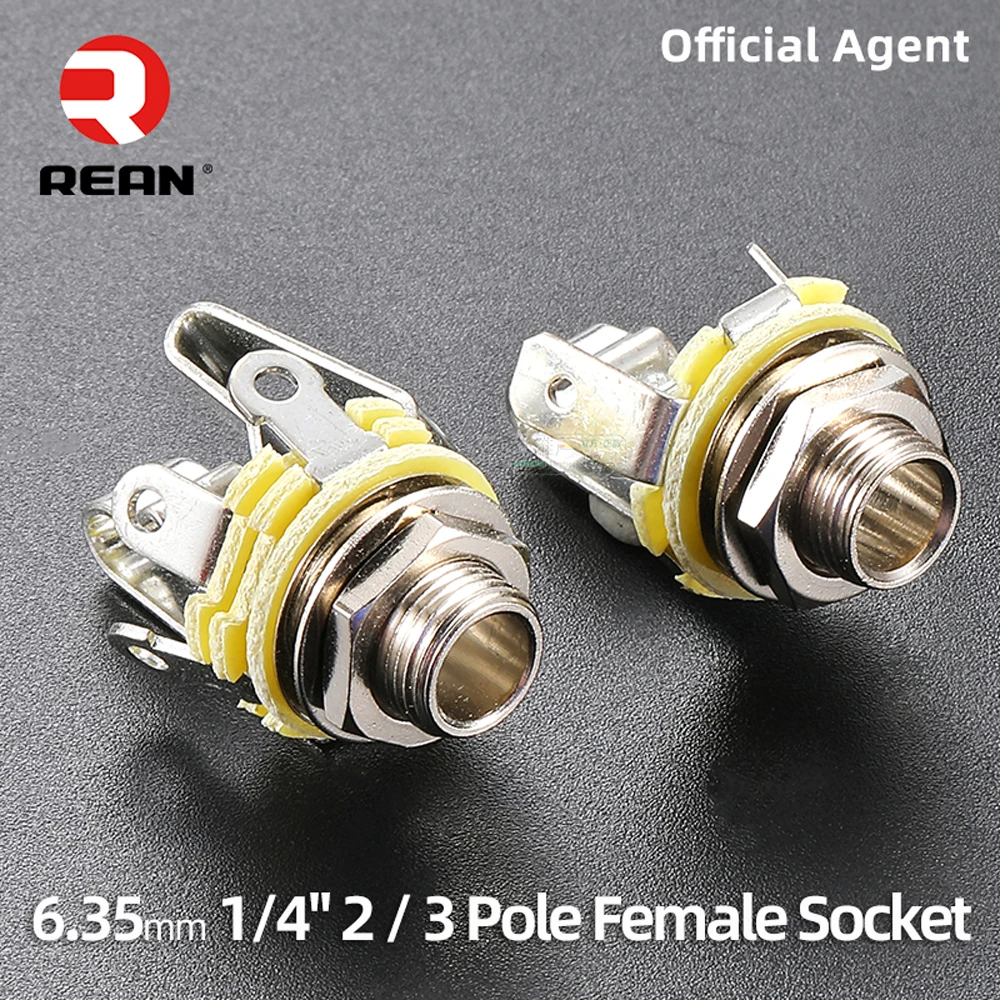

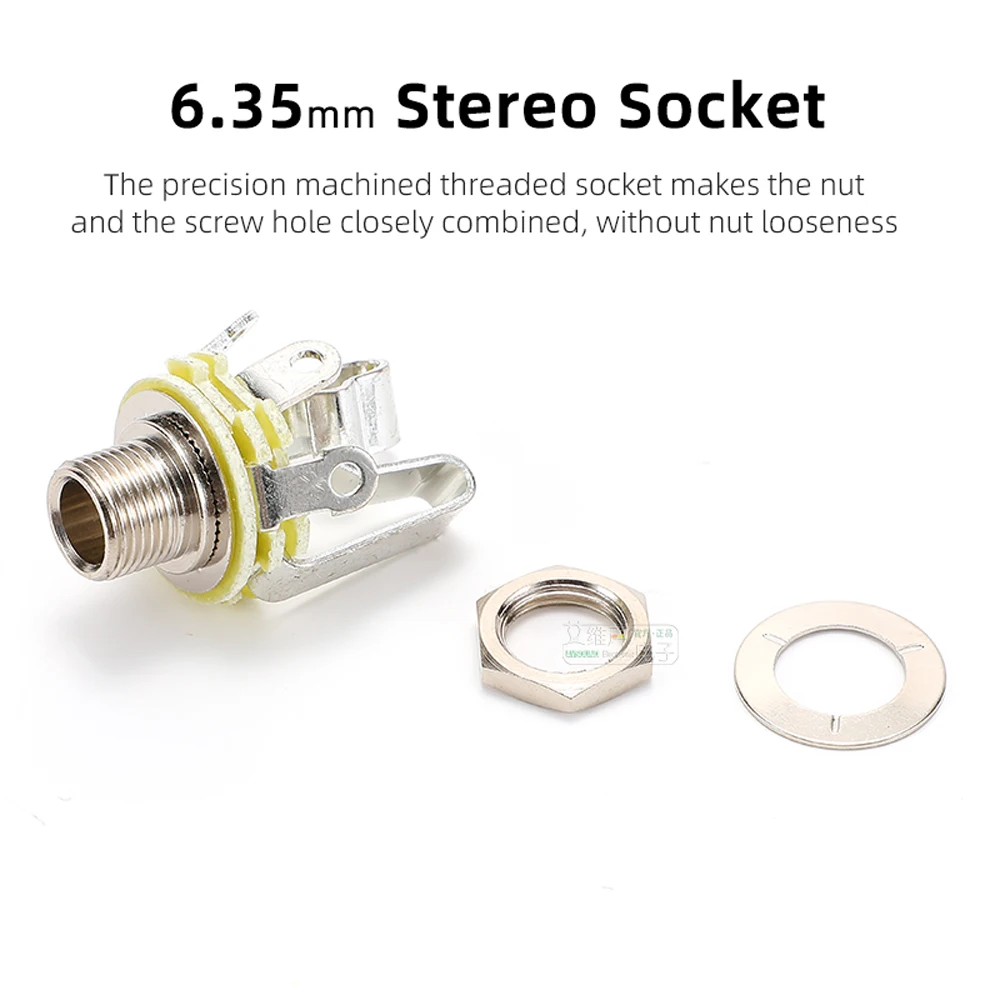

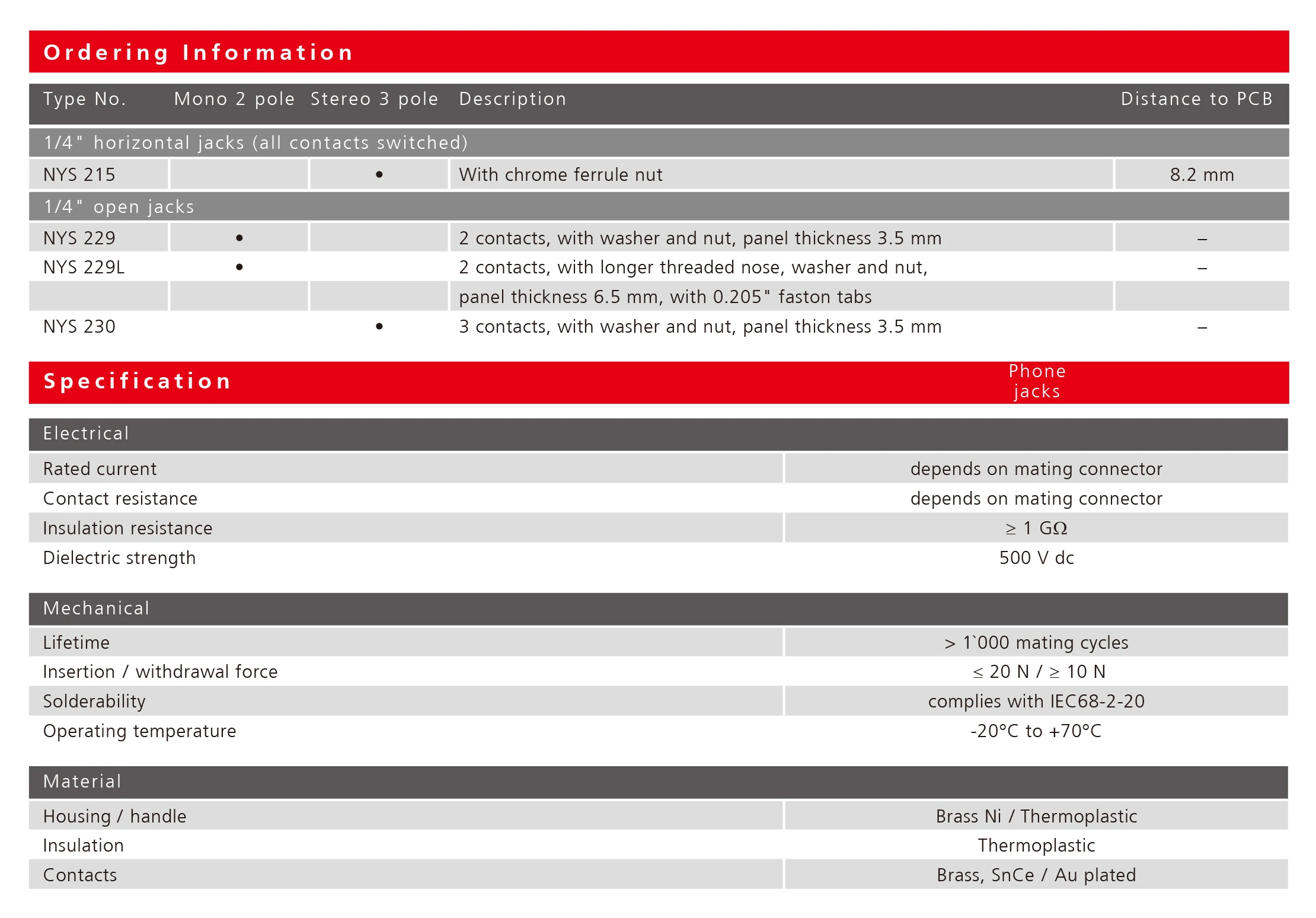

1/4" open jack, mono 2 pole, or stereo 3 pole, with washer and nut, with 0.205" faston tabs

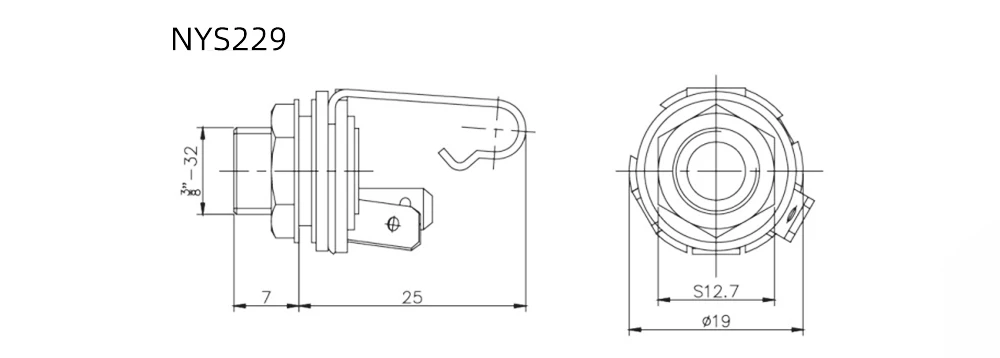

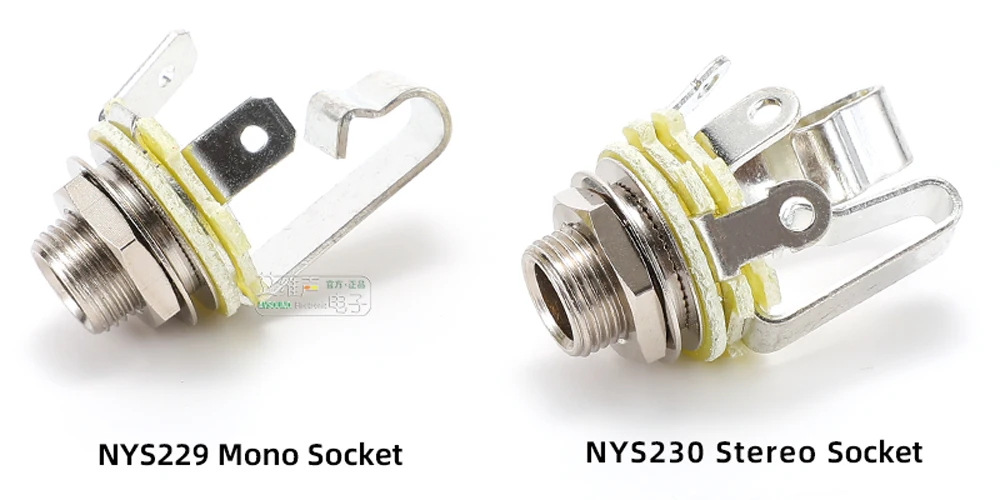

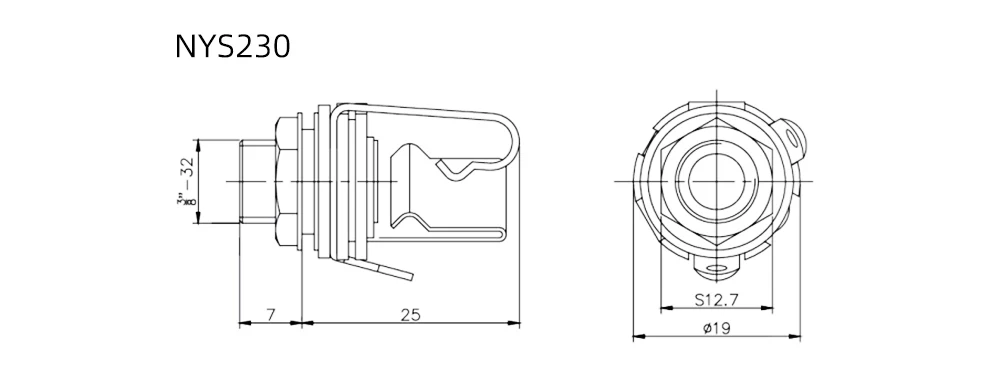

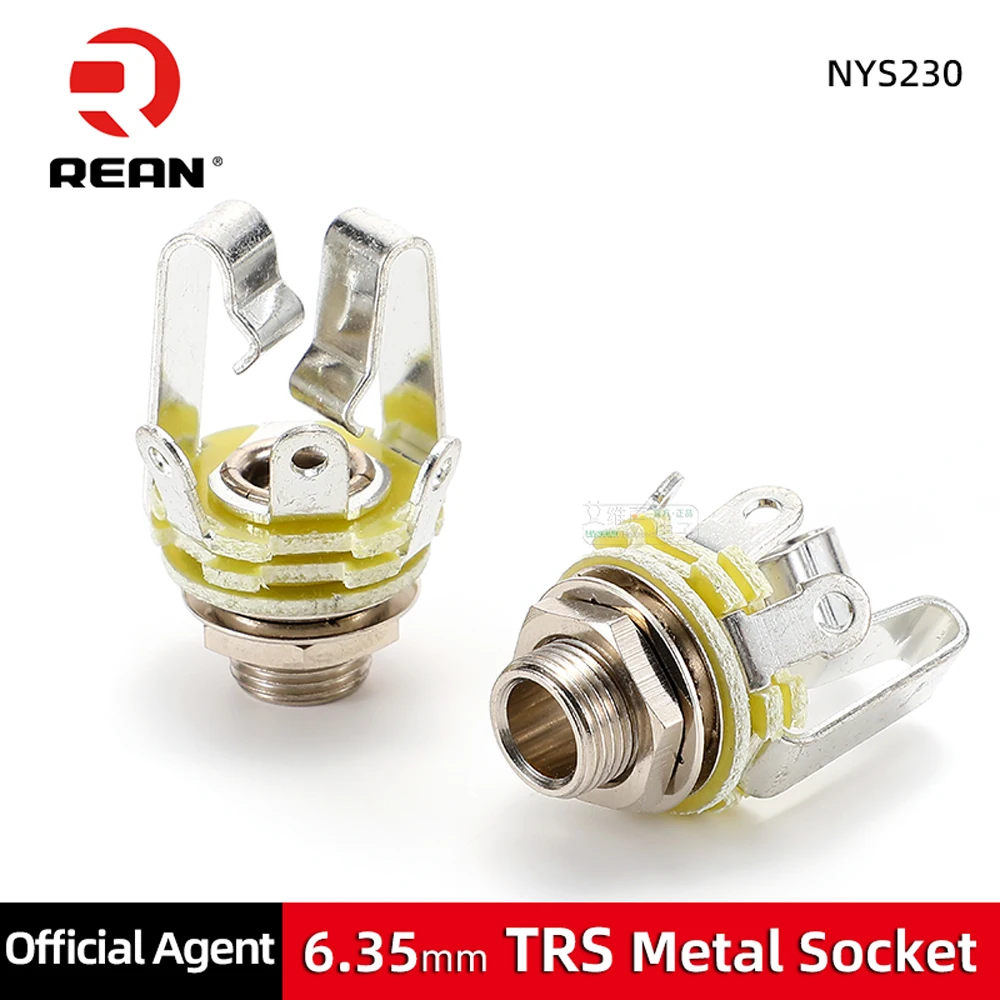

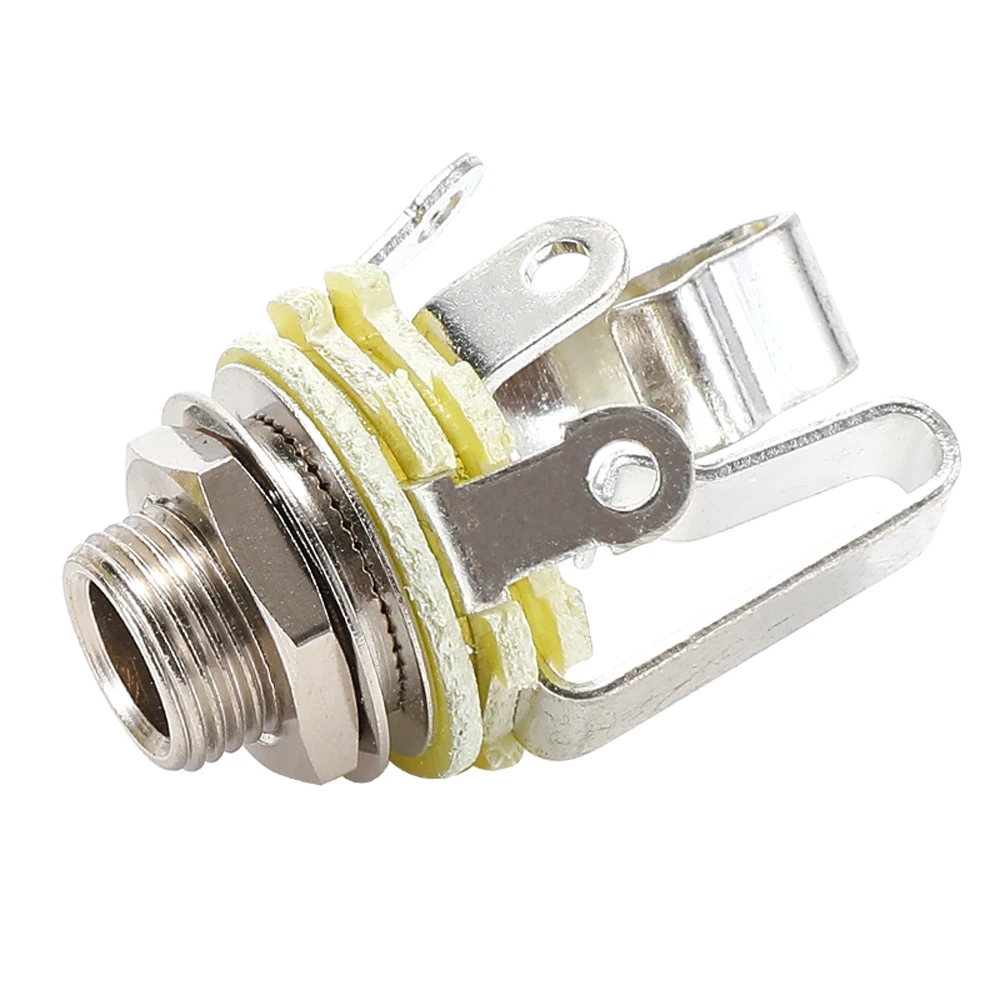

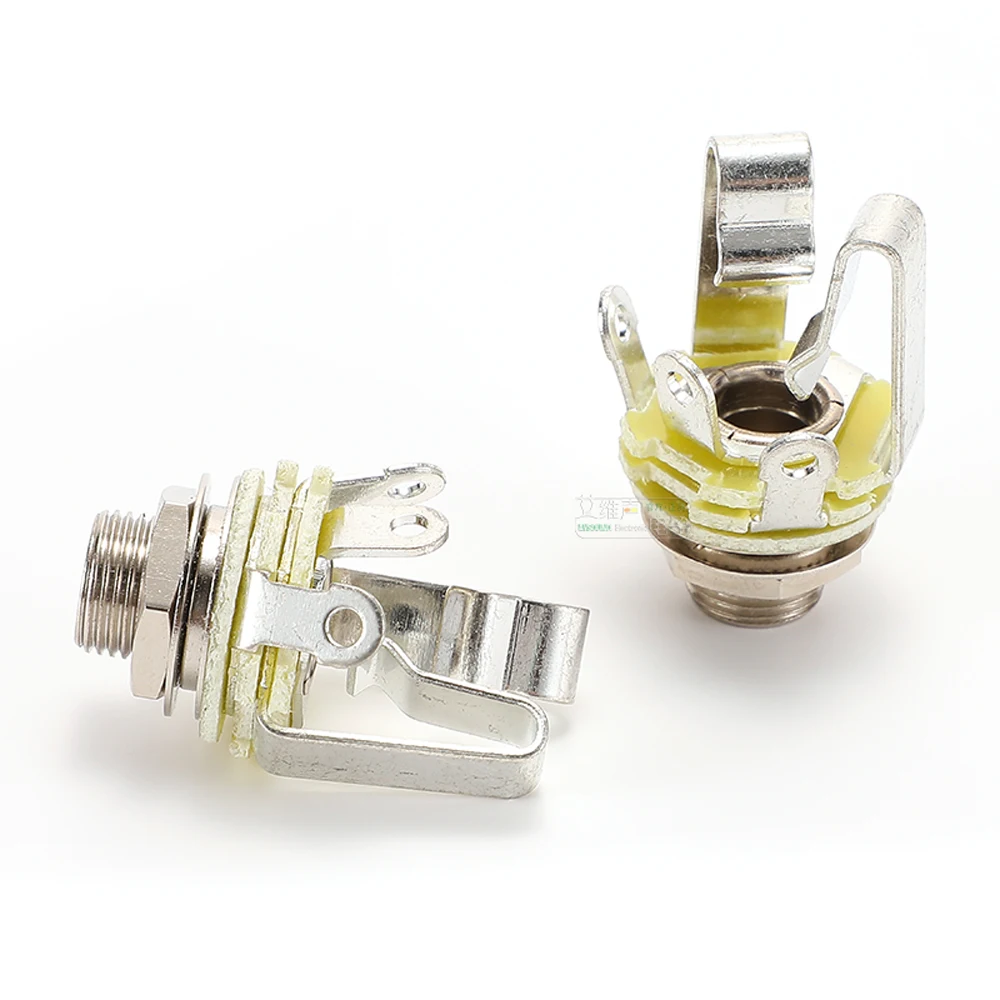

Model: NYS229, NYS230

Connection Type: Jack

Electrical

Contact resistance: ≤10mΩ
Insulation resistance: ≥2000MΩ
Dielectric strength: 50Hz 500VAC

Mechanical

Insertion and Withdrawal force: 4.5-40N (NYS229), 5-40N (NYS230)
Lifetime: >5000 mating cycles

Material

Contact: QSn6.5-0.1δ0.5 T
Contact: H62 δ0.5 Y2
Base: Brass
Gasket: Steel
Nut: Brass
Contact: Tin and Ce

Material (NYS230)

Tube: Brass
Washer: Steel
Washer: Steel
Washer: 3240 Epoxy-phenolic
Insulator Washer: 3240 Epoxy-phenolic
Contact: Bronze
Sleeve Contact: Brass
Contact: Bronze
Tube: Nickel Plating
Nut: Nickel Plating
Washer: Nickel Plating
Washer: Nickel Plating
Contact: Tin and Cer
Sleeve Contact: Tin and Cer
Contact: Tin and Cer
