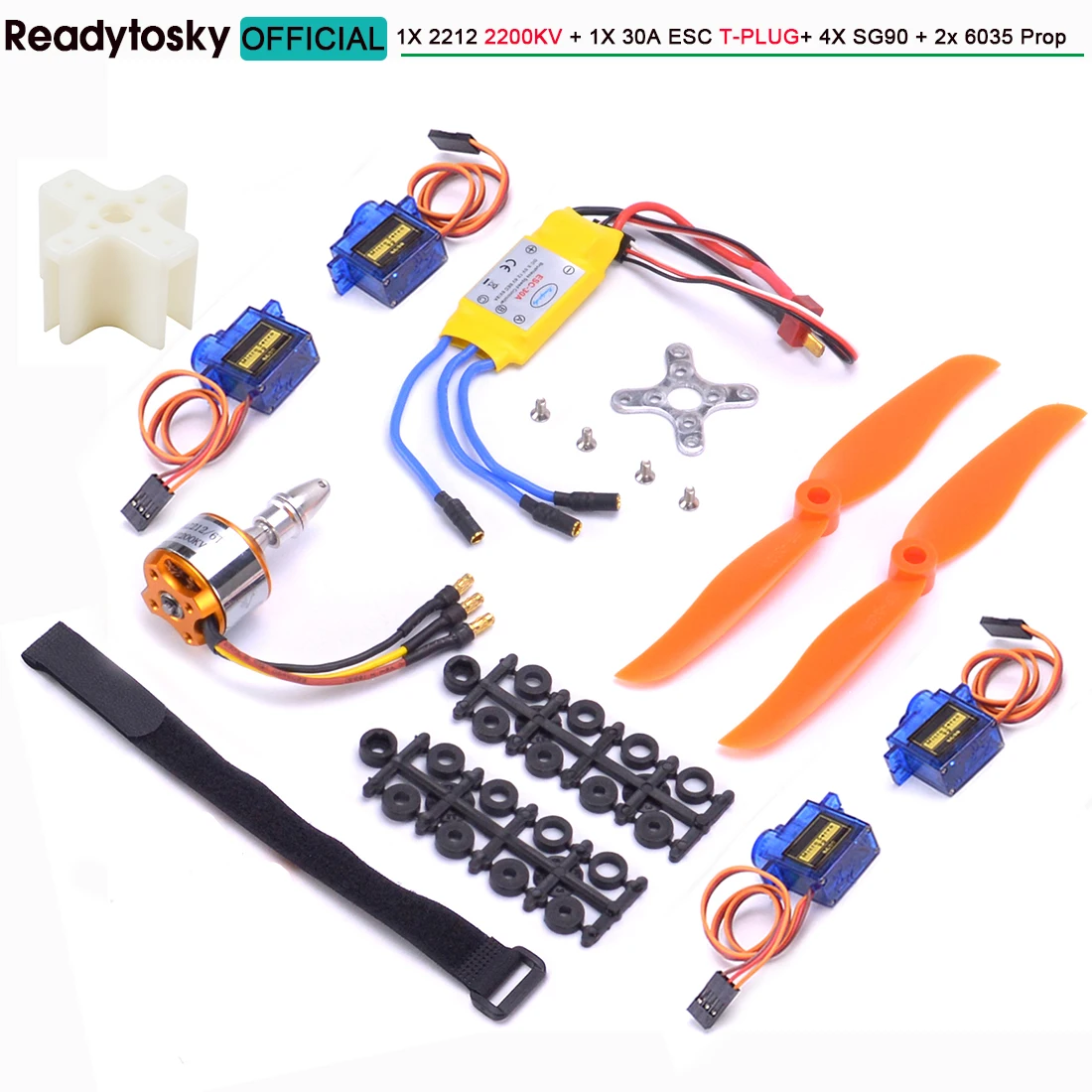

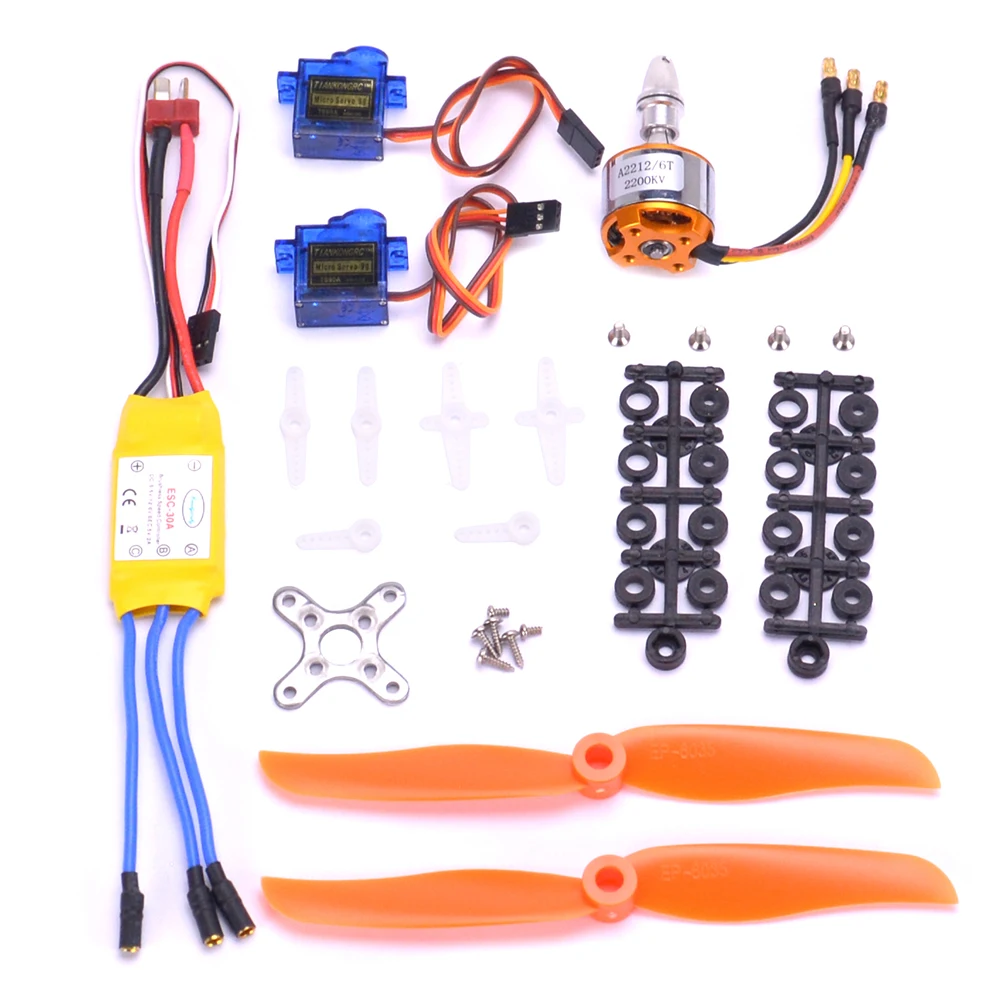

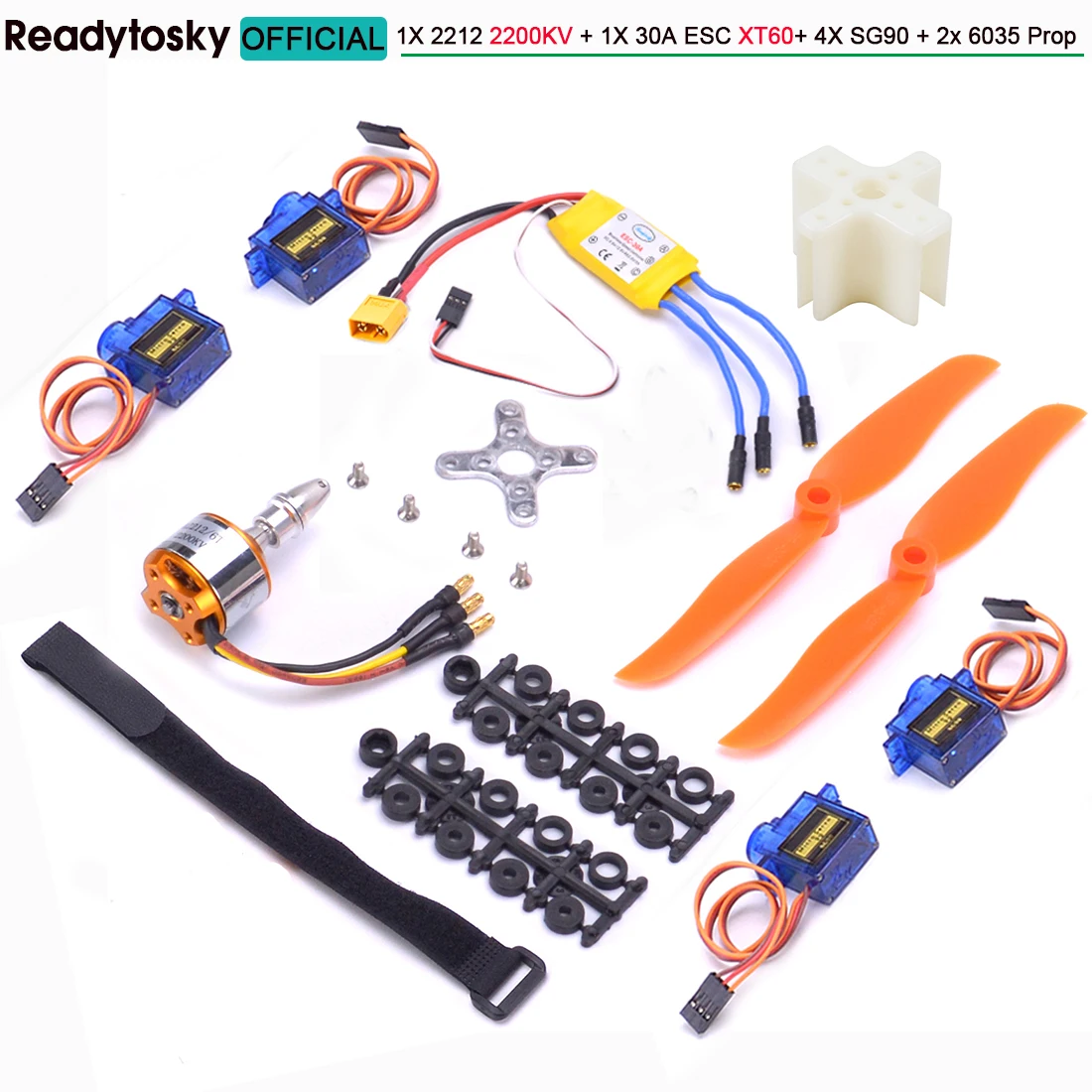

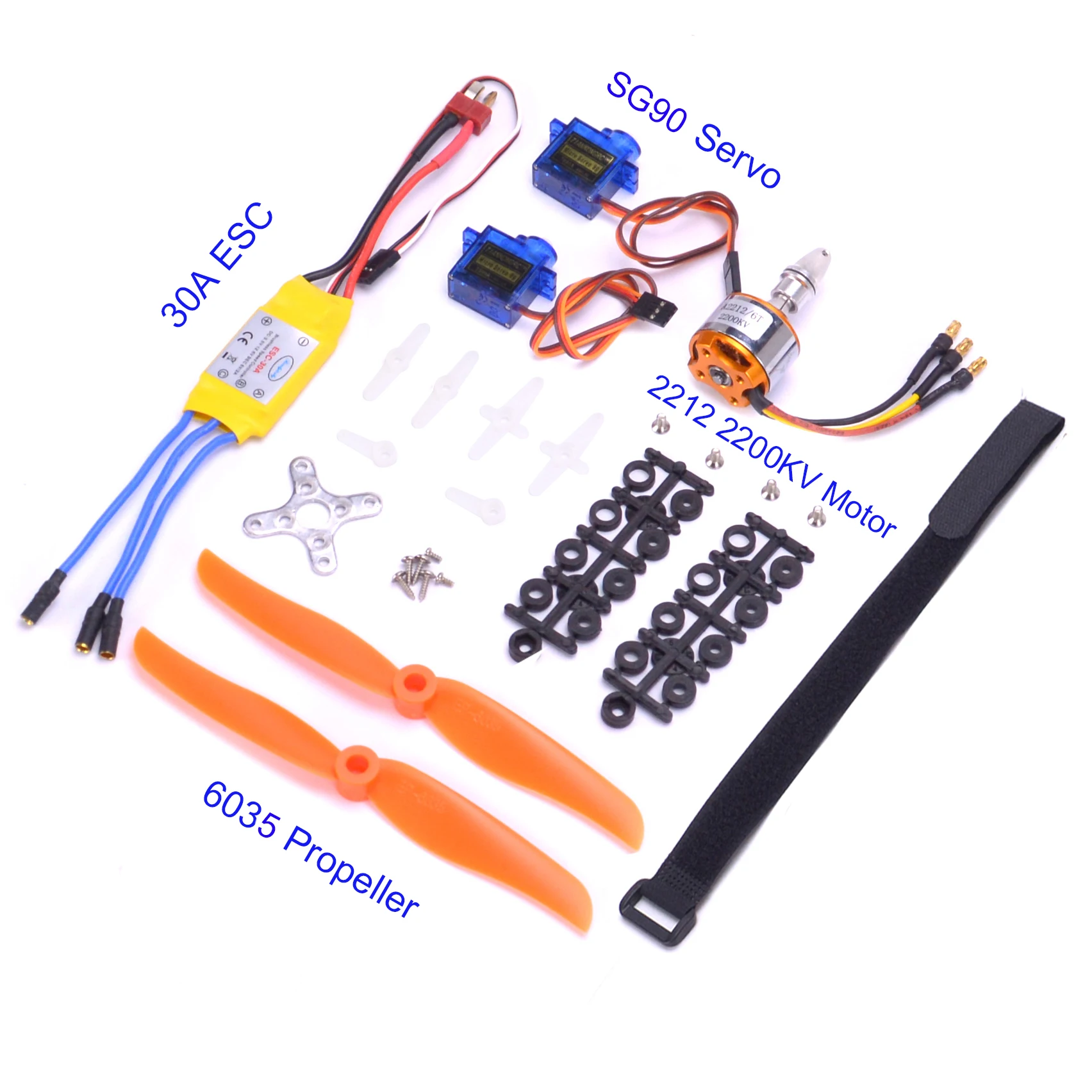

A2212 2212 1400KV 2200KV Brushless Motor 30A ESC SG90 9G Micro Servo 6inch / 8inch Propeller for RC Fixed Wing Plane Helicopter

SG90A 9G Micro Servo

This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.

Key features:

• Translucent body

• Lightweight

• Less noise

TS90A 9G servo parameters:

Size: 21.5mmX11.8mmX22.7mm

Weight: 9 grams

No load speed: 0.12 sec / 60 deg (4.8 V)

Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)

Operating temperature: -30~~+60 degrees Celsius

Dead zone setting: 5 microseconds

Working voltage: 4.8V-6V

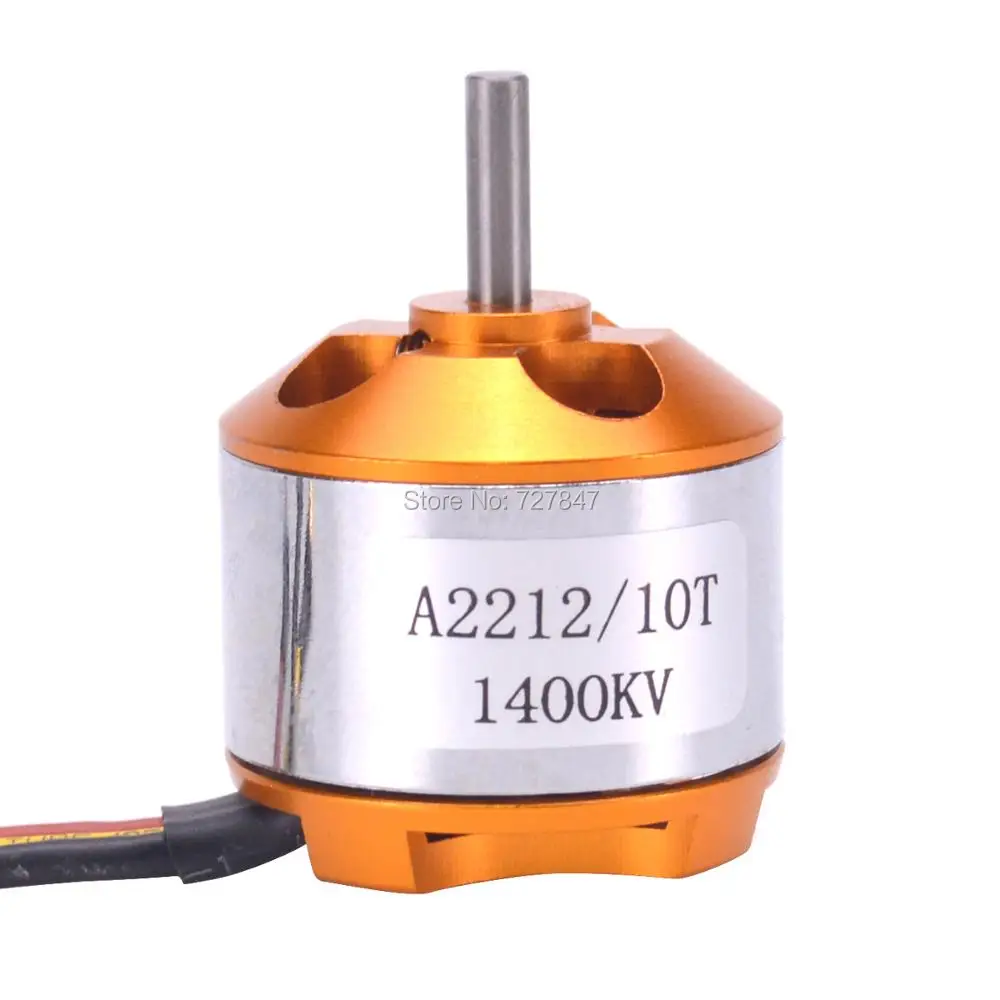

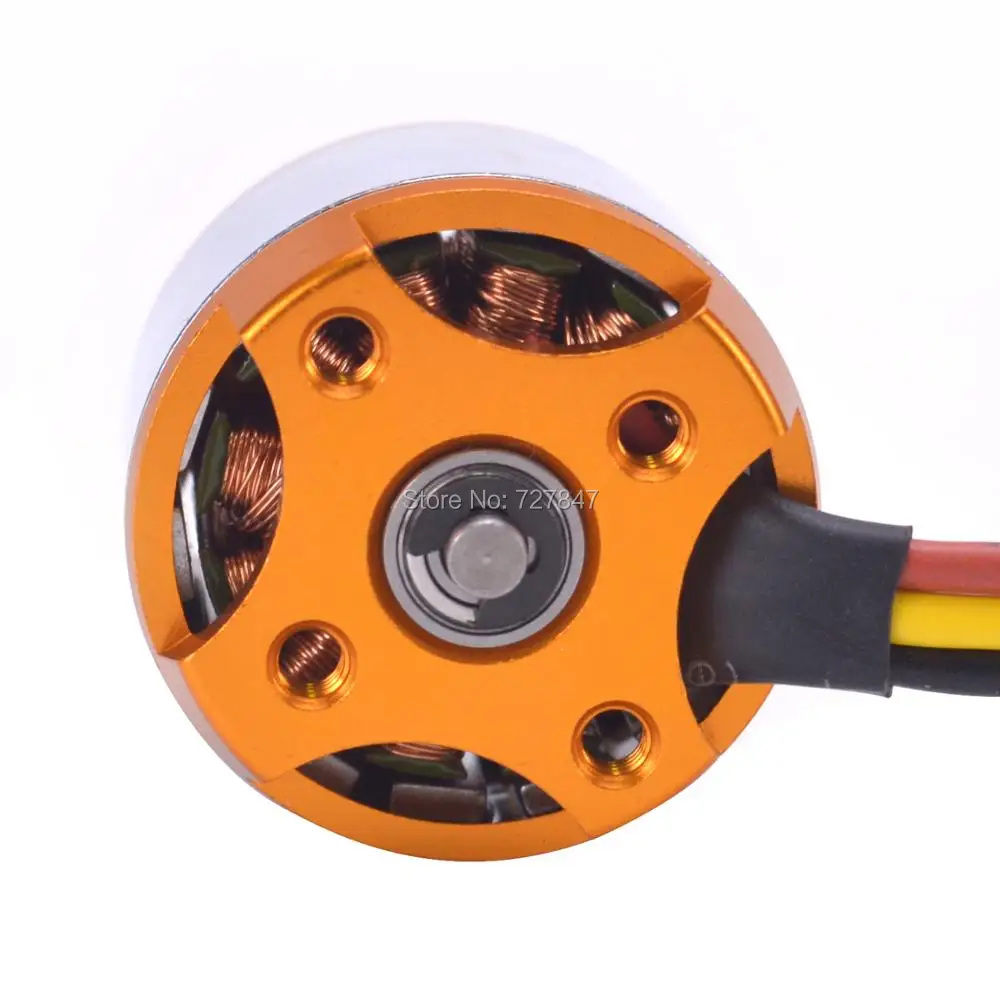

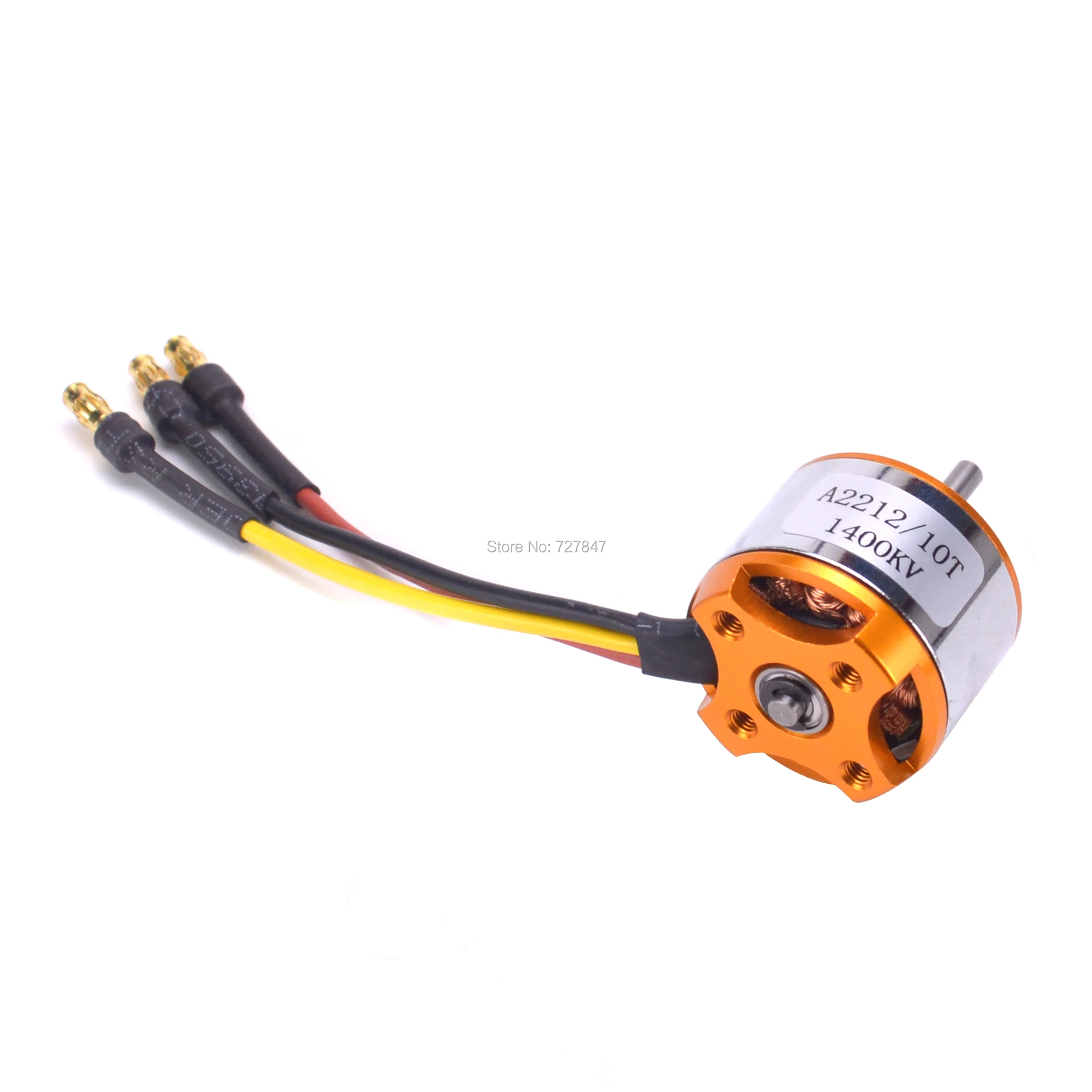

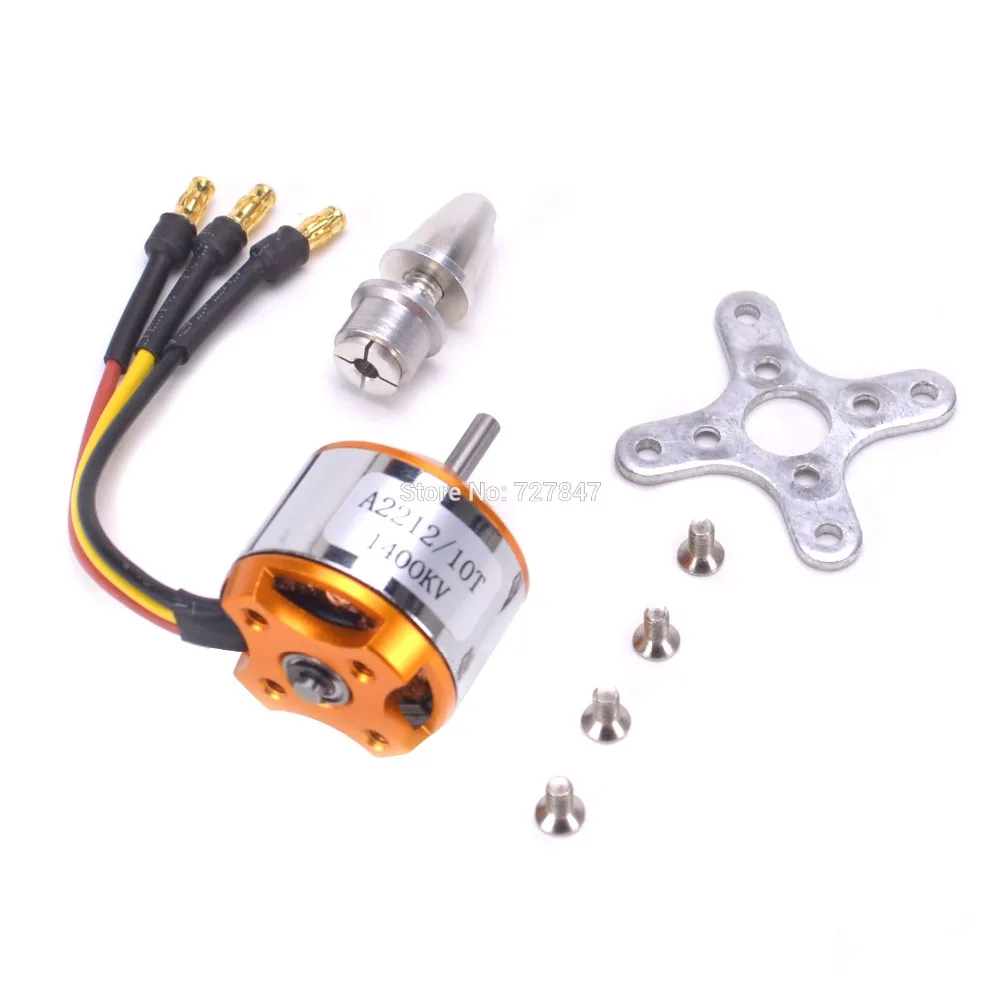

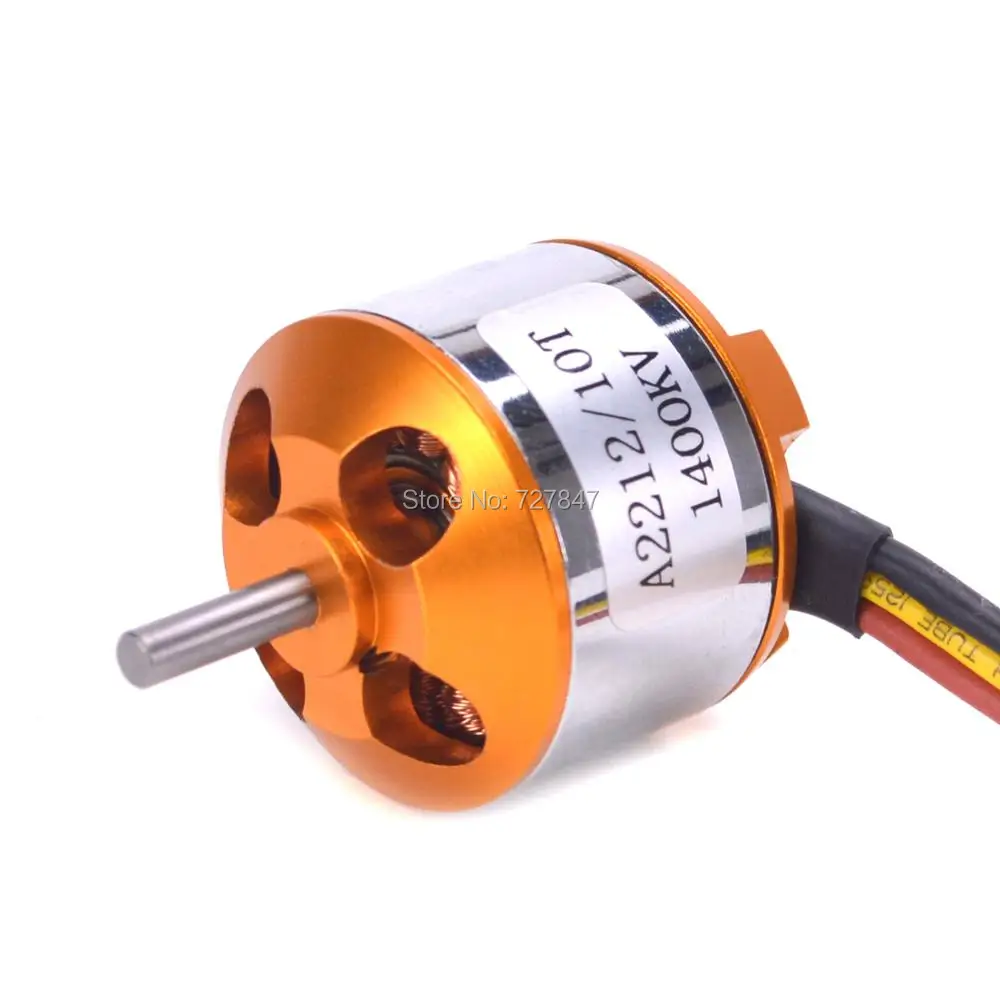

A2212 1400kv Motor Specification:

KV: 1400

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.5 x 30mm

Shaft Diameter: Φ3.17mm

Weight: 60.1g

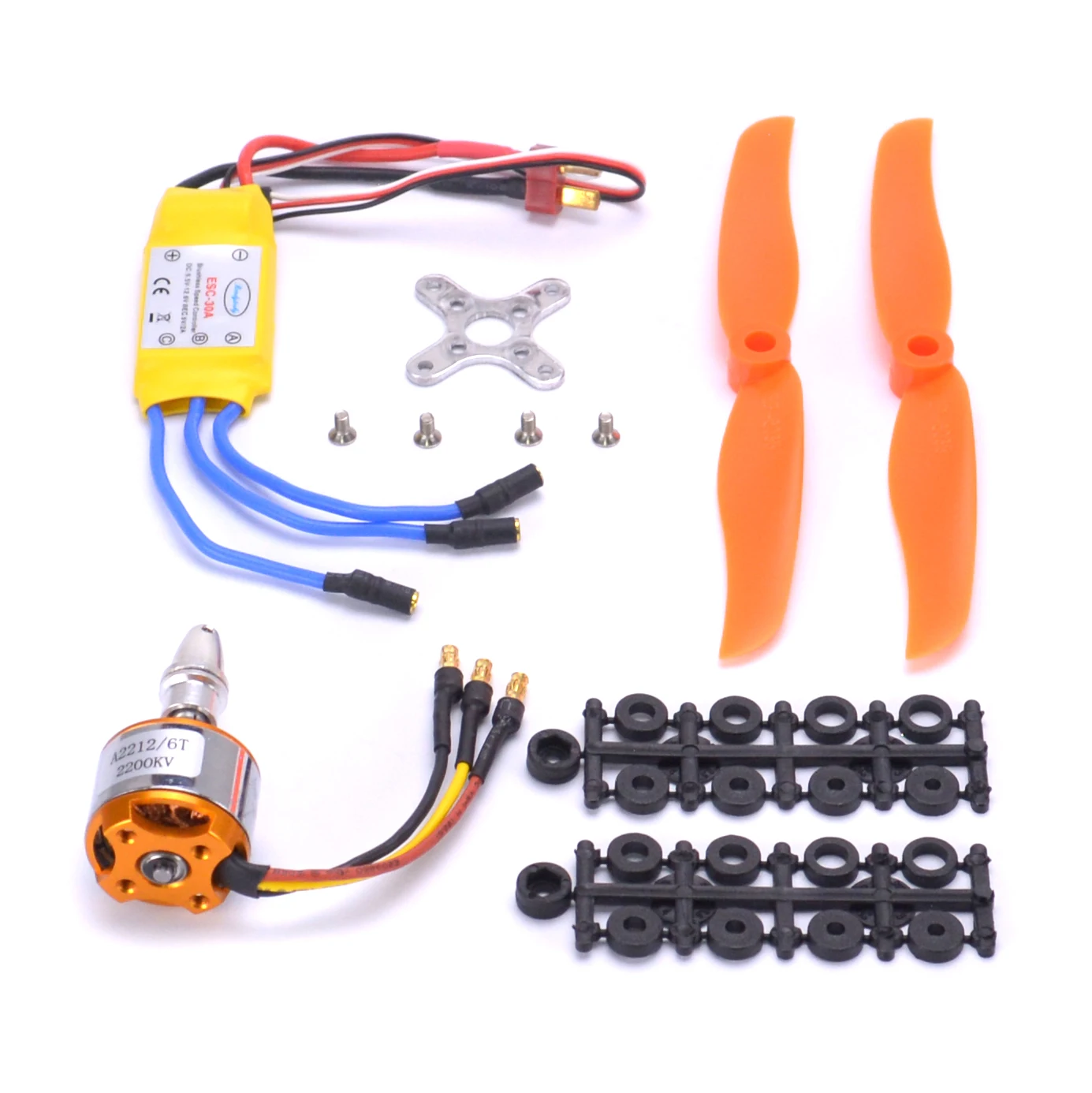

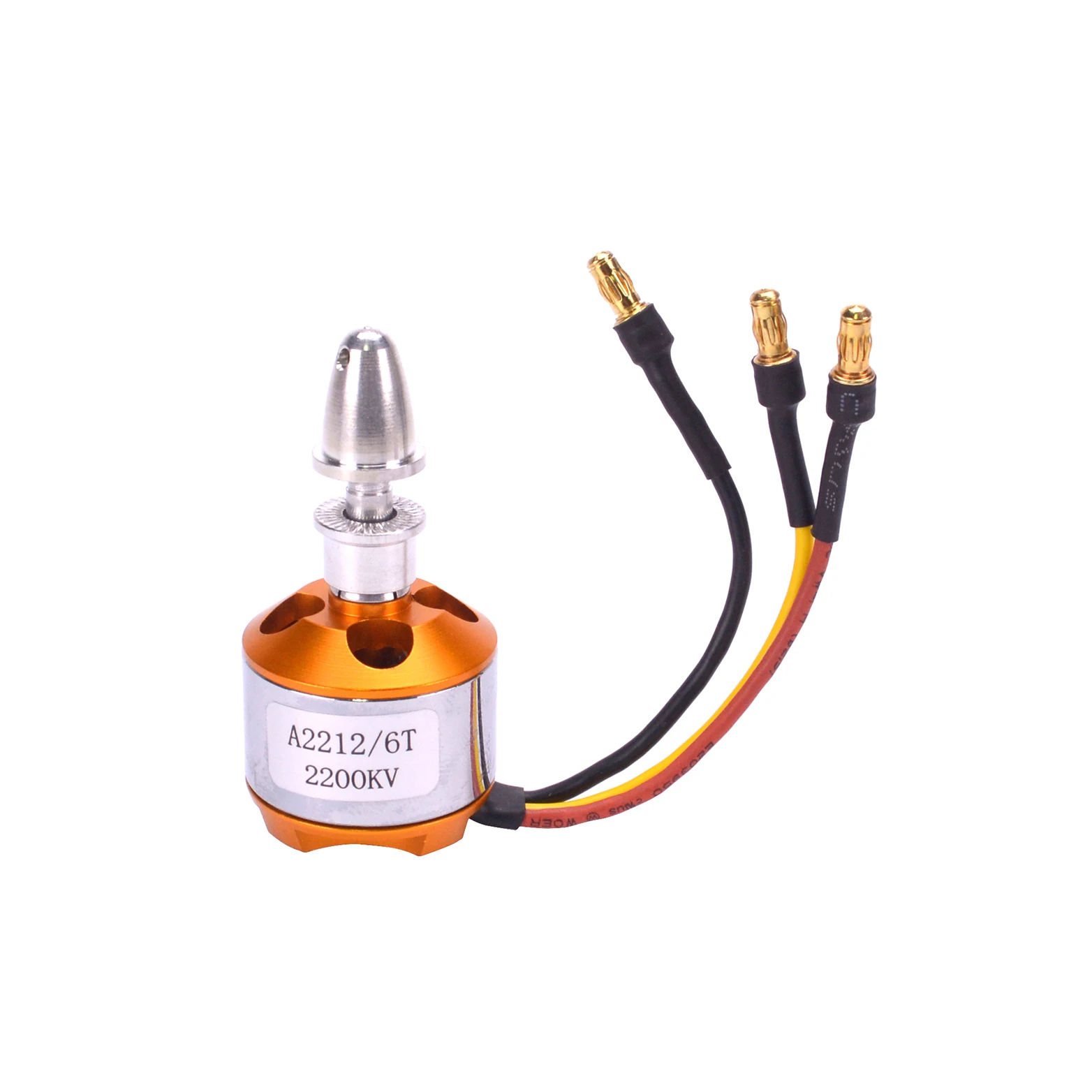

A2212 2200kv Motor Specification:

KV: 2200

Ri(M Ω): 0.033

Battery: 2-3Li-Po

Max Power: 342W

Test Prop: 7x3/7x4

Motor Size: 27.5x38mm/1.08''x1.5''

Shaft Diameter: 3.17mm/0.12''

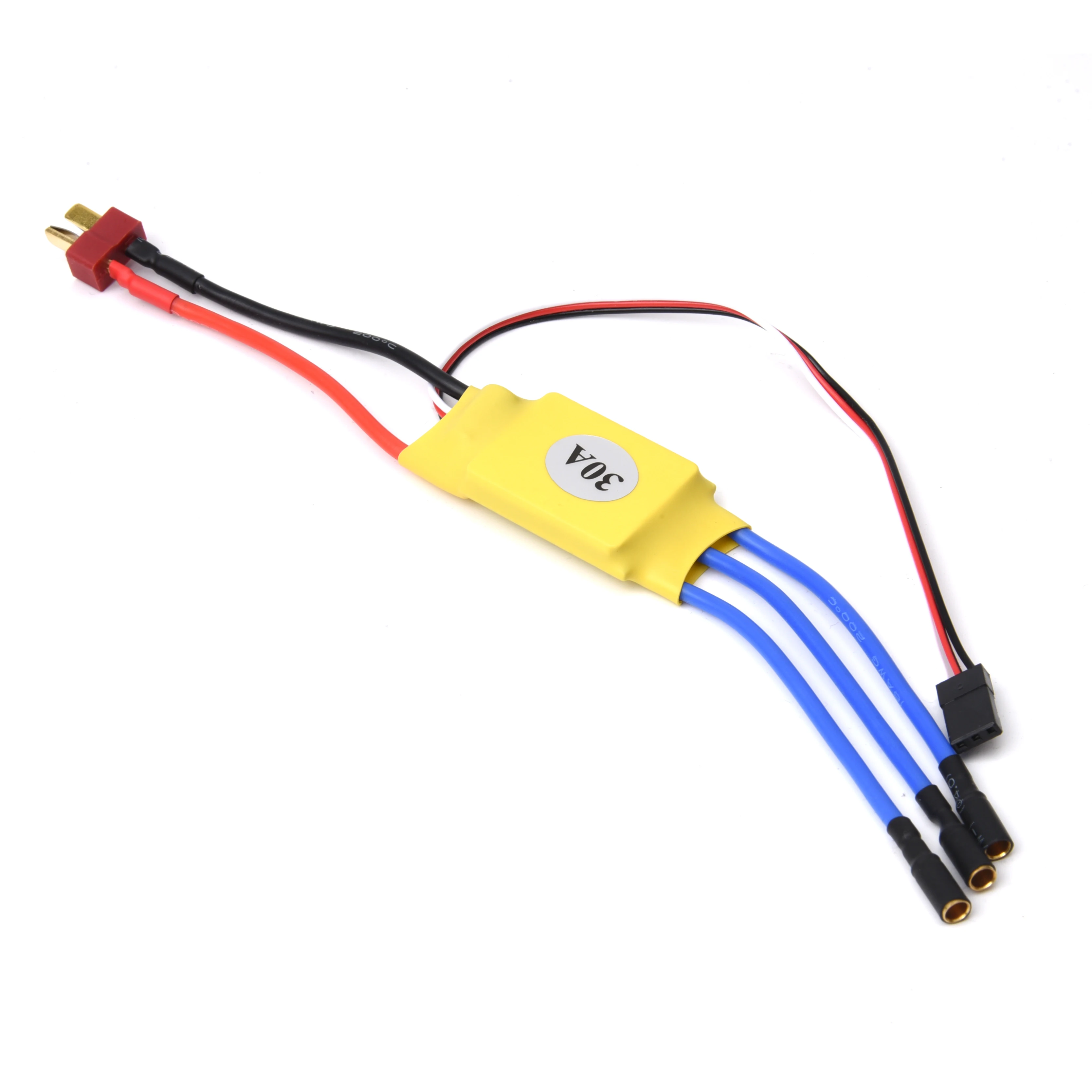

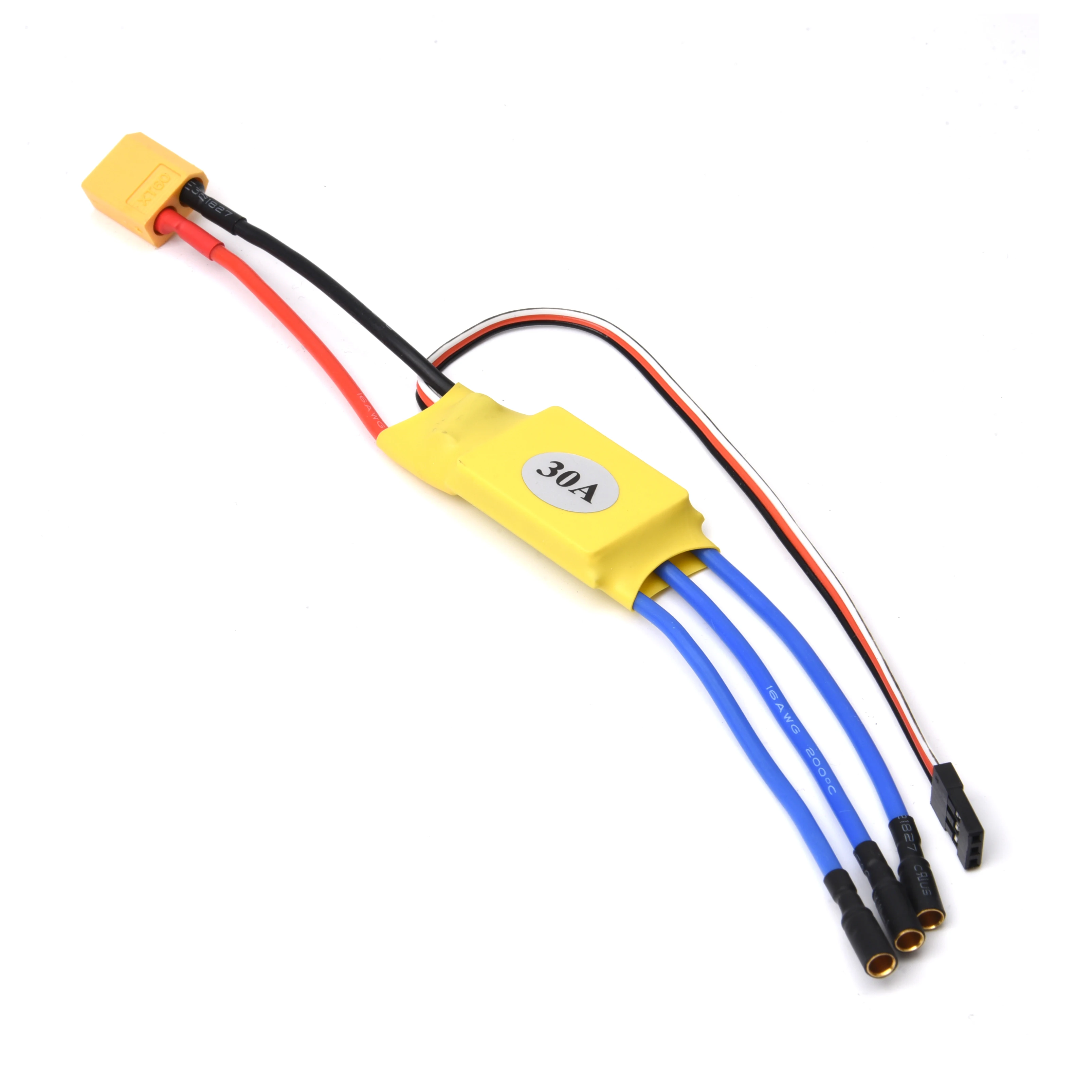

30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter

Specification:

Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter

-Output: Continuous 30A, Burst 40A up to 10 Secs.

-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.

-BEC: 2A / 5V (Linear mode).

-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

(BLM: BrushLess Motor)

With T plug and 3.5mm banana connectors

the 2 kinds of ESC label send at random!

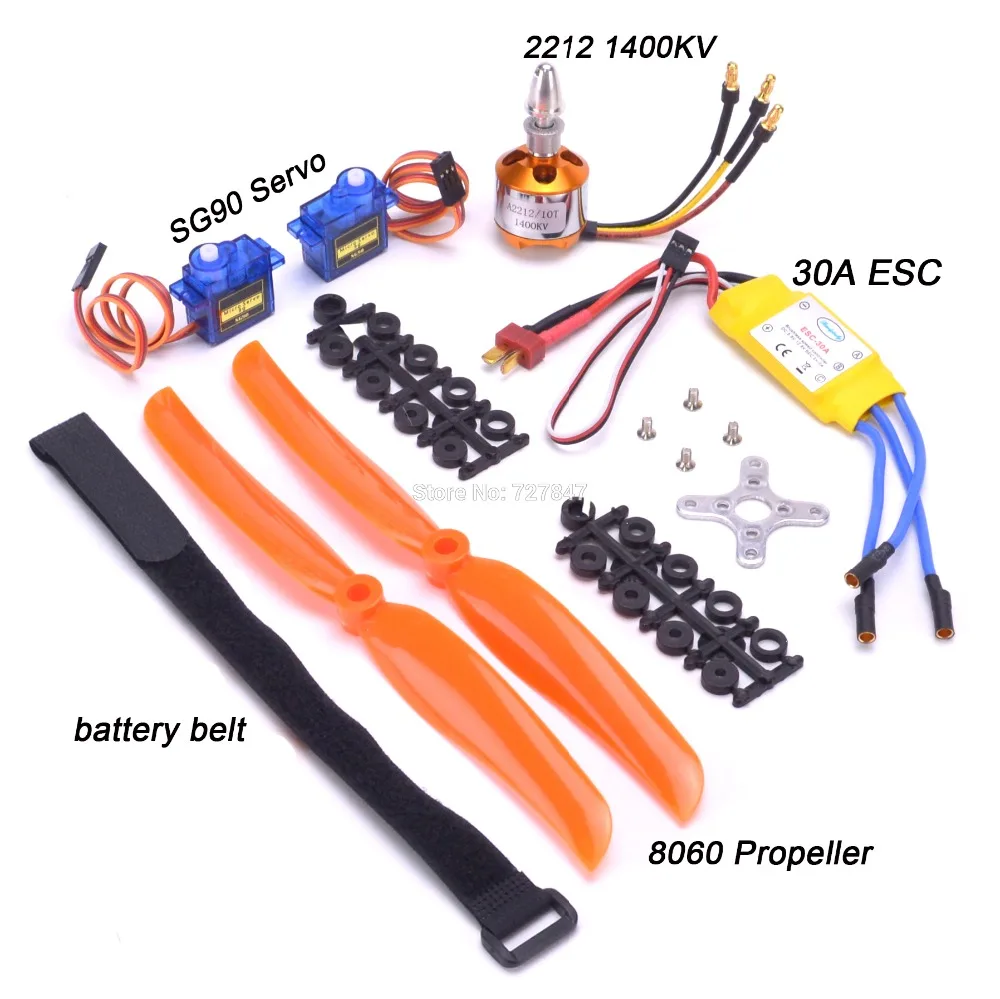

8060 / 6035 Propeller ( 2212 1400kv motor set with 8060 propeller , 2212 2200KV with 6035 propeller

(Send it as your choice as the picture shown)
