High Pressure Compressed Air CO2 Tank Cylinder DIN Valve with Gauge, 8mm Quick Disconnect Connector

High Pressure Compressed Air CO2 Tank Cylinder DIN Valve with Gauge, 8mm Quick Disconnect Connector

1. Important improvements ~ Improved the structure of the internal air chamber and the shape of the handwheel, making it easy to operate even under high pressure. All core components made by stainless steel.

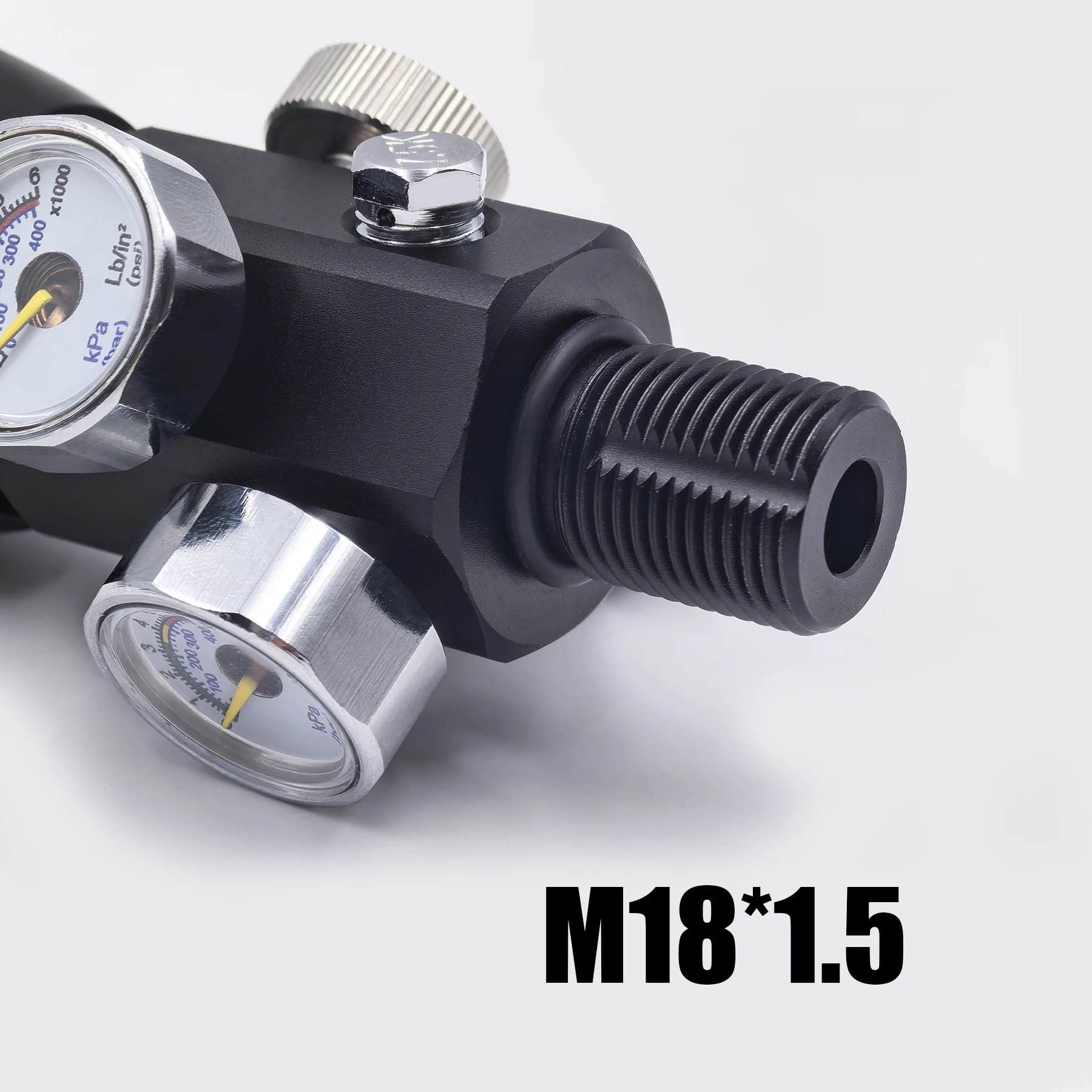

2. Parameters ~ Max Input pressure: 4500psi/300bar, Input Thread: M18x1.5 or 5/8"-18UNF, Output Adapter: Standard 8mm female quick disconnect

3. Two gauges design ~ One gauge displays the pressure inside the cylinder, and one gauge displays the output pressure.

4. Simple operation ~ Easy to operate, without training, anyone can easily operate it. It can quickly filling and deflate.

5. Widely used ~ It is can be used in high pressure compressed air or CO2 cylinders in various industries such as diving, mountaineering, firefighting, medical facilities, mineral mining, household sparkling water, outdoor sports, etc.

6. Comes with spare O-ring and gaskets.


Input thread: M8*1.5 or 5/8"-18UNF
Output: 8mm female quick disconnect
Inflatable connector: 8mm fill nipple
Max working pressure: 4500psi/300bar
Material: Stainless steel and Aluminum alloy
Gauge: M10*1 thread 6000psi/400bar, 1inch/24mm dial
Burst disk: 7500psi/510bar
