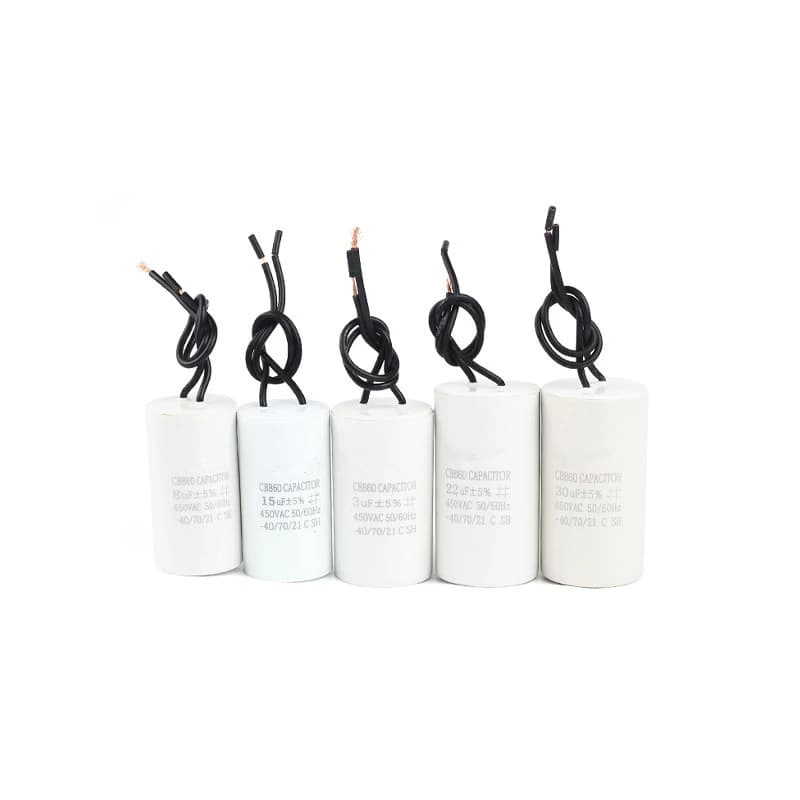

CBB60 Capacitor 450V AC 3UF 4UF 5UF 6UF 8UF 10UF 12UF 15UF 18UF 20UF 25UF 30UF 35UF 40UF 45UF 50UF 60UF 5% Motor Pump Capacitors

3UF  450V overall dimensions  35X63mm

4UF  450V  overall dimensions 35X64mm

5UF  450V overall dimensions  35X64mm

6UF  450V overall dimensions  35X64mm

8UF  450V overall dimensions  35X64mm

10UF 450V overall dimensions  35X64mm

12UF 450V overall dimensions  38X75mm

14UF 450V overall dimensions  38X75mm

15UF 450V overall dimensions  38X75mm

16UF 450V overall dimensions  38X73mm

18UF 450V overall dimensions  38X75mm

20UF 450V overall dimensions  38X75mm

22UF 450V overall dimensions  38X72mm

25UF 450V overall dimensions  38X76mm

30UF 450V overall dimensions  38X76mm

35UF 450V overall dimensions  45X92mm

40UF 450V overall dimensions  45X92mm

45UF 450V overall dimensions  45X90mm

50UF 450V overall dimensions  45X90mm

60UF 450V overall dimensions  45X90mm

Used asWorking and starting, to run electric motors of washing machines, refrigeration compressors, air conditioners, pumps, etc. The capacitors of this series are also used as phase-moving to start three-phase engines from a 220 volt network.

Cbb-60 sulfur capacitors are analogs of k78-17 series domestic capacitors.

Characteristics of cbb-60 capacitor:

Nominal capacity:3to 60UF

Permissible capacity deviation:± 5%

Rated AC voltage:450VAC

Working frequency:50/60Hz

Minimum permissible temperature:-25 & deg; C

Maximum permissible temperature:+ 85 ° C

Life:B. -10000 Hours at 400vac); c-3000 hours at 450vac; D-1000 hours at 500vac.

Protection class:P0-без.

Also available are start-up-working capacitors cbb-60 with a bolt mount and wires for mounting!!!
