GM810 Series USB/UART DC5V Barcode Scanner Module Reader 1D/2D QR Bar Code Reader For Android Arduino

GM810 series have GM810-S and GM810-L model.
The only difference between GM810-S and GM810-L is lens.
GM810-S lens reading distance is 5-30cm.
GM810-L lens reading distance is 7-50cm.(The actual data depends on the size and content of the code)

GM810 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

GM810 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

Technical Specification:

Mechanical/electrical Parameters:

Environmental Parameters:

You can dowload GM810 Series user manual from the following website:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

GM810 Operation Video:

https://youtu.be/MgGnv7GYv2A

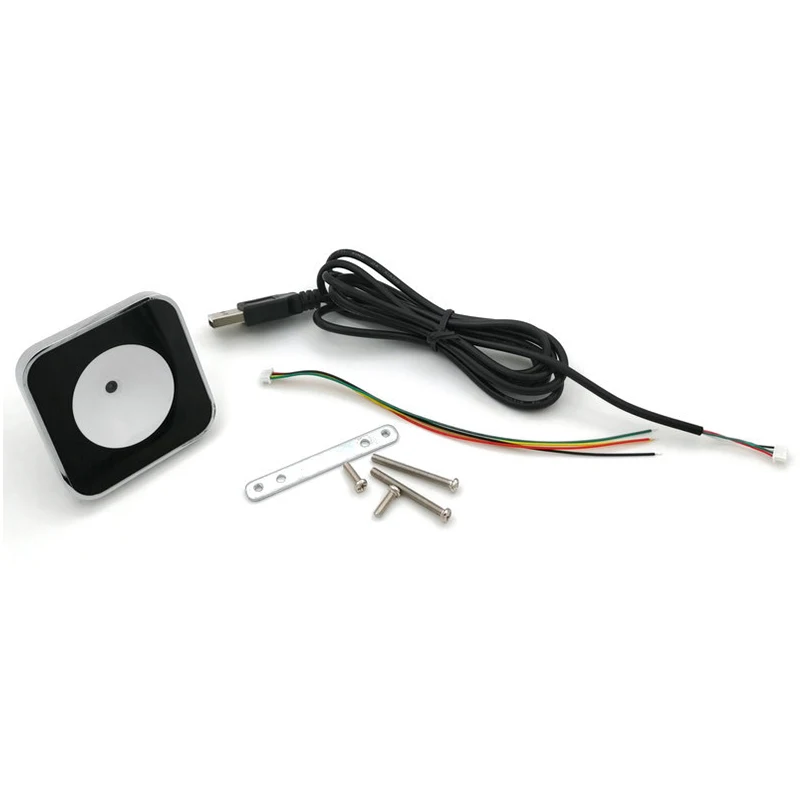

For shipment list, please see the following photo:

1* GM810+1*Serial Cable+1*USB Cable+Screws
