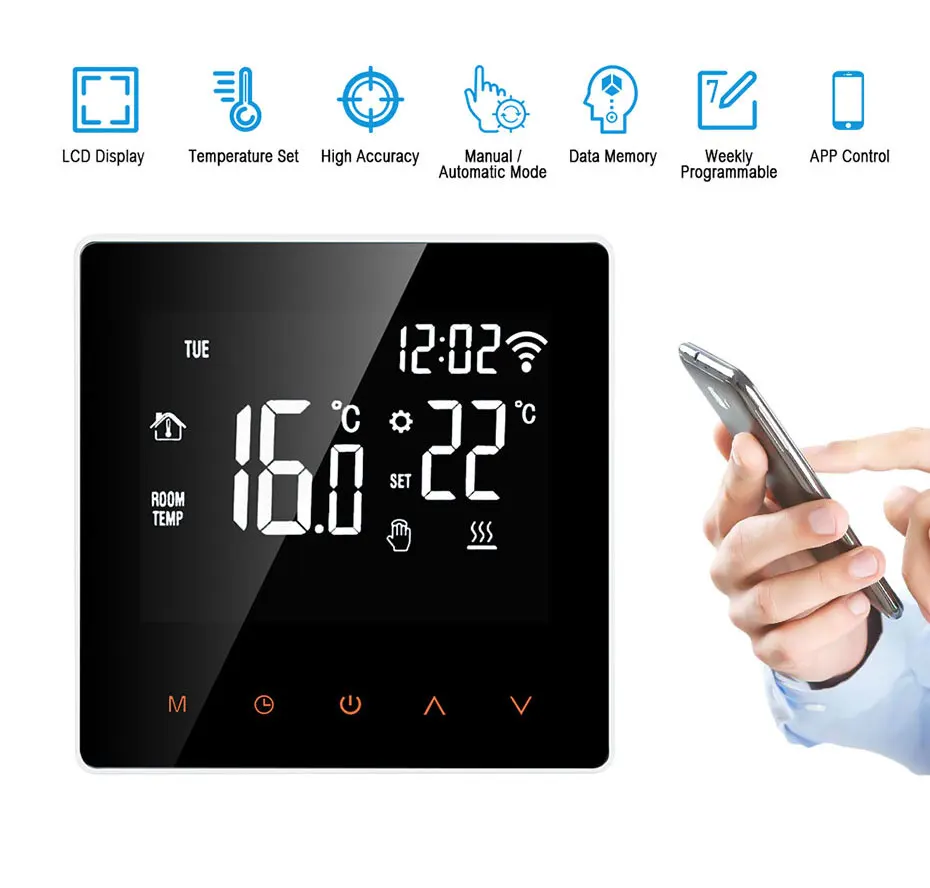

AVATTO WiFi Smart Thermostat Electric Heating Water Gas Boiler Temperature Remote Controller Work with Tuya,Alexa,Google Home

Please review in detail

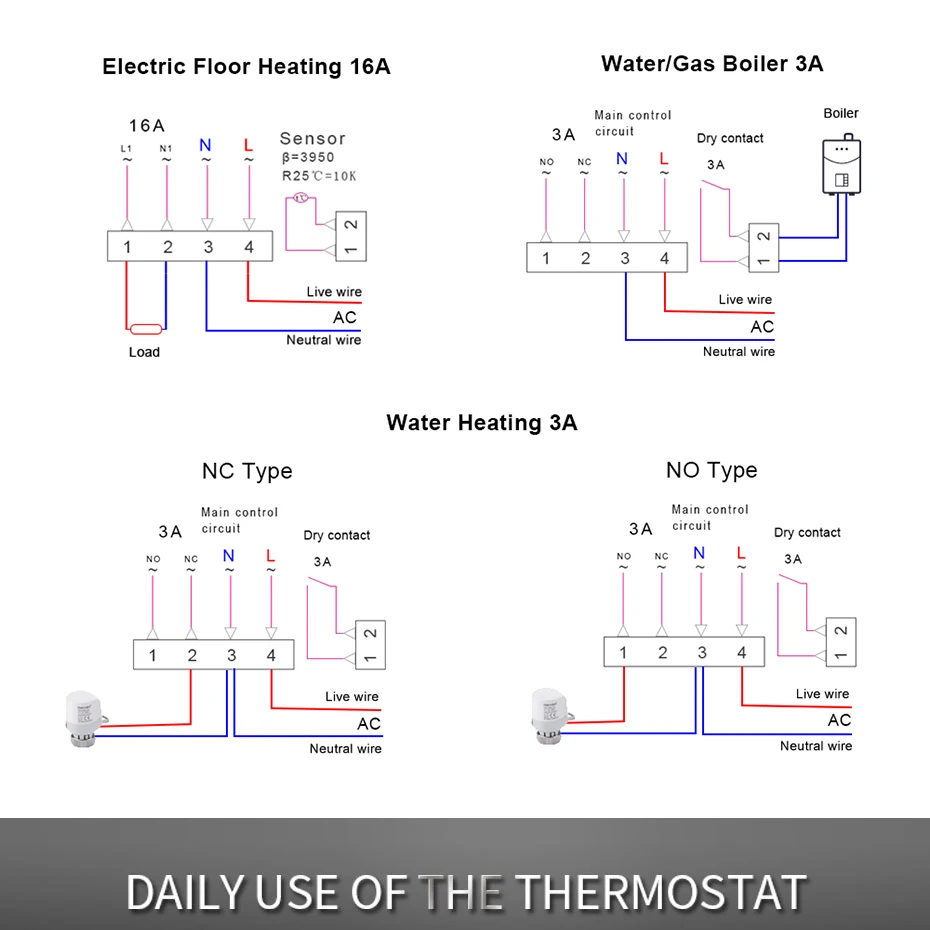

1.Power Supply: N: Neutral wire, L: Live wire; Voltage range: AC100-240V。(Refer to the manual for cable connection methods)

2. Products: Electric Underfloor Heating: 16A (Includes an external sensor in the package);Water Underfloor Heating / Wall-hung Boiler: 3A (Does not include an external sensor in the package)。

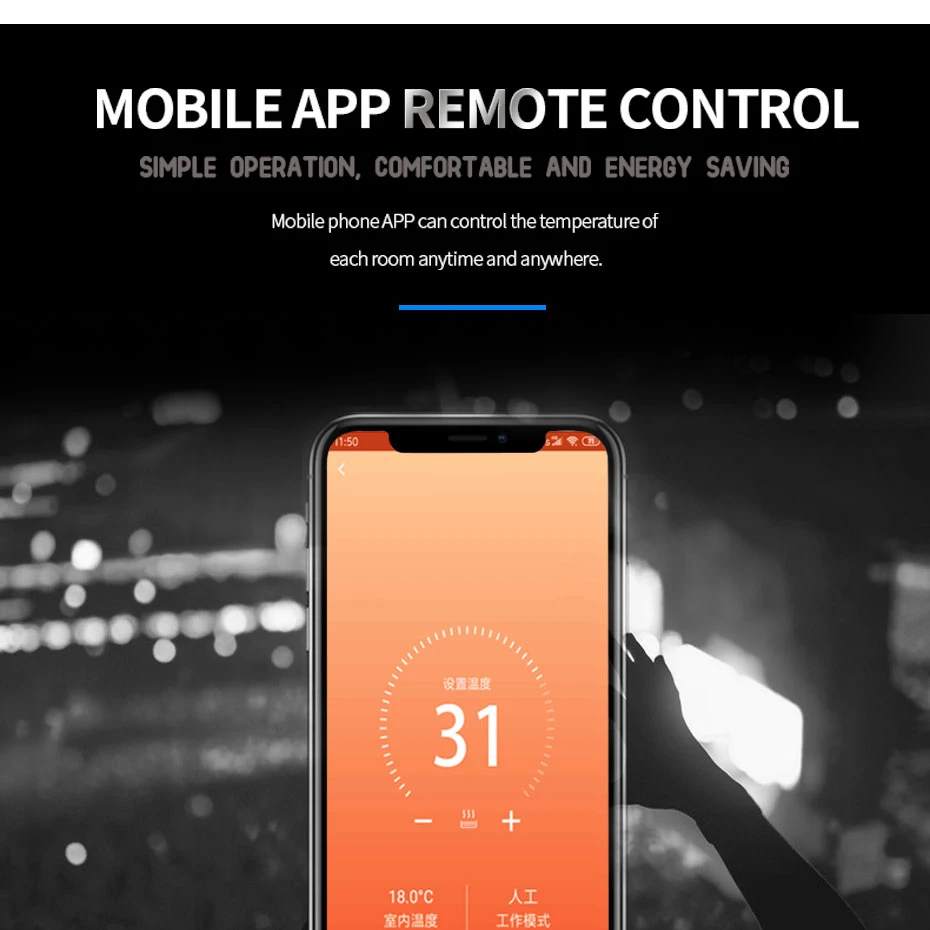

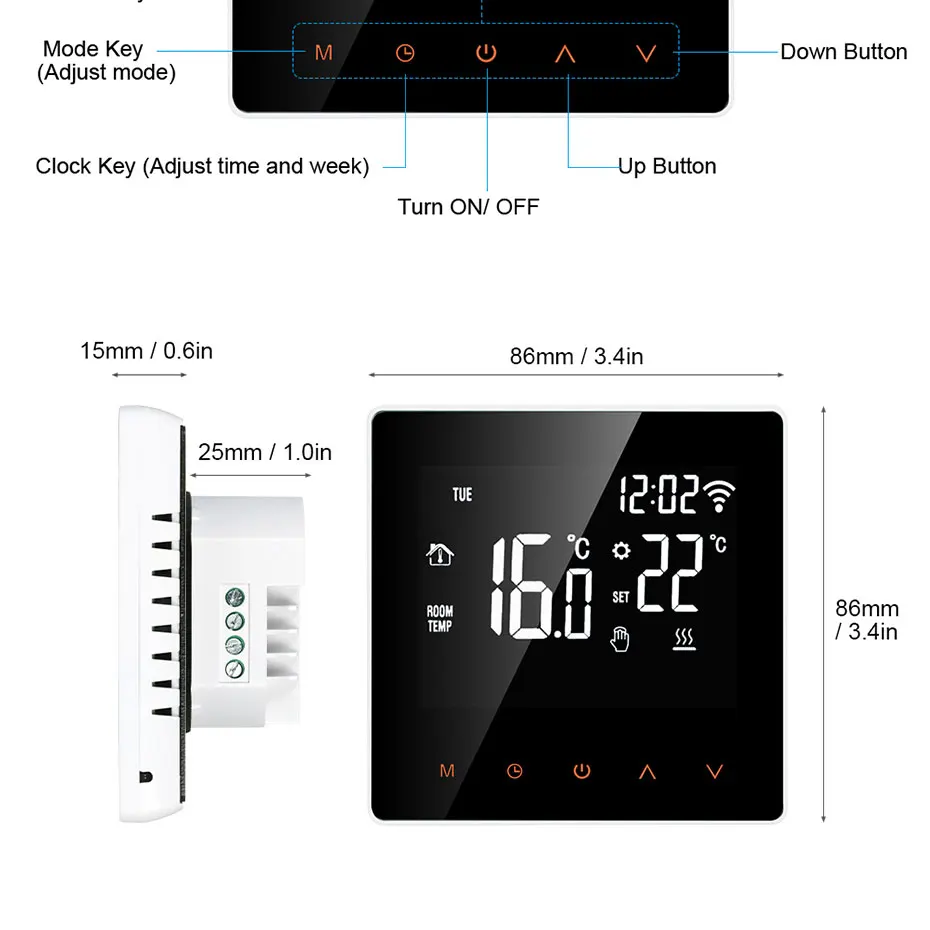

3.Connection Method: Turn off the thermostat. Press and hold the Up and Down buttons simultaneously for 5 seconds until the WiFi indicator flashes, indicating the device is in pairing mode. Use the mobile app to connect. Use the AVATTO app, which supports Tuya/Smart Life。(WiFi must be 2.4G)

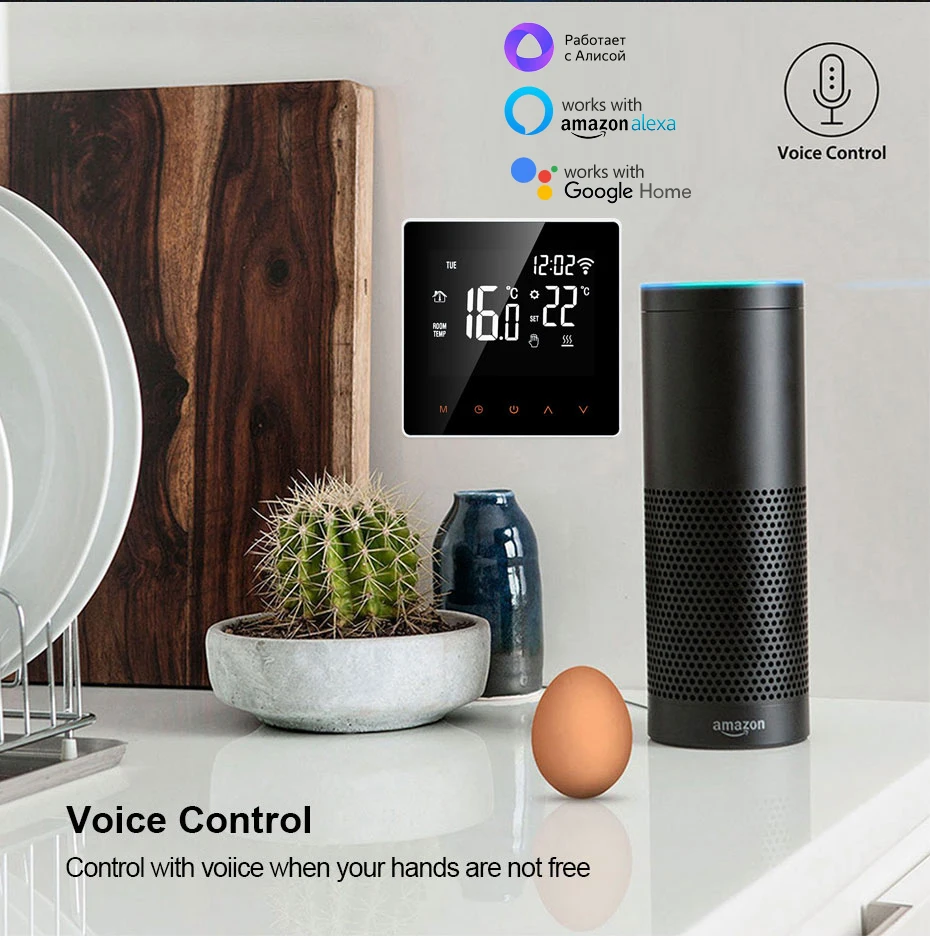

4.Voice Control: After connecting to the app, authorize the voice assistant within the app, and then you can control the device via voice commands。

5.Notes:
① Garbled LCD Display: If the housing becomes deformed after installation causing display issues, you can try reinstalling it。
② Normal Display but No Output: Check if the wiring between the main control unit and the power board is damaged. Check for errors in the neutral wire connection on the live circuit。
③ Incorrect Temperature Display: Adjust the panel temperature display value via the first option in the "Advanced" settings tab。
④ Sensor Faults: Check if the sensor is damaged。
Er1: Built-in sensor is disconnected or faulty。
Er2: External sensor is disconnected or faulty。

6.Customer Support: If you encounter any issues, please contact our store’s customer service promptly. Our professional support team will assist you in resolving the problem。
