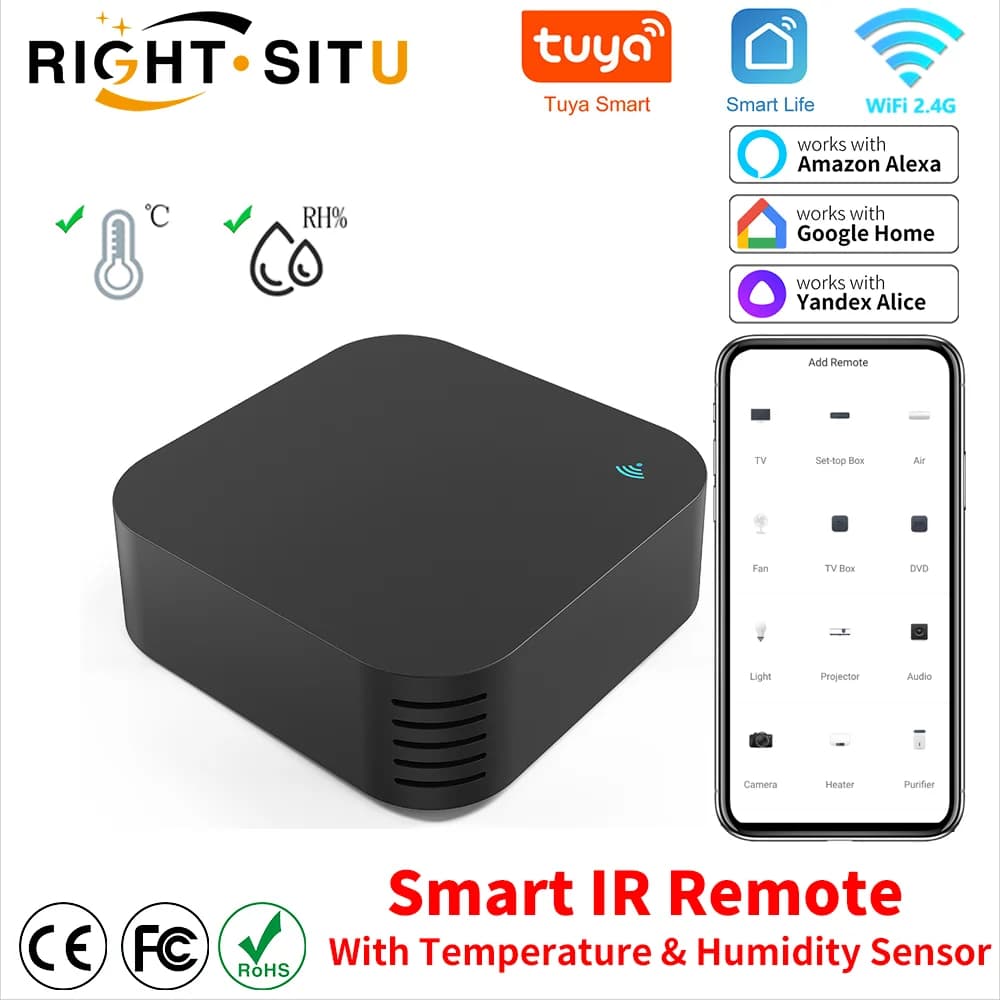

Tuya Smart IR Remote Control with Temperature Humidity Sensor for Air Conditioner TV DVD AC Works with Alexa Google Home

Voice Control Compatibility

Works with Alexa and Google Home for hands-free control.

Temperature and Humidity Sensor

Monitors temperature and humidity levels in the room for optimal comfort.

IR Remote Control

Uses infrared technology to control your air conditioner, TV, and DVD from a distance.

RoHS Certified

Meets international standards for reducing hazardous substances in electronic products.

NOTE:

1. The intelligent remote control only supports infrared remote control, and does not support Bluetooth or RF or 2.4G remote control

2. It does not have a built-in battery and requires constant USB power supply.

3. It needs a WiFi 2.4GHz network that is always connected when it works. Please turn on 2.4GHz WiFi and stay online.

4. The original APP is Smart Life and Tuya Smart, and the third party (Amazon Alexa, Google Home, Yandex Alice) is not necessary.

5. Because the third party (Amazon Alexa\\\/Google Home\\\/Yandex Alice) does not have a corresponding display panel, after linking, they cannot display the same control panel as Smart Life on their APP.

6. The remote control can be controlled by voice on the third-party smart speaker (Amazon Alexa\\\/Google Home\\\/Yandex Alice), But DIY learning control panel does not support it.

7. It cannot reverse synchronize the signal of the original remote control of household appliances.

8. Yandex Alice only supports AC, TV, TV Box and Fan.

9. Bluetooth only works when configuring

10. The temperature and humidity data cannot be displayed on the third party (Amazon Alexa\\\/Google Home\\\/Yandex Alice), cannot be queried by voice, and cannot establish an automatic process on the third-party APP.

11. All temperature and humidity sensors will have certain errors, please note. The error of this sensor is ± 1 ℃ and the error of humidity is ± 5% RH

12. The minimum granularity of historical data (daily chart) is 1 hour, and the minimum granularity of exported data is also 1 hour.

Days of historical data are stored for 7 days.

The value of historical data is the average value, that is, the average value in a minimum granularity time.

About using temperature or humidity data as automation conditions

The sensor data uses the principle of Edge Triggered

That is, the action can only be triggered if the condition crosses the set condition

For example, when the automatic setting temperature is greater than 25 ℃, then turn on the air conditioner.

1. When the temperature rises from below 25 ℃ to 25 ℃, the automatic process can trigger to start the air conditioner

2. After the automatic process is set, the temperature is always above 25 ℃, and the air conditioner is not turned on.

3. When the temperature drops to 25 ℃ and rises to above 25 ℃, the automatic process will be activated.

For example, when the automatic setting temperature is less than 20 ℃, turn on the air conditioner

1. When the temperature drops from above 20 ℃ to 20 ℃, the automatic process can trigger to start the air conditioner

2. After the automatic process is set, the temperature is always below 20 ℃, and the air conditioner is not turned on

3. When the temperature rises to 20 ℃ and then drops to above 20 ℃, the automatic process will be activated.

Product Features:

With this Universal IR Remote Control, you may use your smart phone to control home appliances, such as STB(Set-Top-Box), TV Box, TV, Air Conditioner, Fan, DVD, etc. Compatible with most of brands, for details, please refer to the supported brand list in App. Besides, it has LEARNING FUNCTON, allows you to copy the key function of original remote control to App.

Note: Not compatible with the home appliances which use RF or BLUETOOTH remote control.

1. Massive IR Code Database

Support 4000+ brands, 50000+ IR Code on cloud, supported devices library is constantly being updated by the cloud.

2. Built in temperature and humidity sensor

With the help of the built-in sensor, you can know the temperature and humidity in the room at any time. And according to their values, do subsequent automation. For example, turn on the air conditioner when the temperature is higher than 26 ℃, and turn on the humidifier when the humidity is less than 50%

3. App Remote Control

Remote Control your home appliances by using “Tuya Smart” App in your smart phone anywhere anytime. For example: Switch on home A\\\/C in advance, enjoying the comfortable temperature once you get home.

4. Easy to install and add to app

Once you plug the cable line into the device, the device starts to start, and then select the app's \\\"auto scan\\\" function to find device. The whole process takes only a few minutes.

5. Voice Control

By connecting Intelligent speaker, such as Amazon Alexa, Google Home, you are able to control your home appliances by voice. For example: Alexa, turn on TV; OK Google, set air conditioning temperature to 25 degrees.

6. Scenario and Automation in App

A scenario consists of 1 or more actions. By creating an “Scenario”, you may control multiple devices with one tap; By adding an “Automation” and interworking with other smart home devices, Wi-Fi remote control is able to execute actions automatically according to conditions, such as device status, weather and time.

7. Timer and Automatic Trigger

According to your living habits, set time switches for your home appliances, such as turning on\\\/off the air conditioner at regular intervals.

8. DIY

Customizing buttons in the Tuya Smart App if your home appliances brand is not in the list or not supported.

9. Third-Party Control

Works with Amazon Alexa, Google Assistant, Siri(iOS 12.0 or later), Tmall Genie, Tecent Xiaowei, DingDong, Rokid, DuerOS, etc.

Product Parameter:

* Input: DC 5V\\\/1A(Micro USB NO Adapter)

* Infrared Frequency: 38KHz

* IR Remote Control Distance: 10m

* Connection: Wi-Fi 2.4GHz

* App: TuyaSmart or Smart Life

* Temperature Measuer Range: 0?-80?

* Temperature Accuracy: ± 1 ℃

* Humidity Measure Range: 0%RH-99%RH

* Humidty Accuracy: ± 5% RH

* Material: ABS

* Size: 60*60*20mm

Why choose this product?

Say goodbye to use remote controls for each of the IR home appliances such as TV, Air-Conditioner , TV box, light, Fan, Audio, etc. You can remotely control these devices with the tap of your finger on the mobile App, Also you can real-time monitor the temperature and humidity on App at anytime and anywhere.

Please kindly read the user manual carefully before usage and keep it for future reference.

App Remote Control

Turn on your air conditioner, no matter where you are.

-Support 99% air conditioner in the market,automatic cloud panel match,one button download App to remote control

-Turn on AC in advance, enjoy the warm time when you get home

All in One Smart Remote Control

The Smart IR Remote expanded IR code library cover above 98% IR device. So TV, Air conditioner, STB Fan and lighting etc. which used IR Control can be control by it.

You don't need to worry about the problems you can't control, and finally we provide the copy function.

Built in Temperature and Humidity Sensor

With the help of the built-in sensor, you can know the temperature and humidity in the room at any time. And according to their values, do subsequent automation. For example, turn on the air conditioner when the temperature is higher than 26 ℃, and turn on the humidifier when the humidity is less than 50%.

Works with Amazon Alexa, Google Assistant, Yandex Alice

By connecting App to Amazon Alexa, Google Home, you are able to control your home appliances by voice. For example:

-Alexa, turn on the TV;

-OK Google, set air conditioning temperature to 25 degrees.

-Alice, turn on the light.

NOTE:

1. This product is recognized as a universal remote control on Amazon Alexa\\\/Google Home\\\/Yandex Alice, and cannot be recognized as a temperature and humidity sensor.

2. This product will not be displayed on Amazon Alexa and Google Home. Only the appliances remote added to our products are displayed on Alexa\\\/Google Home\\\/Yandex, and you can only control them by voice.

3. Yandex Alice Only Support Air conditioner, TV, TV BOx STB, Fan

Timer and Automatic Trigger

Never miss one second of excellent match

-Stay up late for the match,but always oversleep?

-The smart remote control helps you turn on TV at right time and right channel. Enjoy your match!

IR Learning Function:

Smart Life App provides Customizing and copy function.

If your home appliances is not in the brand list or not supported, you may use this function to copy the key function of original remote control to App.

NOTE: DIY does not support voice control

Intelligent link

NOTE: Other execution equipment shall be purchased separately

Share the universal remote control with your family

Var Smart Life APP, you can share it with family.

Step 1: Create Home or Improve Home Information

Step 2: Invite members to join Home

Step 3: Family members agree to join Home

Maybe every room needs one

Infrared rays cannot penetrate the wall, so it cannot control household appliances in other rooms.

It is recommended to install a universal remote control in every room.

NOTE: The Smart IR Remote can control multiple infrared remote control home appliances, the APP does not limit the specific number, but they must be in the same room.

Which types are Remote Control support?

The Smart IR Remote supports all infrared remotes.

But note that 2.4G remotes, RF remotes, and Bluetooth remotes are not supported.

Tips:

1. The infrared remote control has an infrared emitting tube, or the infrared emitting tube is protected by a black transparent window.

2. Long press the infrared remote control to start the home appliance, the long press function is not supported, other functions are supported.

What is Included?

* Universal IR remote control X1

* Micro Charging Cable X1 (NOT ADAPTER)

* Adhesive Pad X1

* User Manual x1

What does the app interface look like

App may be modified to better. Here is just a reference

Configuration:Link to APP

NOTE:Page maybe change better.

Configuration: ADD TV To APP

NOTE:Page maybe change better.

Configuration: Temperature utomation

NOTE:Page maybe change better.
