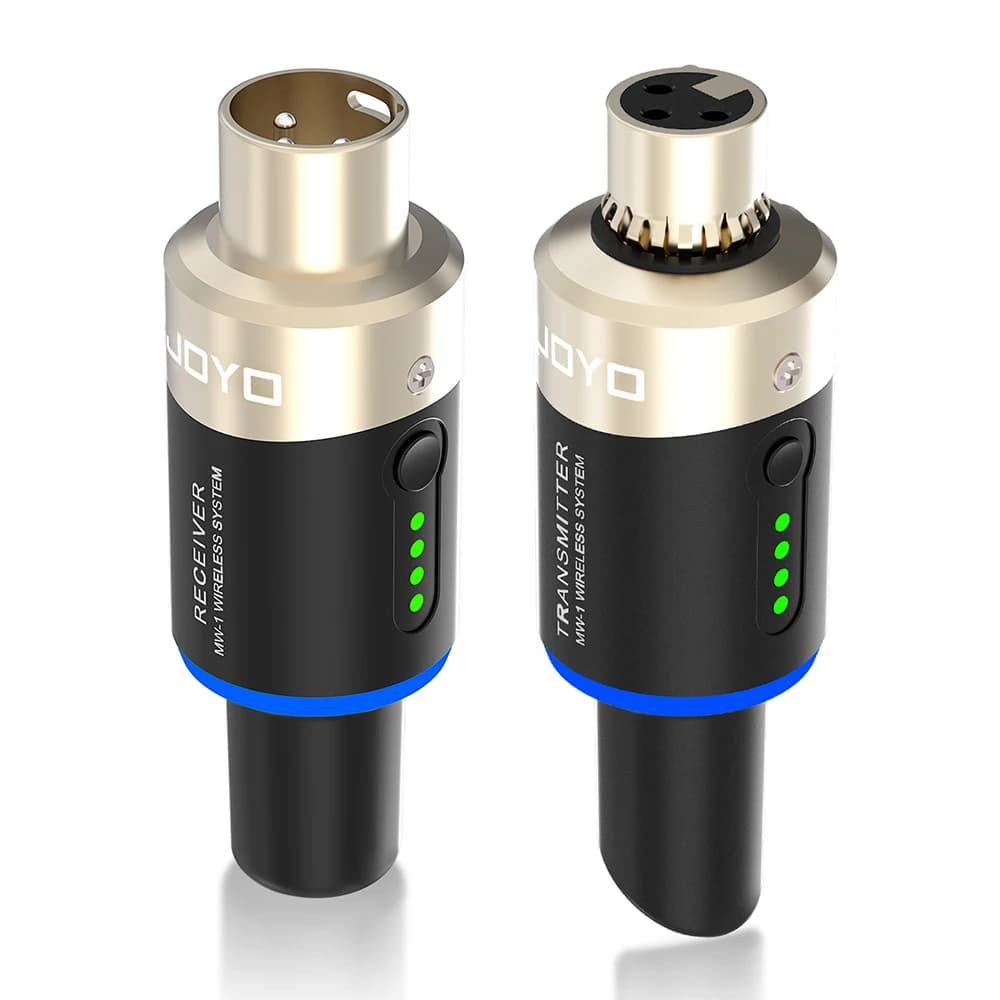

JOYO MW-1 5.8Ghz Wireless Mic System 4 Channels 5Ms Latency Plug and Play Wireless Microphone Receiver for XLR Dynamic Mics

JOYO MW-1 5.8Ghz Wireless Mic System 4 Channels 5Ms Latency Plug and Play Wireless Microphone Receiver for XLR Dynamic Mics

Description:

5.8GHz Stable Wireless Transmission:
JOYO MW-1 uses a 5.8GHz ISM band with frequency hopping, 4 selectable channels, less than 5ms latency, and up to 100ft / 30m line-of-sight range. It helps deliver stable wireless vocal transmission for live sound, karaoke, church service, meetings, interviews, and stage use.

24-bit/48kHz Clear Audio Quality:
With 24-bit/48kHz sampling and a 20Hz–20kHz frequency response, this XLR wireless microphone system captures clear vocal detail for singing, speaking, streaming, podcasting, video recording, and rehearsal use.

Optimized for XLR Dynamic Microphones:
Designed mainly for XLR dynamic microphones, while also compatible with some low-power condenser microphones requiring 24V or lower phantom power. For best results and lower noise risk, we recommend using dynamic microphones. Some condenser mics may produce noise depending on power demand, shielding, and the wireless environment.

Versatile Plug-on XLR Connection:
The transmitter plugs into your XLR microphone, and the receiver connects to mixers, PA speakers with XLR input, audio interfaces, sound cards, and compatible camera setups. Camera use may require a hot shoe mount or XLR camera adapter, which is not included.

6–8 Hour Runtime & Type-C Charging:
Built-in rechargeable lithium batteries provide about 6–8 hours of use, depending on microphone type, phantom power use, signal environment, and battery condition. LED indicators show battery, channel, and working status, and the included dual USB-C cable charges both units at the same time.

Specifications:

MW-1 Receiver:
Reception sensitivity: -85dBm
Received frequency: 5.8GHz frequency
Signal Distortion: <0.02%
SNR: 105dB
Frequency response: 20Hz-20kHz
Delay time: <5ms
Sampling rate: 24-bit/48KHz
Output impedance: 680Ω
Port's type: XLR male port


MW-1 Transmitter:
Transmission power: 7dBm
Working frequency: 5.8GHz frequency
Frequency response: 20Hz-20KHz
Delay time: <5ms
Sampling rate: 24-bit/48kHz
Input impedance: 3.3K
Port's type: XLR female port

Package List:

1* JOYO MW-1 Wireless Microphone Transmitter Receiver
1* USB Charging Cable
1* User Manual

Purchase Note:

1. This product supports one-to-one and one-to-many.
2. Please make sure the transmitter and the receiver keep a distance away from wireless router or other wireless devices during use.
3. Obstructions between the transmitter and the receiver may affect the transmission distance.
4. A maximum of 4 sets of transmitters and receivers can be used in the same place simultaneously.
5. If the red light flashes during use, it indicates low battery, please charge it in time.
6. Please avoid routers nearby when using MW-1, Usually routers work in the 2.4GHz wireless band, but under certain factors, it will become the 5.8GHz band, which will interfere with the MW-1's working band and cause the signal to be cut off.
7. In order to charge the transmitter and receiver properly, please use a 4.5V~5.5V charger. Otherwise, the battery may not be charged or damaged.
