EZMTB Fork SEAL KIT Dust Wiper Foam Ring 30 32-40MM For FOX/ROCKSHOX/MANITOU/SR SUNTOUR/MARZOCCHI/X-FUSION MTB Bike Front Fork

EZMTB Fork SEAL Advanced Professional KIT

EZMTB Fork SEAL KIT Dust wiper Foam Ring 30-40MM For FOX/ROCKSHOX/MANITOU/SR SUNTOUR/MARZOCCHI/X-FUSION MTB Bicycle Front Fork
Materal:Special synthetic rubber

Size:(The diameter of the stanchions of the front fork × Diameter of fork seals edge.)

30x42mm,32x41mm,32x42mm,32x45mm
34x44mm,34x47mm,35x45mm,35x47mm
36x46mm,36x49mm,38x48,
40x50mm,40x53mm

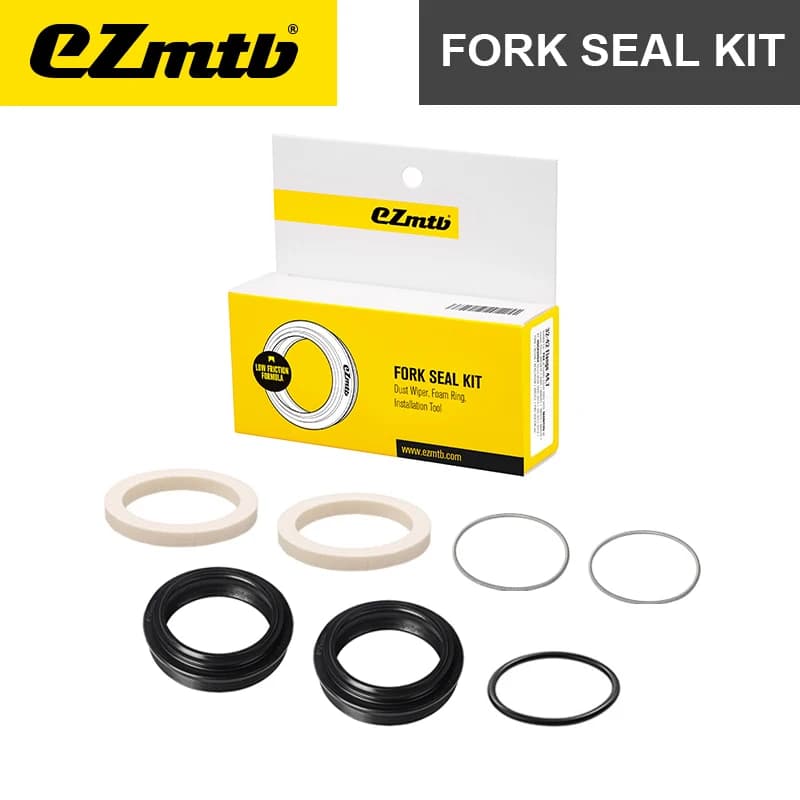

Package Includes:

2 x Dust Seals
2 x Sponges
2 x Spring coil
1 x Sealing Ring

Note: The Fork seal kit does not include installation tools

How to Choose the Specification ?

3 steps to confirm your fork seals specification

Step 1 *Measure the stanchions diameter
Step 2 *measure the diameter of fork seal
Step 3 *Refer to the front fork model

Specification（mm） =The diameter of the stanchions of the front fork × Diameter of fork seals edge.

Parameter Description:
A: The diameter of the stanchions of the front fork
B: Diameter of fork seals edge

For example, the specification is 30 × 42mm indicates that the diameter of the stanchions of the front fork is 30mm, and the diameter of the fork seal is 42mm (there is a tolerance in the diameter of the fork seal, so accurate measurement is not required).

Refer to the front fork model

Specification（mm） =The diameter of the stanchions of the front fork × Diameter of fork seals edge.

Please measure the stanchions diameter and fork seals edge diameter of the front fork

30x42mm

Suitable for MANITOU all 30mm stanchions. including for M30 / 30G / R7 /R7 PRO / M30 etc.

Suitable for ROCKSHOX all 30mm stanchions. including for Duke / Psylo 2001 -2005 / Xc30 / Xc30 gold / Xc30 Silver / Parago etc.n etc.

32x41mm

Suitable for ROCKSHOX Parts of 32mm stanchions. Including for Bluto / RS-1 / Reba A7 / SID RLC A1 / SID XX / RL B1 2017+ etc.

Suitable for SR SUNTOUR 32mm stanchions. Including for Epixon / Axon32 / Raidon xc / Raidon32 boost etc.

32x42mm

Suitable for FOX 2016+ all 32mm stanchions.

32x45mm

Suitable for FOX 2003-2015 all 32mm stanchions.

Suitable for MANITOU Parts of 32mm stanchions. Including for Machete /JUNIT / Marvel / Match / Minute / R7 etc.

Suitable for ROCKSHOX Parts of 32mm
stanchions. Including for Reba 2005-2014 / Sid 2012-2014 / Tora / Recon / Revelation Reba / Argyle / Pike Sektor etc.

34x44mm

Suitable for FOX 2016+ all 34mm stanchions.

34x47mm

Suitable for FOX 2012-2015 all 34mm stanchions.

Suitable for MARZOCCHI 2008-2014 parts of 34mm stanchions.

Suitable for MANITOU Parts of 34mm stanchions. Including for Magnum / Mastodon / Mattoc etc.

Suitable for SR SUNTOUR 2014-2018 parts of 34mm stanchions. Including For Auron 34 / raidon34 2018+ / axon34 2018+/ xcr34 2018+ etc.

Suitable for X-FUSION All 34mm stanchions.

35x45mm

Suitable for ROCKSHOX 2016+ all 35mm stanchions. Including for Boxxer RC 2014-2016 / Boxxer Team 2014-2016/ Boxxer World 2014-2016 / Domain Dual Crow RC 2007-2016 / Lyric RC 2010-2016 / Lyric RC2 DH 2010-2016 / Lyric RCT3 2010-2016 / Pike DJ 2014-2016 / Pike RC 2014-2016 / Pike RCT3 2014-2016 / Yari RC 2016 etc.

35x47mm

Suitable for ROCKSHOX Before 2014 all 35mm stanchions. Including for Pike / Lyrik / Yari / Boxxer etc.

Suitable for SR SUNTOUR Parts of 35mm stanchions. Including for Aion /Auron / Zeron etc.

36x46mm

Suitable for FOX 2015+ all 36mm stanchions

36x49mm

Suitable for FOX 2007-2014 all 36mm stanchions.

Suitable for SR SUNTOUR Durolux 36mm stanchions.

Suitable for MANITOU Parts of 36mm stanchions. Including for Dorado Pro & Expert (Pre 2021) etc.

38x48mm

Suitable for FOX 2020+ 38mm stanchions.

Suitable for ROCKSHOX 2021+ all 38mm stanchions.

40x50mm

Suitable for FOX 2016+ all 40mm stanchions.

40x53mm

Suitable for FOX 2003-2015 all 40mm stanchions.

Suitable for ROCKSHOX 40mm stanchions. Include Totem etc.

After-sales service

Dear customer, after receiving the Fork Seal, if you need help or have questions, Please contact us first, our EZMTB has professional technical support,We will assist you to solve the problem, we have a professional technical team.

If it is not compatible with your specifications, we look forward to your feedback. Welcome to participate in ezmtb's product R&D and improvement.
