M5Stack Official 13.56MHz RFID Card-F08 Chip (5pcs)

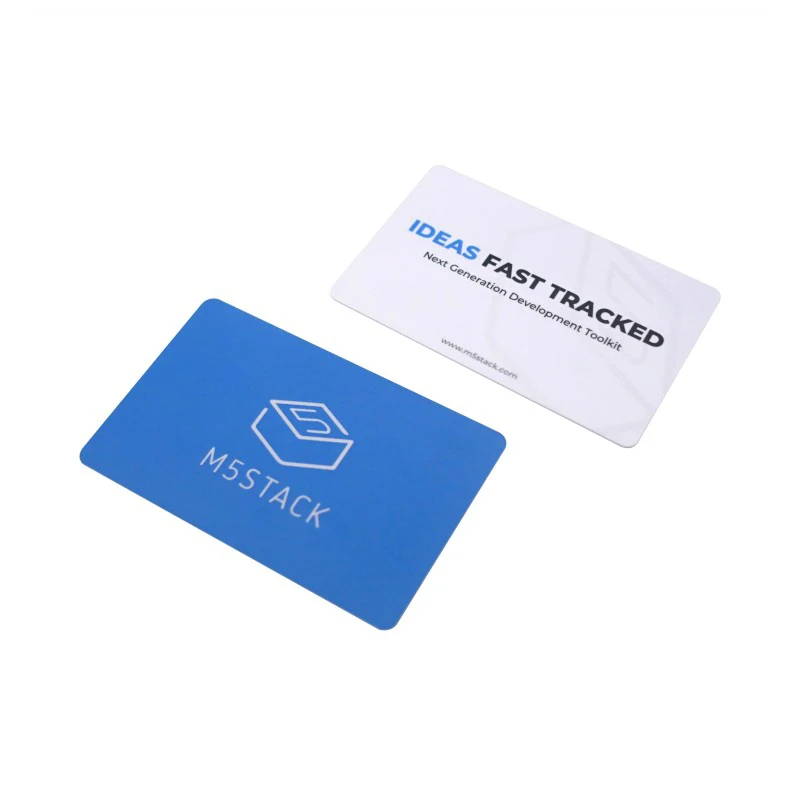

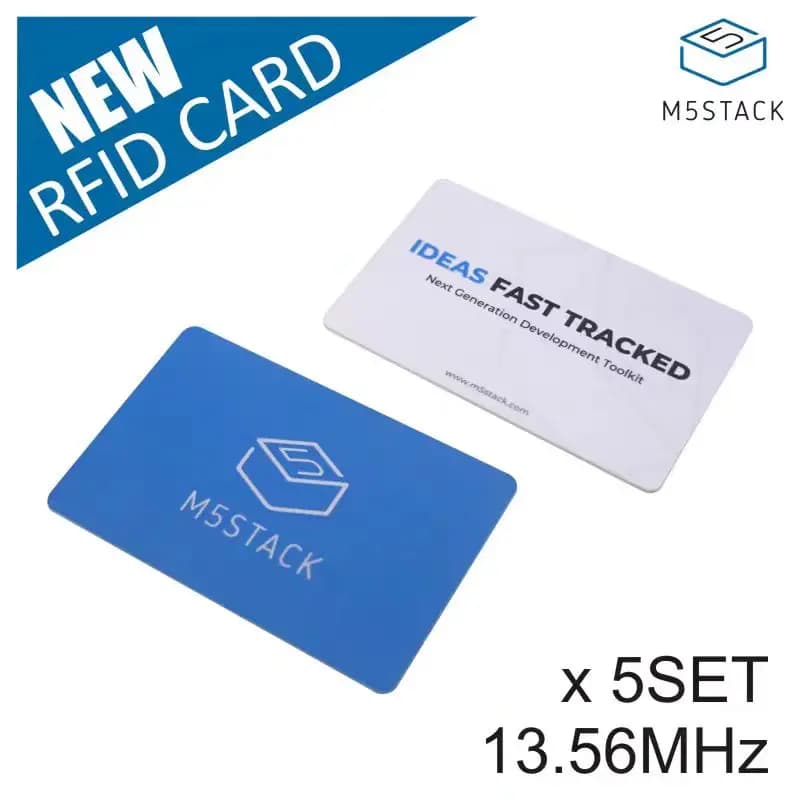

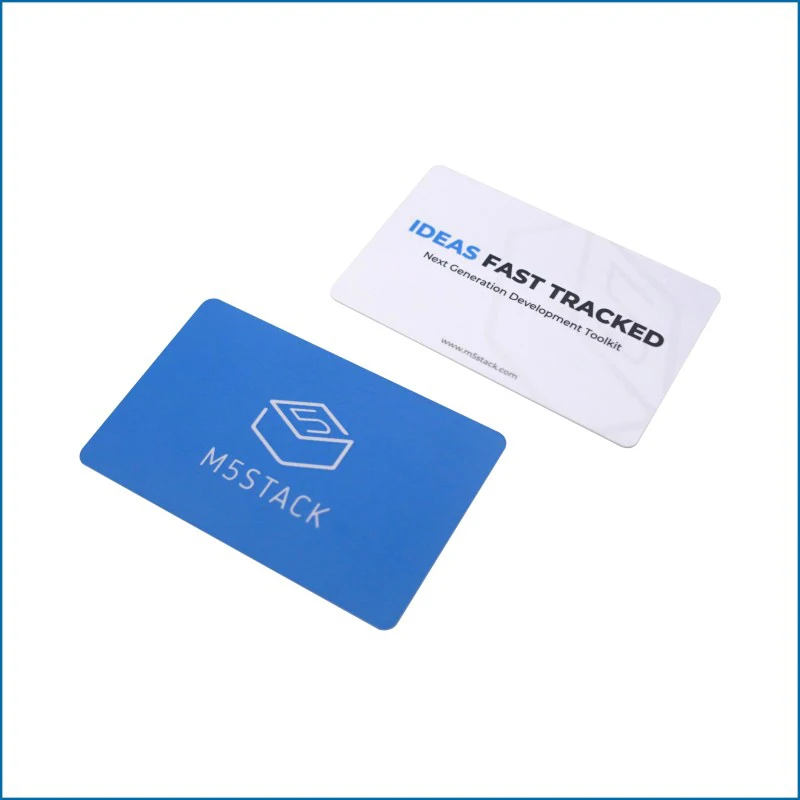

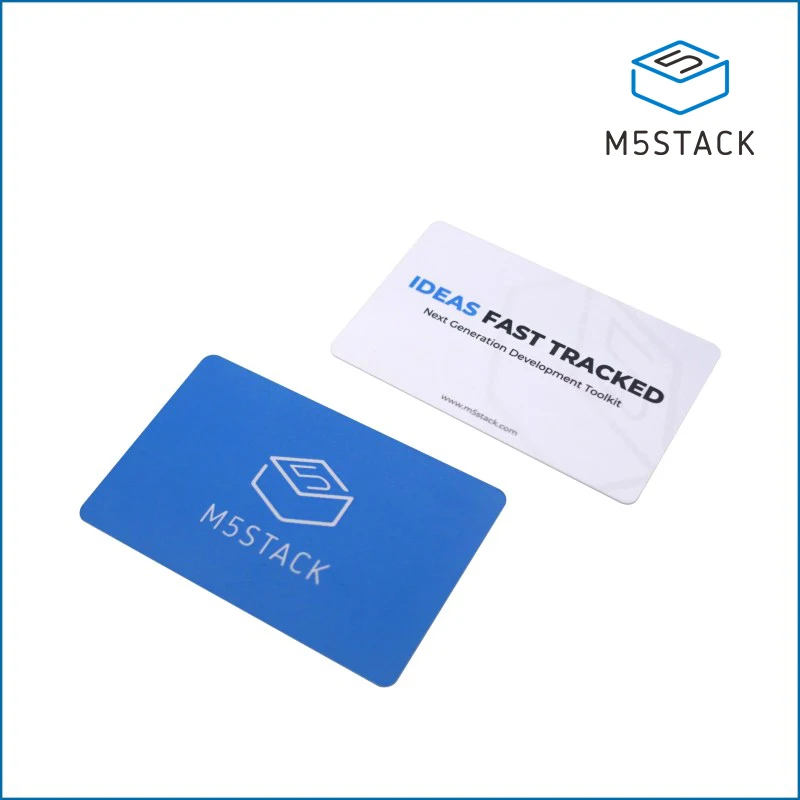

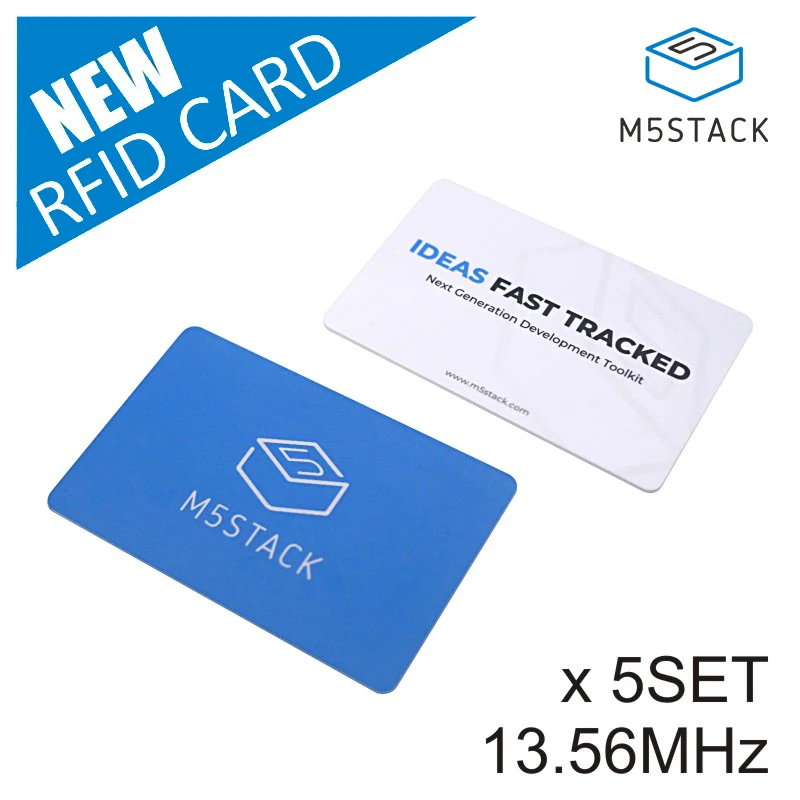

RFID Card is a 13.56MHz RFID / NFC card with M5Stack's exclusive silk-screen logo.

The main part of the card consists of a chip, a coil antenna and a card base, and it does not carry a power source. The antenna works by obtaining the radio waves emitted by the reader, and the communication with the reader is achieved by wireless radio frequency technology.

Due to its good stability and security, this type of card is widely used in induction card management systems that require wireless radio frequency identification functions such as transportation, communication, and security.

The built-in Fudan F08 chip in the induction card can provide ultra-long data retention and read-write life while maintaining good induction recognition performance.

Product Features

ategory: Contactless IC Card
Material: Brand new PVC material, copper coil, chip
Chip storage capacity: 1K x 8Bits
Induction distance: within 10mm (related to the reader)
Data retention period: >10 years
Read-write life: >100,000 times
Working temperature: -20 ~ 50°C
Operating frequency: 13.56MHz
Encryption algorithm complies with M1 standard

Weight and size

- Single product size: 85.5mm x 54mm x 1mm
- Single product weight: 5.3g

Application

- Access control system
- Electronic tag
- Attendance system
