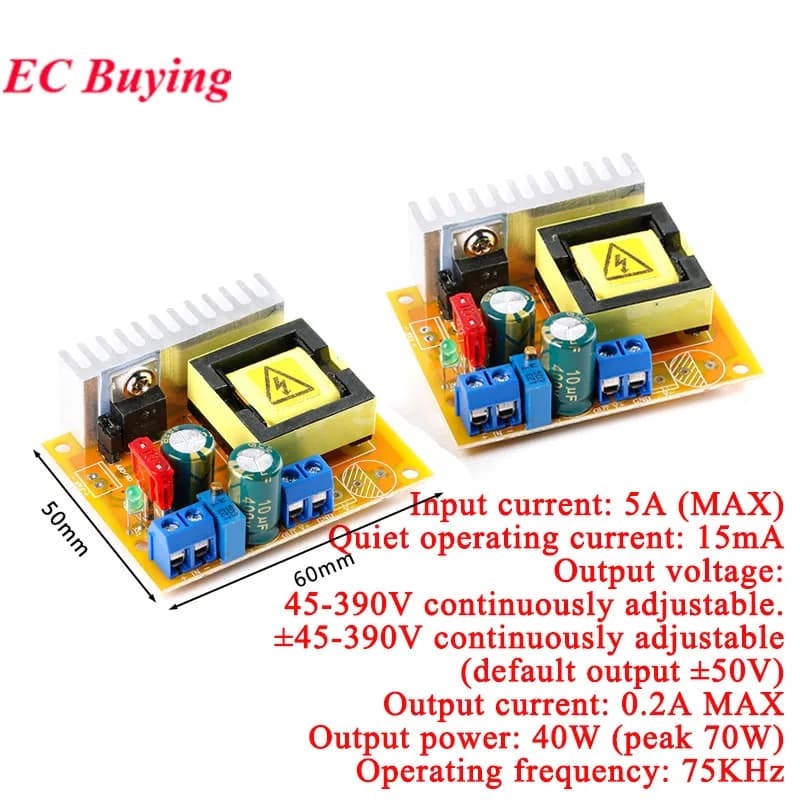

Adjustable ZVS Capacitor High Voltage Boost Converter Board DC-DC 8-32V to 45~390V/DC 8-32V to ±45V-390V Step Up Module 5A Fuse

Note: 5A Fuse, we prepare it for customers who need it. If you don't need it, please don't place an order. No refund will be made if the selection is wrong. Thanks for your understanding!

DC-DC high-voltage boost module, plus or minus 45-390V ultra-wide voltage range output, input dual current limiting protection, output voltage stabilization function, power your electronic equipment, you can set the output value according to your system voltage. Suitable for capacitor charging, hunting guarding, rodent killing, glow tube power capacitor charging, electromagnetic gun power supply.

Module name: high voltage boost module

Module nature: non-isolated boost module

Input voltage: Two input voltage ranges are optional, (selected by the jumper on the back of the PCB, the shipping default is 10-32V input)

1. 8-1 6V input (for three-string lithium battery and 12V battery applications)

2. 10-32V input (for wide input voltage range applications)

Input current: 5A (MAX)

Quiescent working current: 15mA (when 12V rises to 50V, the higher the output voltage, the higher the quiescent current will increase)

Output voltage: 1, 45-390V continuously adjustable.

2. ±45-390V continuously adjustable (default output ±50 V, this module has a voltage stabilization function, after the output voltage is adjusted, it is not stable and does not change with the change of the input voltage)

Output current: 0.2A MAX (related to the input and output voltage difference, the higher the output voltage, the smaller the output current)

Output power: 40W (peak 70W)

Working temperature: -4CT+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 75KHz

Conversion efficiency: up to 88% (efficiency is related to input, output voltage, current, and pressure difference)

Short circuit protection: Yes. (Input a 10 A fuse, please do not directly short-circuit the output end to pull the arc! Direct short-circuit and pull the arc may damage the rectifier device, if you want to short-circuit the arc, please series power resistors to limit the current)

Overcurrent protection: Yes. (The input current exceeds 4.5A, reduce the output voltage)

Overvoltage protection: Yes. (The output voltage exceeds 41 0V, reduce the output voltage)

Input reverse connection protection: Yes (non-self-recovery, connect reverse fuse, try not to

Reversed. )

Installation method: 4 3mm screws

Wiring mode: terminal welding-free output (with housing for welding output)

Module size: length 60mm width 50mm height 22mm

Measured data for the charging time of the capacitor:

470uF full to 390V, time 2 seconds

1000uF full to 390V, time 4 seconds

2200uF full to 390V, time 8 seconds

4700uF fully charged to 390V, time 18 seconds
