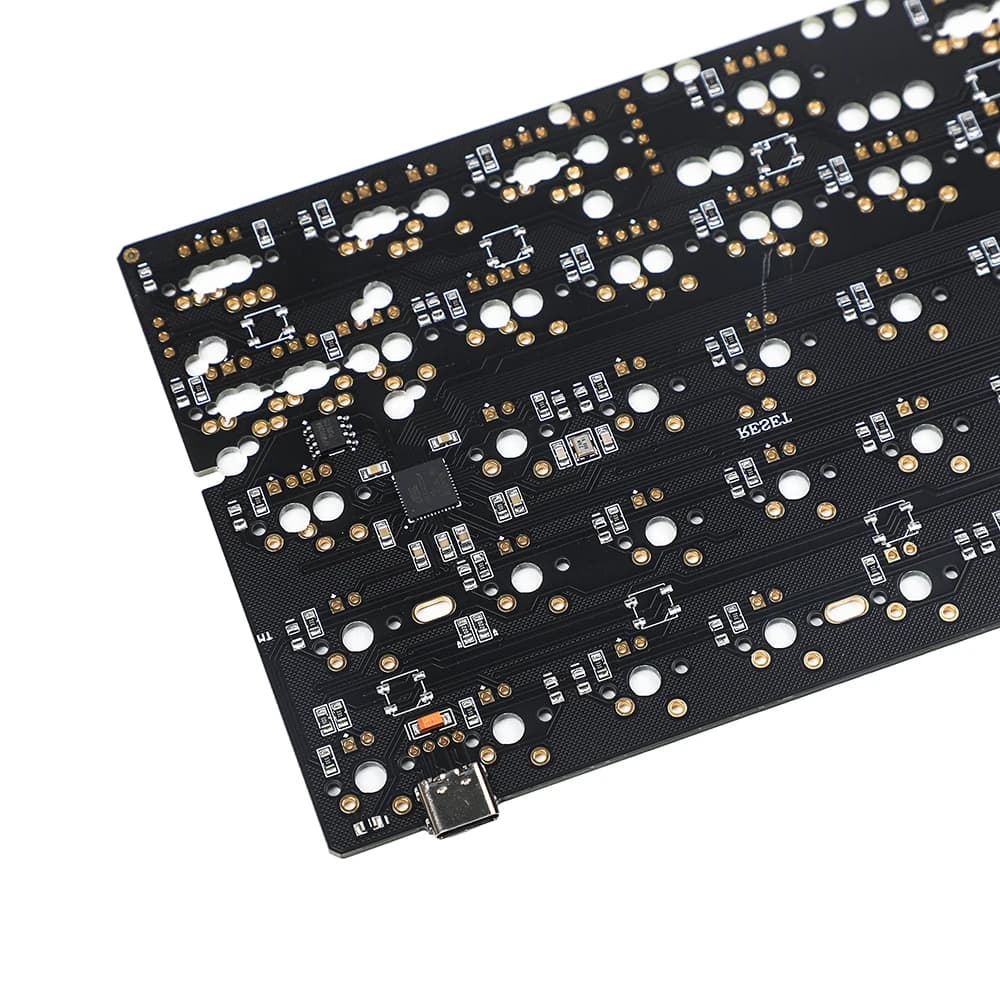

60% 61 64 QMK VIA PCB Underglow Support Switch LED HHKB Minila Layout Fully Programmable Mechanical Keyboard Poker Duck2 GH60

Details

1.This is the link only for keyboard PCB board,no keyboard included.

The pcb has flashed with firmware already andsupport LED adding.It supports both ANSI and ISO layout.

This PCB is not hot-swappable and requires soldering

Support :    60%  61 64 HHKB Poker Minila Layout

The option adding underglow RGB leds is not switch led.

No led means no underglow leds.

2.Black PCB is gold pad QMK.

White PCB is silver pad QMK.

All Type C PCB.

3. If you need PCB stabilization plate, there are 9 colors to choose from.This plate is CNC anodized and brush finish which looks more smooth in the surface and harder.This plate can be used with GH60 case and PCB,such as DZ60,XD60,YM60MQ,Satan etc.And it Can accept almost all GH60 layout,Left shift Right shift Enter Backspace all can be splited.

There is OEM and clear and original stabilizers for your option,Cherry original stabilizers are lower noise.The wire is around 1.5mm.Cherry original stabilizers is black color as normal OEM stabilizers.For stabilizer, send OEM by default, if you need cherry, please leave us a message

stabilization plate

https://www.aliexpress.com/item/3256804387253935.html?spm=5261.ProductManageOnline.0.0.18784edfRfweQb&gatewayAdapt=4itemAdapt

stabilizers

https://www.aliexpress.com/item/3256801542265819.html?spm=5261.ProductManageOnline.0.0.18784edfRfweQb&gatewayAdapt=4itemAdapt

4.

Black PCB QMK Manuals

drive.google.com/file/d/1mH55MzYKdZa5G7SBaFoLjncoDW5Hdz3V/view?usp=sharing

Black PCB VIA manuals

drive.google.com/file/d/1iHBv3uwBLPdGaUBeAcrGn9RgJLEhqn0k/view?usp=sharing

OK60 White PCB QMK :

https://drive.google.com/open?id=1rZOnux3IbFiuiGh0Jgha7AjzqCuAUSmM

Black QMK Layout

QMK add Underglow

QMK Type C No RGB

PLATE
