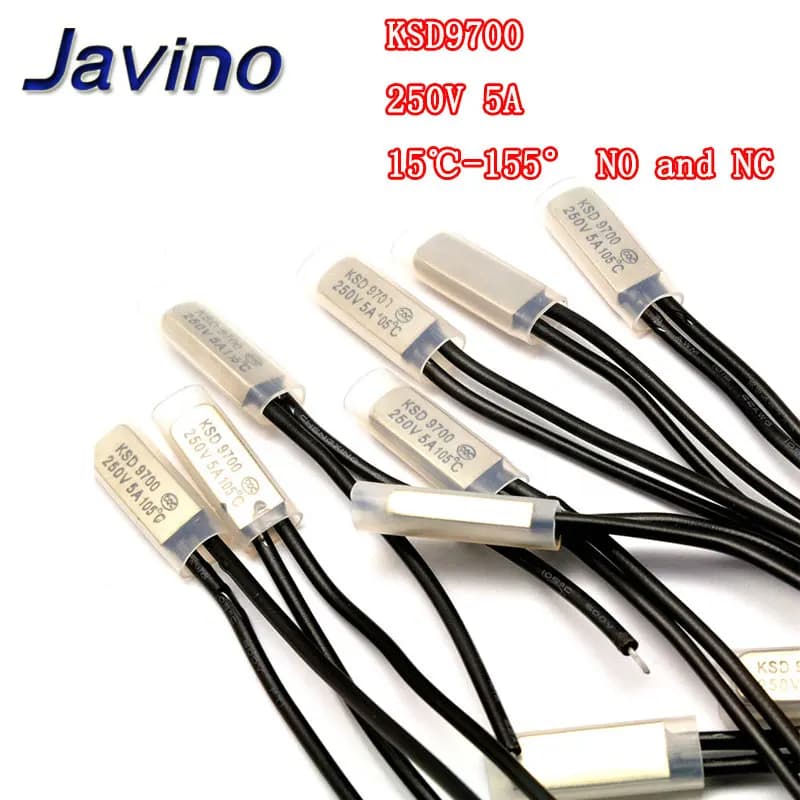

1-20Pcs Javino KSD9700 250V 5A 15~155 Degree Bimetal Disc Temperature Switch Normal Close Closed Thermostat Thermal Protector

Specifications

Model : KSD9700

Material  :  Metal case

Contact : NO(Normal Open) Optional NC(Normal Close)

Temperature : 15°C~155°C

Rated Power : 250V 5A

Lead Wire Length : 7.3cm / 2.9"

Head Dimension : 20 x 7.5 x 3.5mm/0.78" x 0.3" x 0.14"(L*W*T)

Rated voltage: 250V

Overload current: 5A

Operational temperature: 30-180 degrees Celsius

Rated current DC12V/12A, DC24V/10A

                       AC125V/8A, AC250V/5A

Normal Electrical Strength: > 800V

Normal contact resistance: 50mΩ

Insulation Resistance > 100MΩ

Response speed < 1℃/min

More than 10,000 use times

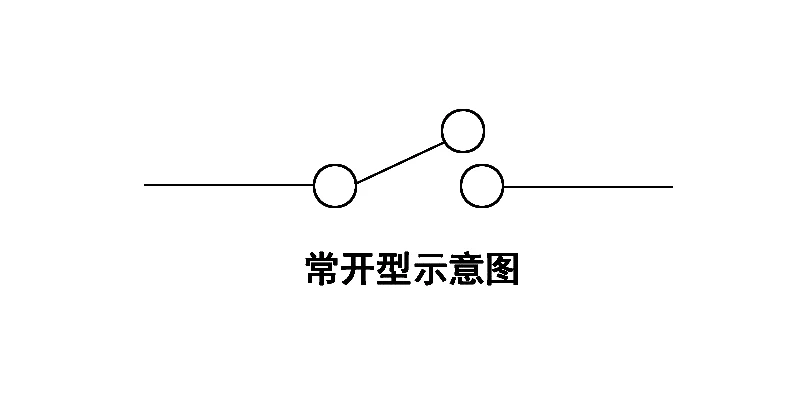

NO(Normal Open)

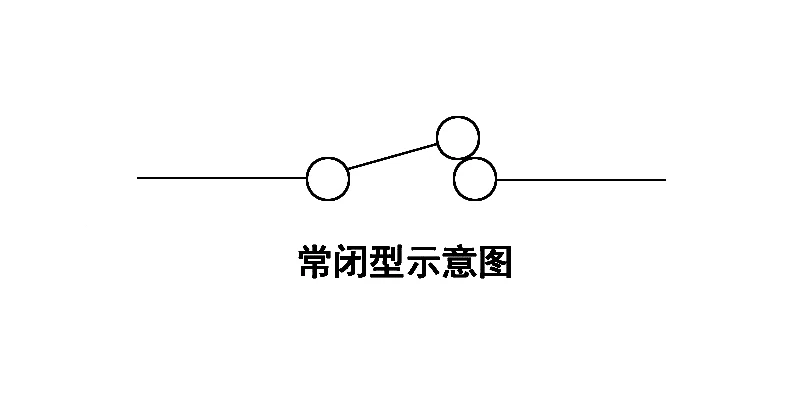

NC(Normal Close)

Note: Normal opening = over-temperature connection, Normal closing = over-temperature disconnection
