Kamoer KPHM400/KPHM200 Peristaltic Pump 200~400ml/min DC Motor Dosing Pump Cost-effective Self-priming Pump for Dispensing

Kamoer KPHM400/KPHM200 Peristaltic Pump 200~400ml/min DC Motor Dosing Pump Cost-effective Self-priming Pump for Dispensing

★ Suitable for the transfer of viscous and non-viscous liquids
★ Compact structure and high maintainability
★ A variety of pump tube materials are available

Basic Parameters

Motor: DC motor
Voltage: 12V/24V
Flow rate: KPHM400-400ml/min
KPHM200-200ml/min
Roller: 3 rotors
Working Temperature: 0-40℃
Humidity: ＜80%
Pump head material: Nylon

Flow Rate KPHM200

KPHM200 Brush motor- SV(24V; 0.3A) 200ml/min
KPHM200 Brush motor -SW(12V; 0.7A) 200ml/min

Flow Rate KPHM400

KPHM400 Brush motor-SV(24V; 0.3A)3 rotors 400ml/min
KPHM400 Brush motor-SW(12V; 0.7A)3 rotors 400ml/min

Various Applications

# Experimental Research
# Experimental Monitoring
# Inkjet.Printing
# Aquarium
# Smart Home
# Aviation Operation

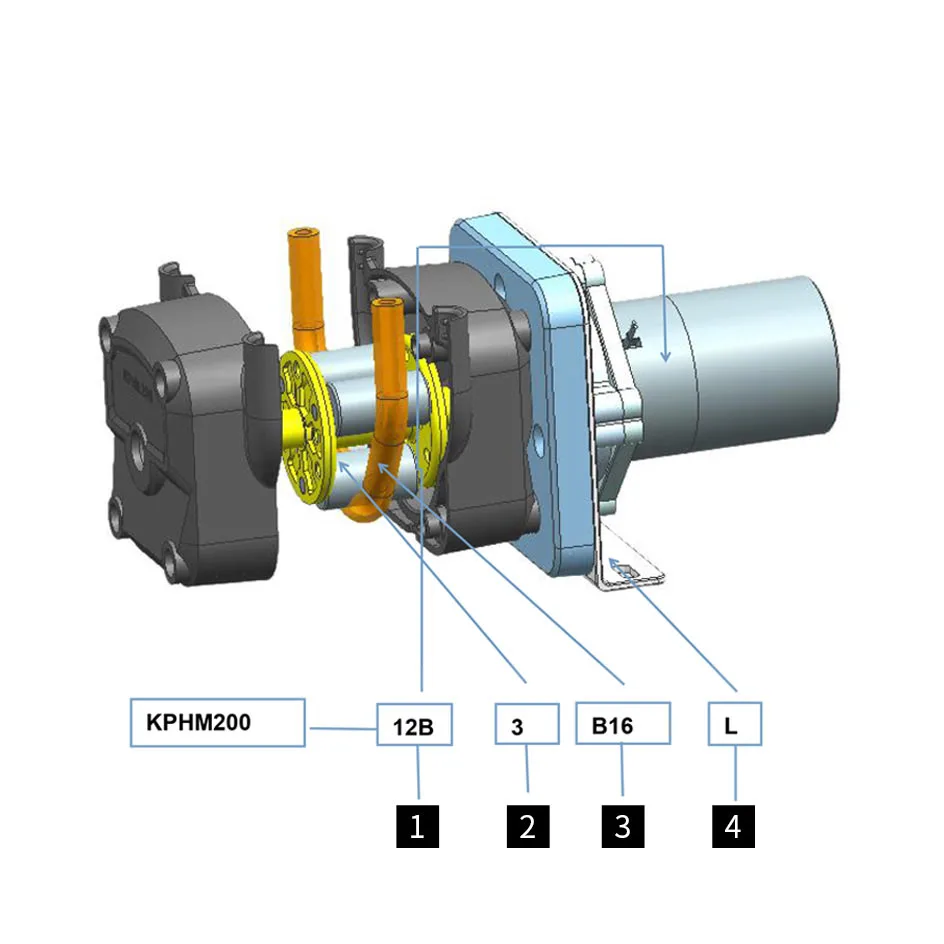

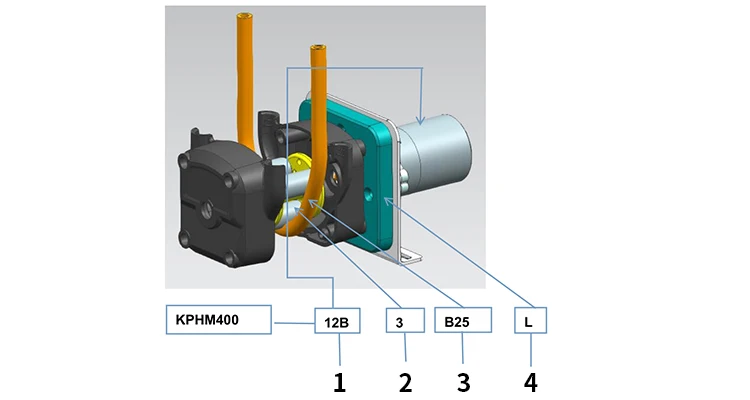

More Details

① Motor code
② Numbers of rotors
③ Pump tube selection
④ L--Installation method(L plate/Straight plate)

▲ The gearbox drives the pump tube to work, and the pump tube is not easy to slip.
▲ Zero-pollution

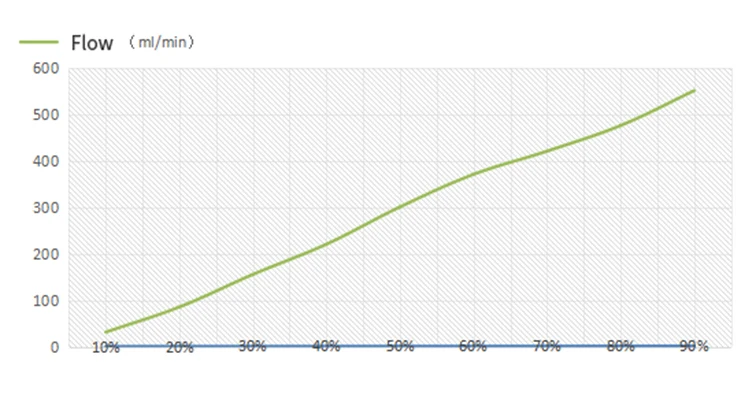

PWM Speed Control - B25

Using the PWM to control the speed of Flow rate.

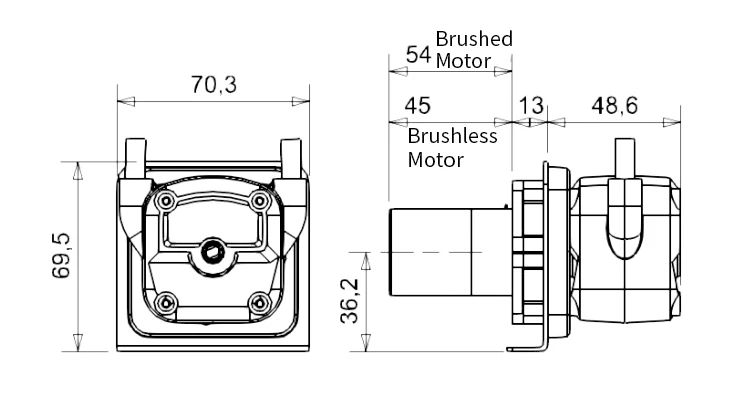

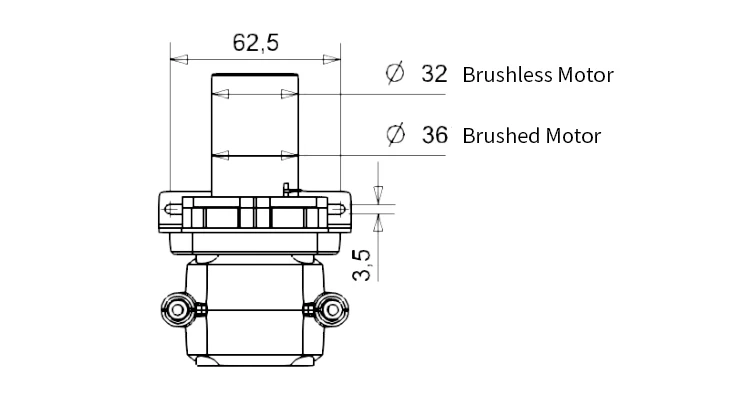

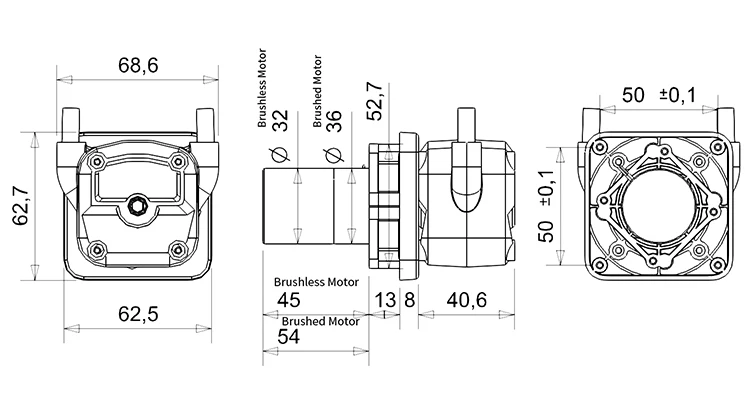

Dimension-KPHM400-DC Motor

▲ Straight plate

▲ L plate

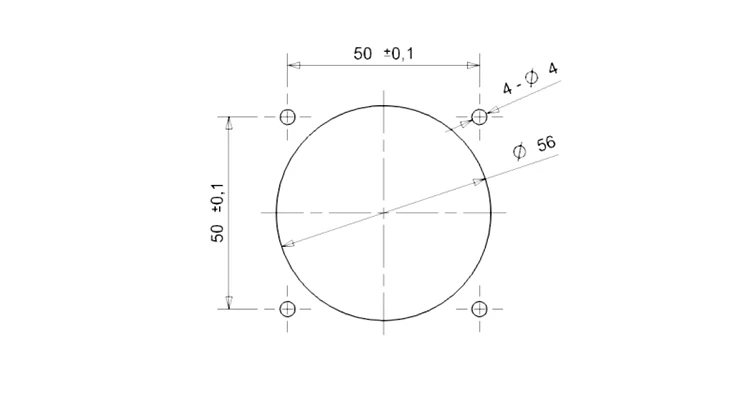

Suggested Hole Size

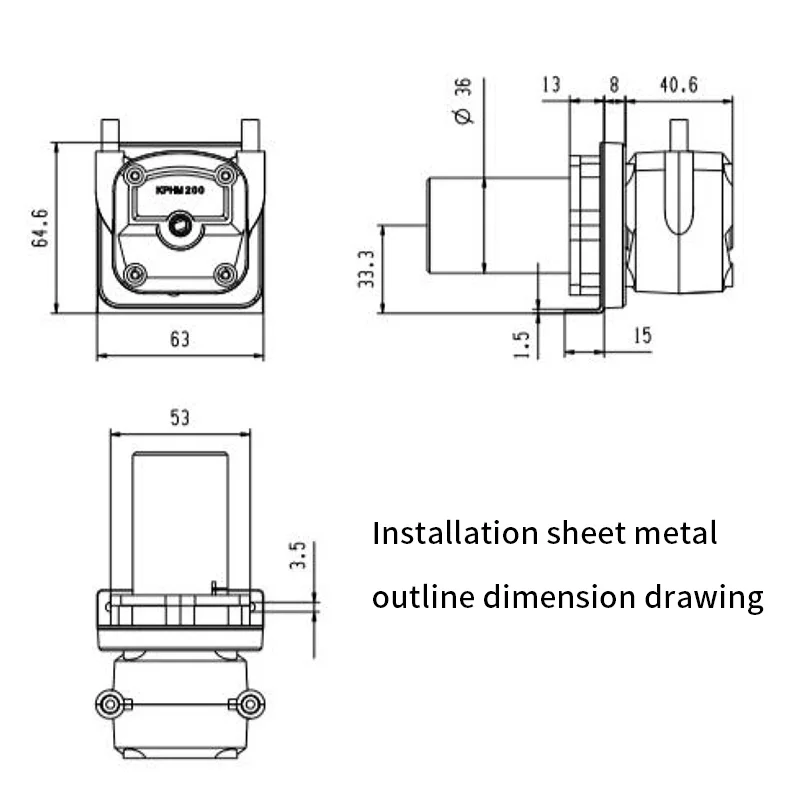

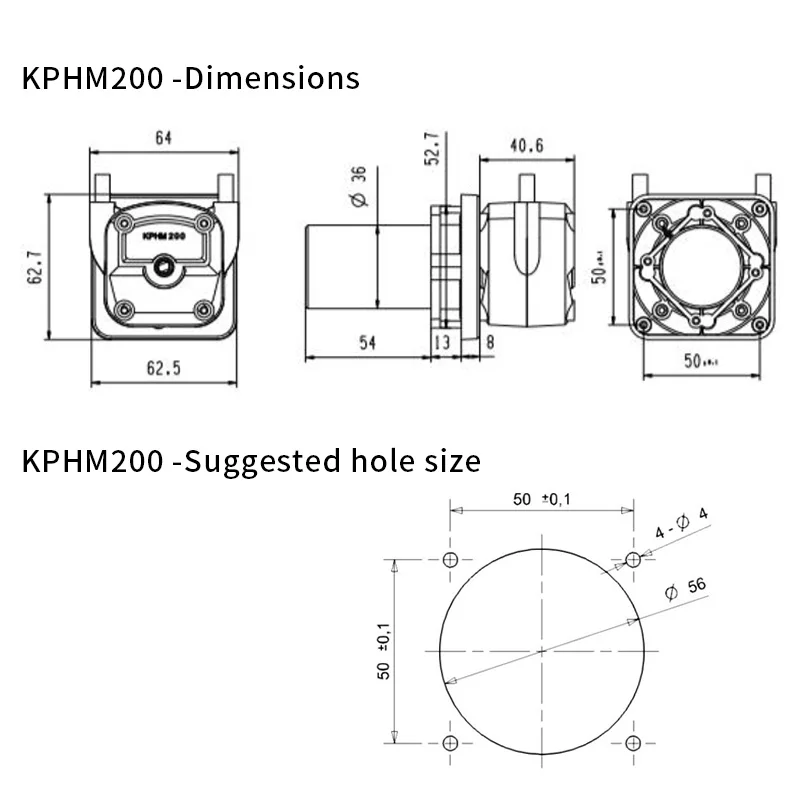

Dimension-KPHM200

▲ Straight plate
