Multilingual HXX 2 Axis Digital Readout /3 Axis LCD DRO SET & Linear Glass Scale Encoder Grating Ruler for Turning Milling Lathe

Multilingual HXX 2 Axis Digital Readout /3 Axis LCD DRO SET & Linear Glass Scale Encoder Grating Ruler for Turning Milling Lathe

Model GCS909 HXX company's new upgrade is a 2 AXIS LCD DRO / 3 AXIS LCD DRO in 19 languages, convenient for users in different countries, easy to operate and fully functional. It is widely used in lathe, milling machine, grinder, wire-cutting machine, drilling machine and so on.

Support English, Russian, German, French, Spanish, Portuguese, Italian, Polish, Ukrainian, Croatian, Slovak, Dutch, Czech, Turkish, Japanese, Korean, Vietnamese, Simplified Chinese, Traditional Chinese, a total of 19 languages.

Package includes:

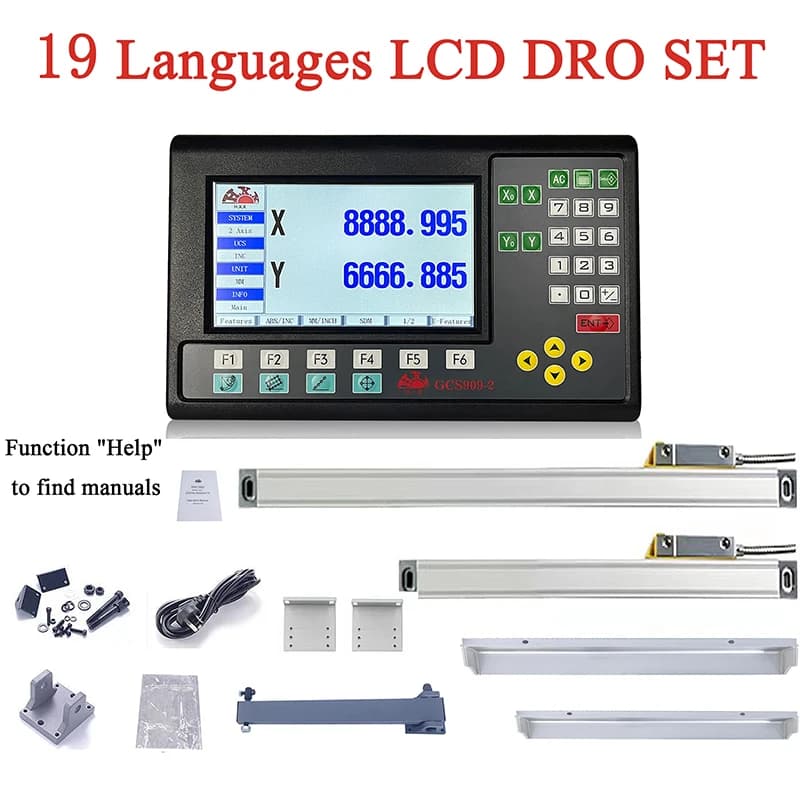

GCS909-2 LCD DRO SET

1. 1 piece GCS909-2 2 axis dro display(with power cable, user manual, mounting arm, screw bag, display protector)

2. 2 pieces linear scales (with covers, mounting bracket, screw bag)

GCS909-3 LCD DRO SET

1. 1 piece GCS909-2 2 axis dro display(with power cable, user manual, mounting arm, screw bag, display protector)

2. 3 pieces linear scales (with covers, mounting bracket, screw bag)

Linear scale (working)travel length：50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.

Linear scale (total)overall length：travel length+138mm

Please be sure to advise the required travel length of the scales in good time so that it can be shipped as soon as possible, thank you to all buyers!

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

GCS909 DRO digital readout parameter:

1.Voltage range AC 100V ~ 240V / 50Hz ~ 60Hz

2. Acceptable Signals TTL Square Wave / (we can offer you EIA-442, when make order, leave the message, thanks)

3. Plug DB9

4. Acceptable Resolution 10 micron, 5 micron, 2 micron, 1 micron, 0.5 micron

Advantages:

1. Full functions, can be widely used for milling, turning, drilling, boring, wire cutting, etc.

2. AC100-240V wide voltage, can be widely used in all over the world.

3. Different types of plug kits for different countries such as US, UK, AU, EU, etc. are available as required.

4. It can be used with all Chinese brands of linear scales such as Sino, Rational, Easson, etc. with easy operation.

(Just change the signal and feel free to message us).

5. large LCD display, easy to read the date while working.

6. All accessories are complete, rest assured that the choice.

7. Rich language, support English, Russian, German, French, Spanish, Portuguese, Italian, Polish, Ukrainian, Croatian, Slovak, Dutch, Czech, Turkish, Japanese, Korean, Vietnamese, Simplified Chinese, Traditional Chinese.

Basic Functions:

1.Zeroing

2 Preset Data to Designated Axis

3 Toggle Display Unit between inch and mm

4 Absolute/Incremental/200 groups SDM

5 1/2 Function

6 Clear All SDM Datum

7 Screen Saver Function

8 Power Interruption Memory

9 Linear Compensation

10 Non Linear error Compensation

11 Anti-shake Function

12 R/D Function

13 Coordinate Joint Function

14 Factory Reset

15 Setup Location display method

16 Signal Interface Type

17 Setup the Resolution

18 Setup Positive Direction for Counter

19 Setup Compensation Type

20 Setup Encoder linear

21 Setup Screw clearance

22 Setup Coordinate Joint

23 Setup INCH Unit Dot

24 Setup the Anti- Filtering

25 Setup the Angle Display Mode

26 Setup Screen saver time

27 Setup Language

28 Setup Anti-shake

29 Setup RS 485 Baudrate，MODBUS_RTU

30 Brightness adjustment

31 Calculator

32 Help-Check the manual

33 200 Groups SDM coordinate

34 Zeroing at the Current Point

35 Preset datum of SDM coordinate

Special Functions:

1.Circumference Holes Processing

2.Linear Holes Processing

3.Smooth ARC Processing

4.Simple ARC Processing

5.Slope Processing

6.Network holes Processing

7.Rectangle Inner Processing

8.EDM Processing

About Scale

Model: GCS898

Travel length (Available measurement): 50mm to 1000mm

Total length: Travel length (Available measurement)+138mm

Size cross section size: 21mm*33mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um(0.005mm)

Cable length: 3 meters

Corss section size 20mmx29mm slim scales are available, please contact seller if need.Thank you!

Extra 15usd per unit, Thank you!

Please be sure to advise the required travel length of the scales in good time so that it can be shipped as soon as possible, thank you to all buyers!

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Attention all buyers: please be sure to tell us the length of the scale you need, thank you!

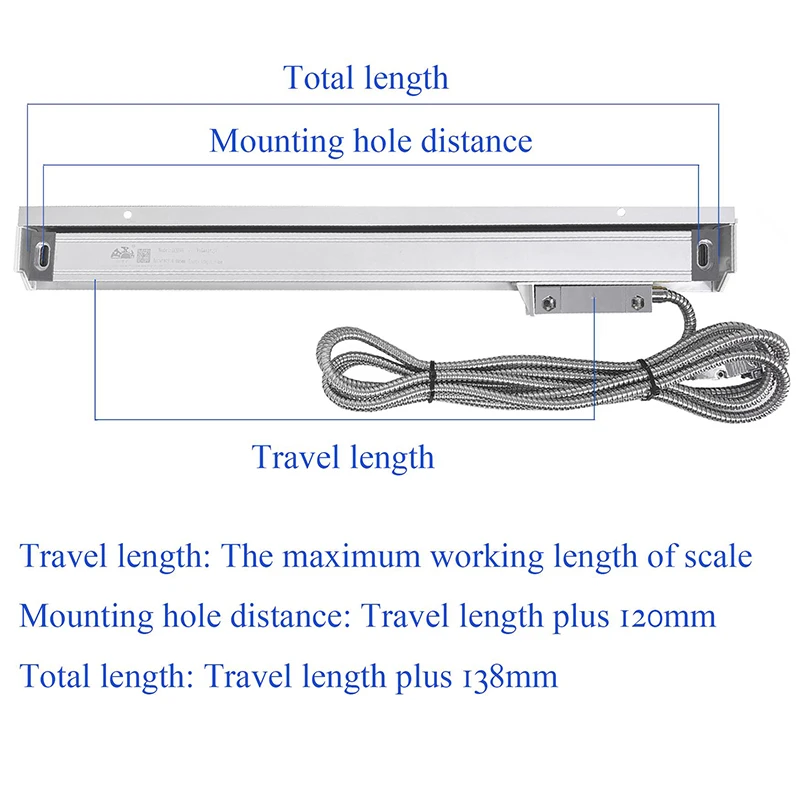

Travel length: The maximum working length of scale

Mounting hole distance: Travel length + 120mm

Total length: Travel length + 138mm
