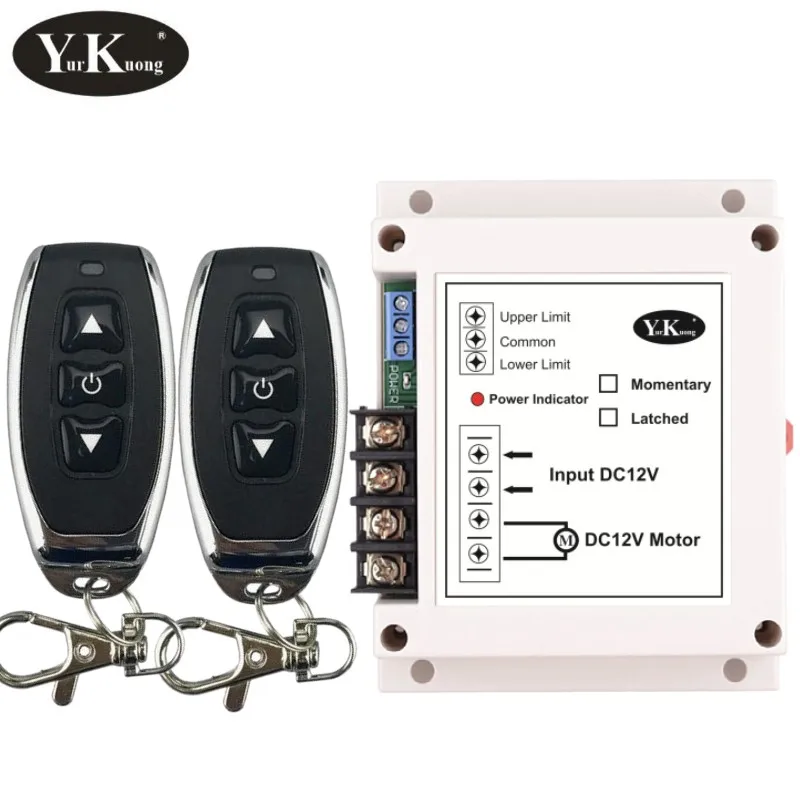

DC12V Motor Remote Control Switch 400W 2CH Motor Forwards Reverse Up Down Stop Water Pump Oil Pump Wireless TX RX Limited Switch

DC 12V Motor Forwards Reverse Up Down Stop Controller

Working Voltage: DC12V

Max Load: 40A Relay (have better load less than 25A) have better load less than 400W



Size: 115*95*40mm

Control Type: Up Down Button change the receiver Output + - position. When motor is stop, the Output is 0V.

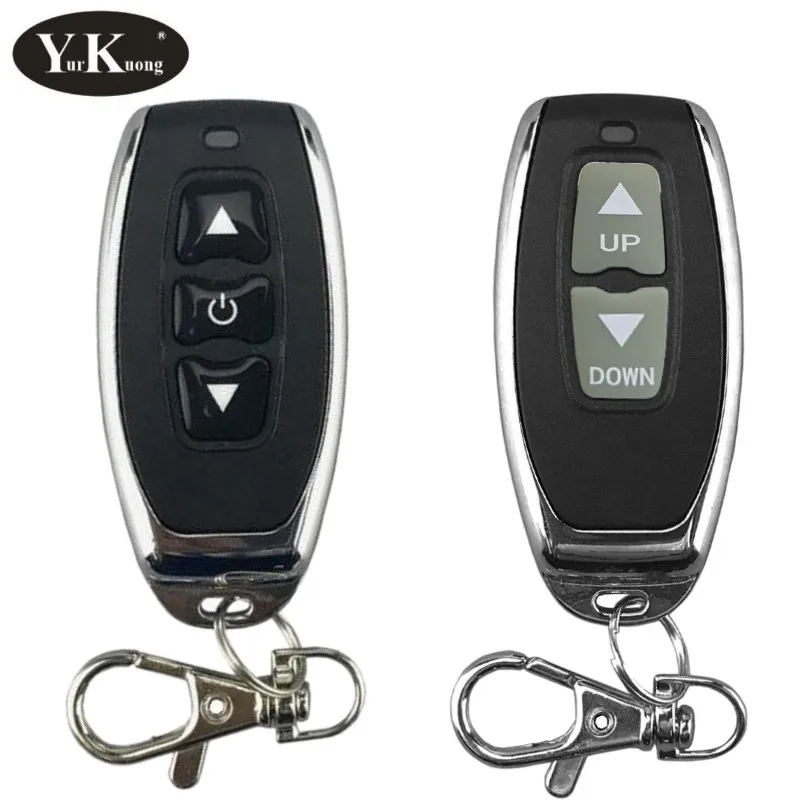

Code Type--------------- Learning Button to add Transmitter

Power off then Power ON again , the receiver is still off ,

Receiver with the Power LED indicator





Working Mode: Momentary Latched adjusted by Switch



“Latched Mode" -----------have the 3s Delay for protection.



Momentary---------Switch turn to“M"

Latched-------------Switch turn to " L"
