WisMesh Ethernet Gateway |The MQTT Gateway for Meshtastic|RAK10720

Model1-With Enclosure

Model2-Without Enclosure

Type1-Without PoE Module RAK19018

Type2-With PoE Module RAK19018

800MHz for EU868/IN865/RU864

900MHz for US915/AU915/KR920/AS923

Build your ideal Meshtastic node with

Meshtastic Designer

. This online tool helps you select the right WisBlock modules and enclosures for Meshtastic Client, Tracker, or Router roles in your LoRa mesh network.

What Is WisMesh Ethernet MQTT Gateway?

The WisMesh Ethernet MQTT Gateway is the solution to connect your Meshtastic devices with the cloud. It provides an interface from your Meshtastic nodes to either the Meshtastic MQTT Broker or to your own MQTT Broker. Whether you want to send sensor data, location information, or even text messages to the cloud, this device is the one you need.

This Meshtastic MQTT PoE Gateway uses our

WisBlock RAK4631 Core module

, which is pre-flashed with the

Meshtastic firmware

. Besides the LoRa connectivity, it uses our

RAK13800 Ethernet module

 to connect to the internet and is placed on our

RAK19007 Base Board

.

The

RAK19018 PoE module

 is an optional accessory that allows the gateway to be powered through the Ethernet cable.

Select your preferred configuration:

Ethernet Only for basic connectivity.

Ethernet + PoE for a streamlined setup with Power over Ethernet support.

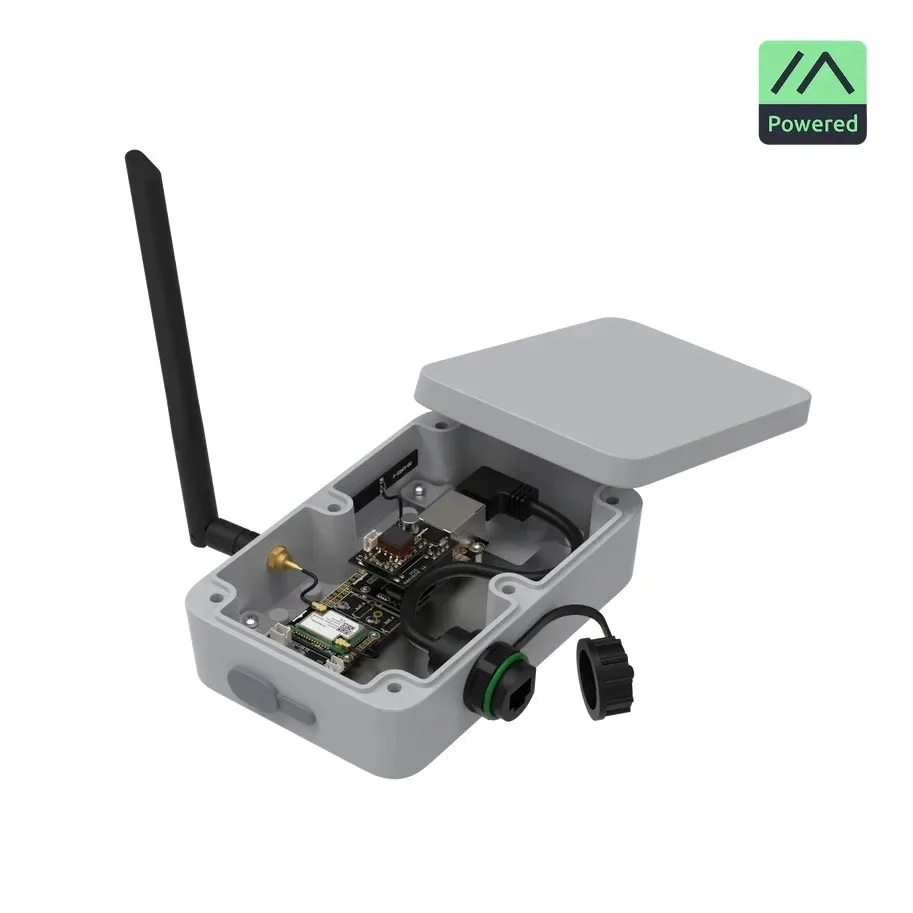

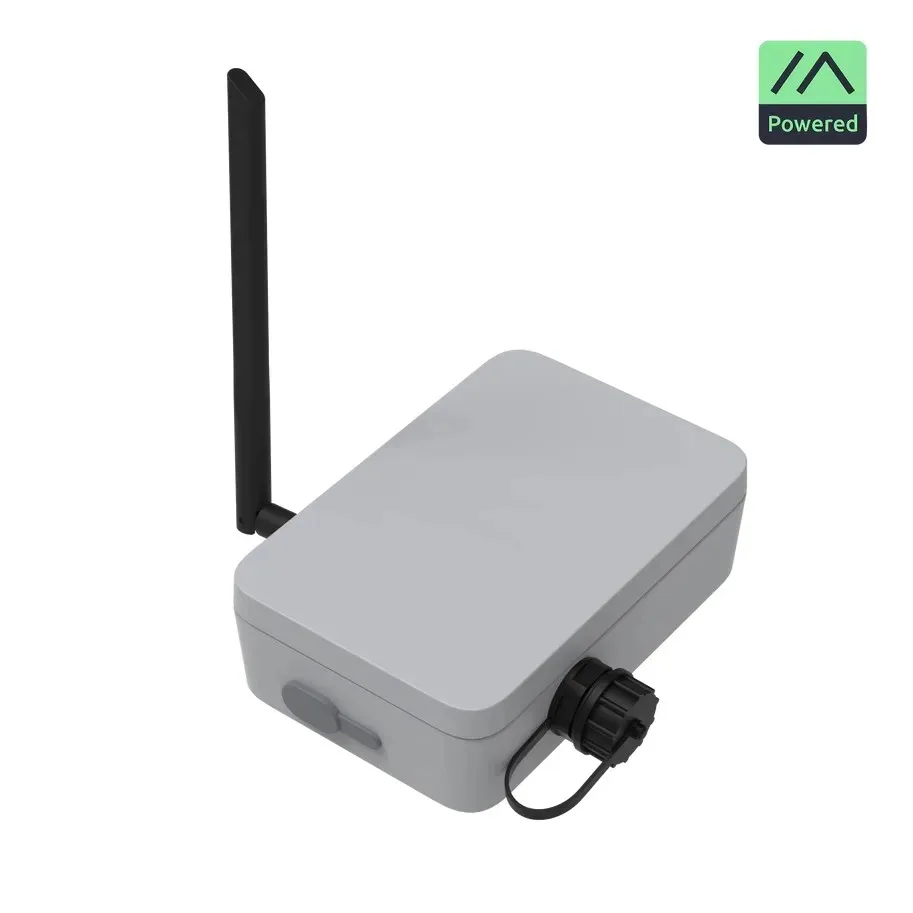

Both bundles are pre-assembled and ready to deploy for immediate use. It comes assembled in our

Unify Enclosure 150 mm x 100 mm x 45 mm

 with an external LoRa antenna and waterproof Ethernet connector.

The WisMesh Ethernet MQTT Gateway comes pre-assembled and pre-flashed with the original Meshtastic firmware-RAK4631_eth_gw, which supports JSON over MQTT.

Everything required to start is to set up our Ethernet Gateway with the

Meshtastic app

 for mobile through BLE.

Why You Need WisMesh Ethernet Gateway

The WisMesh Ethernet MQTT Gateway is the ideal solution for connecting your Meshtastic network to the cloud with a stable, wired connection. Designed for reliability, it seamlessly integrates with MQTT brokers, enabling efficient data transmission for sensor readings, location tracking, and text communication over Ethernet.

Why it’s useful:

Reliable wired connectivity – Ensures a stable connection between your Meshtastic network and an MQTT broker via Ethernet.

Efficient data transmission – Supports JSON over MQTT for streamlined communication of sensor data, messages, and GPS locations.

Pre-assembled & ready to use – Comes pre-flashed with Meshtastic firmware, so you can deploy it immediately.

PoE option available – Can be powered via Ethernet with the optional RAK19018 PoE module, reducing cable clutter.

Seamless integration – Works with the RAK13800 Ethernet module and RAK19007 Base Board for a complete connectivity solution.

Key Features of WisMesh Ethernet MQTT Gateway

WisBlock RAK4631 Core Module

Nordic nRF52850 WisBlock Core module, pre-flashed with the Meshtastic firmware

Bluetooth Low Energy 5.0 protocol stack

Nordic nRF52840:

Ultra-low-power MCU

32-bit ARM® Cortex-M4F CPU

64 MHz CPU clock

1 MB Flash, 256 KB RAM

Semtech SX1262:

Low power high range

LoRa® transceiver

WisBlock RAK19007 Base Board

30 mm x 60 mm with 4 sensor slots and 1 IO slot

USB Type C debug port

1 slot for WisBlock Core MCU

WisBlock RAK13800 Ethernet Module

Based on WIZnet W5100S-L chip

Support 4 independent SOCKETs simultaneously

Support SOCKET-less command

WisBlock RAK19018 PoE module

 (optional)

Based on Silvertel Ag9905MT

IEEE802.3af compliant

Input voltage range: 36V to 57V

WisMesh Antenna

Black high-performance LoRa antenna

High efficiency

Omnidirectional

Vertically polarized

9xx MHz variant

Frequency Range: 902~928 MHz

VSWR: ≤ 1.5

8xx MHz variant

Frequency Range: 863~870 MHz

VSWR: ≤ 1.3

Key Benefits of WisMesh Ethernet MQTT Gateway

The WisMesh Ethernet MQTT Gateway delivers a low-latency, interference-free connection, making it ideal for industrial applications, large-scale sensor deployments, and mission-critical IoT networks.

Consistent and low-latency data transmission: Eliminates Wi-Fi instability with a direct Ethernet connection for real-time IoT data flow.

Reliable power options: Supports Power over Ethernet (PoE) and DC input, ensuring continuous operation in remote or hard-to-reach locations.

Use Case #1

In disaster-stricken areas where traditional communication infrastructures are compromised, the WisMesh Ethernet MQTT Gateway enables first responders to maintain real-time communication, coordinating rescue efforts effectively.

Use Case #2

For industrial IoT applications, the gateway integrates remote sensors monitoring equipment health, allowing maintenance teams to receive timely alerts and perform predictive maintenance, reducing downtime.

What’s in the Box

With Unify Enclosure 150 mm x 100 mm x 45 mm

1 pc WisMesh Ethernet Gateway

1 pc WisMesh Blade Antenna

1 pc USB Cable

Without Enclosure

1 pc WisBlock RAK19007 Base Board

1 pc WisBlock RAK4631 Core Module

1 pc WisBlock RAK13800 Ethernet Module

1 pc WisBlock RAK19018 PoE Module (Optional)

1 pc PCB Antenna for LoRa

1 pc BLE Antenna

1 pc USB Cable

1 set Screw

How to Get Started with WisMesh Ethernet MQTT Gateway

WisMesh Ethernet Gateway First Steps

Meshtastic firmware

WisMesh Ethernet MQTT Gateway Quick Start Guide

Meshtastic Basic Device Setup

Meshtastic Gateway Setup

Frequently Asked Questions

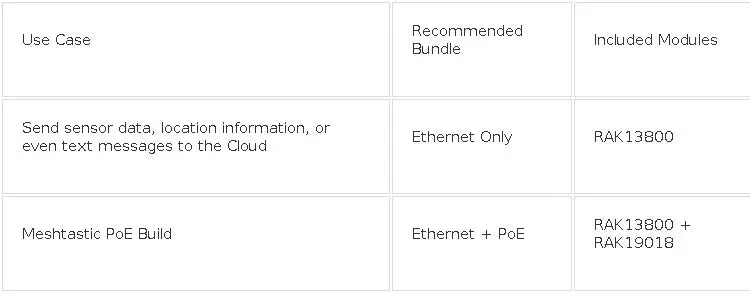

How to Select the Right Bundle for Your Meshtastic PoE Build?

Q&A:

Q:

Do you have a cloud available?

A:

You can choose to use any available cloud resources at your disposal.

Q:

What voltage does the solar panel provide?

A:

If powered by solar cells, a voltage of 5V is required.
