Xhorse VVDI Key Tool Max Pro Support CAN FD/ Voltage and Leakage Current With MINI OBD Tool Function

Xhorse VVDI Key Tool Max PRO Remote Maker and Key Programmer

Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset.

KEY TOOL MAX PRO, a real small tablet, with built-in OBD function, easy to carry, remote control matching tool!  It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset. As well as new functions: for BMW CAS3 key programming, battery voltage measurement, leakage current measurement!

Key Tool Max Pro newly supports TPMS generation and programming, providing free upgrade service. Just update your device to get the powerful function combination of IMMO and TPMS to start your new business!

TPMS Function(should use the Xhorse XTPMS Sensor):
Support XTPMS programming, up to 20 sensors simultaneously
Reprogram XTPMS sensor
Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)
Copy and change sensor ID
Read TPMS data like tire pressure, temperature, battery, etc.
Support OBD reading, writing, read & clear DTCs
Compatible with multiple car models, more models coming soon

Language:English only(As other language as there has the local dealer)

Key Tool Max Pro Highlights:

1. Cover Key Tool Max+Mini OBD Tool remote/transponder immo functions

2. Add New for BMW CAS3 and for Toyota Models, and partial for Toyota models key programming (for Corolla,for Highlander,for Camry,for REIZ,for VIOS,for LEVIN,for CROWN,for RAV4,for Hiraks,for Lexus,for PRADO/LAND CRUISER PRADO/LAND CRUISER

*Currently not supported: 8A-A9 type all key lost, 4A/8A-AA type add/all key lost)

3. Xhorse App language on phone has no limitation. But Key Tool Max Pro language only English.

4. How to get ID48 96bit transponder clone function?
Use VVDI Max Pro to generate new vvdi remote key 10pcs, after collect points, 2 hours later, server will open ID48 96bit function automatically. Please note all brand new remotes.

5. Built-in CAN_FD Module

6. Supports for Toyota H all keys lost with 8A AKL adapter

7. Control Xhorse Condor/ Dolphin key cutting machine

8. Support TPMS Function


VVDI Key Tool Max Pro Main Functions:
IMMO OBD Match
Maintenance
Remote leakage detection
Remote battery voltage detection
Remote key / smart card key generation
Transponder Editing & Cloning
Generate Transponder
Remote Renew
Access Card identification / copy
Generate Garage Remote
Frequency Detection and Copy Remote

Work with DOLPHIN XP-005, XP005L, MINI Plus, MINI Plus II
For BMW CAS1- CAS3 Key Programming and Mxxx Repair (NEW!)
Partial for Toyota 8A/4D Add key and all keys lost (with 8A AKL adapter) (NEW!)
TPMS programming and activation (June 2023) (NEW!)

New - IMMO Programming Elevated Capability
Support for Fiat Viaggio, for Ottimo 3 Button Smart Key
Generate Dealer Key
Add Key and All Key Lost
Support for Jeep Renegade Flip Key MQB48
Add Key and All Key Lost

NEW - for BMW CAS3\for Toyota Models Programming
To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add programming features of for BMW CAS3 and some for Toyota models.
Support for BMW CAS3+and lower modules
CAS1 IMMO system
EWS IMMO system
CAS2 IMMO system
ECU ISN
CAS3/CAS3+IMMO system
Instrument cluster calibration
Support partial for Toyota 8A/4D Add Key /All Key Lost
Support List
for Corolla
for  Highlander
for Camry
for REIZ
for VIOS
for LEVIN
for CROWN
for RAV4
for Hiraks
for Lexus
for PRADO/for LAND CRUISER PRADO/LAND CRUISER
*Currently not supported: 8A-A9 type all key lost, 4A/8A-AA type add/all key lost

Add OBD Module
KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function:

Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as for Cadillac CT4/CT5, for Buick GL8, for Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

Read Voltage and Leakage Current:

This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.
Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)

Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V

Parameter
Battery: 3375mAh
Standby: >5 Days
Inoput: 1.5A
Light: >400nits
Screen Resolution: 1280*720P
Camera: 800W
WiFi& Bluetooth: 802.11a/g/g/n/ac & 4.2 BLE
PCB Display:

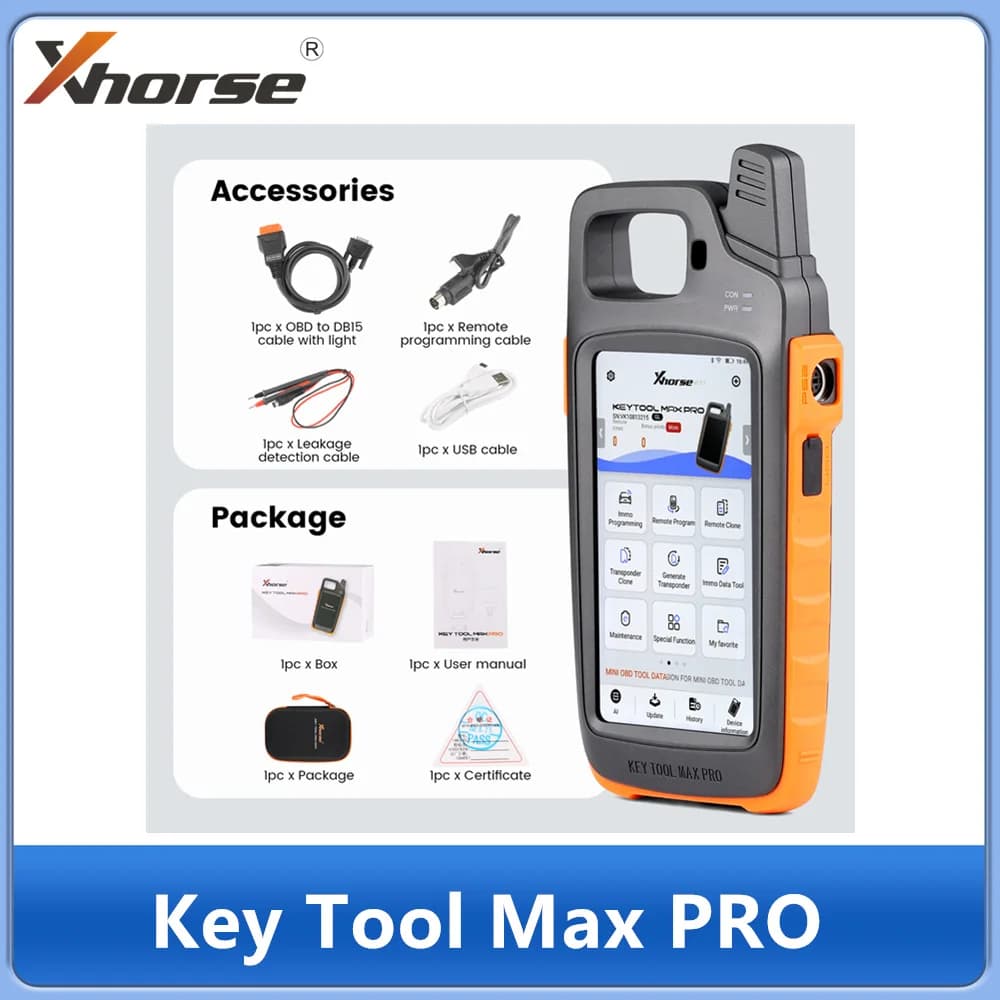

Package Includes:

1pc x KEY TOOL MAX PRO deivce
1pc x OBD to DB15 cable with light
1pc x Remote programming cable
1pc x Leakage detection cable
1pc x USB cable
1pc x User Manual
