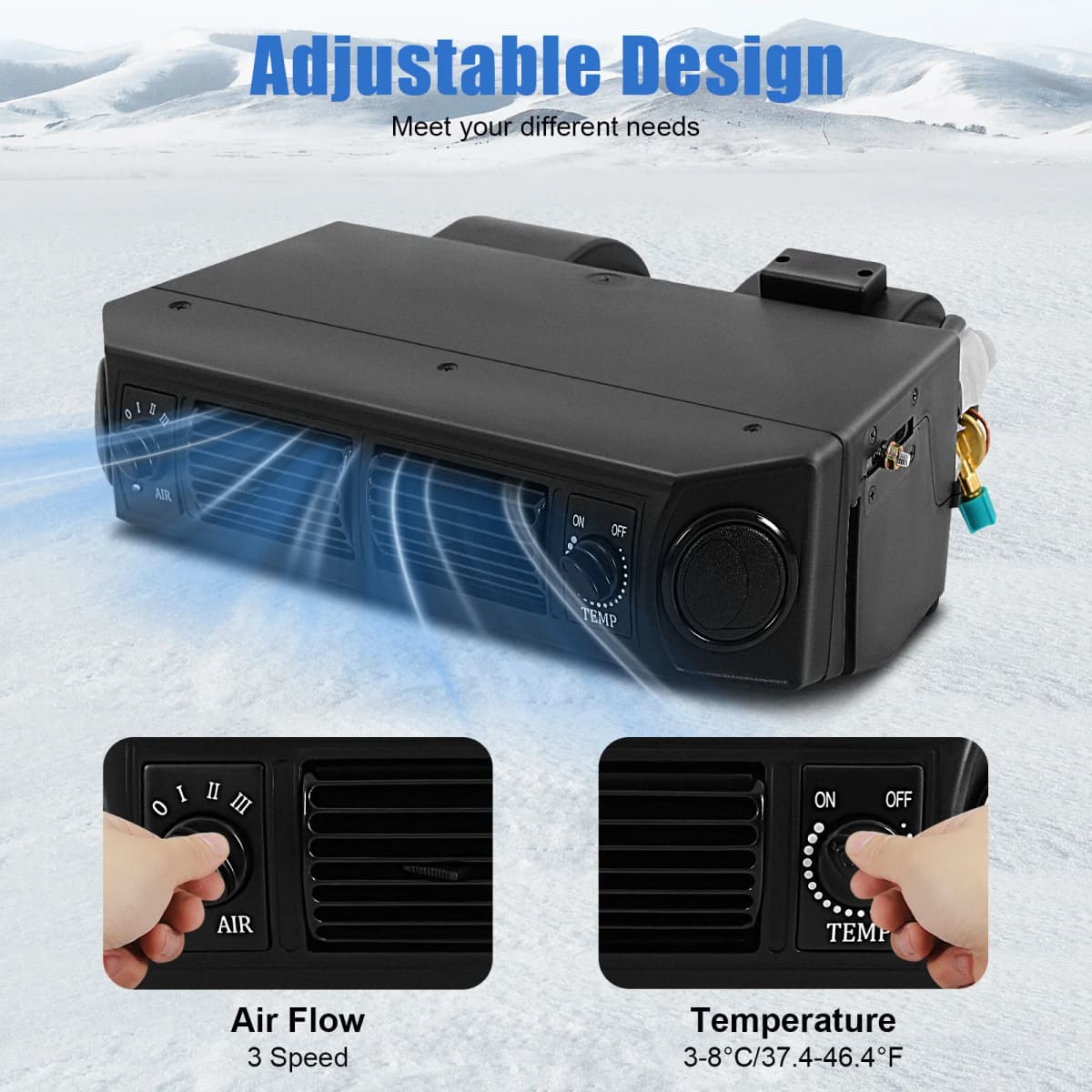

Truck Air Conditioner Evaporator, 12V Underdash AC Evaporator Unit, Truck Mounted Air Conditioner - 32 Aluminum Tubes, 3640 Kcal/h, 80W All-Copper Motor, 680 m³/h Max Airflow, 3-Speed Fan, Adjustable 37.4-46.4℉, for Truck RV Van
169.32$
72.4$
Quantity:
1
Availability:
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Details
T-Tube&Drain Hose: Attaching the T-tube to the 3.28ft long drain hose ensures smooth, efficient drainage.
2 Mounting Brackets: The mounting brackets with pre-drilled holes make it easy to secure the product in place.
Application
It can be used for all types of cars and is a universal type.
Specifications
Material: ABS
Color: Black
Style: Modern
Type: A/C Evaporator
Control Mode: Manual Type
Installation Type: Split System
Temperature Control: Mechanical
Motor Type: All-copper Motor
Temperature: 3-8°C/37.4-46.4°F
Voltage: 12V
Current: 8A
Power: 80W
Air Flow: 3 Speed
Noise: 65dB
Maximum Air Volume: 680m³/H
Circulating Air Volume: 440m³/H
Refrigeration Capacity: 3640kcal/H
Refrigerant: R12(Not Included)
Number of Cold Aluminium Tubes: 32
Drain Hose Length: 1m/3.28ft
Product Size: 40*33.5*13.5cm/15.75*13.19*5.31in
Package Size: 46*41*20cm/18.11*16.14*7.87in
Gross Weight: 4.6kg/10.14lbs
Net Weight: 4.14kg/9.13lbs
Package Included
1* Air Conditioning Evaporator
1* Drain Hose
1* T-Tube
2* Mounting Brackets
Notes
1.Please note that this product only has a cooling function, not a heating function.
2.For great installation and results, it is highly recommended to use a professional for the installation.
3.This product is not a complete air-conditioning system and needs to be matched with other air-conditioning accessories such as compressors, condensers, and drying bottles.
4.Please note that the installation angle should be within the range of more than 5 degrees and less than 35 degrees. Drainage holes should be located at a low horizontal level to ensure that water can drain out smoothly. Please do not install the unit in an upright position or upside down.
5.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
