Low-Frequency Signal Generator Professional Signal Generator Dual Output Waveform High Precision Function Signal Generator

Low-Frequency Signal Generator Professional Signal Generator Dual Output Waveform High Precision Function Signal Generator

Specifications

Model: TAG-101

Material: Metal, Plastic

Color: White

Shape: Rectangular

Style: Modern

Power Source: Corded Electric

Plug Standard: US Standard

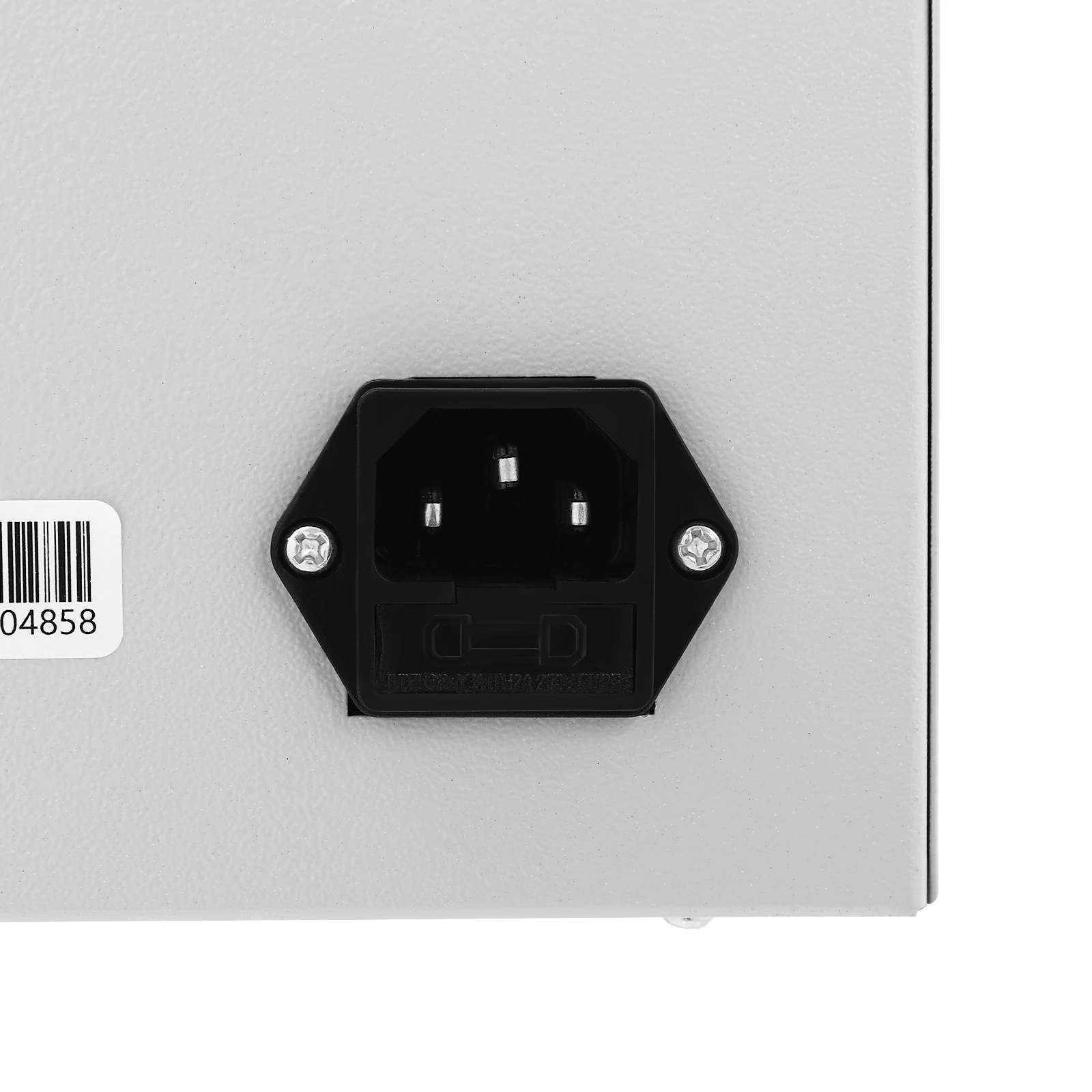

Power Supply: AC 110V (50/60 Hz), 8W

Frequency Range: 10 Hz~1 MHz

Number of Measurement Ranges: 5

Accuracy: ±5% of Full Scale

Output Impedance: 600Ω

Output Control: 0dB, -10dB, -20dB, -30dB, -40dB, -50dB (Fine-tunable)

Sine Wave Output

Output Voltage: 5~6V RMS

Distortion: 500 Hz~50 kHz ≤  0.05%

                  50 Hz~500 kHz ≤  0.5%

Output Smoothness: ±1.5 dB for 1 Reference

Square Wave Output

Range: 10 Hz~1 MHZ

Output Level: 10 V Peak

Rise Time: 0.5 μs

Synchronization Performance

Range: Each 1V Output Voltage Can Change The Oscillation Frequency by 1%

Input Impedance: 10 KΩ

Gross Weight: 2.9kg/6.4lbs
Net Weight: 2kg/4.4lbs
Power Cord Length: 1.2m/4ft

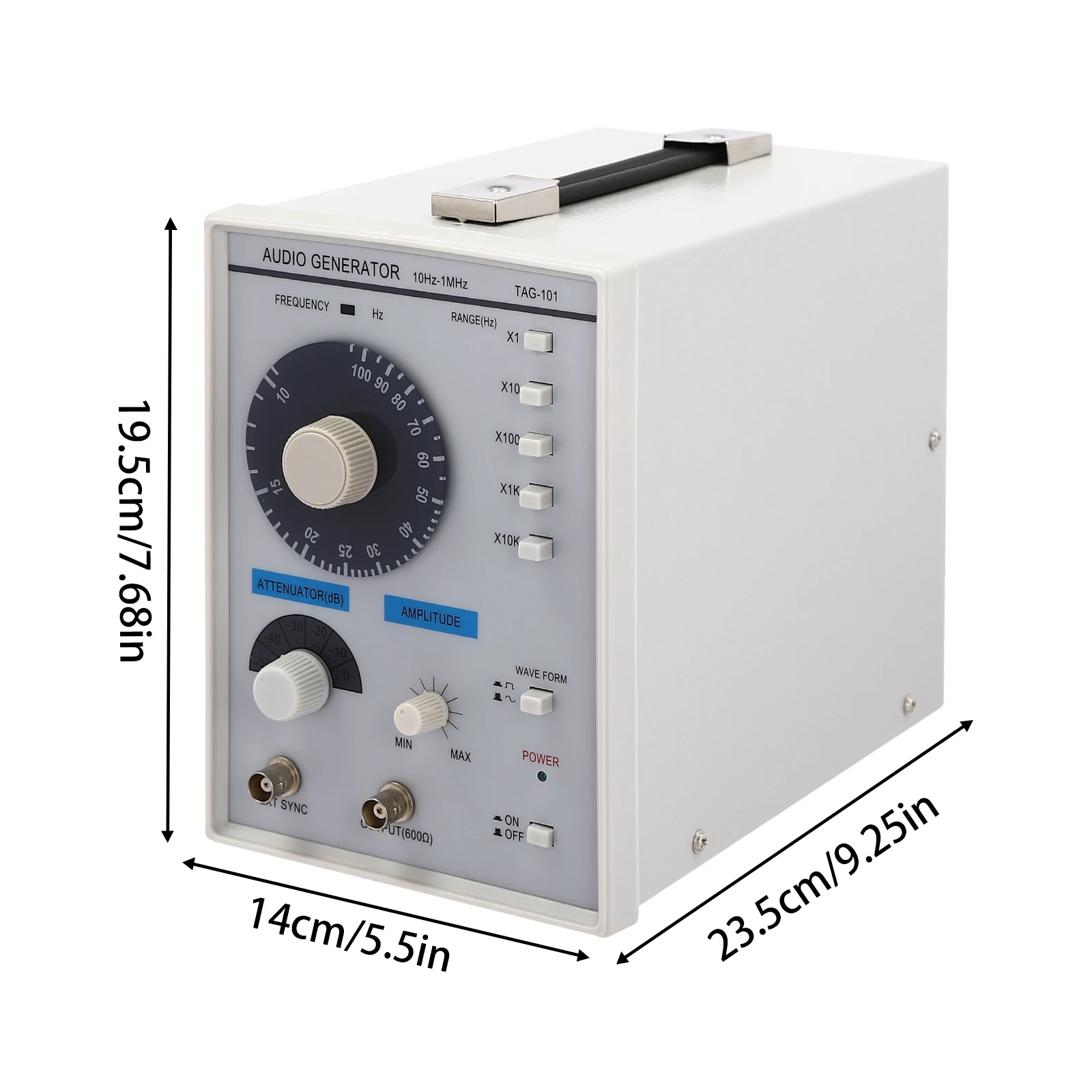

Product Size: 23.5*14*19.5cm/9.25*5.5*7.68in
Package Size: 32*30*21cm/12.6*11.8*8.3in

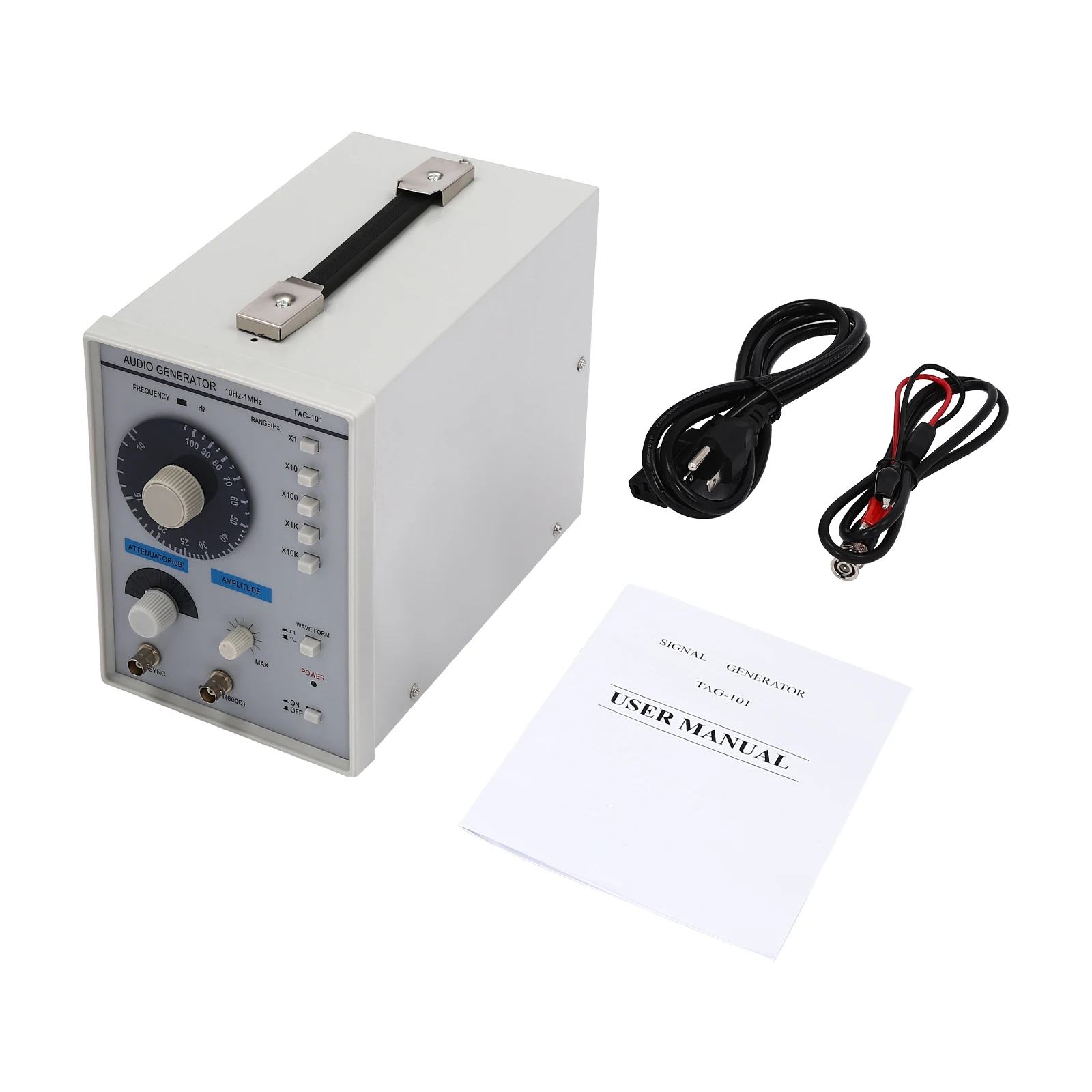

Package Included
1* Low-frequency Signal Generator
1* Power Cord
1* BNC Output Cable
1* English Manual

Key Features
Exceptional Frequency Accuracy: The reliable circuit system ensures high stability, unparalleled frequency accuracy (±5% of full scale), and extremely low distortion rate, ensuring precise waveform generation for a wide range of applications.

6-stage Output Attenuator: The low-frequency signal generator attenuates from 0dB to -50dB in 10dB increments (fine-tunable) to help you test signals that can be reduced in power without significantly distorting their waveforms.

Dual Output Waveforms: Equipped with the ability to produce sine and square dual output waveforms, the product offers versatility to accommodate diverse testing needs.

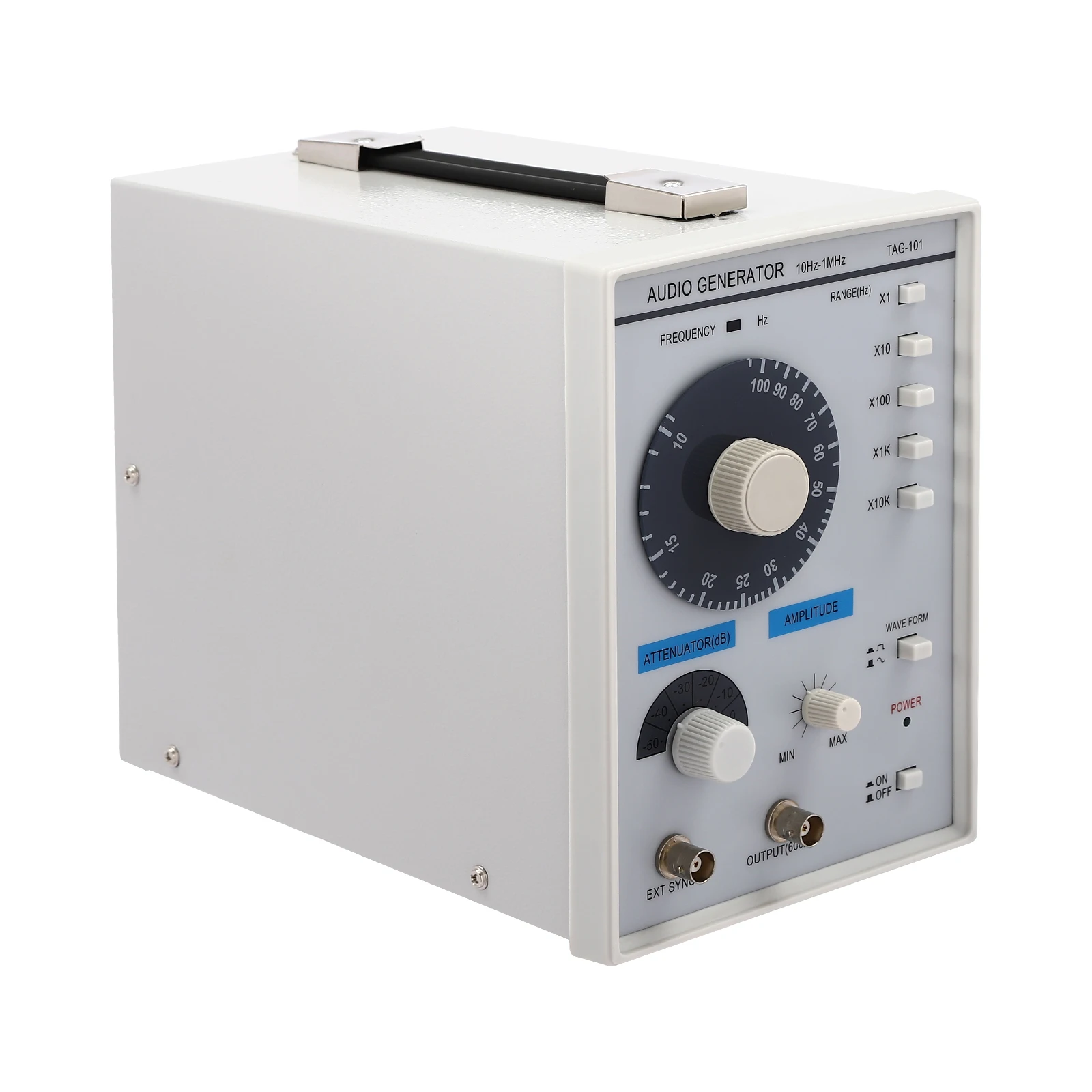

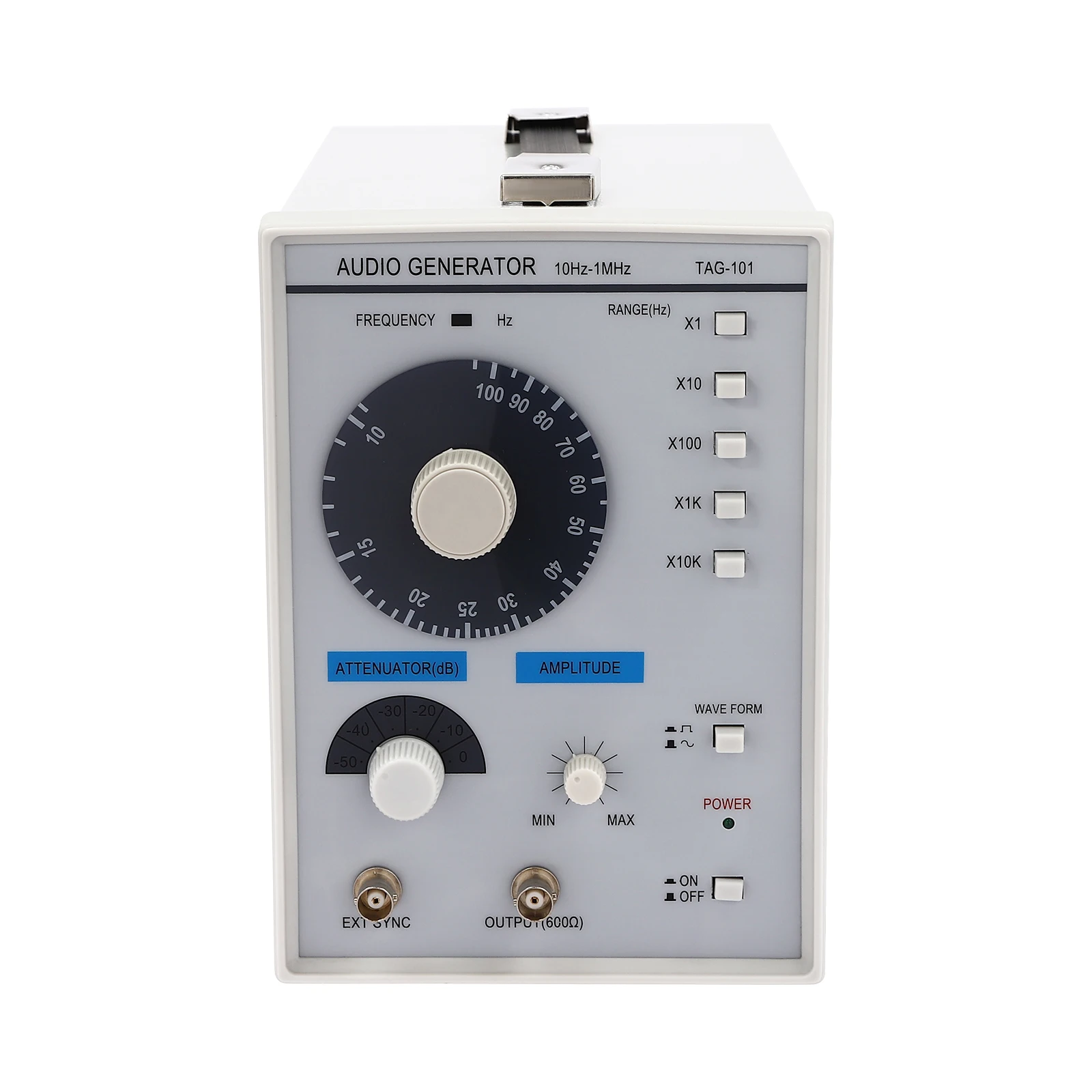

User-friendly Design: Featuring intuitive and user-friendly controlling knobs and precise scale, this product enables effortless operation and seamless adjustment of signal parameters.

Wide Frequency Range: This low-frequency signal generator has a wide frequency range (10 Hz～1 MHz), which is divided into 5 measurement ranges, allowing users to generate signals across low frequencies with utmost flexibility and control.

Guaranteed Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions.

Details
Indicator Light: It visually reminds you of the working status of the low-frequency signal generator.

Long Power Cord: The 4ft long power cord reduces usage restrictions and allows for easy placement.

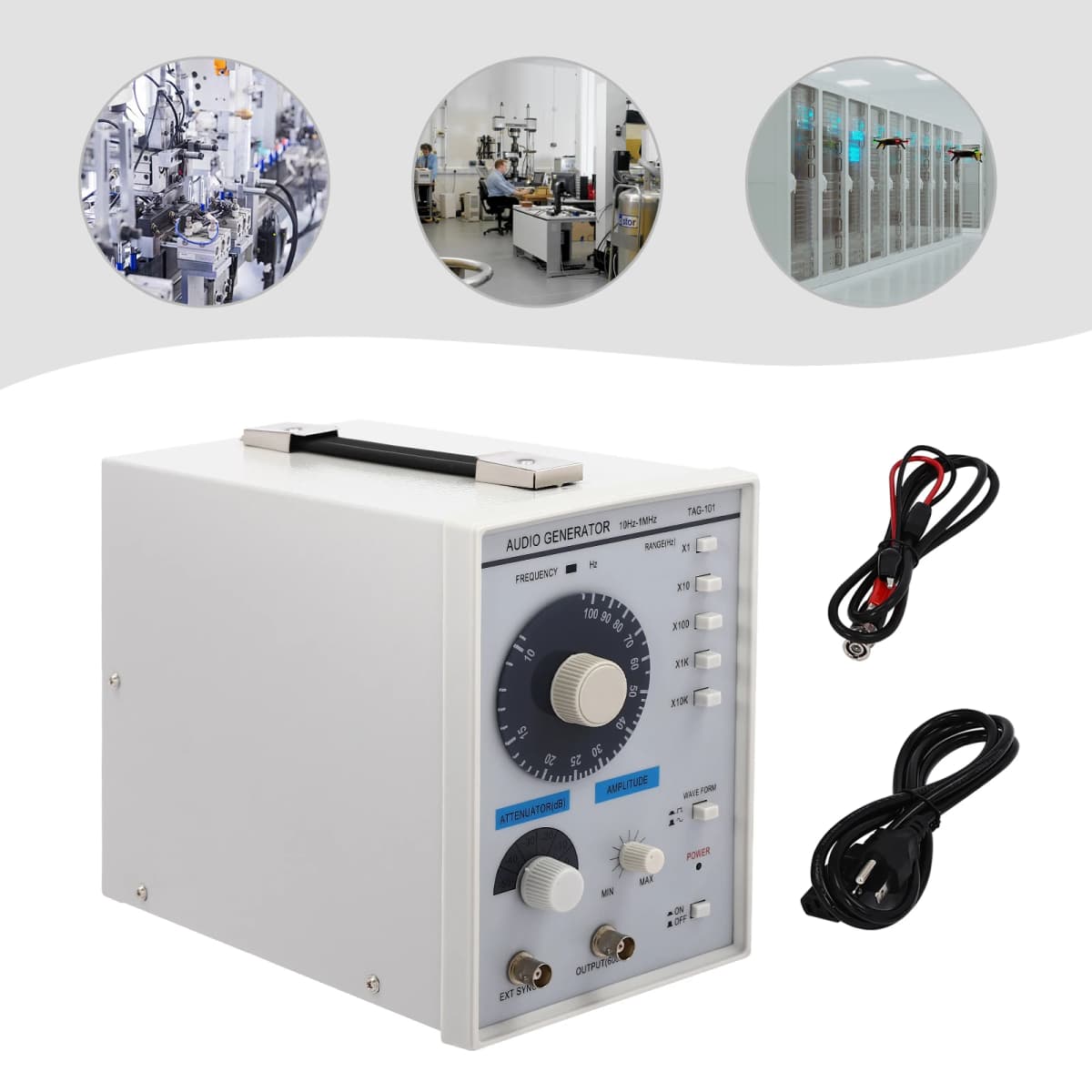

Application
It is an ideal instrument for electronic engineering, laboratories, production lines, teaching, and research.

Notes
1.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
