110V HH-G01 Pneumatic Engraving Machine with Two Handpiece 400-8000RPM Hand Engraving & Stone Setting Tools Air Graver Engraver G8 Quick Set-up Jewelry Pneumatic Impact Engraving Machine

HH-G01 Dual‑Head Pneumatic Engraving Machine – Professional Engraving System for Jewelers

Overview

The HH-G01 is a high‑precision pneumatic engraving machine designed for professional jewelers, engravers, and micro‑setters. It combines dual‑handpiece support with wide‑ranging stroke speed adjustment to deliver exceptional control for both fine detailing and rapid material removal.

Technical Specifications

Model: HH-G01

Voltage: 110V / 220V (50/60Hz)

Stroke Speed: 0 – 8,000 strokes per minute

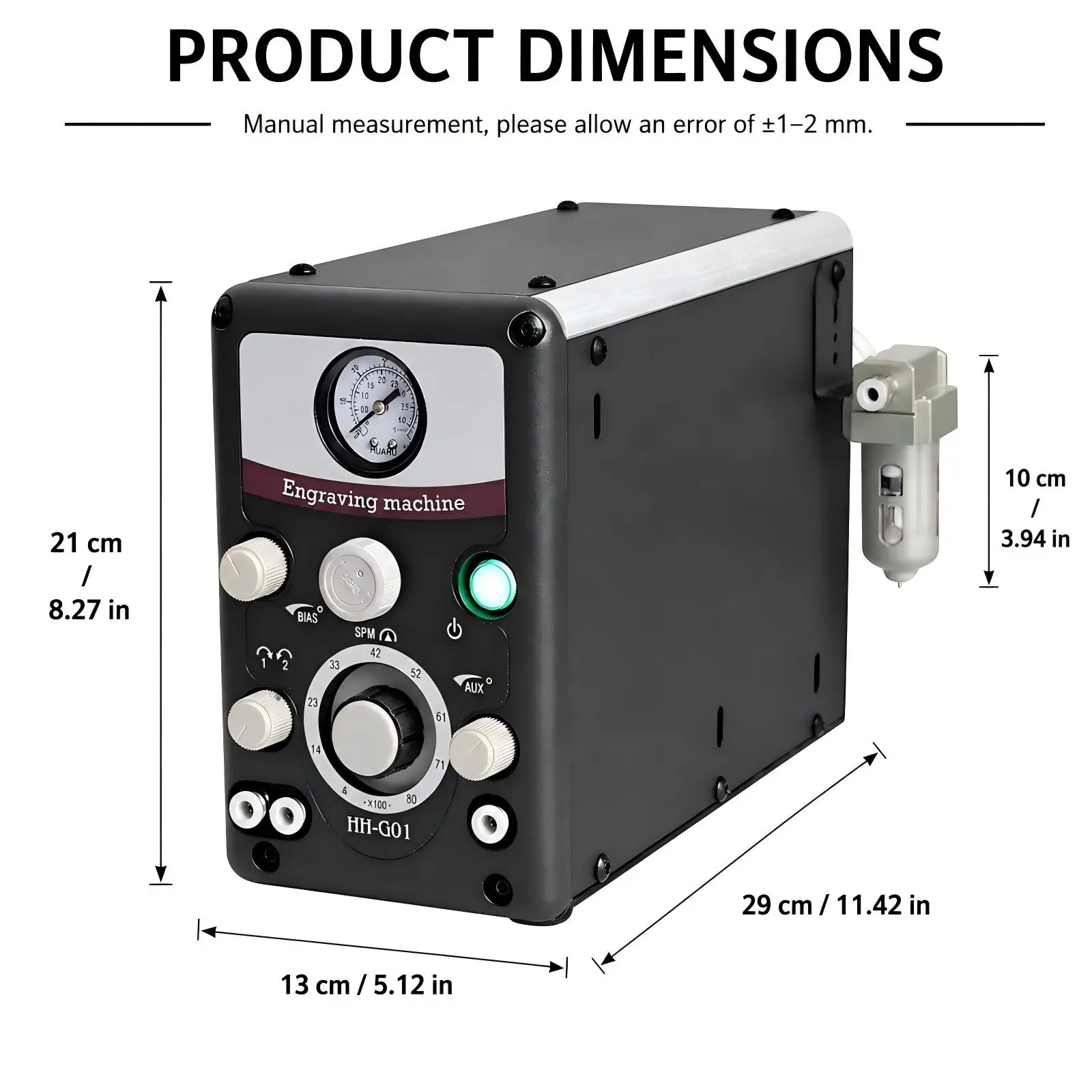

Dimensions: 290 × 130 × 210 mm

Packing Size: 350 × 310 × 390 mm

Net Weight: 8.80 kg

Shipping Weight: 9.50 kg

Working Air Pressure: 0.15 – 0.25 MPa

Key Features

1.Dual‑Handpiece Compatibility – Operates two impact handpieces simultaneously, with an auxiliary connection for rotary tools

2.Wide Speed Range – Continuously adjustable from 0 to 8,000 strokes per minute for versatile applications

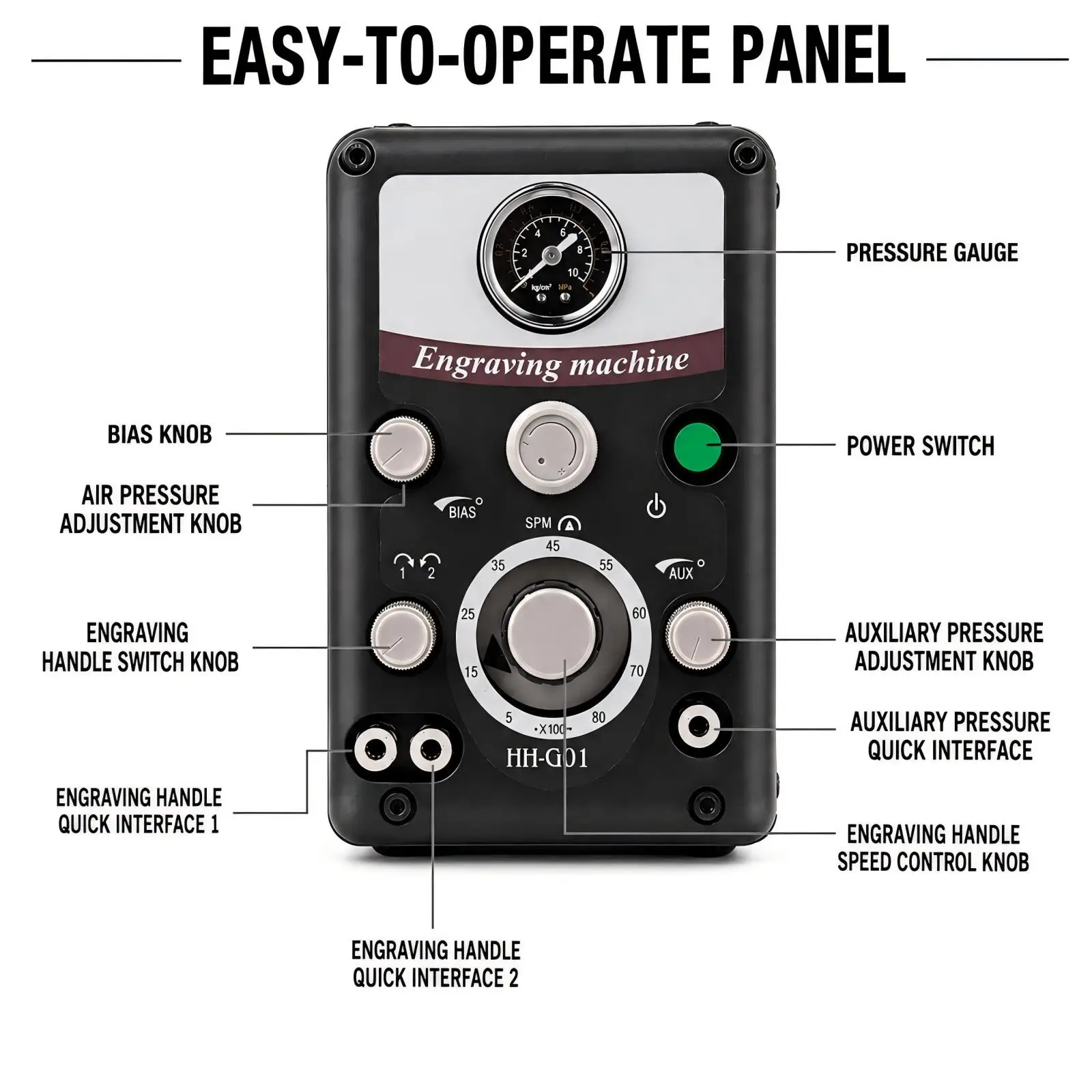

3.Advanced Air Control – Dual‑stage precision regulator with front pressure adjustment and throttle bias valve ensures accurate stroke response

4.Quiet & Smooth Operation – Advanced pulse valve unit significantly reduces vibration and noise, allowing fatigue‑free extended use

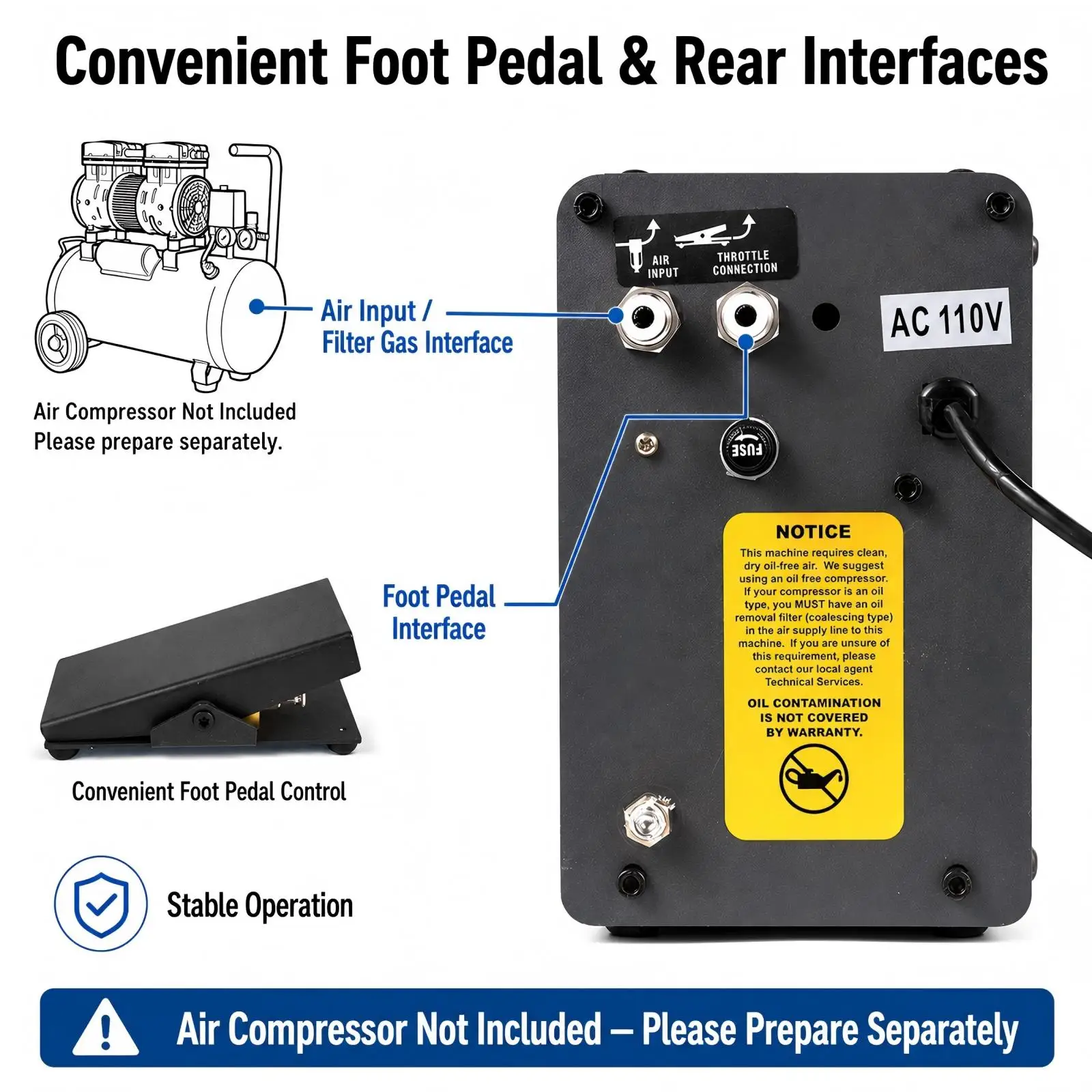

5.User‑Friendly Design – Quick‑connect air couplings and a rear‑mounted throttle simplify setup and keep your workspace organized

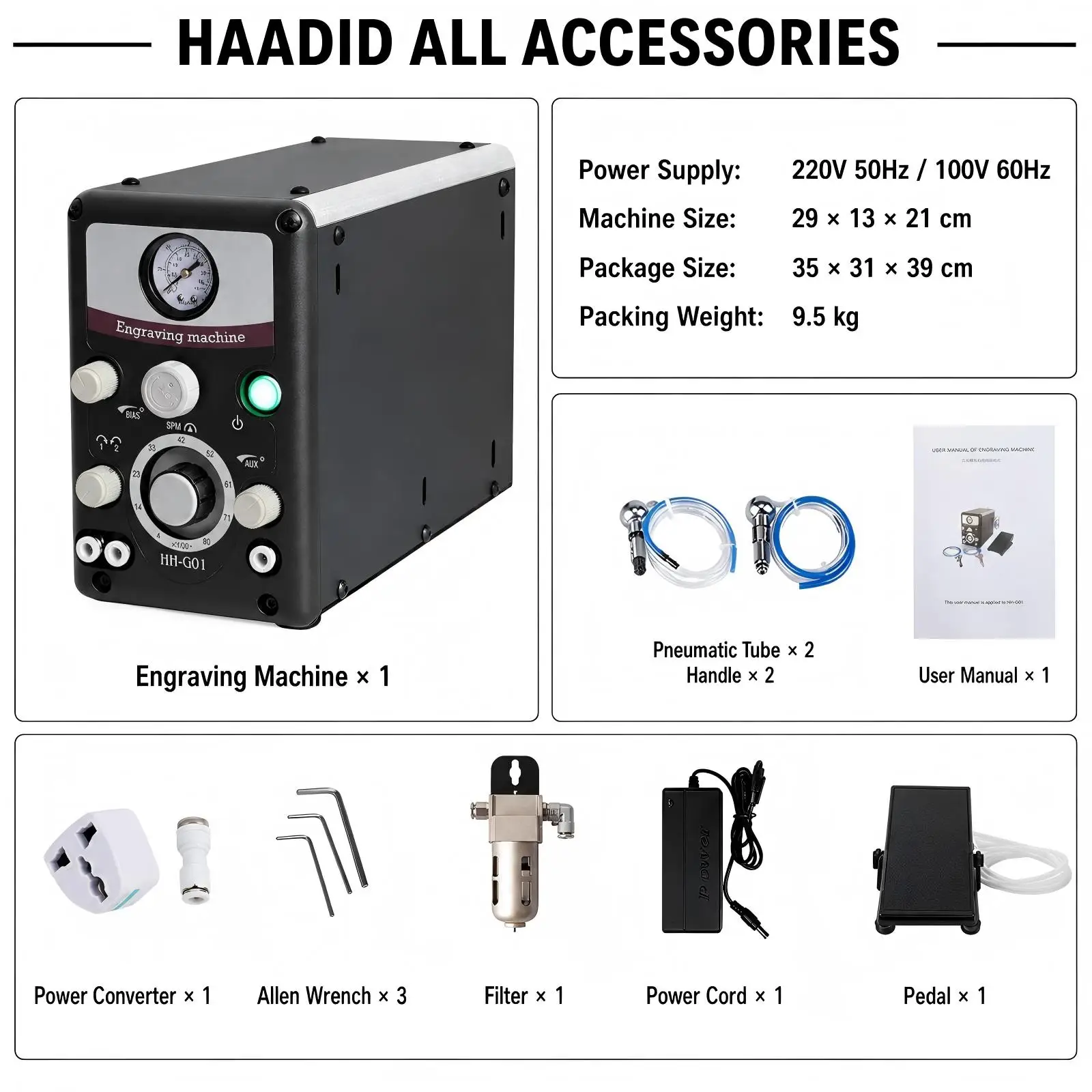

Package Includes

1 × Pneumatic Engraving Machine (main unit)

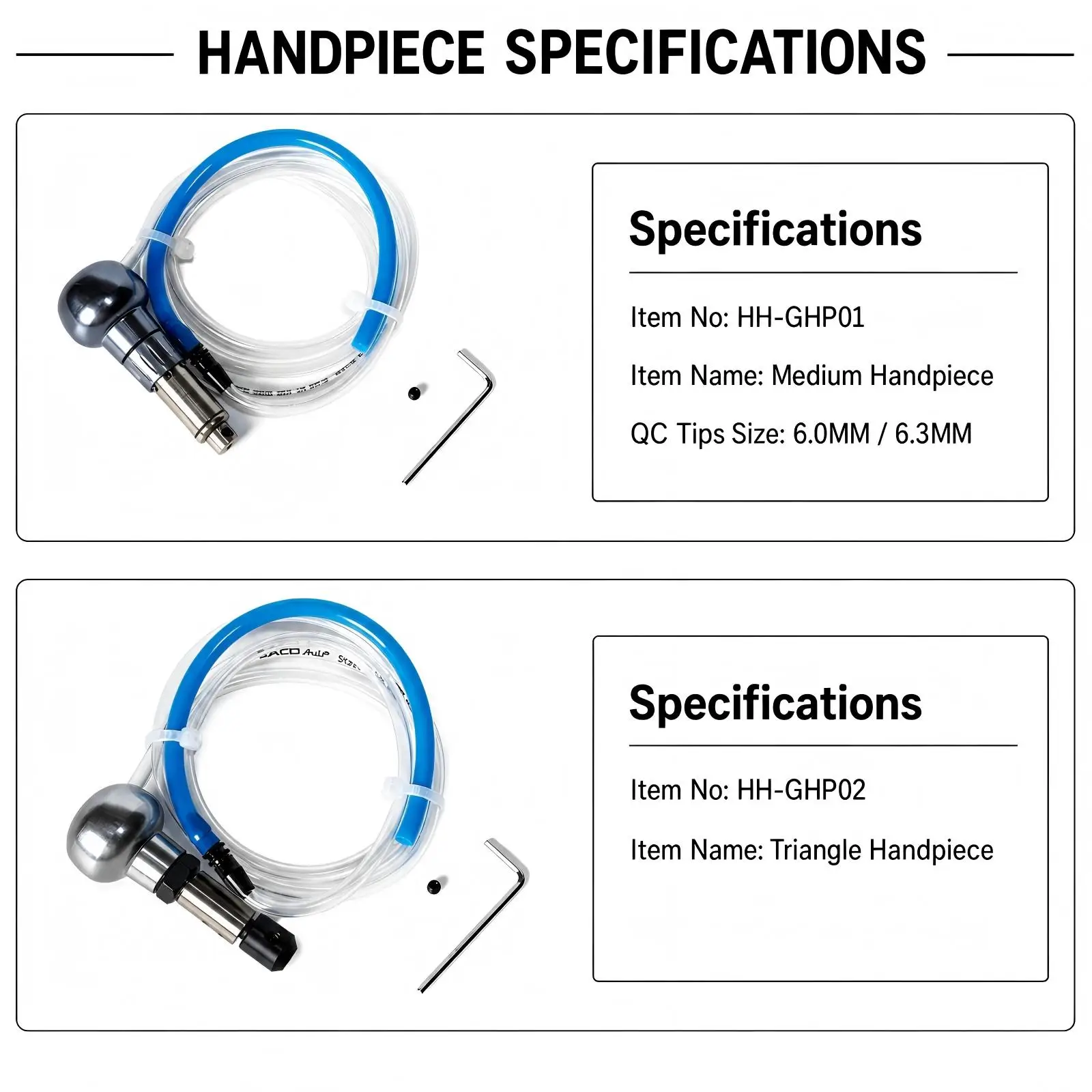

2 × Impact Handpieces

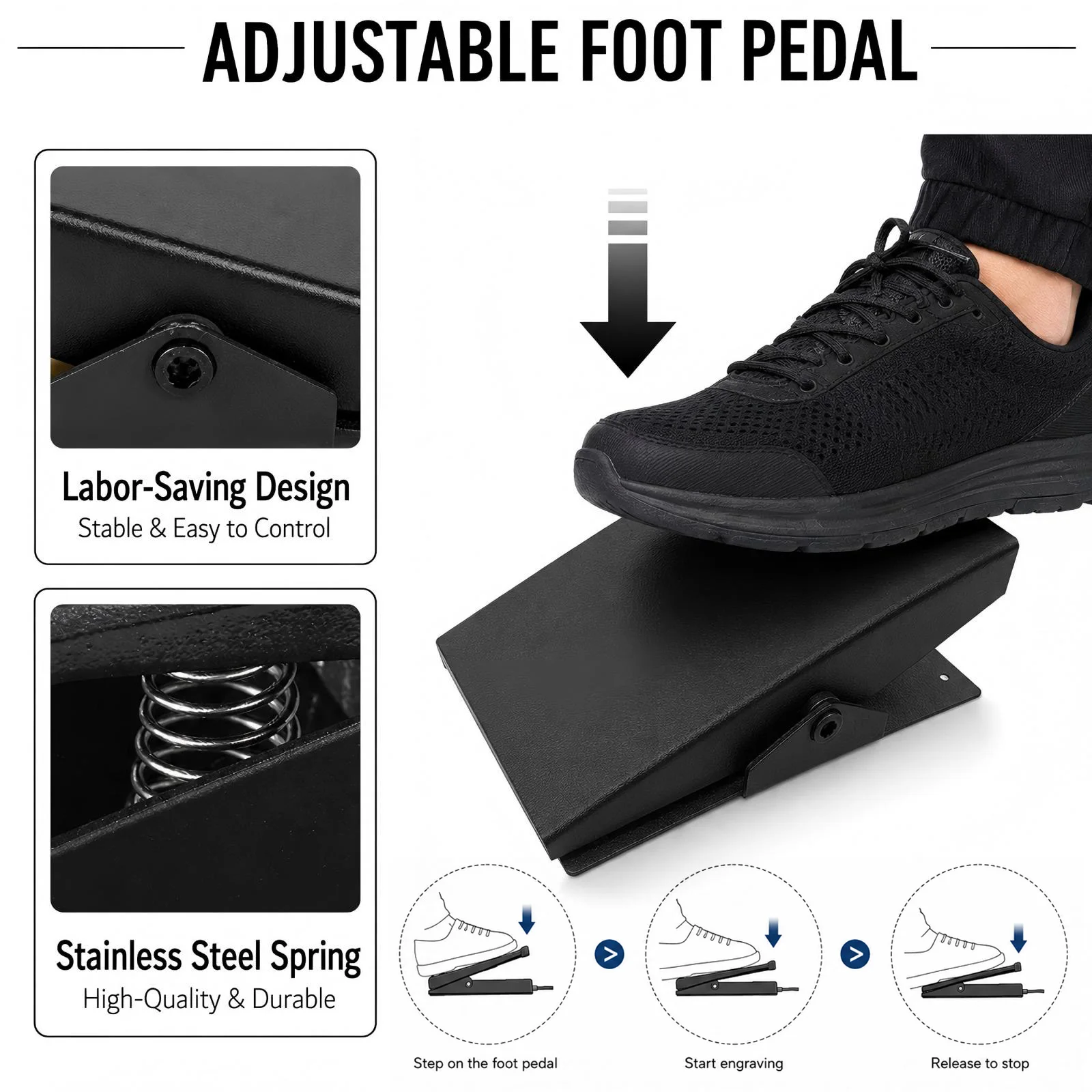

1 × Foot Control Pedal

Air couplings and necessary accessories

Applications

Jewelry engraving and micro‑setting

Precision metal carving

Fine detailing on various materials
