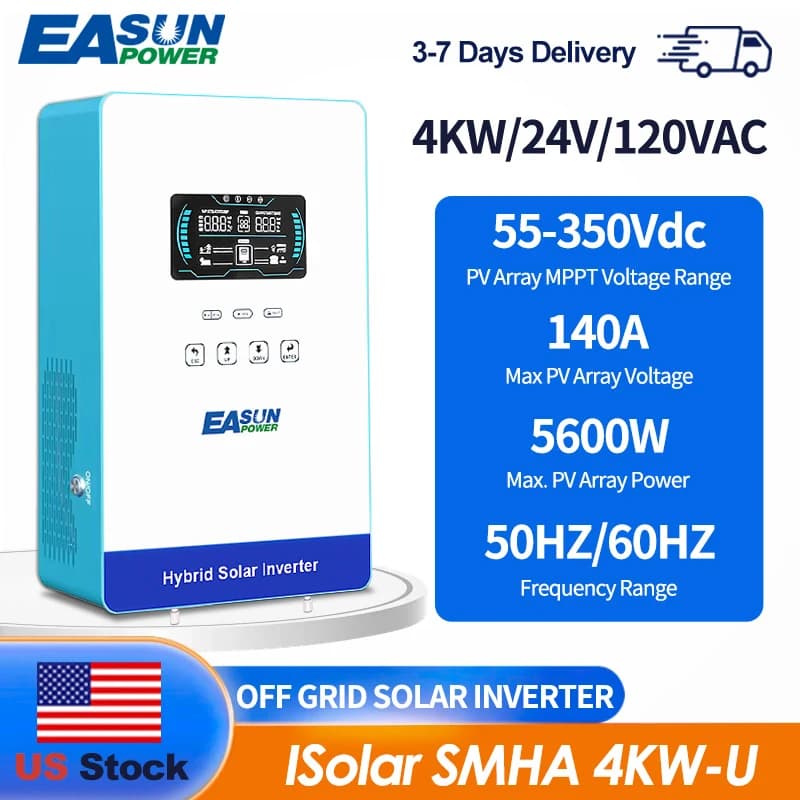

EASUN POWER 4000W 24V Off Grid Pure Sine Wave Solar Inverter with 6.25 Inch LCD Display and Touchable Buttons Built-in 150A MPPT

Introduction:

This is a multi-function inverter charger, combining functions of inverter, MPPT solar charger and battery

charger to offer uninterruptible power support with portable size.

Its comprehensive large LCD display offersuser-configurable and easy-accessible touch button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

In stock inventory in the US warehouse, orders will be shipped immediately, with the fastest delivery on the same day

Machine specification ：

Off grid solar inverter

●No battery function available

Under Battery Mode can adjust AC voltage 100vAC,110VAC and 120VAC.

●Utility power,battery and PV power complement each other

●Pure sine wave solar inverter

Unique glass top cover design with 6.25inch LCD display and touchable buttons

Built-in 150A MPPT (Max PV 7200W) solar charger

High PV input range from 55V-450Vdc

Smart battery charger design for optimized battery performance

Configurable AC/Battery input priority via LCD setting

●Auto restart while PV is recovering

●Over-load, over temperature and output short circuit protection

Cold restart function

Built-in lithium battery automatic activation

●Communication with RS232/RS485

WiFi monitoring function (optional）

●Anti-dust kit for harsh environment(optional)

●Restore default Settings with one click

TECHNICAL PARAMETERS:

140A MPPT Solar Charging Inverter,High PV input voltage range of 55~350VDC ，AC output voltage 110-120VAC，max 5600W solar charge，50/60HZ frequency, Battery voltage 24v, run without battery, 6.25 inch LCD display and touchable buttons, Cold restart function.

The machine parameter table is as follows:

At the end: Thank you to every customer who has purchased products from my store. Attached are the installation steps for this machine:

NSTALLATION STEPS :

Firstly，you need to install a circuit breaker between the battery and the inverter, open the breaker after successful installation, then connect 24v the battery , close the circuit breaker, and measure the voltage on the battery side of the inverter.

Secondly，install a circuit breaker between the PV input and the inverter, turn on the circuit breaker after successful installation, make sure the battery voltage is normal, let the machine connect to solar energy, then close the circuit breaker between the PV input and the inverter, at this time, the inverter display will automatically light up and start charging, and then press the button on the bottom right corner of the inverter 1 to start the machine. Then check whether there is 110v/ or 120v voltage output from the inverter output.

Finally, a circuit breaker needs to be installed between the AC input and the inverter, then a circuit breaker also needs to be installed between the output of the machine and the inverter. After successful installation, turn on the circuit breakers of the AC input and output, then connect the machine to the mains, turn off the mains input circuit breaker, and then turn off the circuit breaker of the output of the inverter after 2 minutes. This is the complete procedure for installing the machine.
