PowMr USA 4.5KVA 4200W/4.2KW 24V Hybrid Solar Inverters 220Vac Output Max 6200W 500Vdc PV Input With MPPT 120A Charge Regulator Support Wifi for Lifepo4 Power Bank Home RV Cabin Solar Energy Storage System

PowMr USA 4.5KVA 4200W/4.2KW 24V Hybrid Solar Inverters 220Vac Output Max 6200W 500Vdc PV Input With MPPT 120A Charge Regulator Support Wifi for Lifepo4 Power Bank Home RV Cabin Solar Energy Storage System

Introduction:

The POW-HVM4.5K-24V-E is a 4.5KVA 4200W/4.2KW 24V hybrid solar inverter—an all-in-one unit combining PV inversion, charging, and energy storage capabilities—designed specifically for residential and small-office energy storage systems. It integrates four core modules: solar charging, grid charging, inverter output, and lithium battery BMS communication management. Eliminating the need for separate controllers or chargers, this single unit enables the construction of a complete PV energy storage power system. It is compatible with both lead-acid batteries and lithium batteries (supporting RS485 communication protocols) and operates in dual on-grid/off-grid modes. It supports solar self-consumption, independent off-grid power supply during outages, and grid-tied operation for supplementary charging. This unit serves as the core power solution for overseas residential energy storage, RVs, small businesses, and outdoor off-grid projects.

Feature:

1.Pure sine wave inverter

2.Configurable input voltage range for home appliances and personal computers via LCD setting

3.Configurable battery charging current based on applications via LCD setting

4.Configurable AC/Solar Charger priority via LCD setting

5.Compatible with mains voltage or generator power

6.Auto restart while AC is recovering

7.Overload/ Over temperature/ short circuit protection

8.Smart battery charger design for optimized battery performance

9.Cold start function

10.For grid connection or off grid use

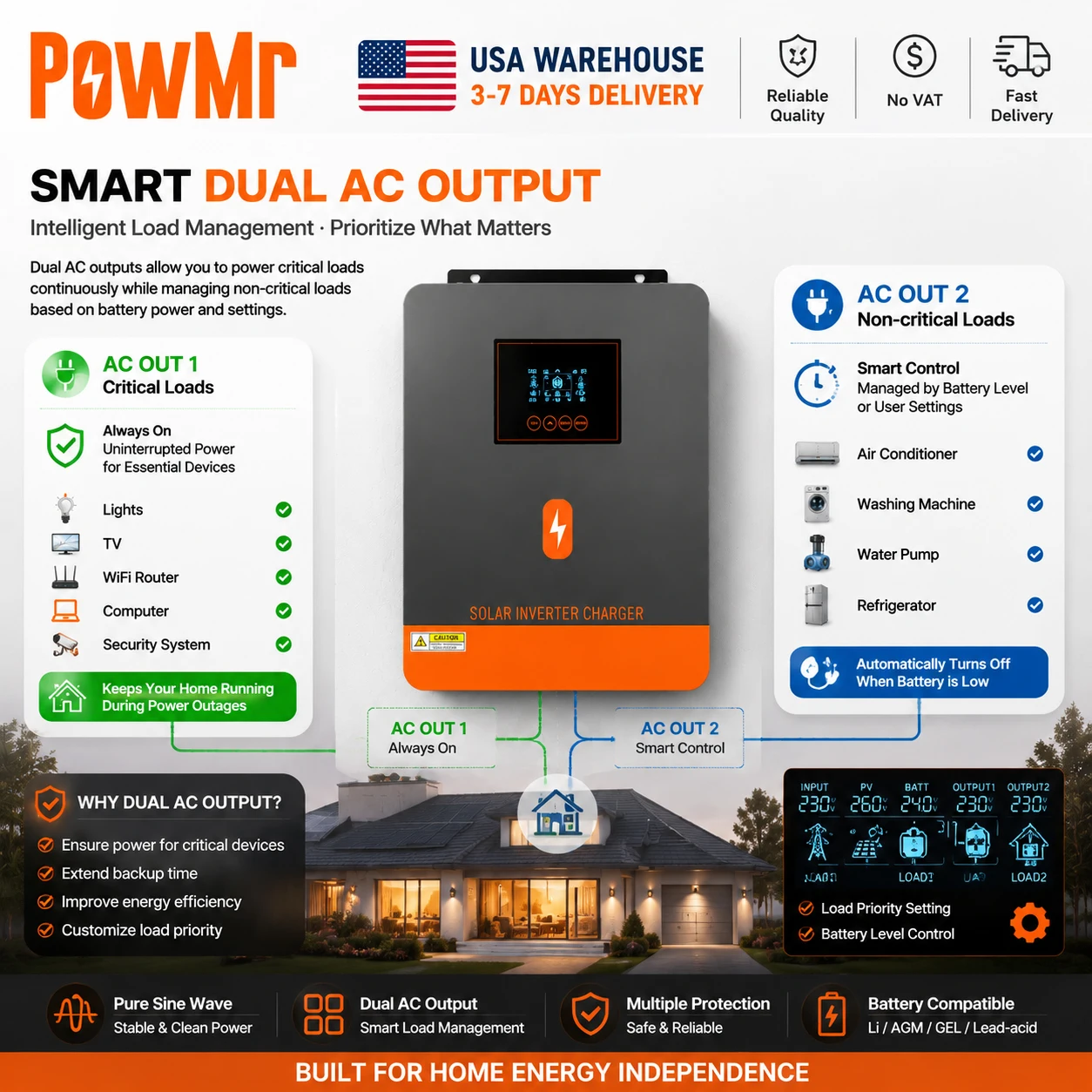

11.Dual AC Output

Advantage:

1. All-in-One Integrated Design: Combines an inverter, solar MPPT controller, and grid charger into a single unit, reducing wiring and installation costs;

2. Dual Battery Compatibility: Compatible with standard 24V lead-acid batteries and 24V lithium batteries (supporting RS485 communication protocols) with intelligent BMS integration for protection;

3. Grid-Tie/Off-Grid Dual Mode: A single system handles daily grid-tied energy savings and emergency off-grid power during outages, meeting mainstream residential needs in the US;

4. Pure Sine Wave Output: Harmonic-free power that is safe for refrigerators, air conditioners, and sensitive home appliances;

5. Fully Customizable Parameters: Manual settings available for charging voltage, low-voltage protection, equalization cycles, grid charging current, and grid voltage range;

6. Intelligent Low-Load Standby: Automatically enters sleep mode during very low loads to minimize no-load power consumption;

7. Large Visual LCD Screen: Displays all operating parameters at a glance; fault codes enable quick troubleshooting;

8. Comprehensive Safety Protections: Includes safeguards against over-voltage, under-voltage, overload, over-temperature, fan failure, and battery reverse polarity;

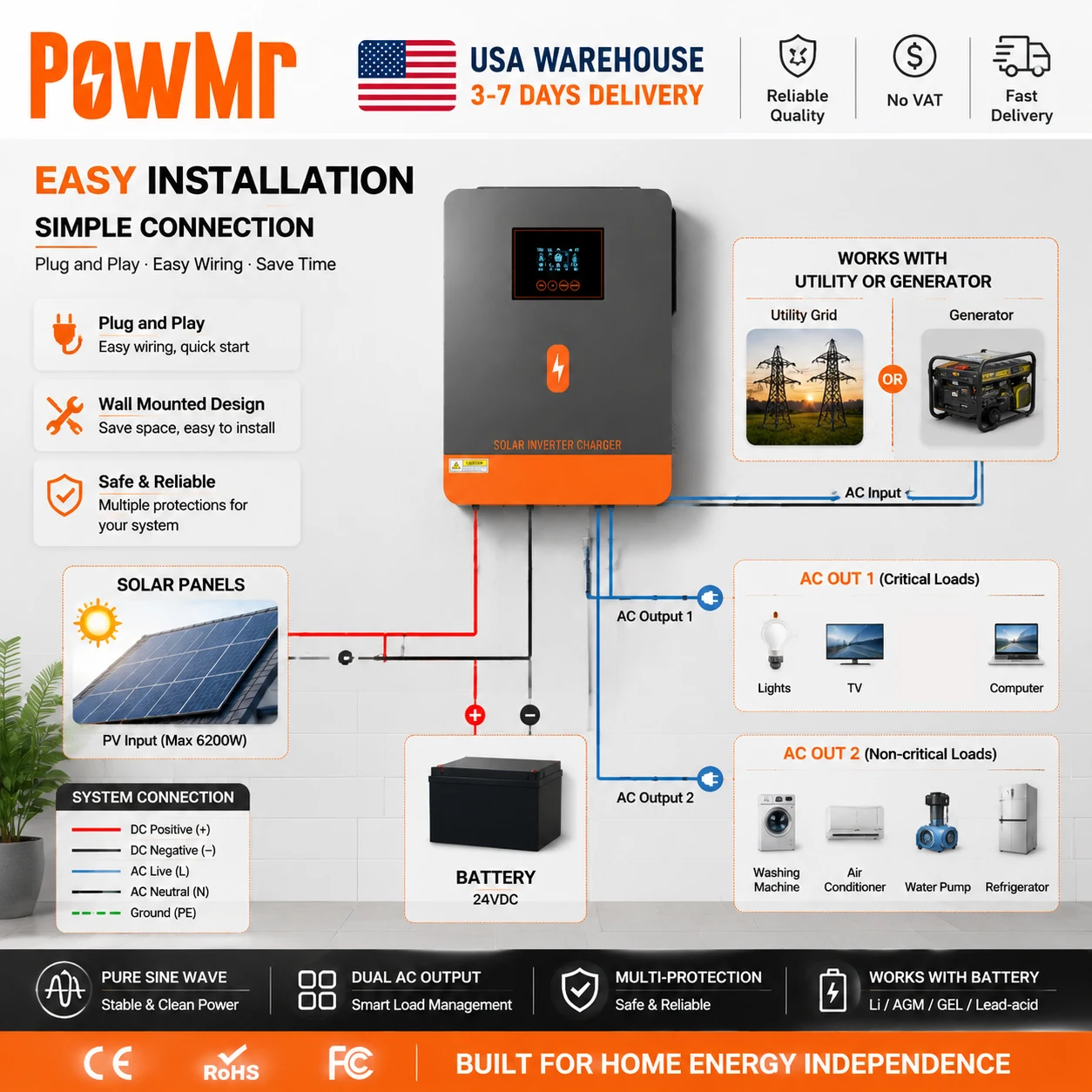

9. Easy Installation: Features standard-torque terminals (2–3 Nm for battery cables) and a universal RJ45 communication port for simple wiring.

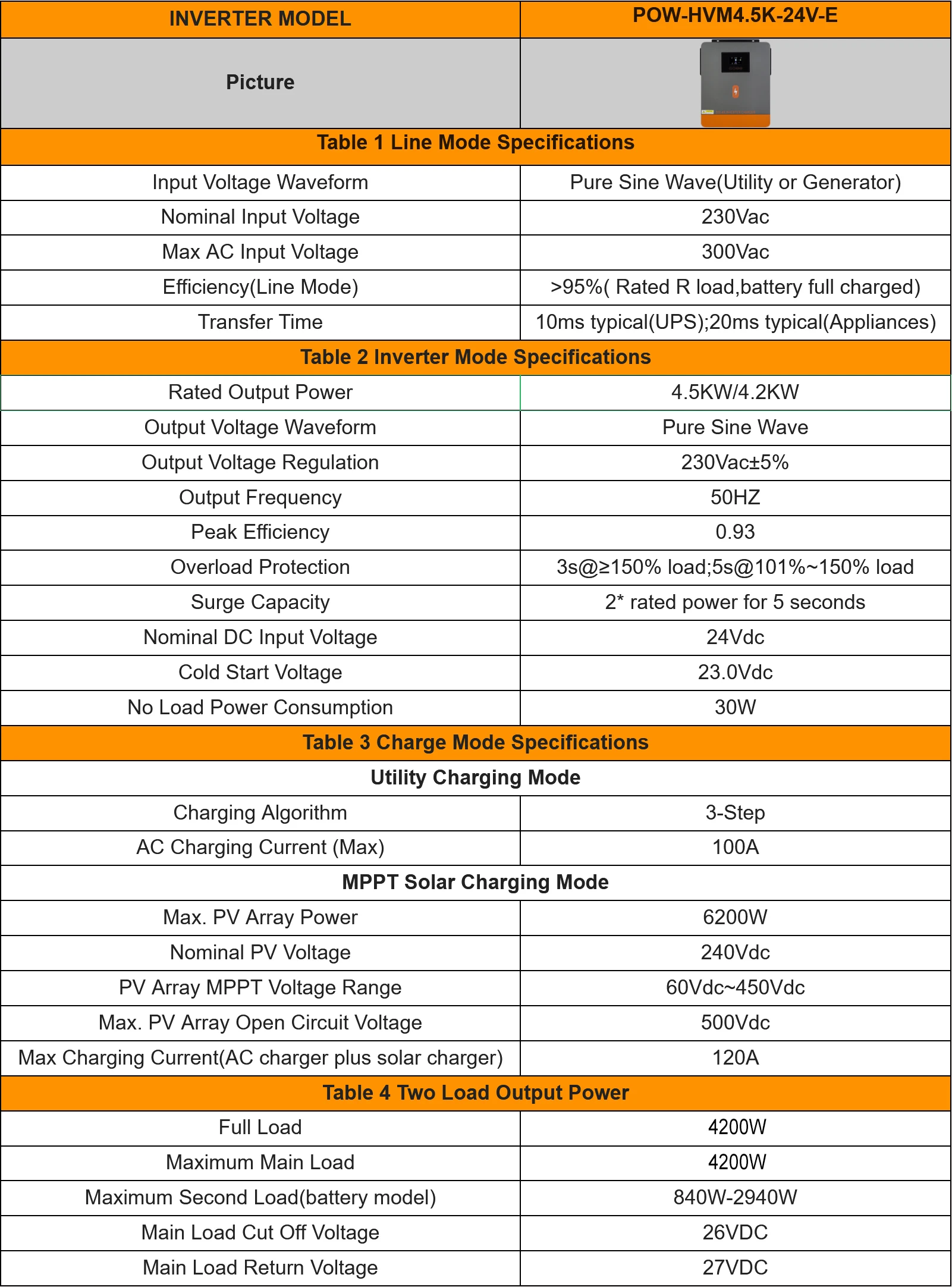

Specification:

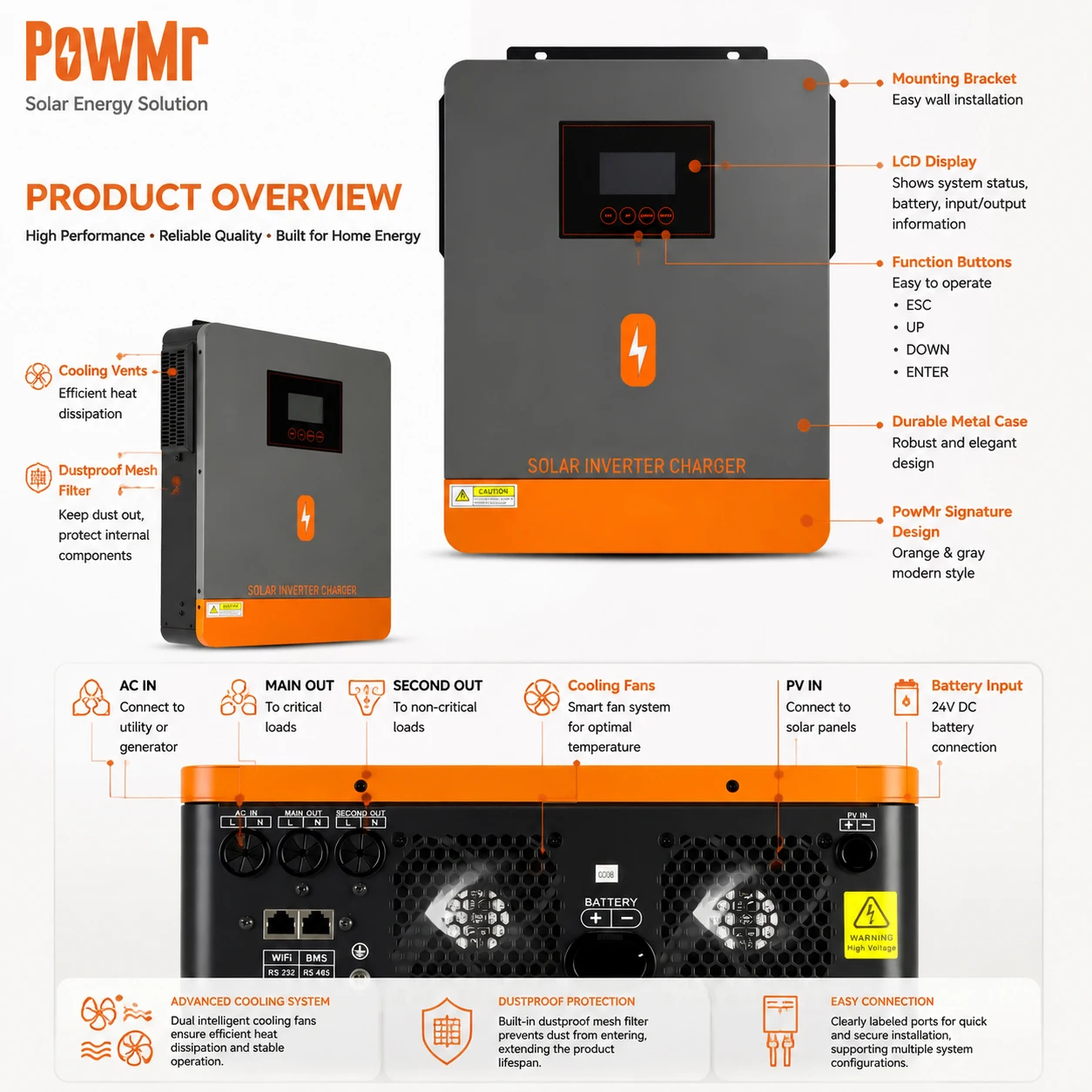

Product Overview:
