MINIWARE TS80P Smart Soldering Iron 30W Type-C OLED Screen Adjustable Temperature CNC Aluminum Alloy Casing TS1C Tips Series

Specifications

Temperature Range: 100~400℃(Max)

Input: 9V/2A (QC 3.0) / 12V 3A PD2.0

Power: 30W Max

Fastest heating time (from room temperature to 300 ℃): 8s

Data/Power Interface: USB Type C

Temperaturestability: ±3%

Display: OLED

Soldering Tip Resistance to Ground: <2Ω

Length: controller: 96 mm; tip: 100mm(60+40mm)

Weight: 38g (power adaptor not included); Tip: 14g (B02)

Please note:

May sure power adaptor support standard input USB Type-C PD2.0(12V 3A) / QC3.0 (9V 2A)

other voltage it may reboot or no working

Bundle list

TS80P Controllor (Black Color) * 1

Soldering Tip B02 * 1

Safety Instructions * 1

TS80 is a smart and mini soldering iron, which is more stable and sensitive, making mobile soldering more convenient.

Note: If there is any doubt for the item, please feel free to contact us first, we could afford help to you.

Features:

---Mini TS80 is a smart soldering iron powered by USB Type-C interface and QC3.0 standard input. It can be powered by charging plug and mobile power supplies that meet QC3.0 (9V 2A) standard.

---TS80 controller is made of aluminum alloy through CNC. It is only the size of a pen, and with this compact structure, it also has a high-tech design, ergonomic, beautiful and fashionable.

---TS80 controller is equipped with an OLED screen, so you can monitor the status of the soldering iron at any time.

With a built-in STM32 chip, it can smartly control the rise and fall of tip temperature, and features sleep, automatic power-off and other modes. The code application layer is open source, you can develop firmware for the soldering iron freely as needed.

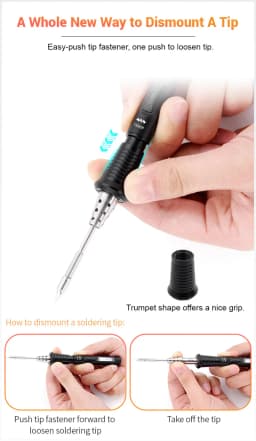

---TS80 soldering tip uses an internal thermal ceramic heating core, and through the pure copper heat conduction, it can quickly transfer heat to the tip of soldering tip, achieving an excellent temperature control performance. The soldering tip is connected to the controller via a 3.5mm push-in plug, making replacing tips faster and easier than ever.

Specification:

Material: aluminum alloy

Color: black

Type: TS80 More kit

Temperature range: 100℃ to 400℃ (Max)

Input: AC 100-240V, 50/60Hz, 0.5A (Max)

Ouput: DC 3.6V-6.5V/3A, 6.5V-9V/2A, 9V-12V/1.5A

Data/Power interface: USB Type-C

Temperature stability: ±3%

Display: OLED

Controller:

Length: 95.5mm / 3.8in

Diameter: 13mm / 0.5in

Tip:

Length: 60+40mm / 2.4+1.6in

Diameter: 10.6mm / 0.4in

TS80 controller weight: 36.5g / 1.3ounce (power adaptor not included)

Package size:

TS80 Main kit: 131 * 75 * 30mm / 5.2 * 3.0 * 1.2in

Package weight:

TS80 Main kit: 100g / 3.5ounce

Package List:

TS80 More kit:

1 * MINI TS80 Soldering Iron Controller

1 * TS-D25 Soldering Iron Tip

1 * Type-C Cable

1 * US Plug

1 * Ground Wire Clamp

1 * English User Manual

1 * Hex Key Screwdriver
