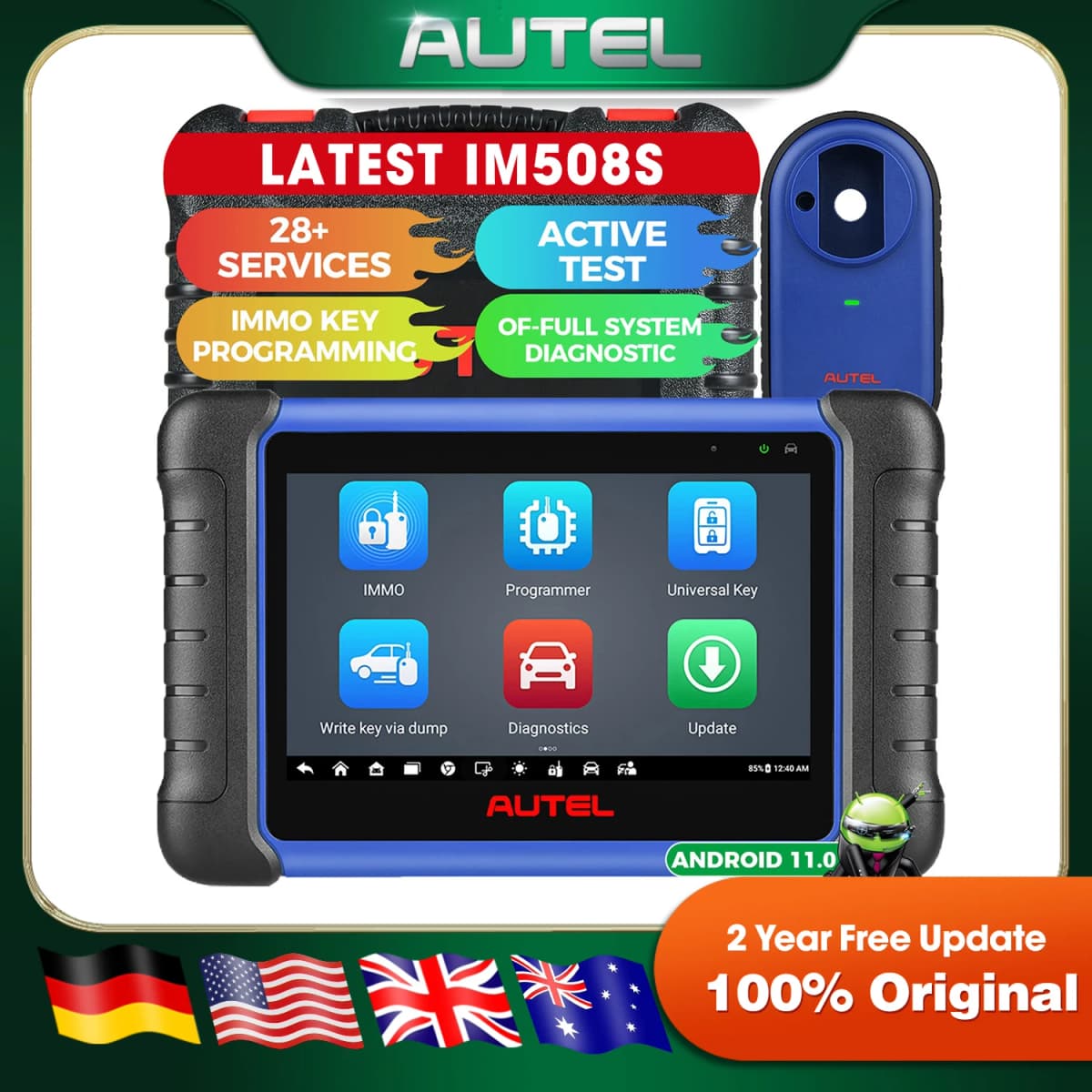

Autel MaxiIM IM508S XP200 Car Key Programming Tool Diagnostic Tool All-in-One Key Programmer OBD2 Scanner Updated of IM508

Note:

1.The IM508S is only available for 1 year of free updates in North America Countries！Other countries are free updates for 2 year！

2.Please send me the S/N of machine to authorize the language you want after you receive it.(The S/N can be found behind the device or on the About page of tool- “Maxisys-> Settings -> About Us”)

3.To avoid unnecessary disputes after purchase, please log in to the official website to check the coverage before purchase. Some functions may not support your vehicle. Feel free to consult me!
Click on the link:www.auteltech.com/vehicle-coverage/coverage2

NASTF SDRM Compliance for North America

Autel is integrating the NASTF Secure Data Release Model (SDRM) validation protocol into supported key and immobilizer programming tools used in North America.

Applicable Products: Autel MaxiIM KM100, IM508 Series and IM608 Series.

Applicable Region: This requirement applies when the device is used under a North American IP address.

Implementation Schedule: KM100 is scheduled to enable SDRM validation beginning September 1, 2026. IM508 and IM608 Series devices will be updated in subsequent phases.

User Registration Required: Eligible key and immobilizer programming functions may require the end user to maintain an active NASTF SDRM account.

Important Notice

NASTF SDRM registration is not included with the purchase of this Autel device. The end user must apply, pay and renew the SDRM qualification directly through NASTF. All eligibility requirements, fees and approval decisions are independently managed by NASTF and are not controlled by Autel or the seller.

Q:Do I need a NASTF SDRM account?
A:For certain security-related key and immobilizer programming functions in North America, an approved and active NASTF SDRM account may be required.


Q:Is the SDRM account included with the device?
A:No. The SDRM account must be registered and maintained separately by the end user through the official NASTF platform.

Major update: New ECU/ETU cloning functions for Mercedes-Benz, Volkswagen, and BMW.

Note: New features are available only after the update is completed.（need to work with G-box3)

Mercedes Benz (New Feature)

The following ECU cloning function covers models from 2000 to 2019

Supports cloning (Bench mode) for the following 27 ECMs from 4 suppliers for Mercedes Benz:

BOSCH:
CRR2,EDC16C2,EDC16C32,EDC16CP31,EDC16CP36,EDC17C43,EDC17C66,EDC17CP01,EDC17CP10,EDC17CP46(CR60),EDC17CP57_V1(CR43),EDC17CP57_V2(CR61),ME17.7,ME17.7.8,MED17.7.1,MED17.7.2,MED17.7.3,MED17.7.3.1,MED17.7.5,MED17.7.7,MRD1;

CONTINENTAL:
SID307(CRR1),SID310(CRR1 plus),SIM271DE;

DELPHI:
CRD11、CRD3x.x;
SIEMENS:
SIM271KE

Supports cloning for the following 8 TCUs for Benz:

FSB4 VGS4-0-NAG2 cloning via Bench mode;

FSB4 VGS4-500-NAG2 cloning via Boot mode;

VGS-NAG3,VGS2-FDCT,VGS-FCVT,VGS-FDCT,EGS52,VGS3-FDCT cloning via Bench mode

BMW

The following ECU cloning function covers E/F/G chassis-equipped models up to 2019

Supports cloning (Bench mode) for the following 42 ECMs from 2 suppliers for Bmw:

BOSCH:
EDC16C1,EDC16C31,EDC16C35,EDC16CP35,EDC17C06,EDC17C41,EDC17C50,EDC17C56,EDC17C76,EDC17CP02,EDC17CP09,EDC17CP45,EDC17CP49,MD1CP002,MD1CP032,MD1CS001,ME17.2.1,ME17.2.42,MED17.2,MEV17.2,MEV17.2.1,MEVD17.2,MEVD17.2.3,MEVD17.2.4,MEVD17.2.5,MEVD17.2.6,MEVD17.2.8,MEVD17.2.9,MEVD17.2.G,MEVD17.2.H,MEVD17.2.K,MEVD17.2.P,MEVD17.8.4,MG1CS003,MG1CS024,MG1CS201;

SIEMENS/CONTINENTAL:
MSD80,MSD81,MSD85,MSD87,MSV80,MSV90

Supports cloning (Bench mode) for the following 6 TCUs from 2 suppliers for Bmw:

GETRAG:
F-6HP,F-7DCT300,F-DKG 436 Gen2;

TCM ZF:
F-8HP,F-8HP Gen3,G-8HP

Volkswagen

The following ECU cloning function covers models from 2000 to 2024

Supports cloning (Bench mode) for the following 62 ECMs from 3 suppliers for VAG:

BOSCH:
EDC16C4,EDC16CP,EDC16CP34,EDC16CP34 CRAFTER,EDC16CP34 M&S,EDC16U1,EDC16U31,EDC16U34,EDC17C46,EDC17C54,EDC17C64,EDC17C74,EDC17CP04,EDC17CP14,EDC17CP20,EDC17CP20_CRAFTER,EDC17CP24,EDC17CP44,EDC17CP54,EDC17CP74,EDC17U01,EDC17U05,ME17.1.1,ME17.1.6,ME17.5.20,ME17.5.22,ME17.5.24,ME17.5.26,ME17.5.6,MED17.1,MED17.1.1,MED17.1.10,MED17.1.12,MED17.1.21,MED17.1.27,MED17.1.6,MED17.1.61,MED17.1.62,MED17.5,MED17.5.1,MED17.5.2,MED17.5.20,MED17.5.21,MED17.5.25,MED17.5.5,MED9.1,MED9.1.1,MED9.1.2,MED9.1.5,MED9.5,MED9.5.10;

CONTINENTAL:
Simos 12.1,Simos 12.2,Simos 8.3x,Simos 8.4x,Simos 8.5x,Simos 8.6x;

SIEMENS:
PCR2.1,Simos 6.2,Simos 6.3,Simos 7.1,Simos 7.1A

Supports cloning (Bench mode) for the following 6 TCUs from 3 suppliers for Volkswagen:

BOSCH:
DQ380;

CONTINENTAL:
DQ400、DQ500;

TEMIC:
DQ200_G2_PQ、DQ200D、DQ250_MQB

The difference of IM508S and IM508

IM508S is IM508's updated version.
IM508S Free Update Online：2 Year(Excluding the North America)
IM508S have more advanced hardware.You can check the following difference:

■ IM508S Hardware
Processor: Rockchip RK3566 Quad core, 4x 1.8GHz(A55)
RAM: 4G
ROM: 64GB
Android Version: Android 11
DB16 DLC: Support
Screen Size: 7inch

■ IM508 Hardware
Processor: Rockchip RK3188 Quad core, 4x 1.6GHz(A9)
RAM: 1G
ROM: 64GB
Android Version: Android 4.4.4
DB16 DLC: Not Support
Screen Size: 7inch

MaxiIM IM508S

MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, which features a quad-core processor and 64 G.B. onboard memory and runs on the powerful Android 11 operating system, offers faster bootup and operation speed. Equipped with the XP200 key programmer, the IM508S can perform key and immobilizer functions, including Key and Remote Control Learning and basic EEPROM and MCU Read and Write capabilities. The IM508S also enables technicians to complete an all-systems diagnostic scan and read and erase codes, view Freeze Frame and Live Data on U.S., Asian, and European vehicles, 1996 and newer. The tablet also features an extensive menu of the most often performed maintenance and service tasks, including oil light reset, brake bleed, battery registration, steering angle sensor reset, and occupancy seat calibration. The IM508S also offers report cloud management, making saving and sharing reports easy.

Description

• Powerful combination of key and immobilizer programming, all system diagnostics, extensive service menu
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all keys lost) key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• All Systems diagnostics for U.S., Asian, and European vehicles, 1996 and newer
• Extensive Service Menu, including EPB, DPF, SAS, Oil Light Reset, and BMS
• Cloud-based report management, allowing you to view device and test records anytime, anywhere
• Quad-Core processor
• Internal reliable 64GB Memory
• Android 11.0 Operating System for fast bootup and multitasking
• 7-inch LCD touchscreen with 1024 x600 resolution

Intelligent IMMO Mode - Smart Mode & Expert Mode

Smart Mode - provides step-by-step complete instruction (for DIYers & beginners & novice)

Expert Mode - selectively perform IMMO function (for skilled technicians).
You can choose the IMMO mode that suits you.

IMMO Programming

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

The Programming application requires connection between the tablet and the XP200, and no vehicle connection is required. This application can access the key chip, read, retrieve and write key information, as well as other key related functions.

Bi-Directional Control(Active Test)

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Bidirectional control tool IM508 can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.

All System Diagnostics & 30+ Service Functions

The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)......

Specifications:

1.Operating System: Android11
2. Processor:Rockchip RK3566 Quad core, 4x 1.8GHz(A55)
3.Memory: 4GB RAM & 64GB On-board Memory
4.Display:7-inch LCD capacitive touchscreen with 1024x600 resolution
5.Connectivity:Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card
6.Sensors:Ambient light sensor for brightness auto changing
7.Audio Input / Output:Input: N/A,Output: buzzer
8.Power and Battery:3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
9.Tested Battery Life:Around 4.5 hours of continuous use
10.Battery Charging Input:5 V/1.5 A
11.Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
12.Operating Temp:0 to 50°C (32 to 122°F)
13.Storage Temp:-20 to 60°C (-4 to 140°F)
14.Operating Humidity:5% - 95% non-condensing
15.Net Weight:788 g (2.42 lb.)
16. DB16 DLC: Support
17.Supported Automotive Protocols：ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

IM508S Package included:

1 X MaxiIM IM508S Tablet
1 X AAC001 – MED17 Cable
1 X KIA-20 Adaptor
1 X Mazda-17 Adaptor
1 X Carrying Case
1 X Quick guide
1 X Honda-3 Adaptor
1 X KIA-10 Adaptor
1 X XP200 Key Programmer
1 X USB External Power Adapter
1 X Main cable
1 X Mini USB Cable
