US Stock 10A MPPT Boost-Type Solar Charger Controller Compatible with 24V/36V/48V/60V/72V LiFePO4 Gel and Flooded Lead-acid Battery for RV Home Camp Boat

US Stock 10A MPPT Boost-Type Solar Charger Controller Compatible with 24V/36V/48V/60V/72V LiFePO4 Gel and Flooded Lead-acid Battery for RV Home Camp Boat

Product Introduction

The core of the PowMr Boost-Type Solar Charge Controller lies in its adoption of cutting-edgeboost converter circuitry. This sophisticated circuit intelligently elevates the voltage output fromsolar panels and matches the optimal charging voltage for batteries. By precisely adjusting thevoltage, the controller maximizes energy transfer efficiency, capturing every available watt of solarpower.

Boost Voltage Charging Controller

Designed for scenarios where the photovoltaic input voltage is lower than the battery voltage, this controller effectively boosts the voltage to match the battery's charging requirements. It overcomes limitations caused by insufficient voltage from a single photovoltaic panel, ensuring reliable battery charging. This 10Amp MPPT solar charge controller has up to 99% tracking efficiency and a peak conversion efficiency of 98% to allow you to charge the battery from solar panes at the maximum power point.

Integrated charge presets

Integrated charge presets combined with adaptive charge logic are well suited for most common

battery types, such as LiFePO4, Gel and flooded lead-acid.

Multi-stage Charge Algorithm

Optimize your battery charging with t three-stage MPPT charging capability. From bulk charge to boost charge, Float Charge, it ensures comprehensive and efficient charging. Customize your charging voltages effortlessly via the LCD screen, tailoring the charging process to your specific requirements.

Flexible Application

Integrated charge presets combined with adaptive charge logic are well suited for most common battery types, such as LiFePO4, Gel and flooded lead-acid. Compatible with 24V/36V/48V/60V/72V system voltage.

Durable & Safe

Adaptive boost charge monitors the battery’s response during initial charging and intelligently determines the appropriate boost charge duration for each individual charge cycle. This ensures that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive time at the elevated boost charging voltage (that can accelerate battery aging).

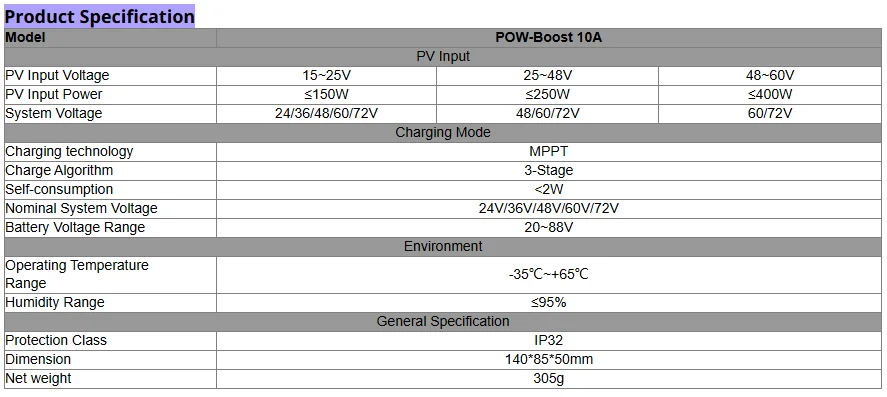

Product Specification
