BSIDE UP1 AC/DC Current Clamp Adapter for Oscilloscope 10mA-100A Measurement/Analysis Electrical Automotive Amp Draw Tester

Function of an Oscilloscope with AC/DC Current Clamp

An oscilloscope used together with an AC/DC current clamp serves the following precise purposes: ​

1. Non-intrusive current measurement ​It measures current without breaking the circuit or connecting in series, simply by clamping around the conductor. ​ ​

2. Simultaneous measurement of DC and AC current waveforms ​Supports true AC + DC measurement, including: ​ ​

◦ Pure DC (battery discharge, quiescent current) ​

◦ AC current (mains, motor drive, inverter output) ​ ​
◦ Pulsating DC, current with ripple, and PWM current waveforms ​ ​

3.Capture time-domain current behavior ​Displays the instantaneous waveform of current over time, including: ​ ​

◦ Peak inrush current during startup ​ ​

◦ Current rise/fall time, duty cycle, and ripple ​ ​

◦ Transient spikes, oscillations, noise, and abnormal surges ​

◦ Dynamic current profiles of coils, solenoids, and motors ​ ​

4. Isolated and safe measurement ​The current clamp provides galvanic isolation between the oscilloscope and the high-power circuit, enabling safe measurement of high-current, high-voltage systems such as automotive electronics, power supplies, and industrial drives. ​ ​

5. Fault diagnosis and dynamic analysis ​Identifies hidden issues including unstable current, abnormal oscillation, intermittent overcurrent, electromagnetic interference, and inefficient power conversion.

Product Description:

[10mA-100A DC/AC]: Companion to your oscilloscope, this current probe measures dc and ac amps from 10mA to 100A. Suitable for HVAC, automotive diagnostics, and industrial circuits.

[Dual Sensitivity]: 100mV/A & 10mV/A sensitivity output guarantees easy reading on you meter.
[Non-contact Testing]: Without breaking the circuit, this current clamp probe could accurately measure ac and dc (Hall Effect sensor technology) amps.

[High Standard]: Maximum conductor diameter is 12.7mm, CAT III 600V safety rating with double insulation design.

[with BNC Connector]: The current clamps have been designed for use with any standard BNC interface oscilloscopes.

[Carrying case]: Come with a roomy carry case, which could hold and protect your meter and current clamp.

Specifications:

DC current:
1)100mV/A: 1mV-2V/10mA-20A ±(1.5% + 1mV)
2)10mV/A: 1mV-400mV/100mA-40A ±(2% + 1mV); 400mV-1V/40A-100A ±(4% + 3mV)
AC current:
1)100mV/A (40Hz-2KHz): 1mV-1V/10mA-10A ±(2% + 3mV);
100mV/A (2KHz-10KHz): 1mV-1V/10mA-10A ±(4% + 3mV);
100mV/A (10KHz-20KHz): 1mV-1V/10mA-10A ±(6% + 3mV);
100mV/A (40Hz-20KHz): 1V-1.5V/10A-15A ±(8% + 3mV);
2)10mV/A (40Hz-1KHz): 1mV-400mV/100mA-40A ±(2% + 3mV);
10mV/A (1KHz-2KHz): 1mV-400mV/100mA-40A ±(4% + 3mV);
10mV/A (3KHz-5KHz): 1mV-400mV/100mA-40A ±(6% + 3mV);
10mV/A (40Hz-20KHz): 400mV-1V/40A-100A ±(8% + 30mV);
Power: 3.7V 400mA (built-in, rechargeable)
Size: 156.9*45.8*30mm
Weight: 121g

Package Includes:

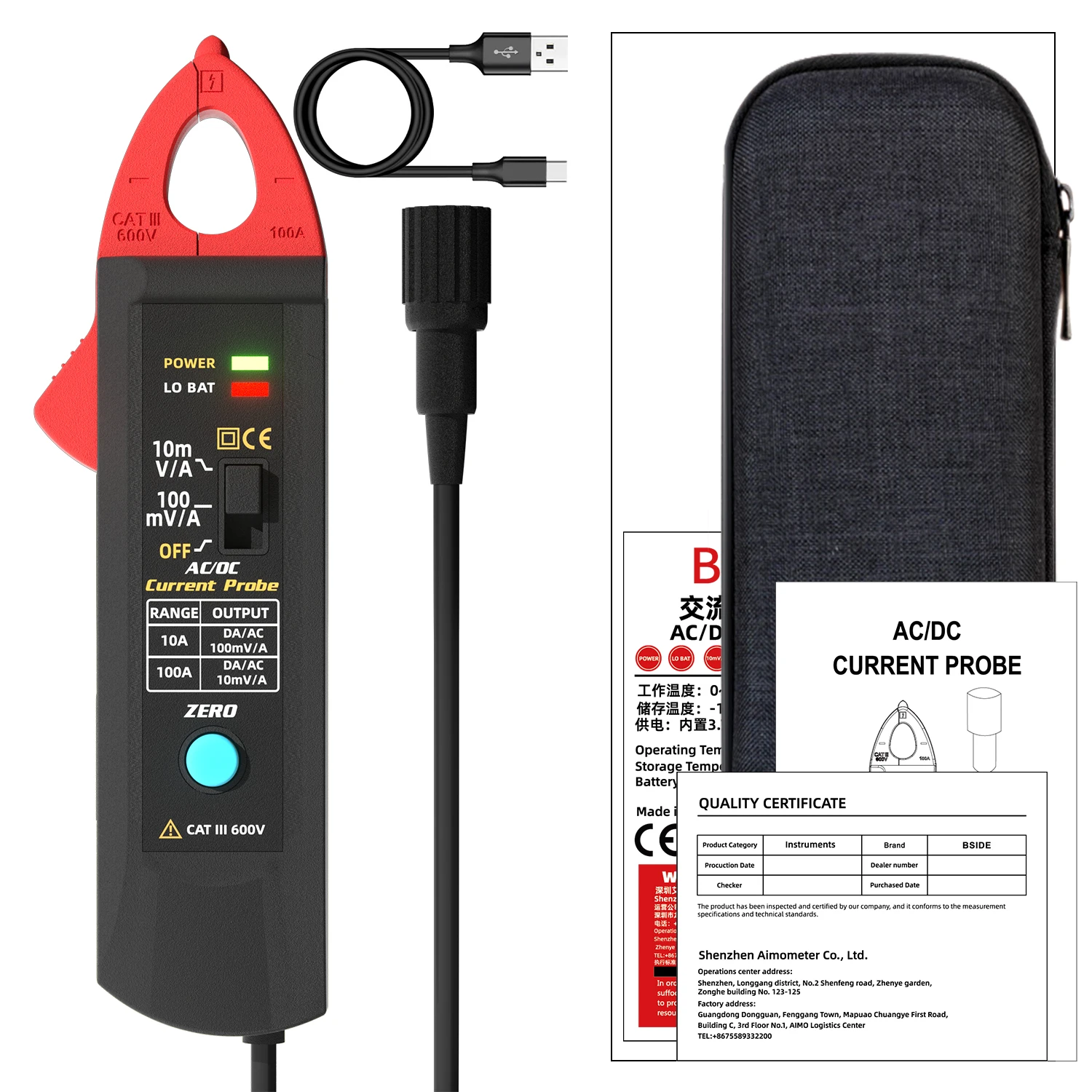

1 x Current Clamp Probe (with BNC Connector)
1 x Charging Cable
1 x Carrying Case
1 x User Manual
