GODIAG GT100 OBDII 16PIN Protocol Detector Breakout ECU Connector OBDII BreakOut Box

GODIAG GT100 OBDII Protocol Detector OBD2 Break Out Box ECU Connector

More than a simple OBD-II breakout box, the GODIAG GT100 is an OBD-II breakout box designed specifically for off-board module and key programming and features a display readout for both voltage and current draw through the box.

GODIAG GT100 Highlights
1. One year warranty
2. Used with KESS V2 and Ktag
3. ECU connection + OBDII Protocol Detector
4. The cable can be extended, with Optional dedicated adapter
5. Compatible with tools from LAUNCH, AUTEL, FOXWELL, XHORSE, VXDIAG and so on
6. Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface
7. GT100 supports K-line communication. If need both K-line and CANBUS communication, choose GT100 Pro.
8. Used for BMW-CAS4 Adapter test platform to detect whether the CAS4 key programming work perfectly or not

GODIAG GT100 Function and Operation Guide

- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.

- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

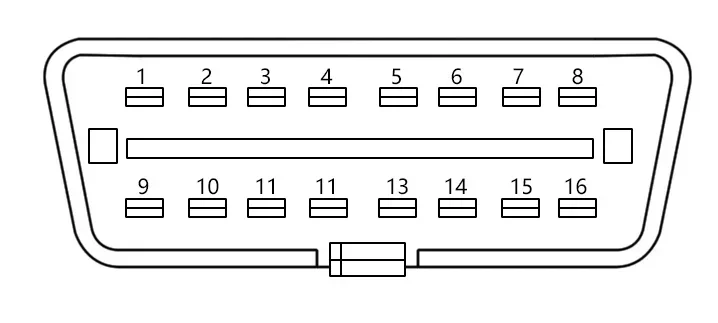

Indicator Meaning:
1. Manufacturer custom
2. SJE1850 wire
3. Manufacturer custom
4. Power grounding
5. Signal grounding
6. SAEJ2284《CAN》high
7. ISO9141-2&iso, DIS4230-4K wire
8. Manufacturer custom 9. Manufacturer custom
10. SJE1850 wire《bus->
11. Manufacturer custom
12. Manufacturer custom
13. Manufacturer custom
14. SAEJ2284《CAN》low
15. ISO9141-2 & ISO/DIS 4230-4L wire
16. Car battery positive

GODIAG GT100 Functions:

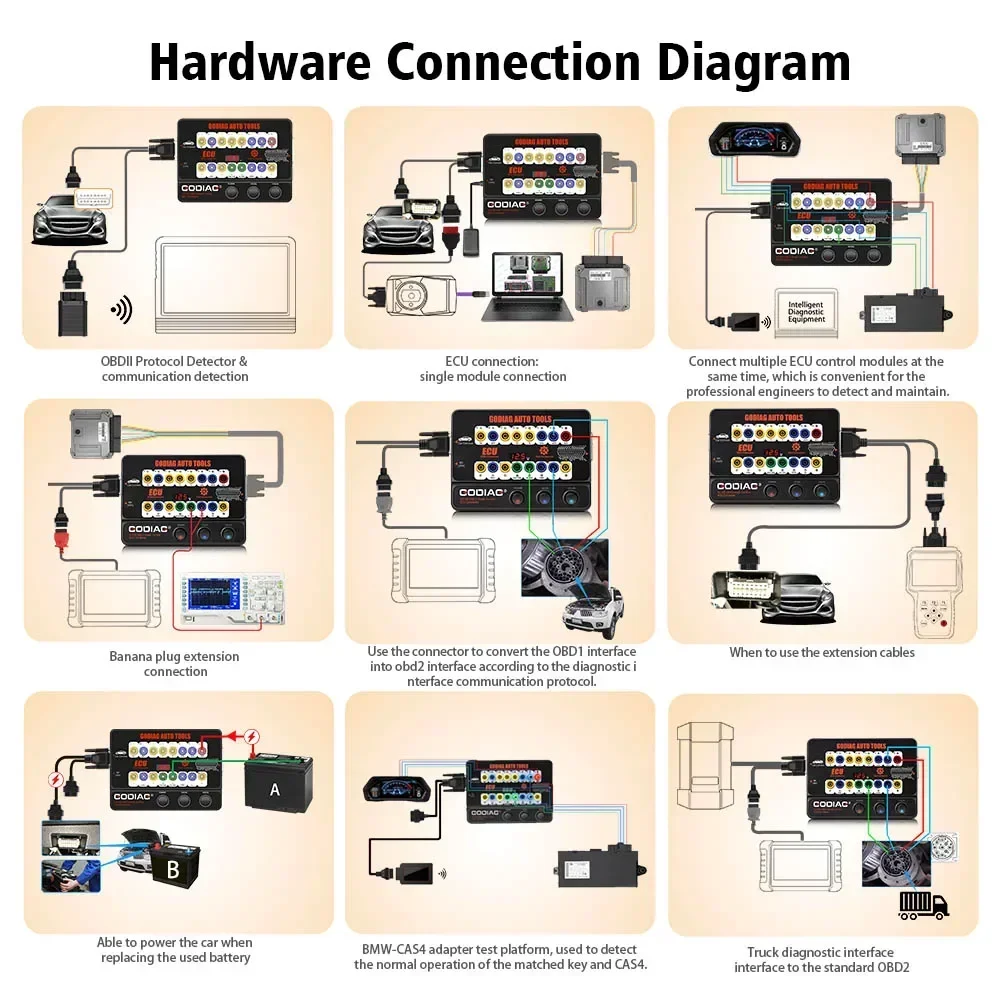

1. OBDII Protocol Detector & Communication Detection

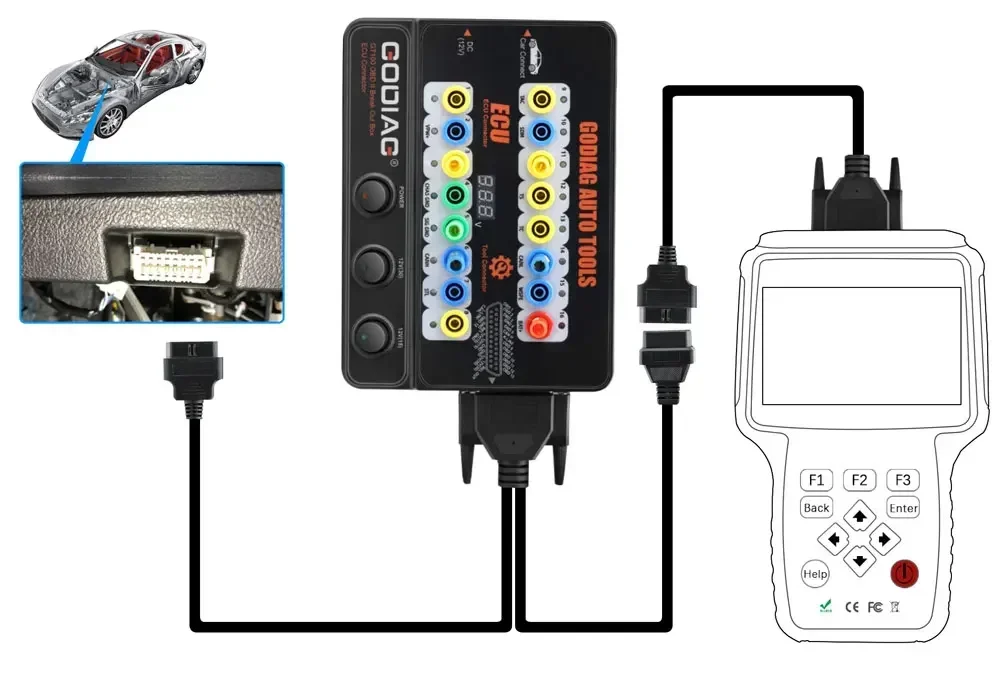

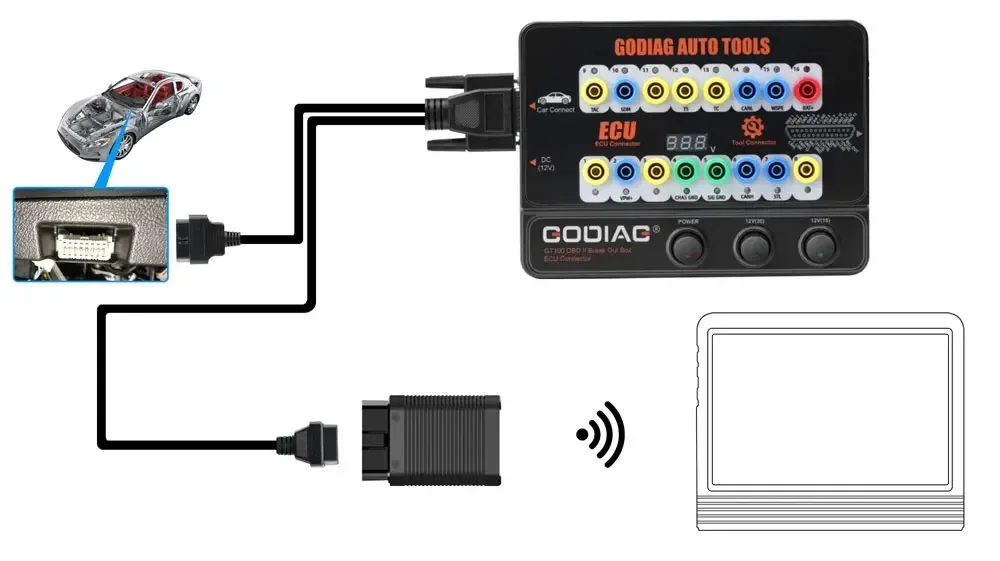

1). Connect GODIAG GT100 to the OBDII diagnostic port of the car.
2). When the device displays the voltage, turn on the power switch of GODIAG GT100.
3). Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash.

( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)

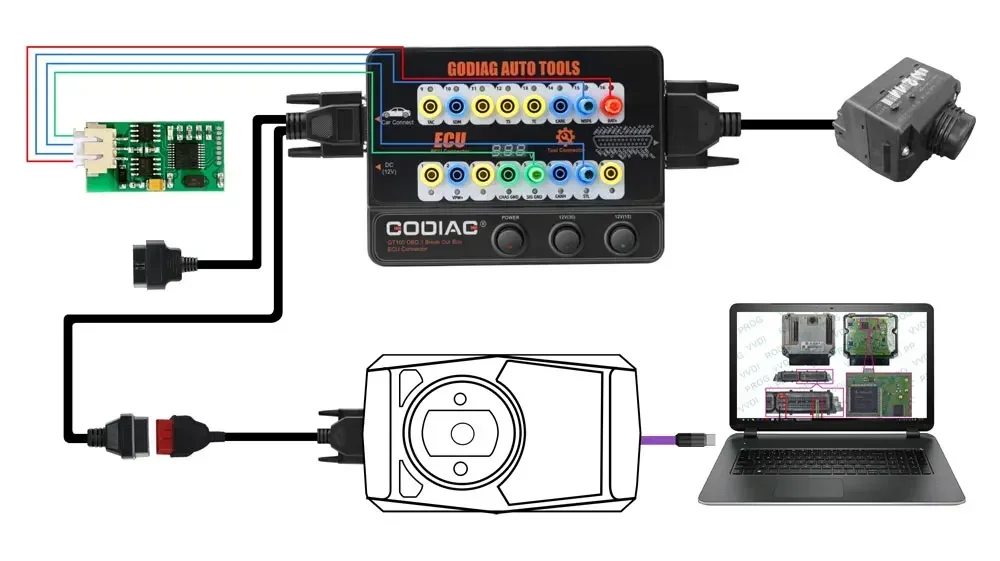

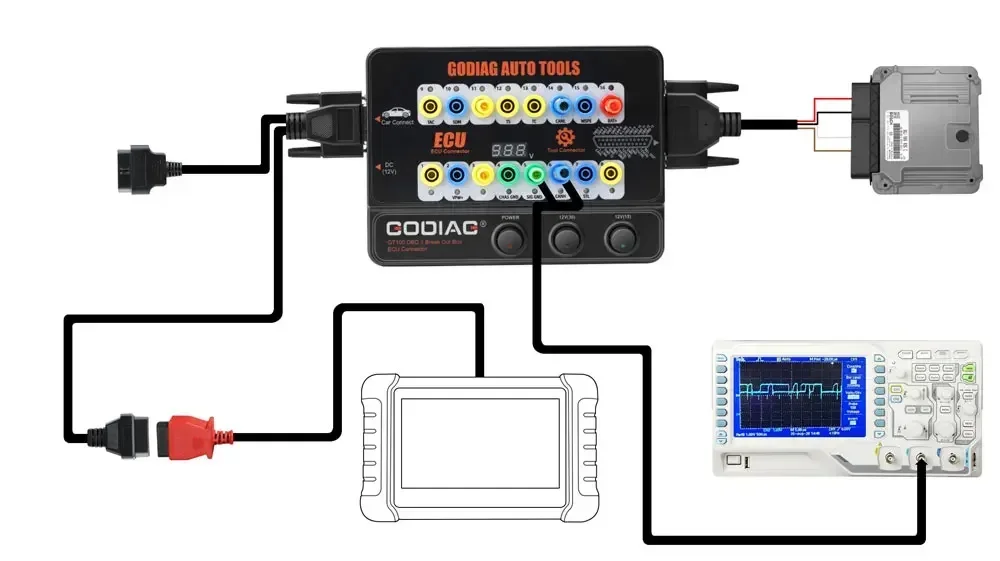

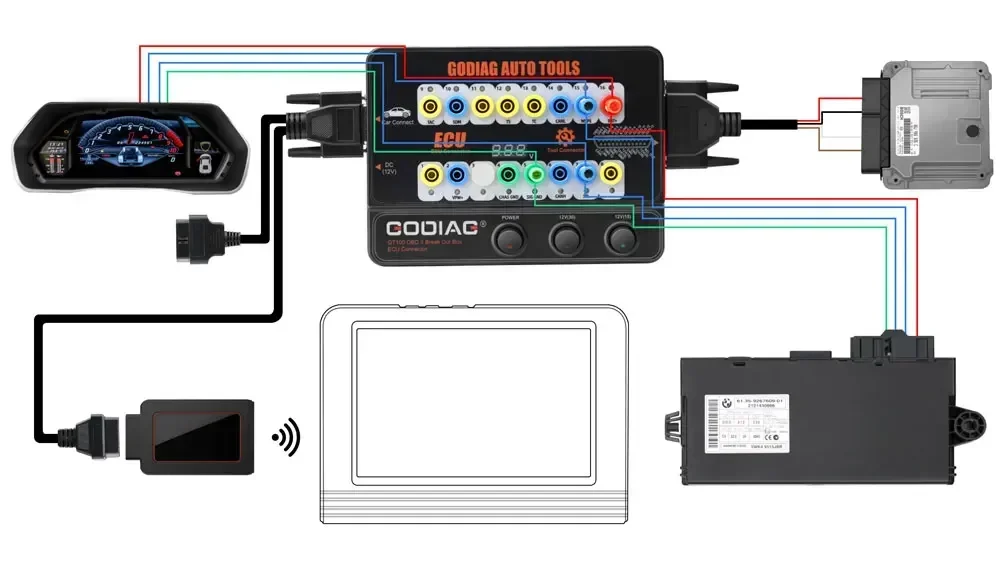

2. ECU Connection: single module connection

GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

1). Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)

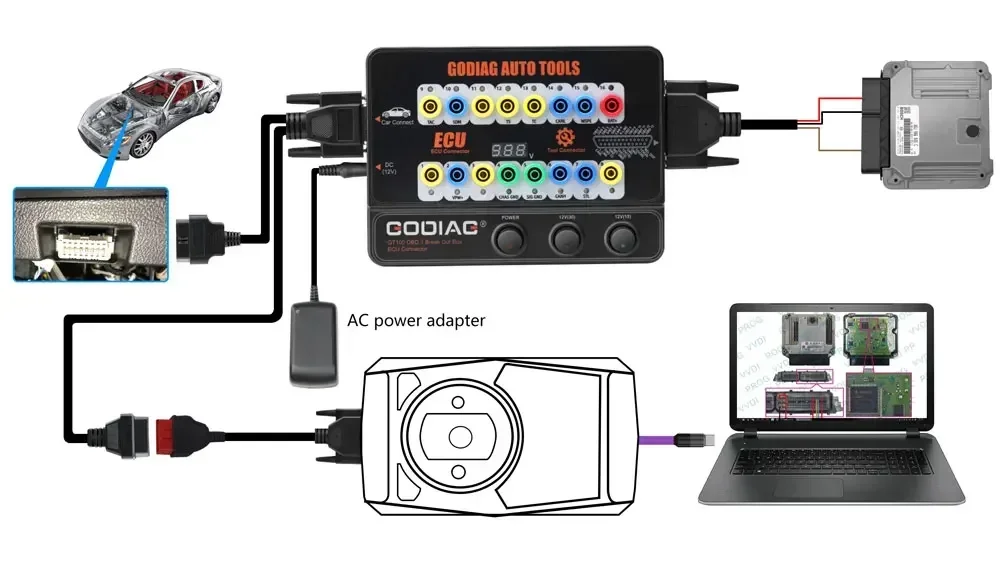

2). The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
3). To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.

3. Banana Plug Extension Connection:

Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.

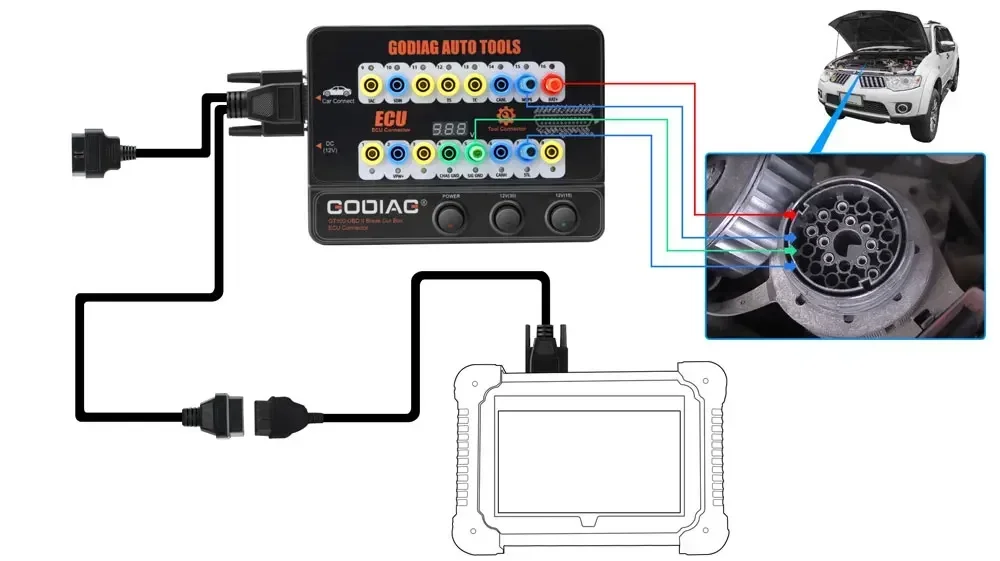

4. Convert OBD1 Diagnostic Interface to the Standard OBD2

Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

5. Connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.

6. When to use the extension cables:

The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.

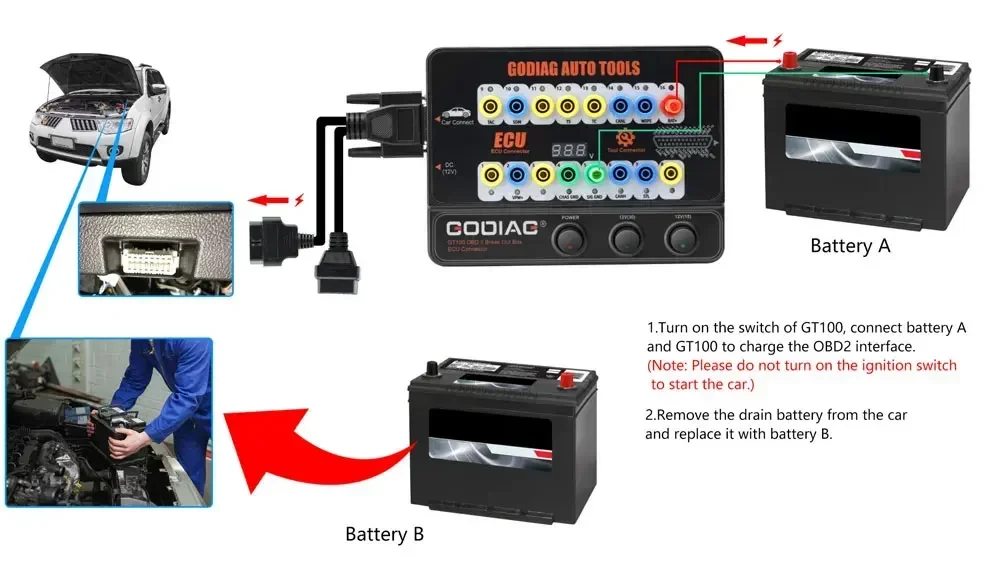

7. Able to power the car when replacing the used battery.

1). Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.

Notice
1. Turn on the power switch of Godiag GT100; 2. Don't turn on the ignition switch, don't start the car

2). Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

8. The dedicated adapter will be released (help GT100 connect to the special ECU module)

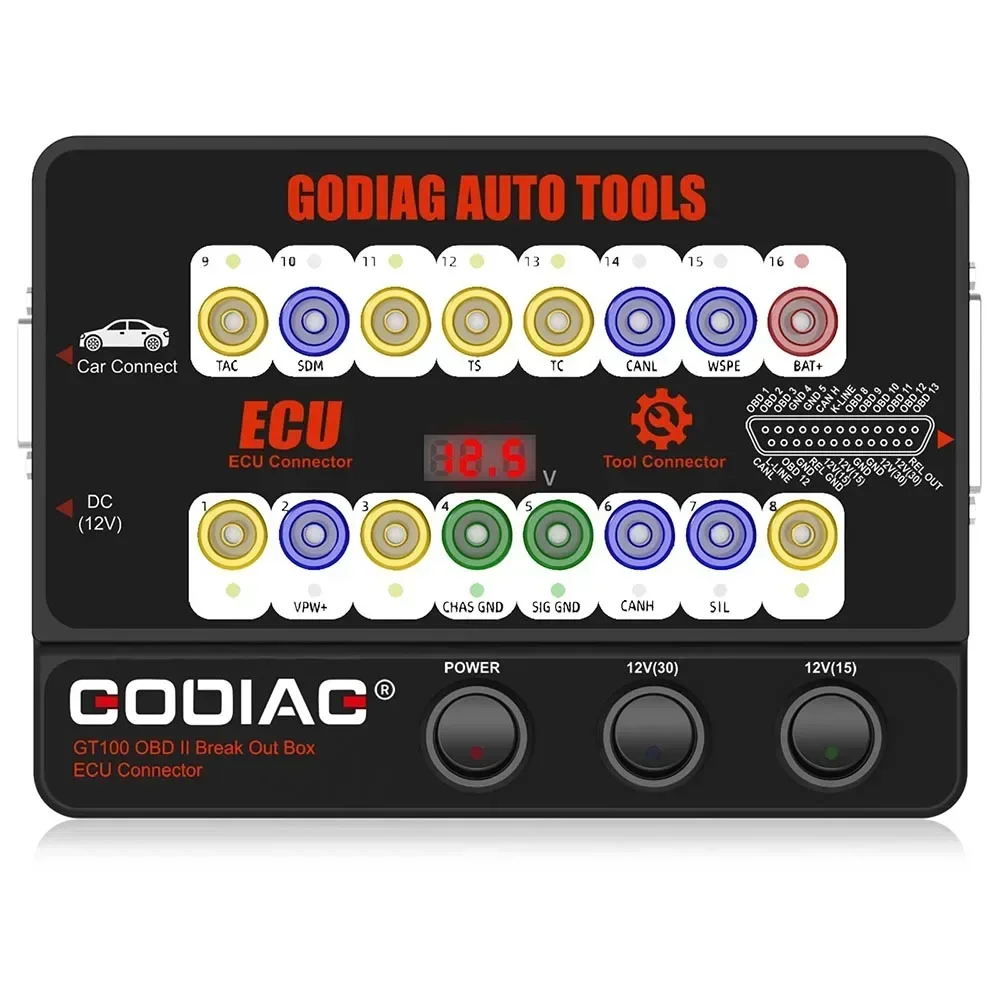

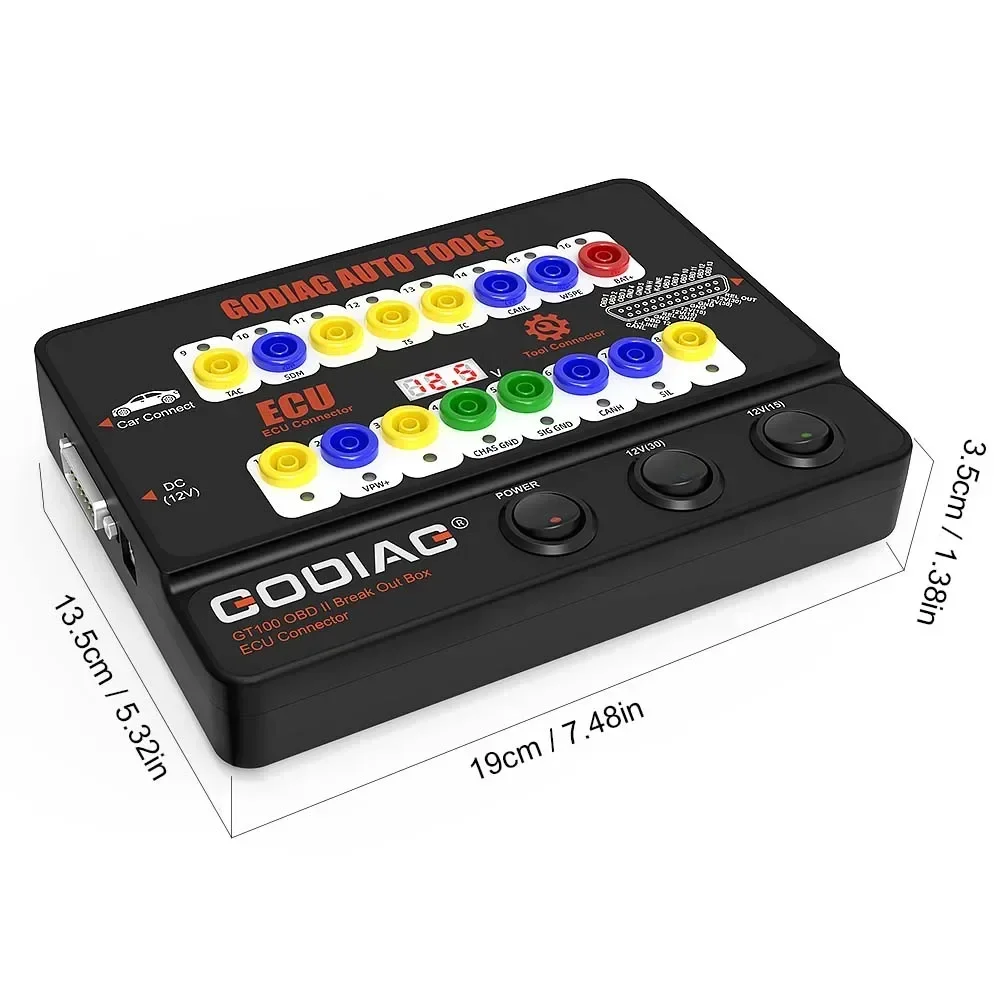

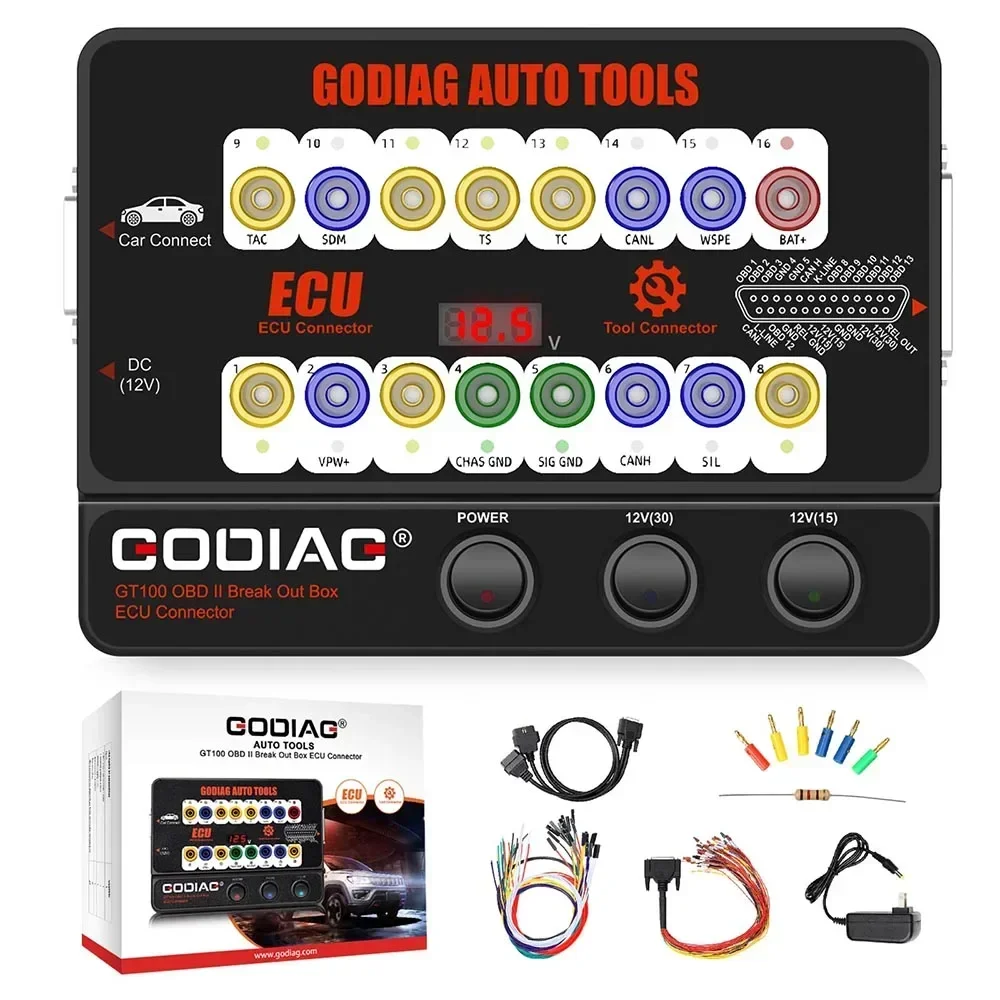

Each OBD-II pin has a 4mm safety banana socket and a colored LED to indicate status display:
- Green on pins 4/5 indicates ground
- Red on pin 16 indicates power
- Blue (flashing) is for communication lines

Test leads and probes with 4mm banana plugs will connect directly into the 4mm safety sockets.

The front panel has 3 switches, a master power switch for the box and two separate 12V ouputs for powering modules through the DB25 jumper cable.

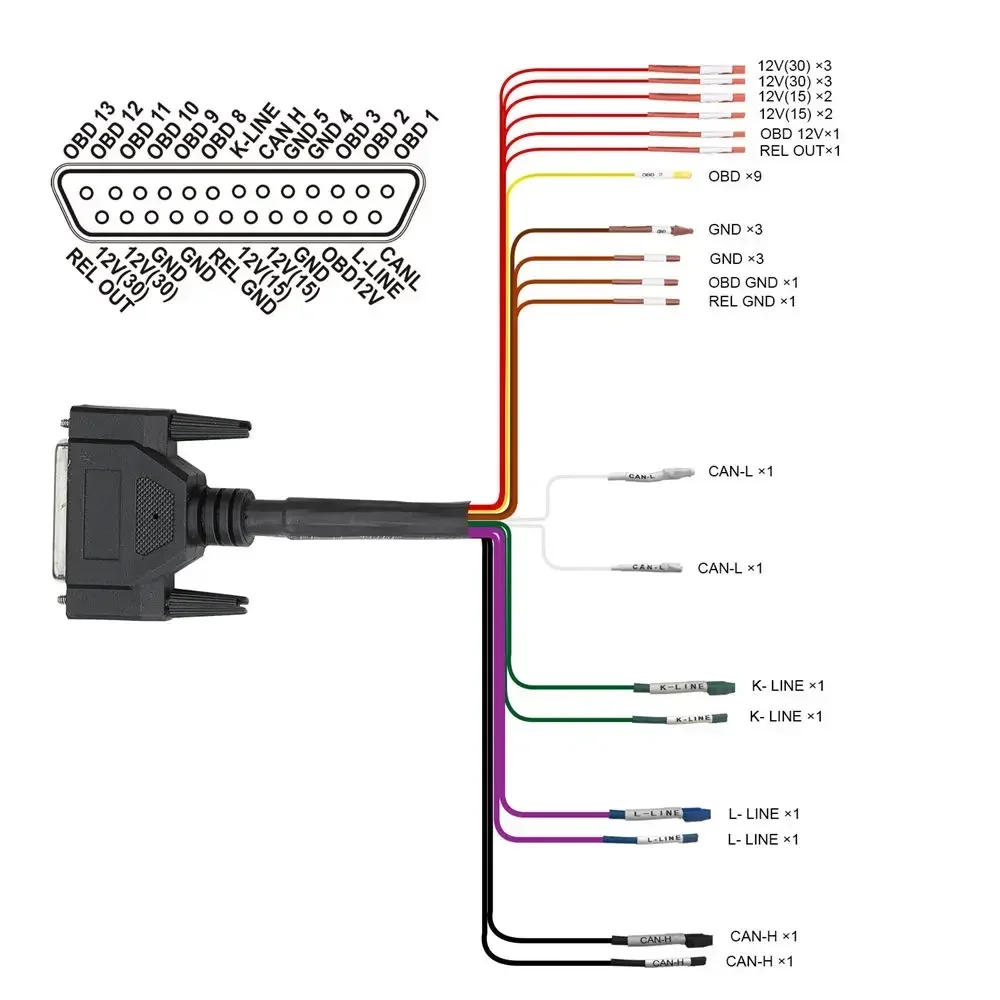

The GT100+ features a unique DB25 jumper cable which allows technicians to connect to and power up one or more modules when performing module diagnostics, programming or immobilzer work.

Use the DB25 jumper cable to connect your scan tool’s OBD-II cable to any OBD-I or manufacturer-specific diagnostic port.

Using the included AC adapter, the GODIAG can also be used as an auxiliary power supply and memory saver during battery service or replacement.

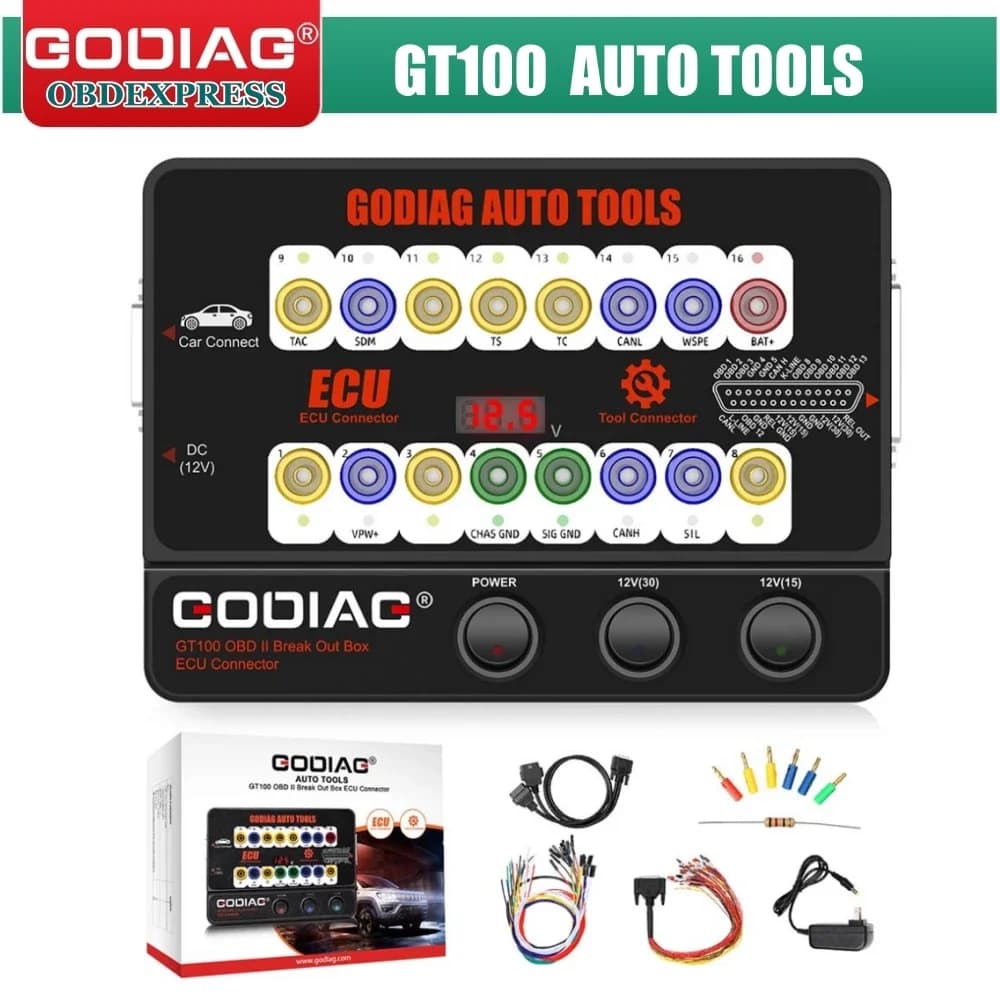

Package includes:
1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins
