CM06/CM06Pro Auto-ranging Clamp Meter 600A/1000A True RMS Inrush AC DC Voltage Tester Digital Multimeter Ammeter Ohm Capacitance Frequency Temp NCV VFD LoZ Duty Cycle Resistance Diode Continuity with Case Flashlight Test Leads

CM06/CM06Pro Auto-ranging Clamp Meter 600A/1000A True RMS Inrush AC DC Voltage Tester Digital Multimeter Ammeter Ohm Capacitance Frequency Temp NCV VFD LoZ Duty Cycle Resistance Diode Continuity with Case Flashlight Test Leads

Attention: There are two models in this listing: CM06 (600A) and CM06Pro (1000A). Please select the model according to your needs. Thank you!

Description:

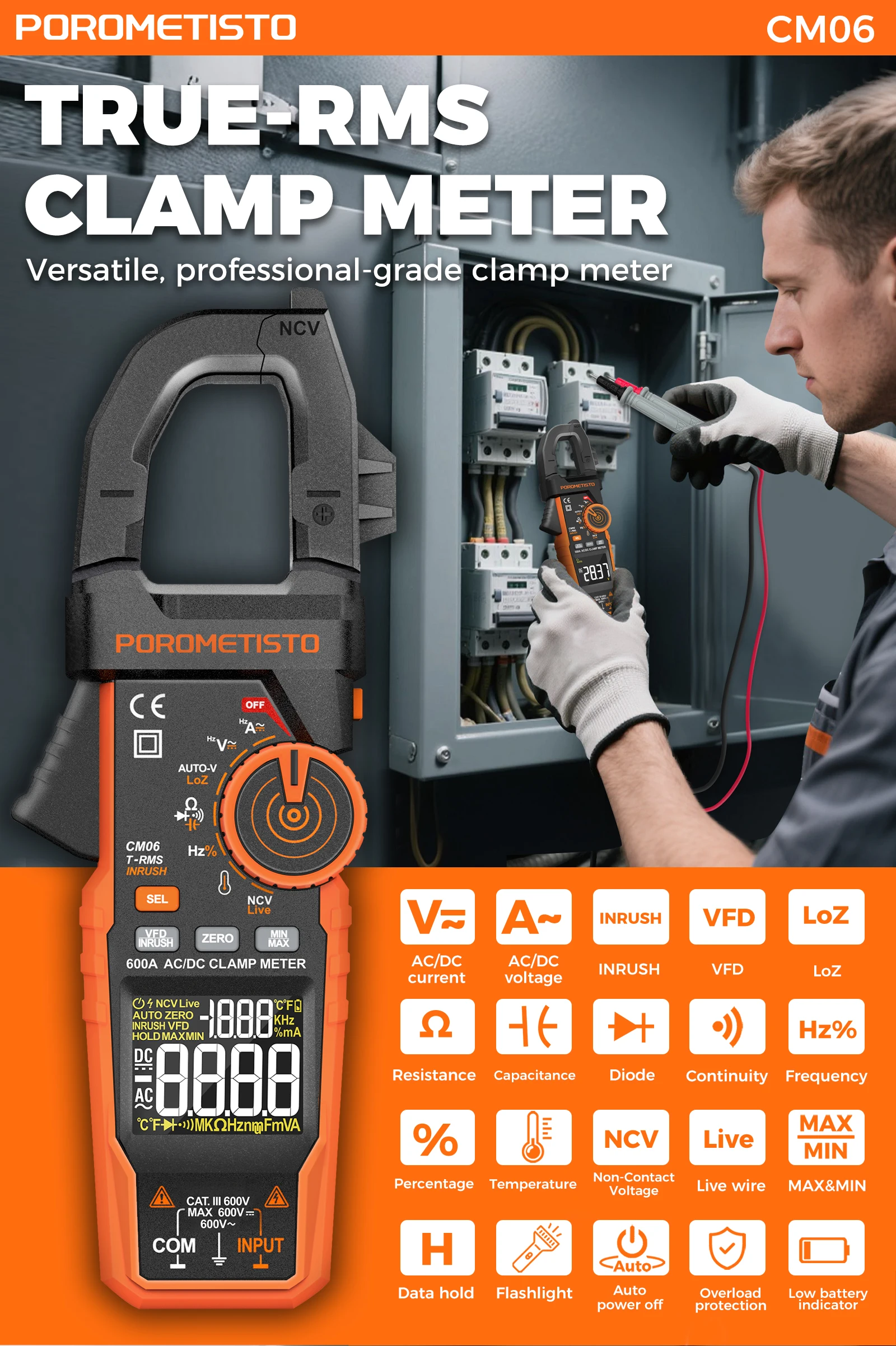

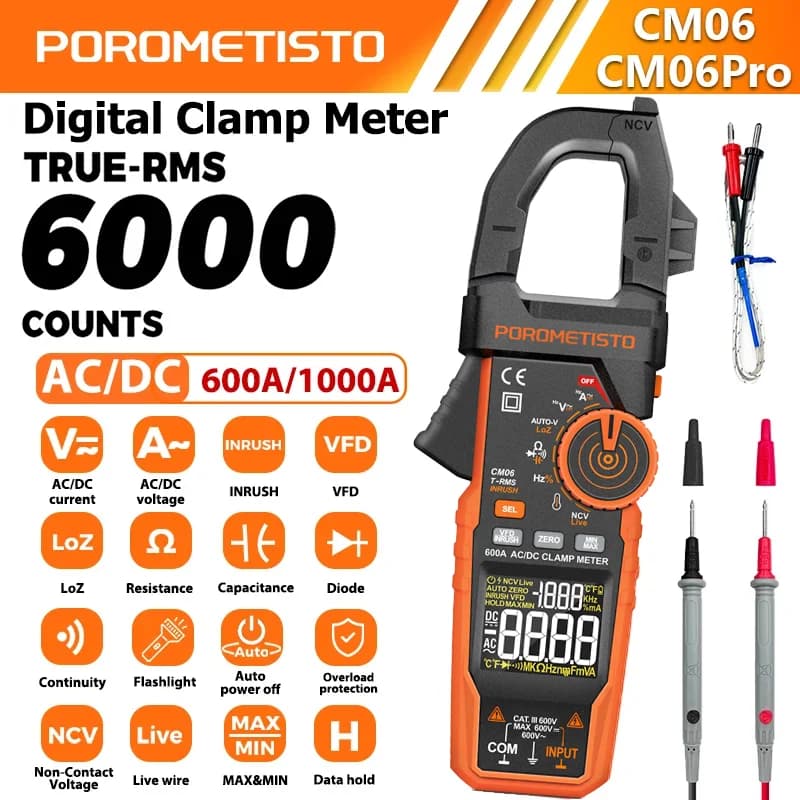

This powerful 6000-count auto-ranging digital clamp meter supports AC/DC current, AC/DC voltage, inrush current, frequency, true RMS, and AUTO-V LoZ low impedance voltage identification. Ideal for power maintenance, electrical installation, industrial testing, and DIY projects.

CM06 measures up to 600A AC/DC current; CM06Pro measures up to 1000A AC/DC current. Both models support resistance, capacitance, diode, continuity, frequency, duty cycle, and temperature (with thermocouple). Additional features include NCV, Live wire detection, MAX/MIN, HOLD, INRUSH, VFD mode, flashlight, auto power-off, overload protection, and low battery indication.

Features:

✔️ True RMS Measurement – Accurate readings for non-sinusoidal waveforms

✔️ AC/DC Current & Voltage – CM06: 600A / 600V; CM06Pro: 1000A / 1000V DC & 750V AC

✔️ Advanced Modes – INRUSH (inrush current), VFD (variable frequency drive), LoZ (low impedance), NCV (non-contact voltage)

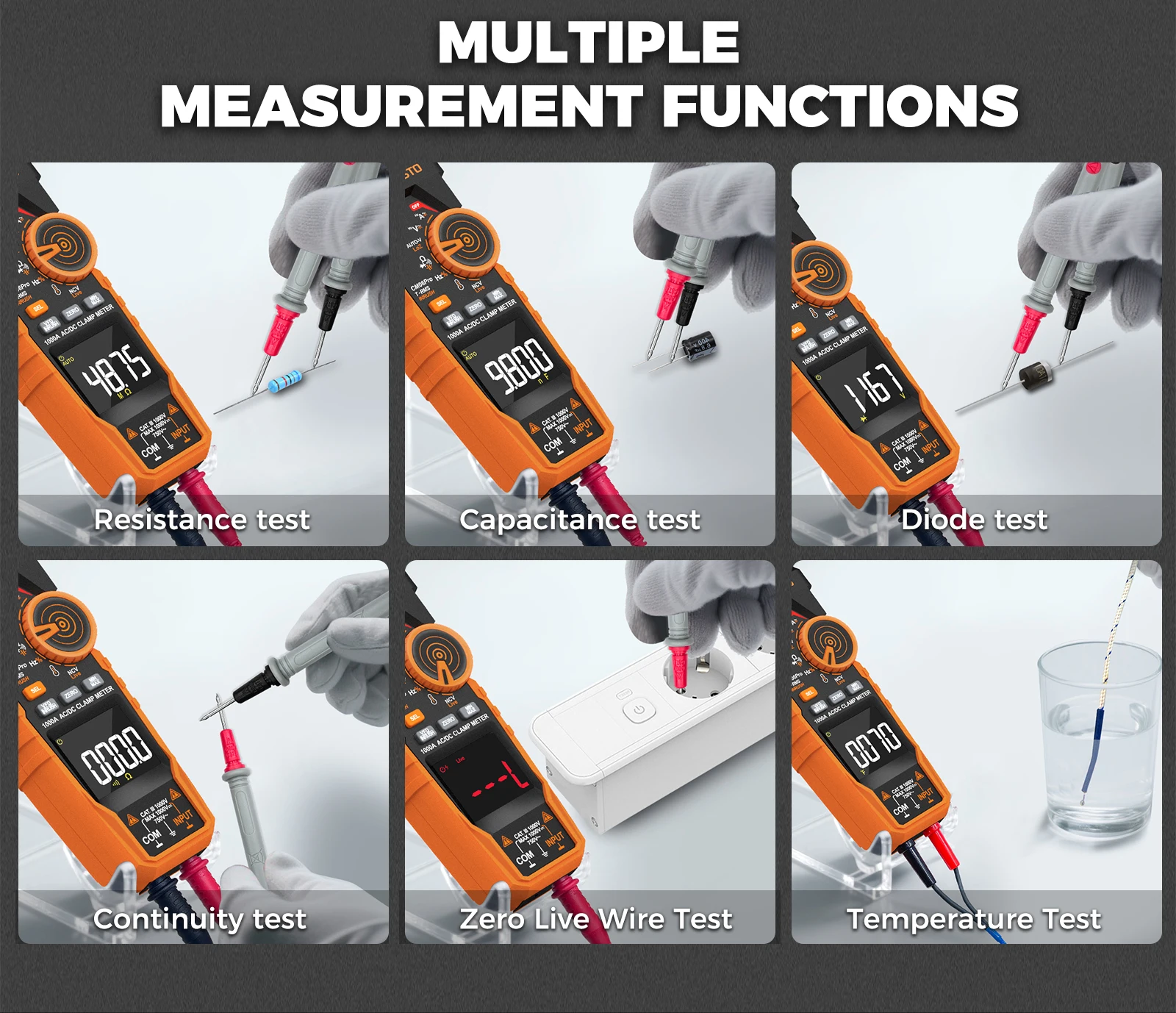

✔️ Multiple Functions – Resistance, capacitance, diode, continuity, zero live wire test, temperature (-50~1000℃)

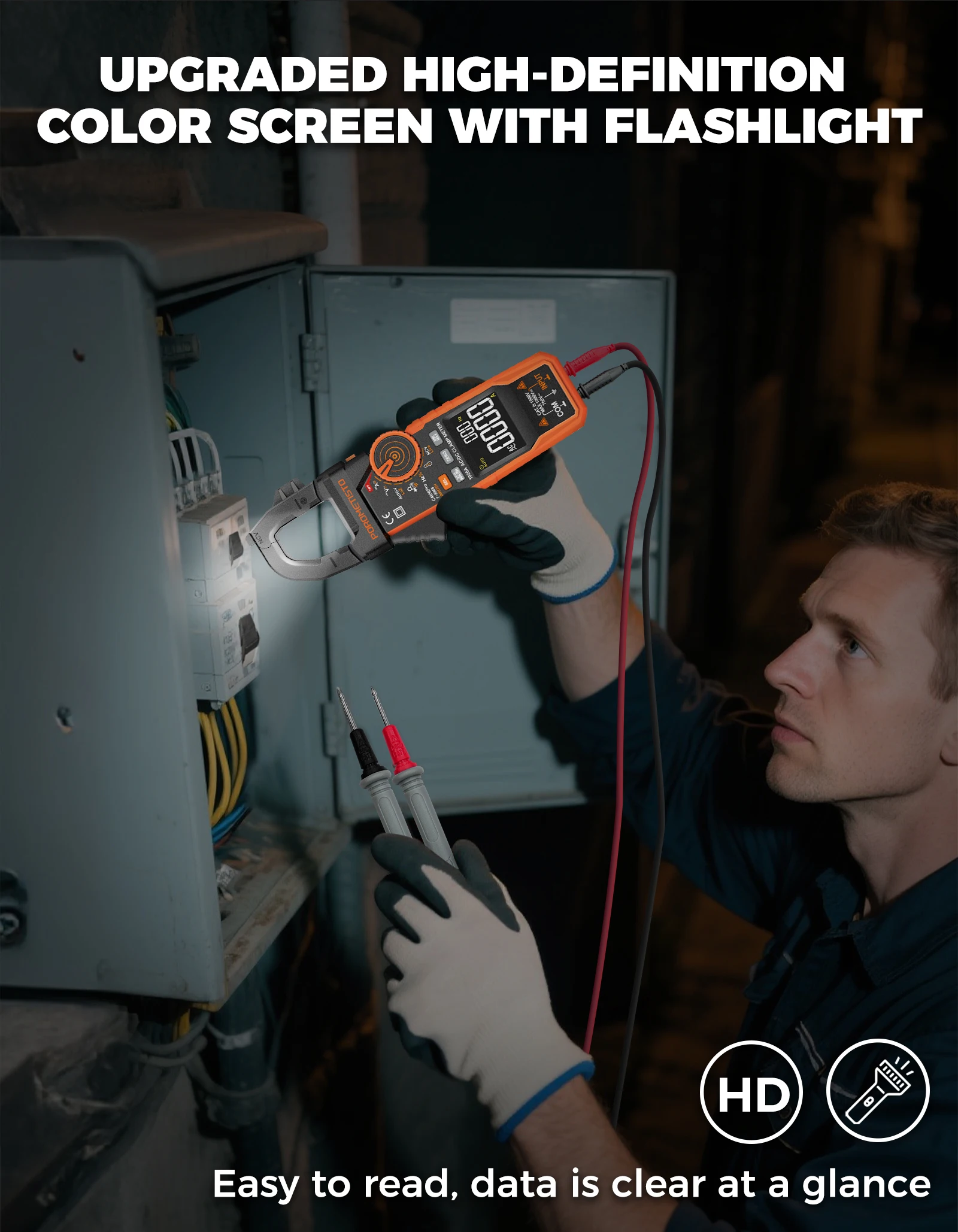

✔️ HD Color Screen & Flashlight – Clear reading in dark environments

✔️ Practical Features – Low battery indicator, MAX/MIN tracking, auto power off (15 min), data hold

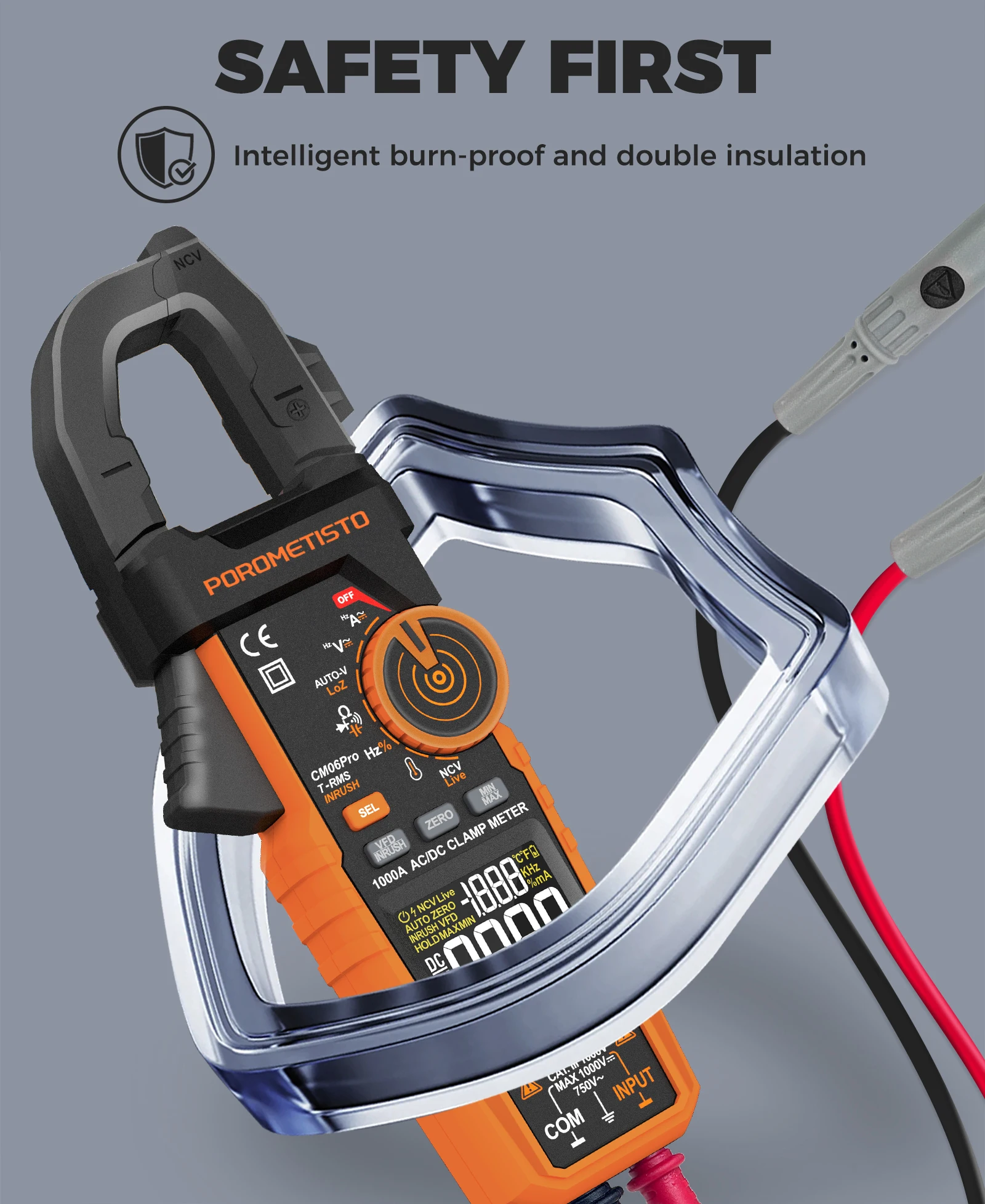

✔️ Safety – Double insulation, intelligent burn-proof protection

✔️ User-Friendly – Side operation design, 40mm (1.57in) D-shaped jaws for multiple wires

✔️ Wide Application – Automotive, household, HVAC, industrial, DIY

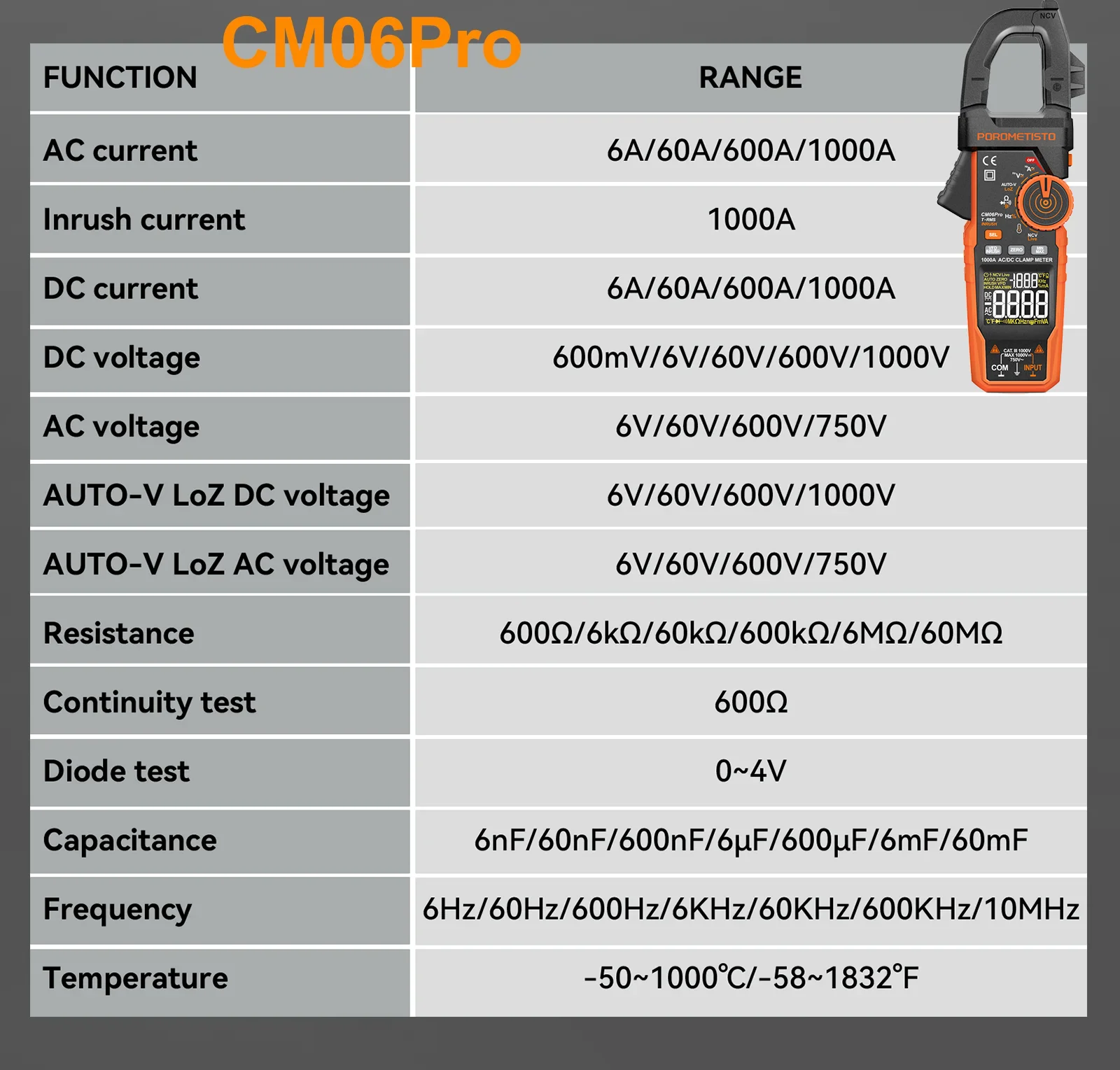

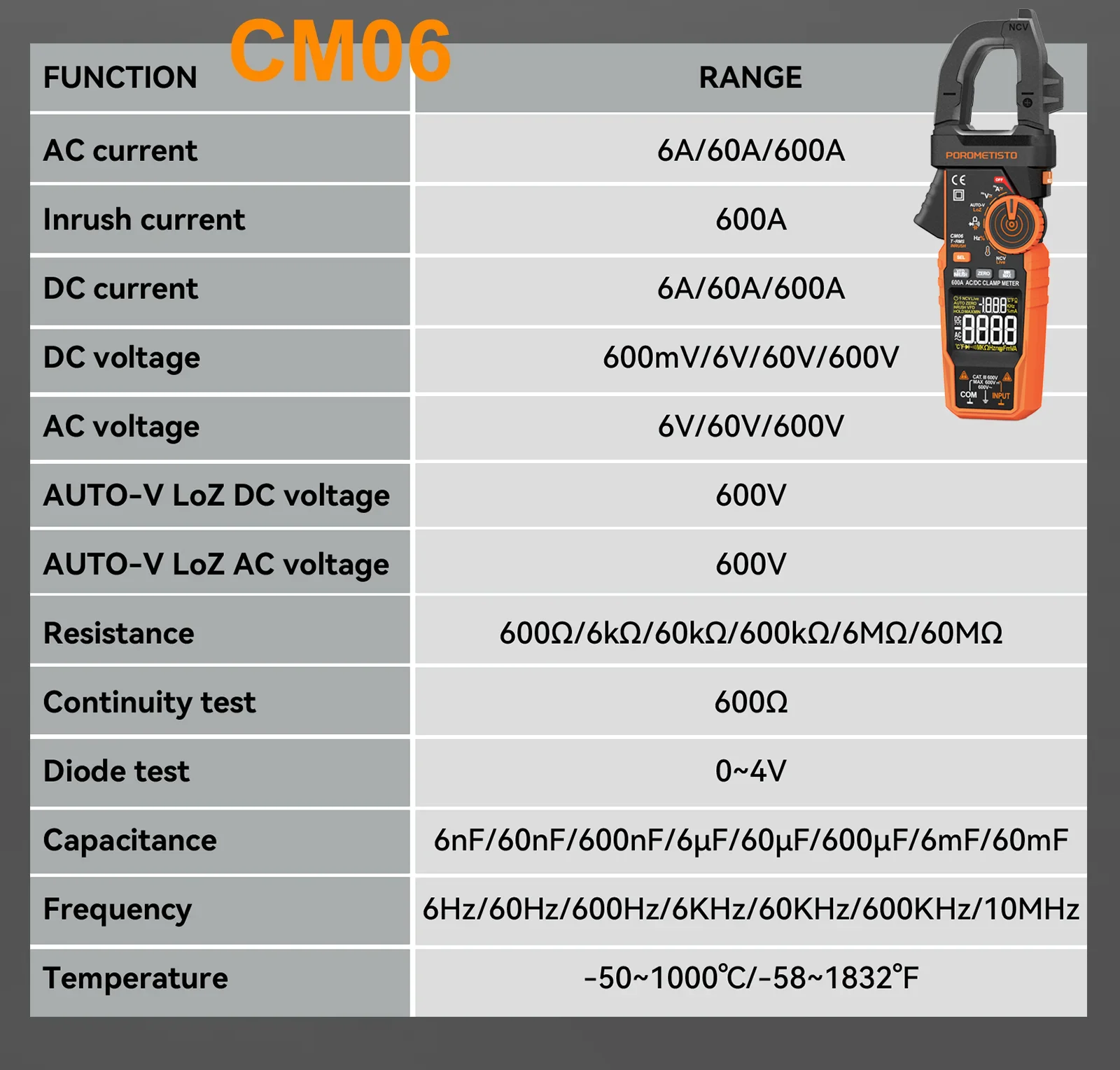

Specifications:

• AC Current – CM06: 6A/60A/600A; CM06Pro: 6A/60A/600A/1000A

• Inrush Current – CM06: 600A; CM06Pro: 1000A

• DC Current – CM06: 6A/60A/600A; CM06Pro: 6A/60A/600A/1000A

• DC Voltage – CM06: 600mV/6V/60V/600V; CM06Pro: 600mV/6V/60V/600V/1000V

• AC Voltage – CM06: 6V/60V/600V; CM06Pro: 6V/60V/600V/750V

• AUTO-V LoZ DC Voltage – CM06: 600V; CM06Pro: 6V/60V/600V/1000V

• AUTO-V LoZ AC Voltage – CM06: 600V; CM06Pro: 6V/60V/600V/750V

• Resistance – 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

• Continuity – 600Ω

• Diode – 0~4V

• Capacitance – 6nF/60nF/600nF/6μF/600μF/6mF/60mF

• Frequency – 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/10MHz

• Temperature – -50~1000℃ / -58~1832℉
