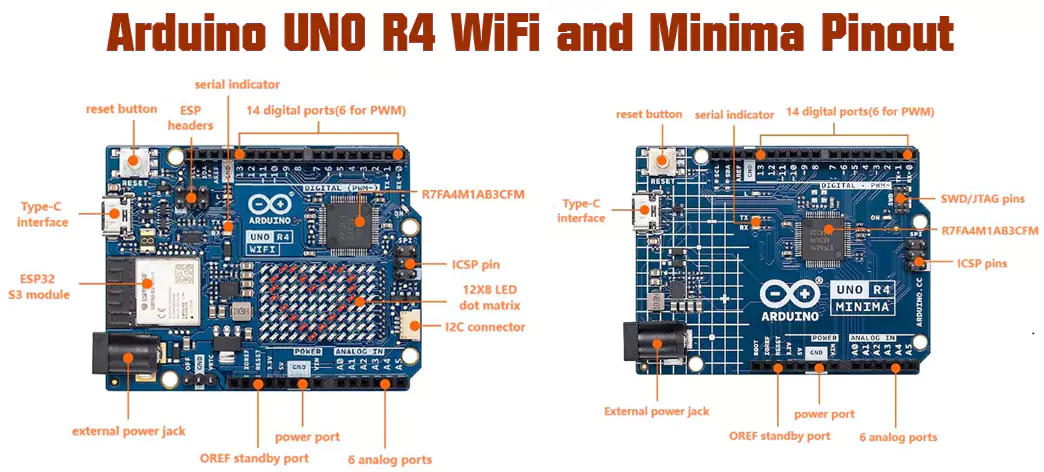

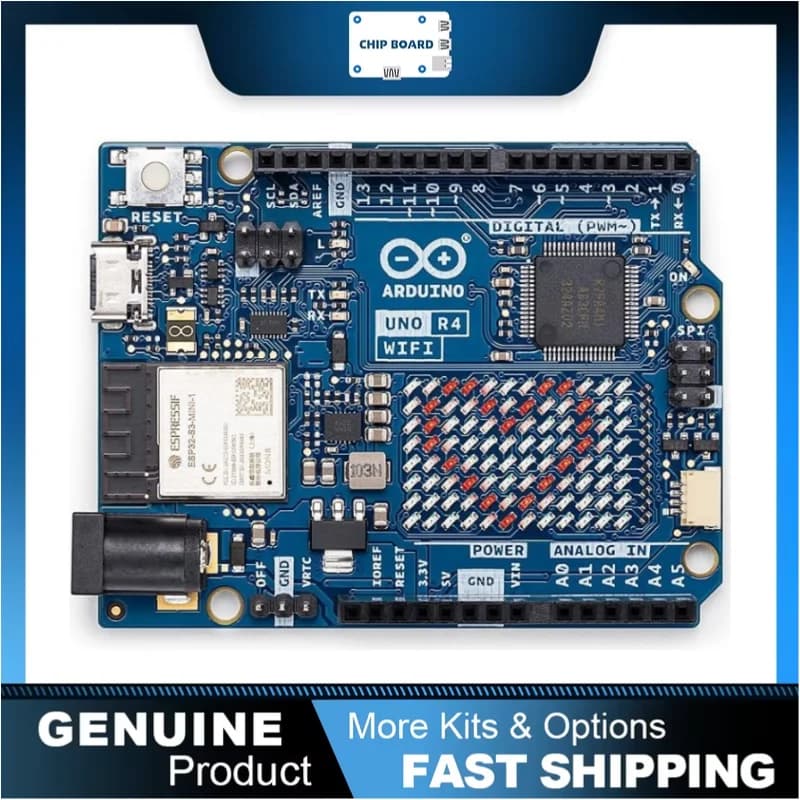

Understanding the UNO R4 Pinout

The UNO R4 maintains the same pin layout as the UNO R3, ensuring compatibility with existing shields. Here’s what each pin does:

Digital Pins (0-13)

Pins 0, 1: Serial communication (RX/TX)

Pins 2, 3: External interrupts

Pins 3, 5, 6, 9, 10, 11: PWM output

Pin 13: Connected to built-in LED (on Minima, this is a separate LED; on WiFi, it’s part of the matrix)

Analog Pins (A0-A5)

A0-A5: Analog input with 14-bit resolution (0-16383 values)

Can also be used as digital pins

Some pins have additional functions like I2C and SPI

Power Pins

VIN: Input voltage (6-24V)

5V: Regulated 5V output

3.3V: Regulated 3.3V output

GND: Ground pins

RST: Reset pin

AREF: Analog reference voltage

Special Pins (WiFi Version Only)

VRTC: Real-time clock power

OFF: Turn off board power

Qwiic: I2C connector for easy sensor connections

Setting Up the Development Environment

Before you can start programming your Arduino UNO R4, you’ll need to set up the Arduino Integrated Development Environment (IDE) on your computer. The Arduino IDE is available for Windows, macOS, and Linux systems, and can be downloaded free from the official Arduino website.

ComputerHardware

Installation Steps:

Download and Install Arduino IDE: Visit the official Arduino website and download the latest version of the IDE (2.0 or newer is recommended for best compatibility with the R4).

Install Board Package: Unlike the UNO R3, the R4 requires a specific board package to be installed. Open the Arduino IDE, navigate to Tools > Board > Boards Manager, type “Arduino UNO R4” in the search box, and install the package that appears.

Driver Installation (if needed): Most modern operating systems will automatically recognize the UNO R4 when connected via USB-C. If your computer doesn’t recognize the board, you may need to install drivers manually from the Arduino website.

Select Board and Port: Once connected, select the appropriate board type (Arduino UNO R4 Minima or WiFi) from the Tools > Board menu. Then choose the correct serial port from the Tools > Port menu.

Test the Setup: To verify everything is working correctly, open the Blink example sketch (File > Examples > 01.Basics > Blink) and upload it to your board. The onboard LED should start blinking, confirming your setup is successful.
