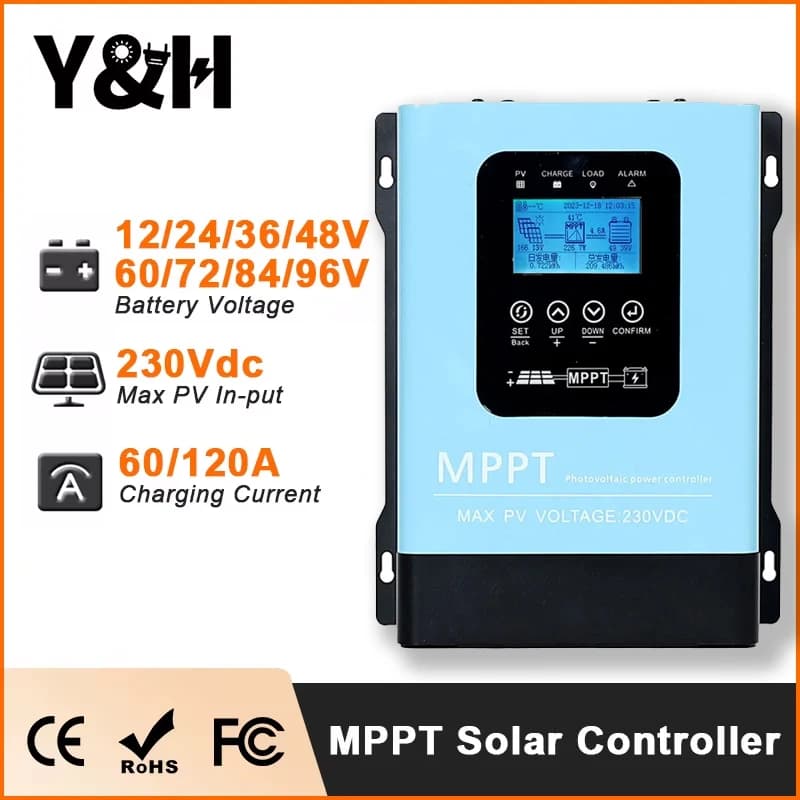

Y&H MPPT 120A Solar Charge Controller 12V-96V with LCD, Max Solar Panel Input 230Vdc for Lifepo4 Lithium GELLead Acid Battery

Y&H 120A MPPT Solar Controller 12V 24V 36V 48V 60V 72V 84V 96V PV up to 230V for sealed lead-acid gel and lithium batteries

SERVICE GUARANTEE: Y&H is the first to introduce 12-96V battery system, if you are not satisfied with the MPPT solar controller we received, you can email us at any time, we will reply and solve your problem in time, and try our best to provide better service for you.

Descriptive:

Y&H controller is used in solar off-grid power generation systems to automatically regulate battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar module to charge the battery; at the same time, its Low Voltage Disconnect (LVD) function prevents the battery from over-discharging and causing damage.

The MPPT controller's comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.

Features:

1.Maximum power point tracking technology, can significantly improve the energy utilization of solar energy system, conversion efficiency of up to 97%.

2.Battery voltage available:12V/24V/36V 48V/60V/72V/84V/96V

3.Multiple battery type settings: Lead Acid,Gel,LifePo4,Li,User

4.PV Open Circuit Voltage: 0V-230V,Charging current (A) is adjustable.

5.Automatic compensation of charging voltage and current according to battery temperature to prolong battery life.

6.Wide range of high voltage: the same type of 60A controller can withstand up to 150V, while the 12V battery can withstand up to 45V, Y&H controller 12V battery system can withstand up to 230V, the advantage is obvious.

7.PV minimum input is calculated as about 1.5-2 times the battery voltage. (Example: 12V battery, minimum input voltage is 18V-24V voc)

NOTE:

1:Lead-acid batteries: 60V/72V/84V need to be adjusted manually.

2:solar panel input voltage minimum input: to be greater than the maximum battery voltage of 20V; maximum does not exceed 230V
