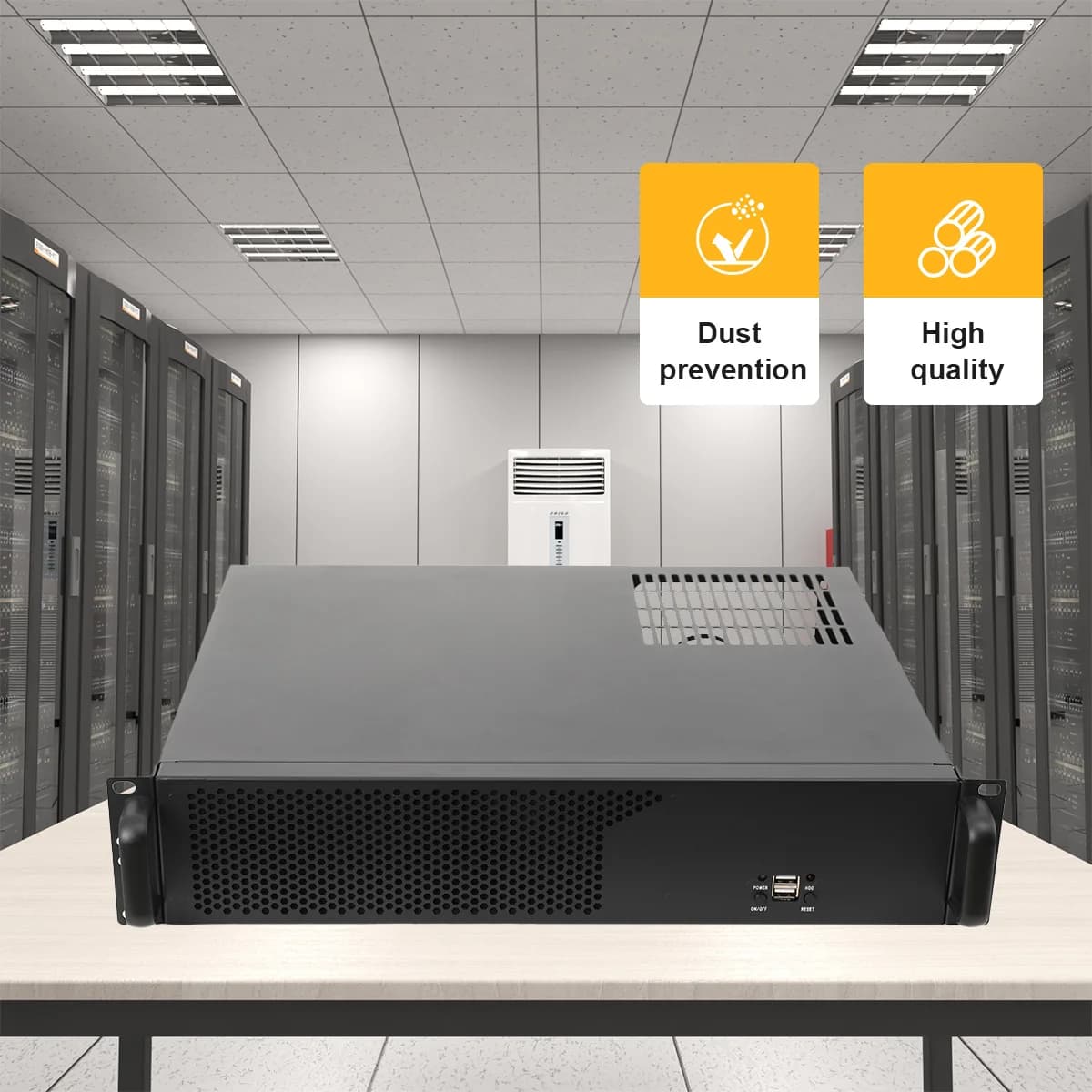

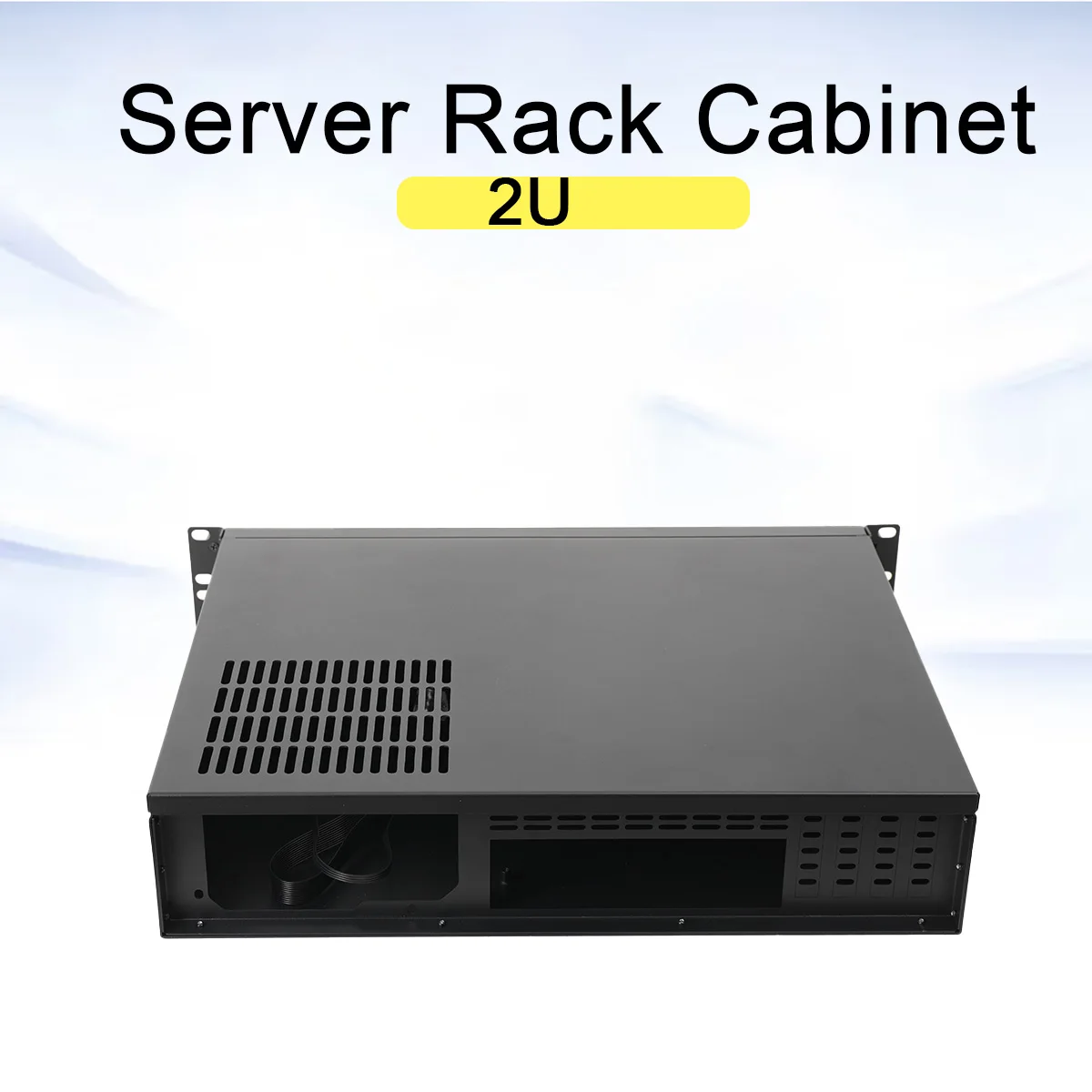

2U Chassis Aluminum Panel Ultra Short Industrial Control Server Chassis Data Storage Motherboard Server Case

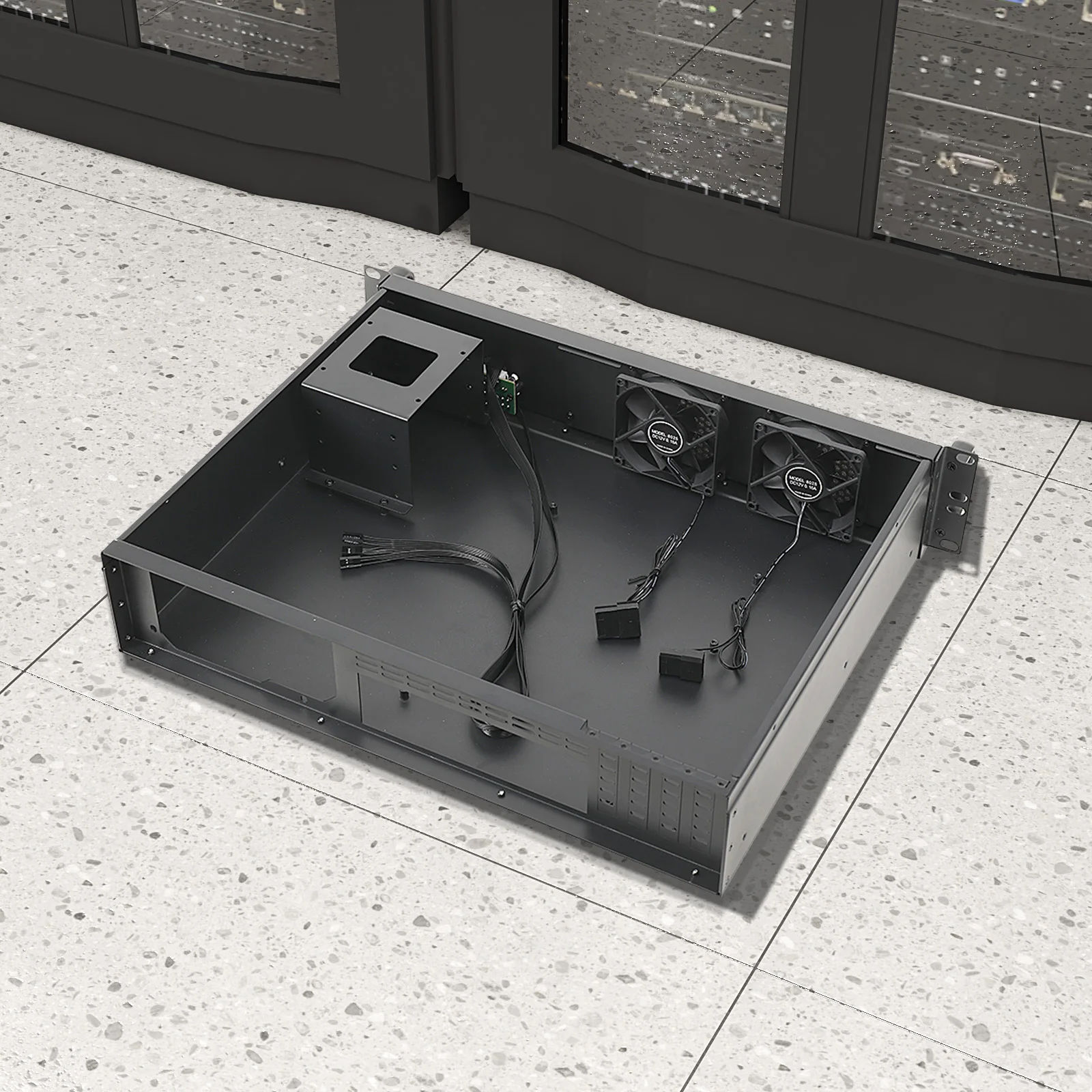

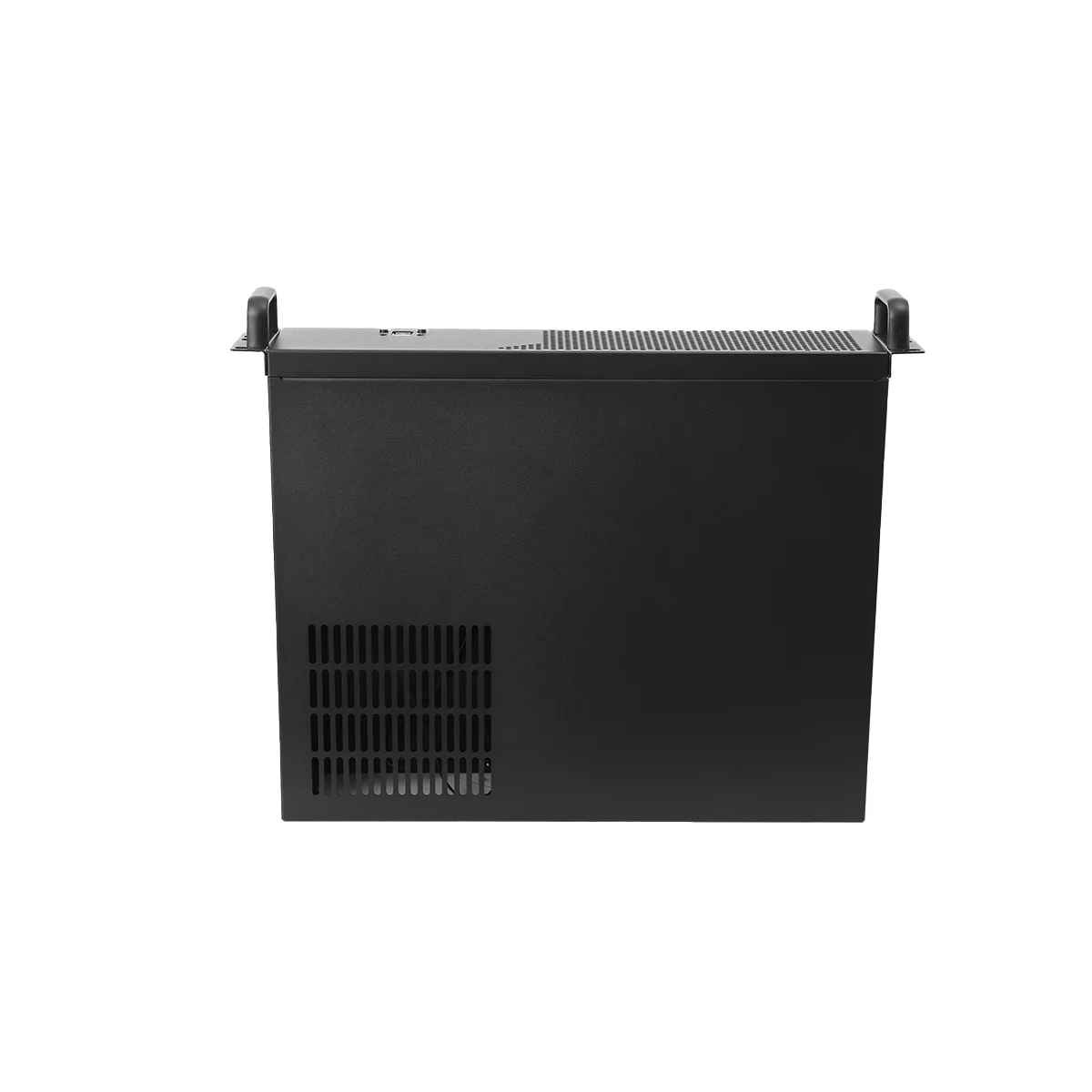

Extremely short (only 35cm deep) 14” special enclosure with 2U for use in rack environments with very little depth - such as flight cases or in narrow wall-mounted server cabinets. This very compact enclosure is ideal for use on stage, as a mobile DJ system or in all situations where a powerful server needs to be installed in very confined spaces.

The enclosure supports micro ATX and mini ITX mainboards. Standard ATX power supply units can be installed if they allow ventilation to the rear via an 80 mm fan and have a maximum depth of 14 cm. It is *not* possible to use power supply units with a large 120mm fan and side ventilation.

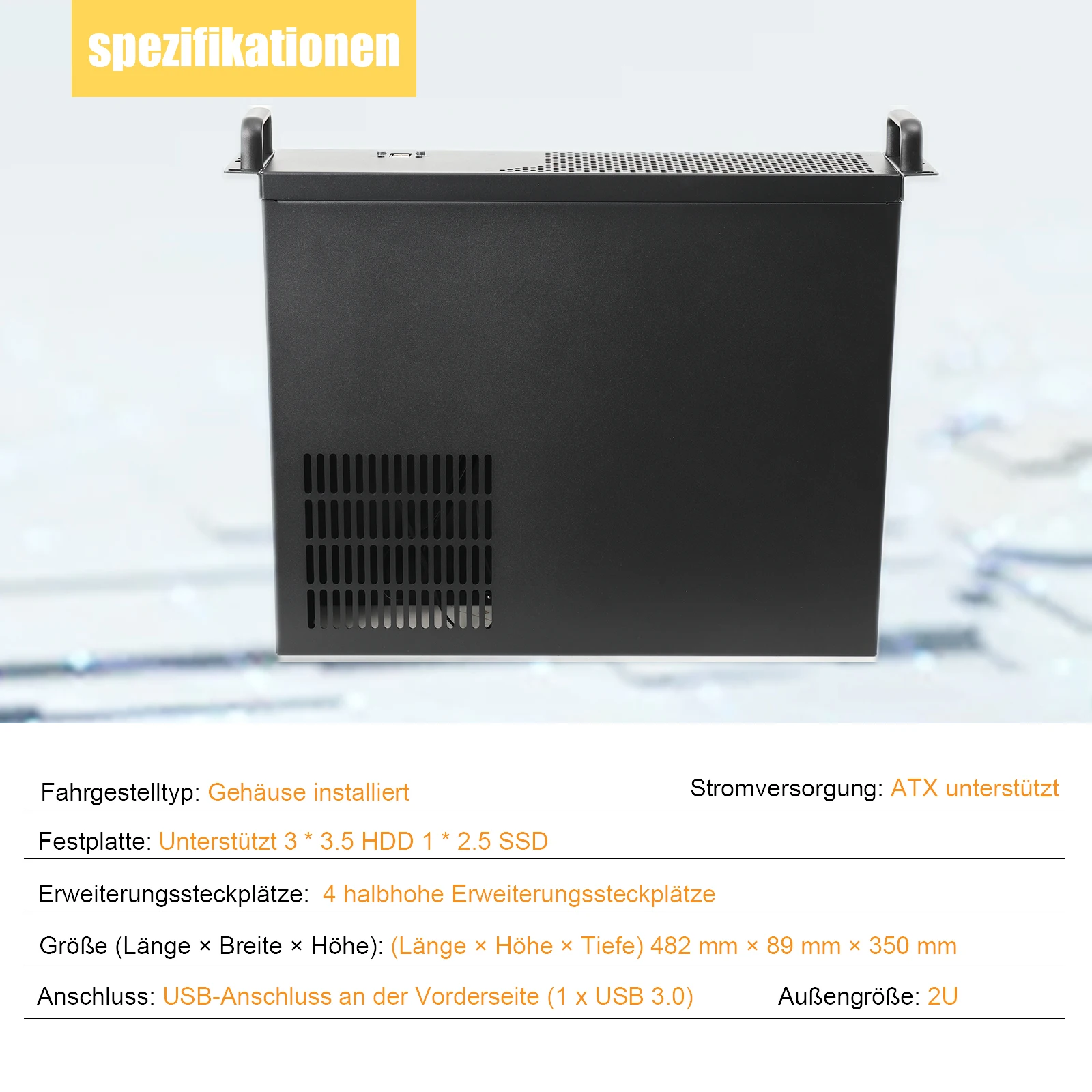

Technical data:

Type: Rack server case

Chassis Type: Rackmount

Form Factor: 2U

Motherboard Compatibility: supports mini ITX and micro ATX (9.6“ x 9.6”) mainboards

Power supply: supports ATX

Dimensions: (WxHxD) 482mm x 89mm x 350mm

Connectors:    Front USB port (1 x USB 3.0)

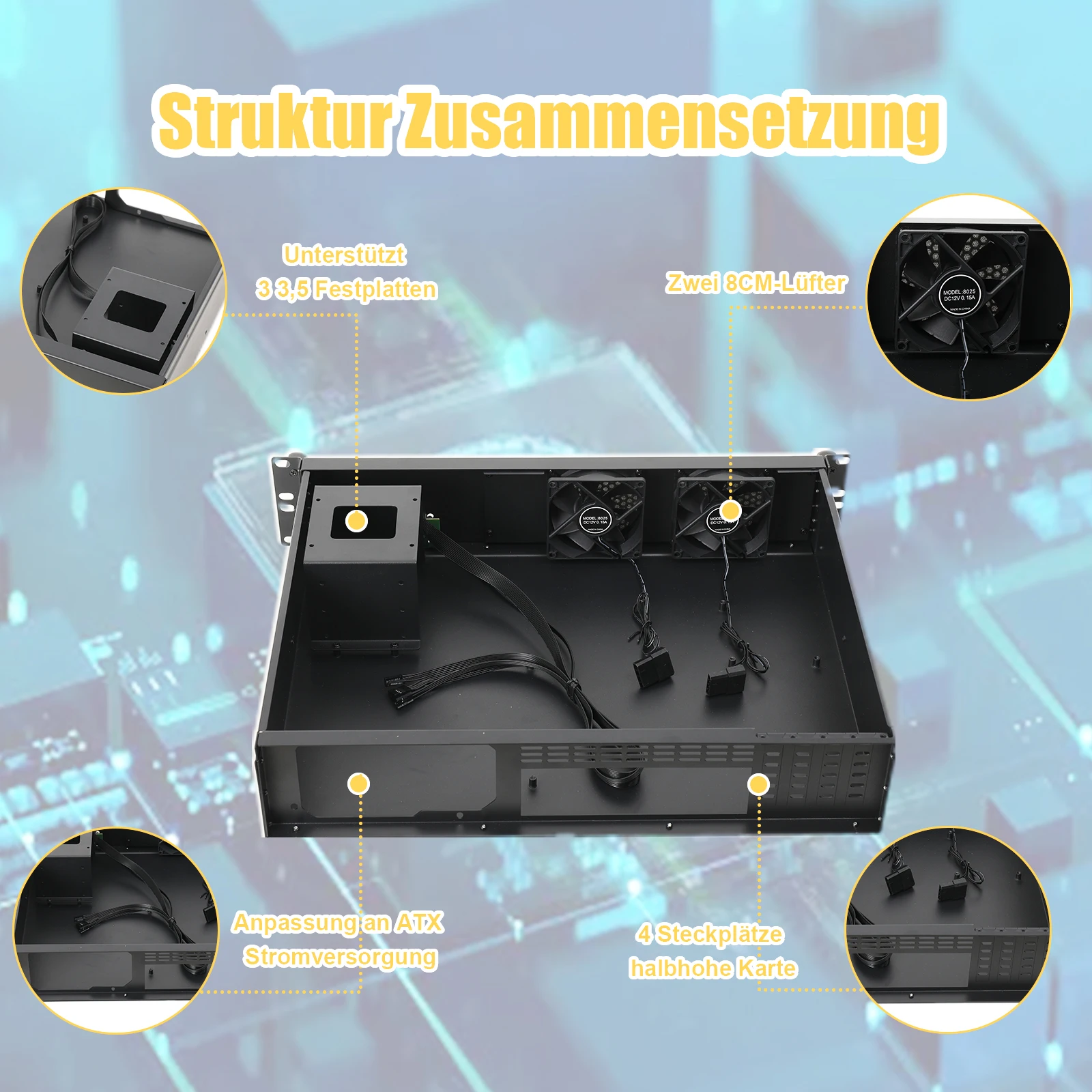

Hard disks: Supports 3 x 3.5 HDD 1 x 2.5 SSD

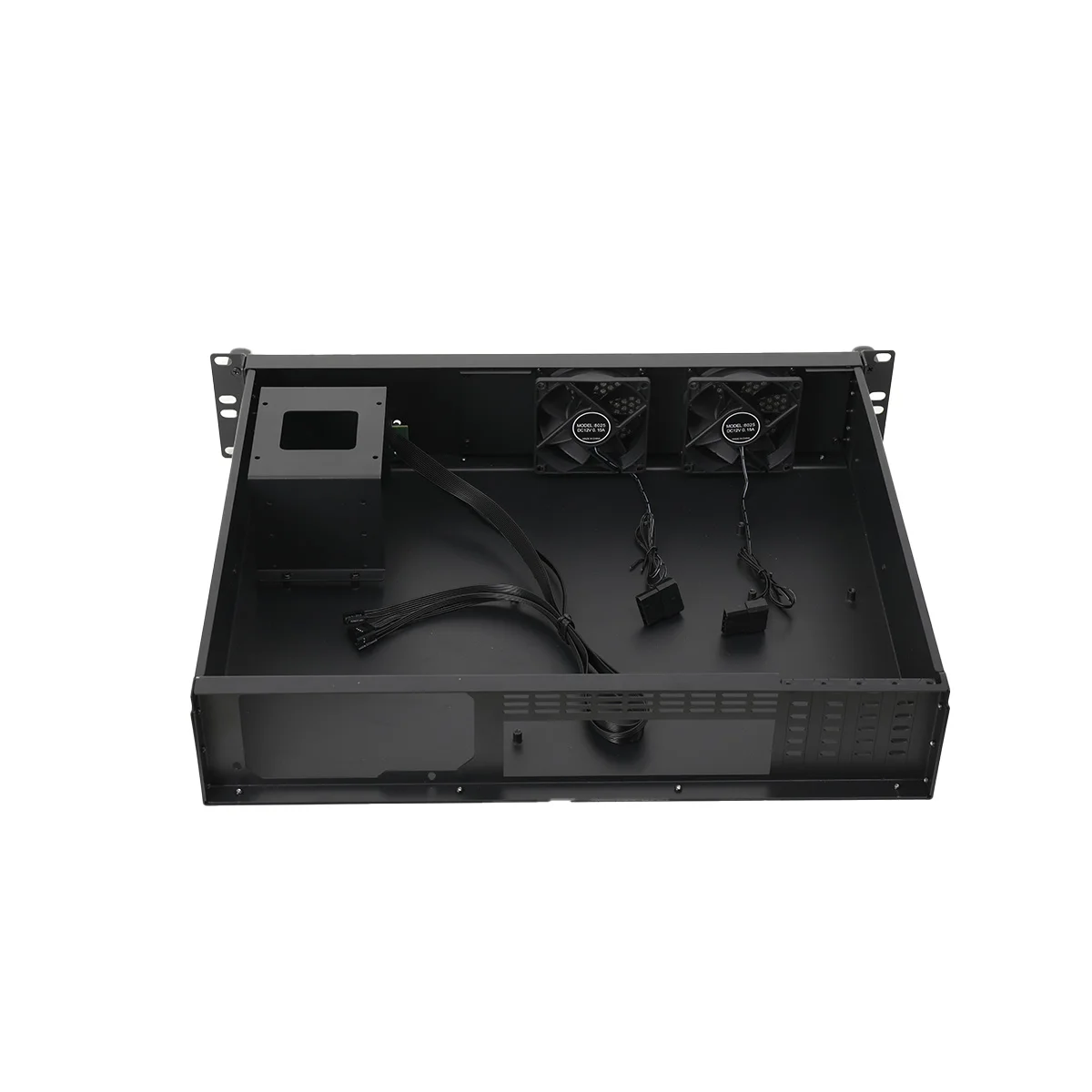

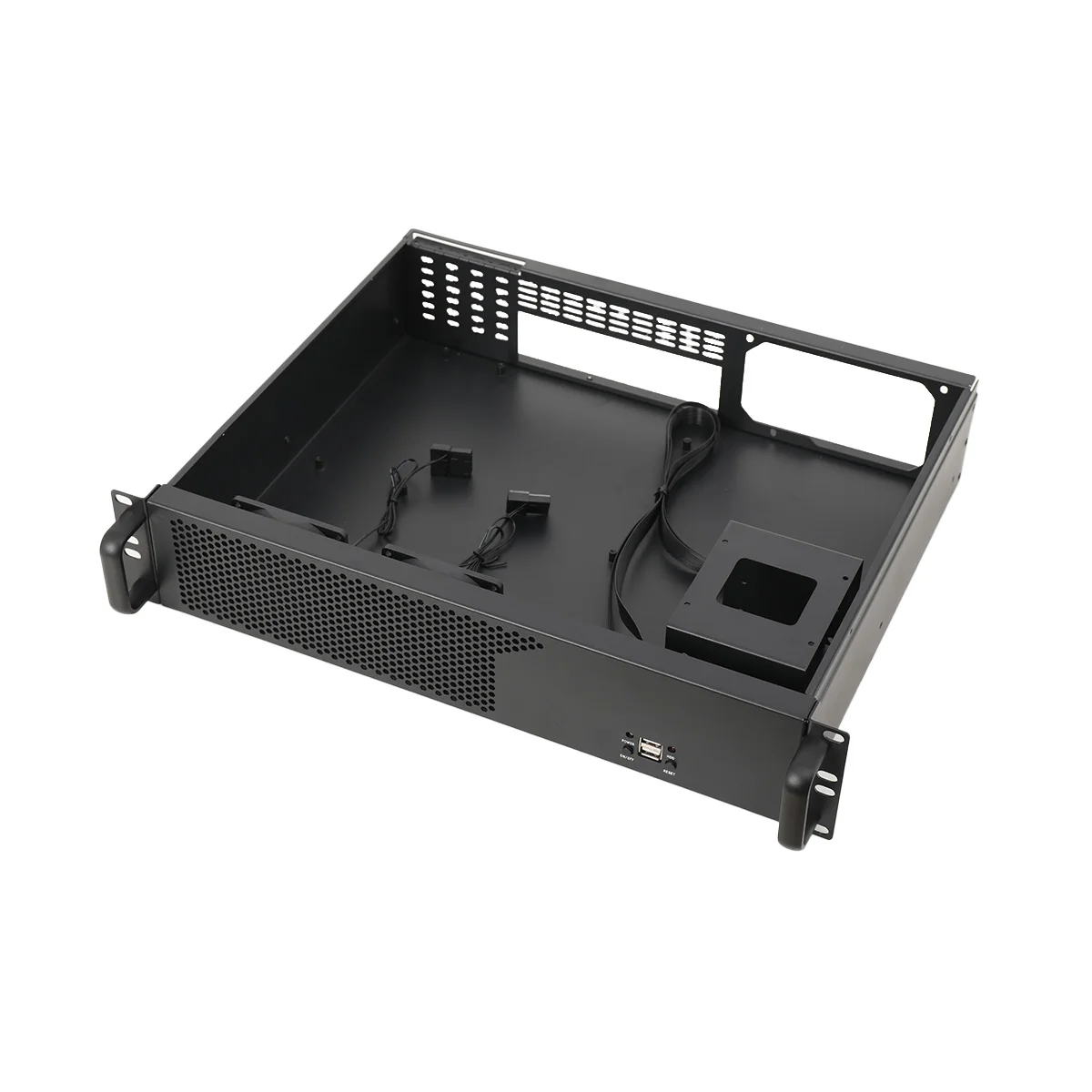

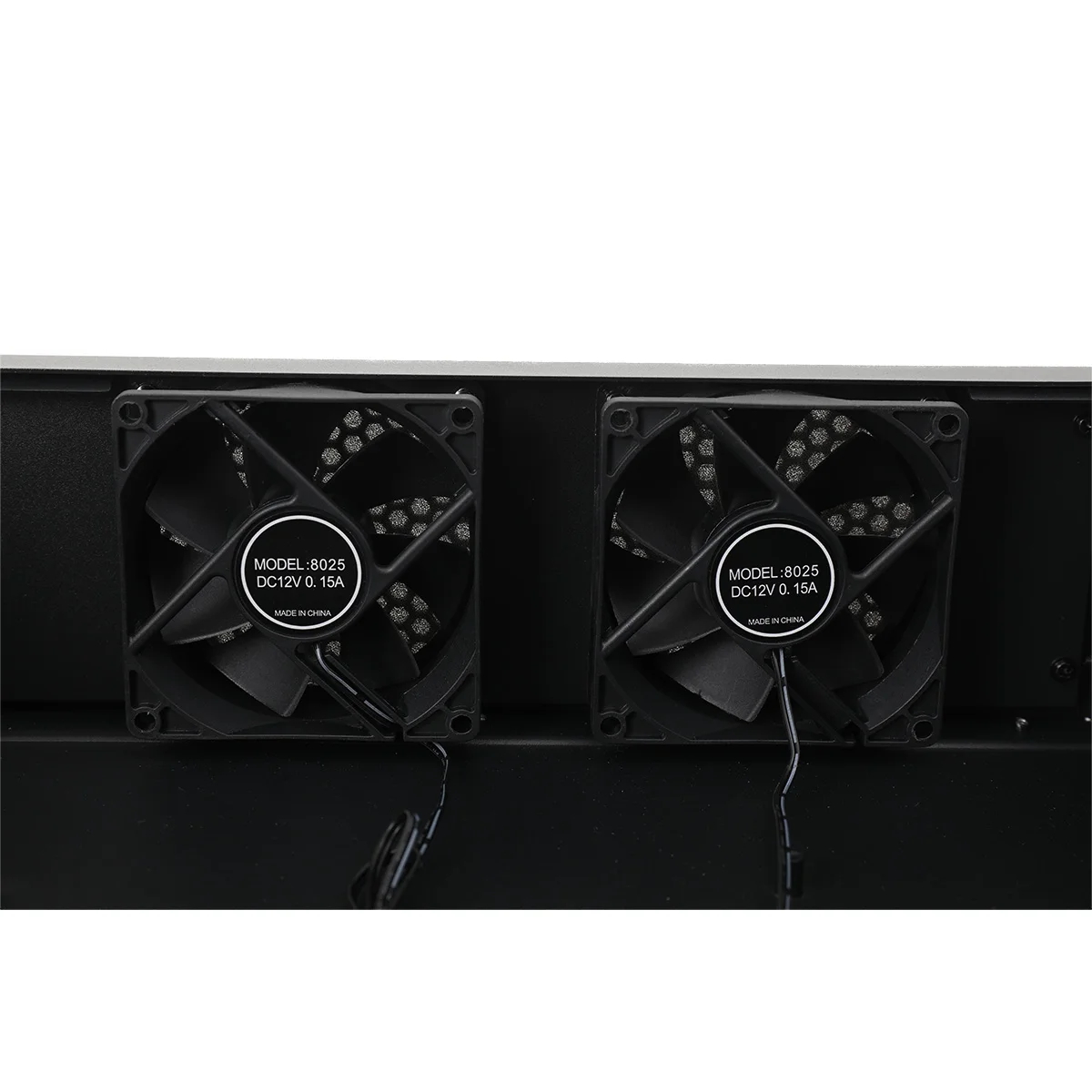

Ventilation: incl. two standard 80mm fans (808025mm) from behind the front of the case with removable air filter

Expansion slots: 4 half-height expansion slots

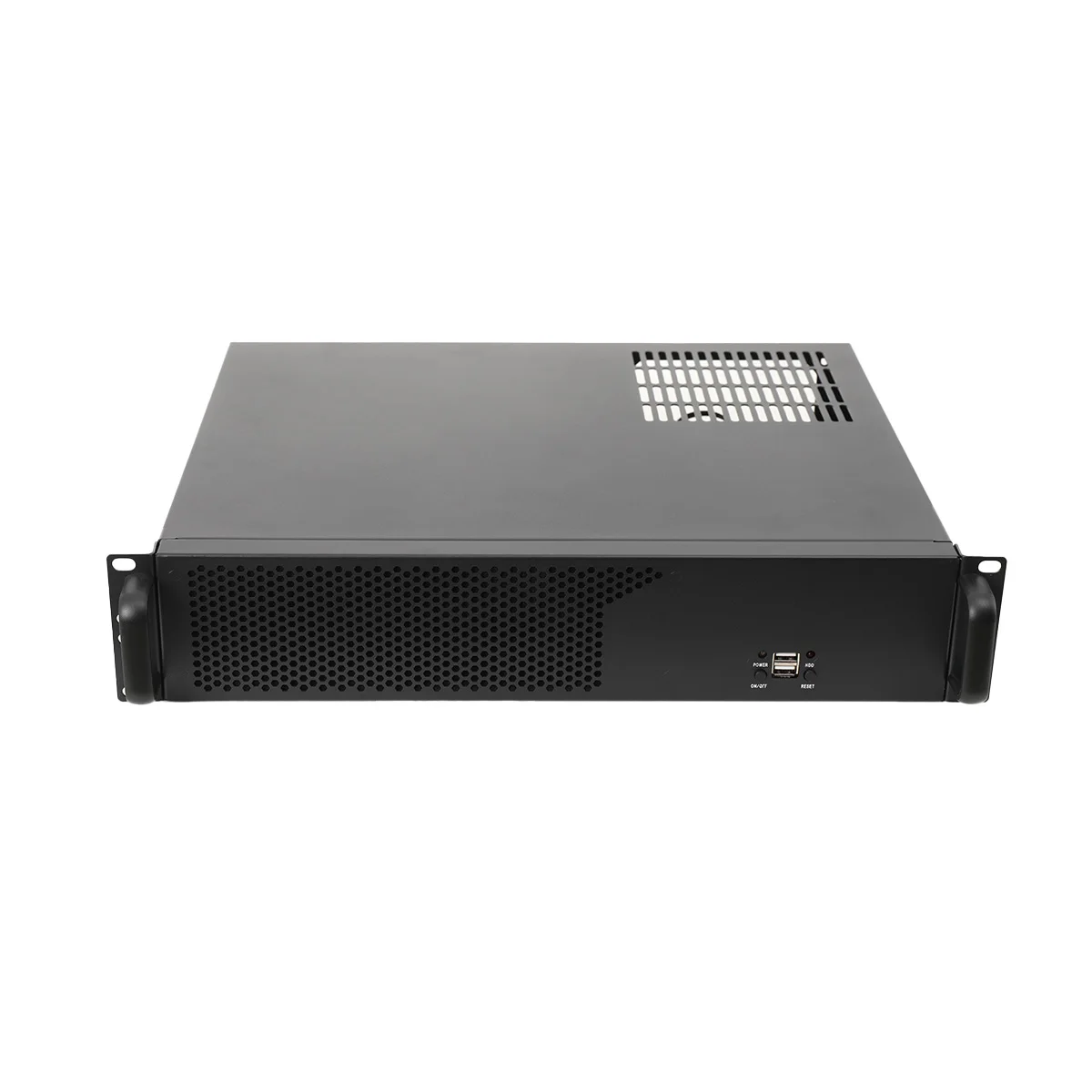

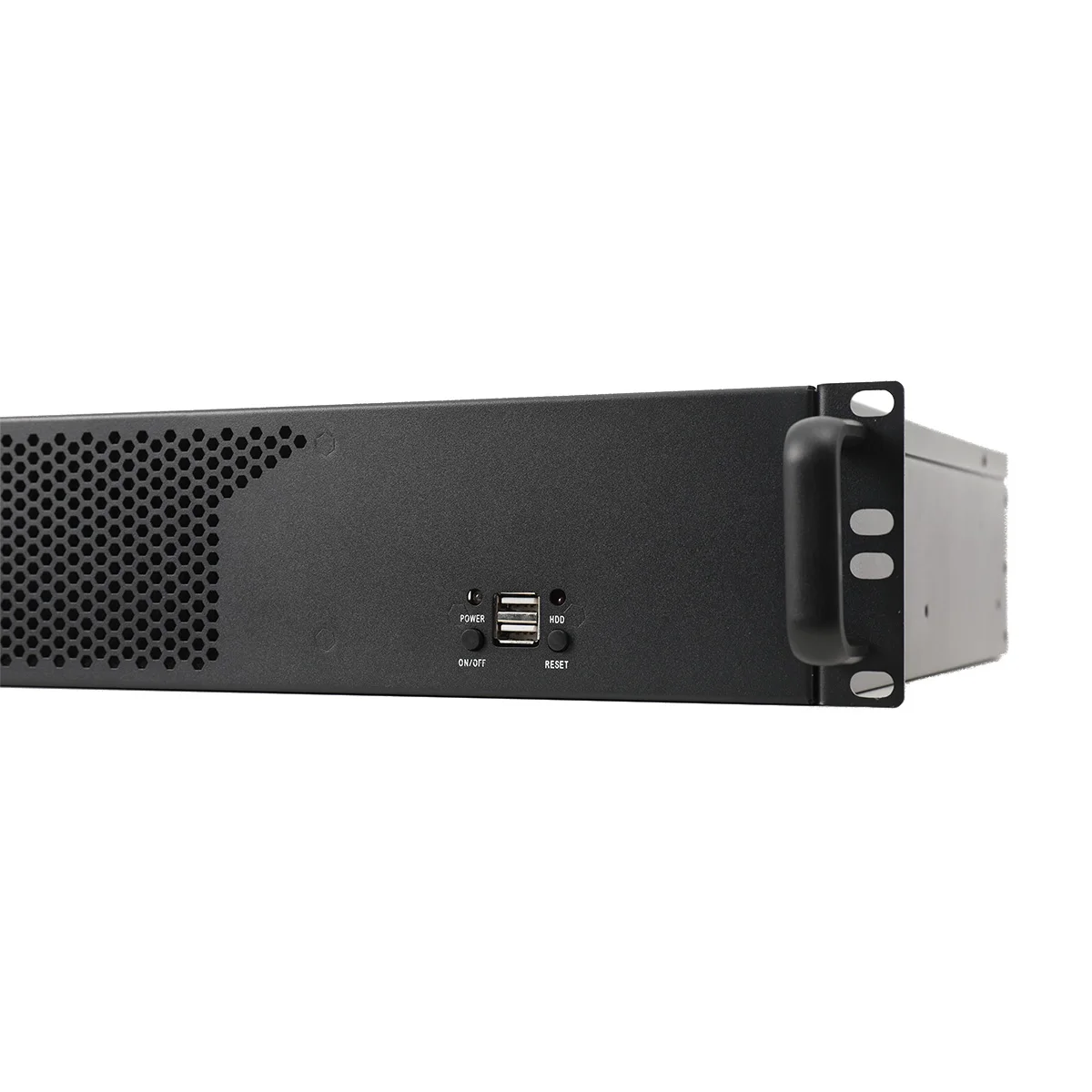

Panel equipment: Front USB port (1 x USB 3.0), power switch, reboot switch, power indicator, hard disk indicator

Packing List:

Rack Server Case
