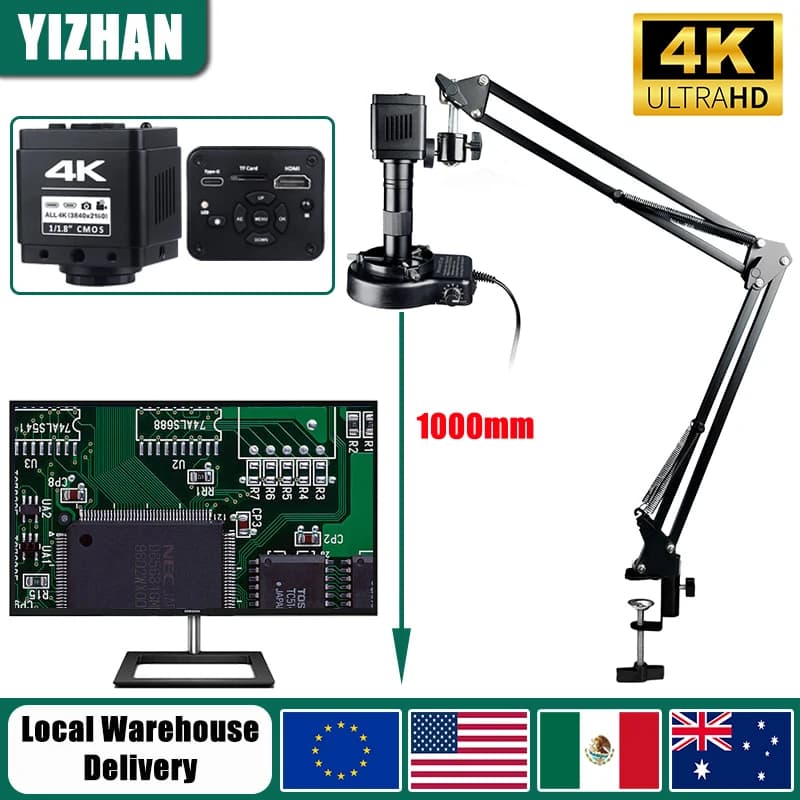

YIZHAN 4K UHD Electron Digital Microscope IMX678 HDMI Type-C Welding Video Camera 150X Zoom Lens Metal Bracket Remote Control

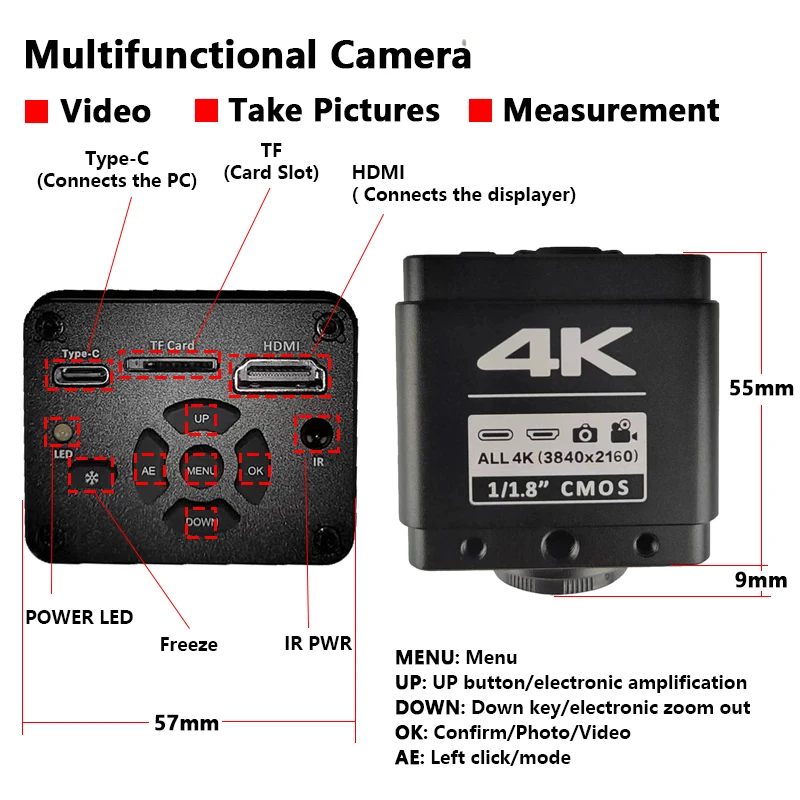

Description:

◆ Employs an 8.29 million pixel Sony CMOS image sensor;

◆ Employs a 1/1.8-inch image sensor;

◆ HDMI 3840*2160 30fps/1080P 60fps image output;

◆ USB 2.0 driverless output 3840*2160 30fps image output;

◆4K video recording;

◆4K photo capture;

◆One-click freeze/thaw function;

◆Electronic zoom function;

◆Supports manual/automatic exposure, exposure compensation value adjustment;

◆Supports manual/automatic white balance, red, green, and blue adjustable;

◆Provides 16-line drawing function, line color, thickness, and position adjustable;

◆Provides center crosshair display/disable;

◆Supports TF card storage, maximum support 64GB;

◆Supports remote control operation, shake-free and clearer images;

◆Supports Chinese and English menu languages ​​(English by default);

◆Supports saving settings parameters when powered off;

◆Rugged metal casing;

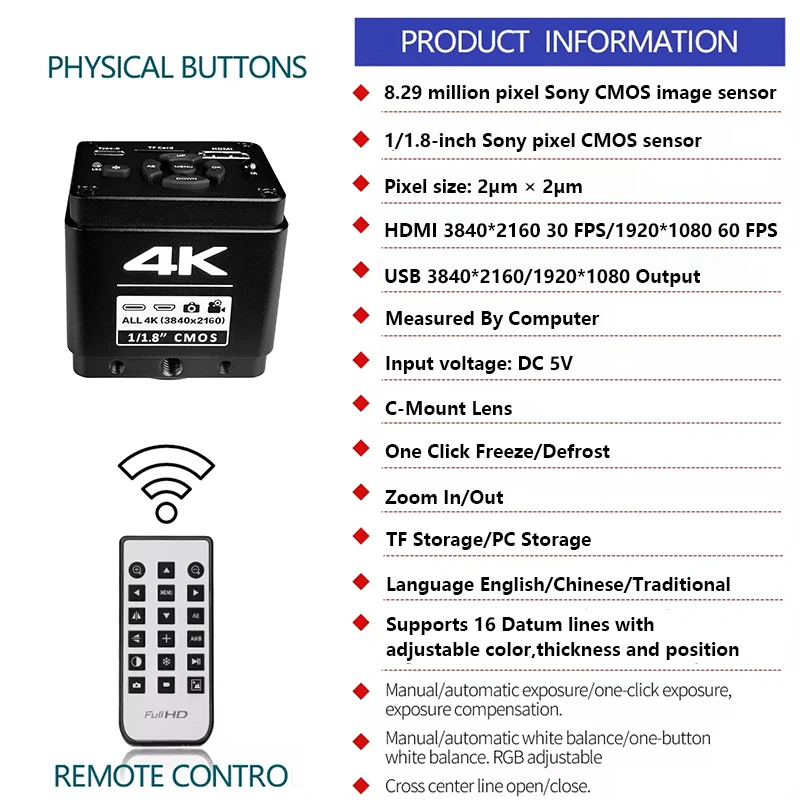

Specifications:

Sensor: 1/1.8-inch Sony 8.29MP CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30fps / 1920*1080 60fps
USB Output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens Interface: C/CS
Exposure: Auto/Manual
Exposure Compensation: Supported
White Balance: Auto/Manual, supports R, G, B adjustable
Storage: Maximum support 64GB
Input Voltage: DC 5V
Swipe Lines: Supports 16 straight lines, color, thickness, and position adjustable
Center Line: Supported
Menu Language: English/Chinese/Traditional
Remote Control: Supported
Packaging Dimensions: 145*130*70mm

Packaging Includes:

1*XH3011 Camera
1*US/EU Plug
1*HDMI Cable
1*Type-C Cable
1*Remote Control

Connect computer via Type-c

1. Install the ImageView on your computer

2. It Can capture pictures and videos and save them on PC.

3. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

Connect Display Via HDMI

1. It Can capture pictures and videos and save them on TFcards

2. It can capture up to 8M 8000X6000 HD images

3.4K (30fps) /1080P(60pfs) MOV video is available

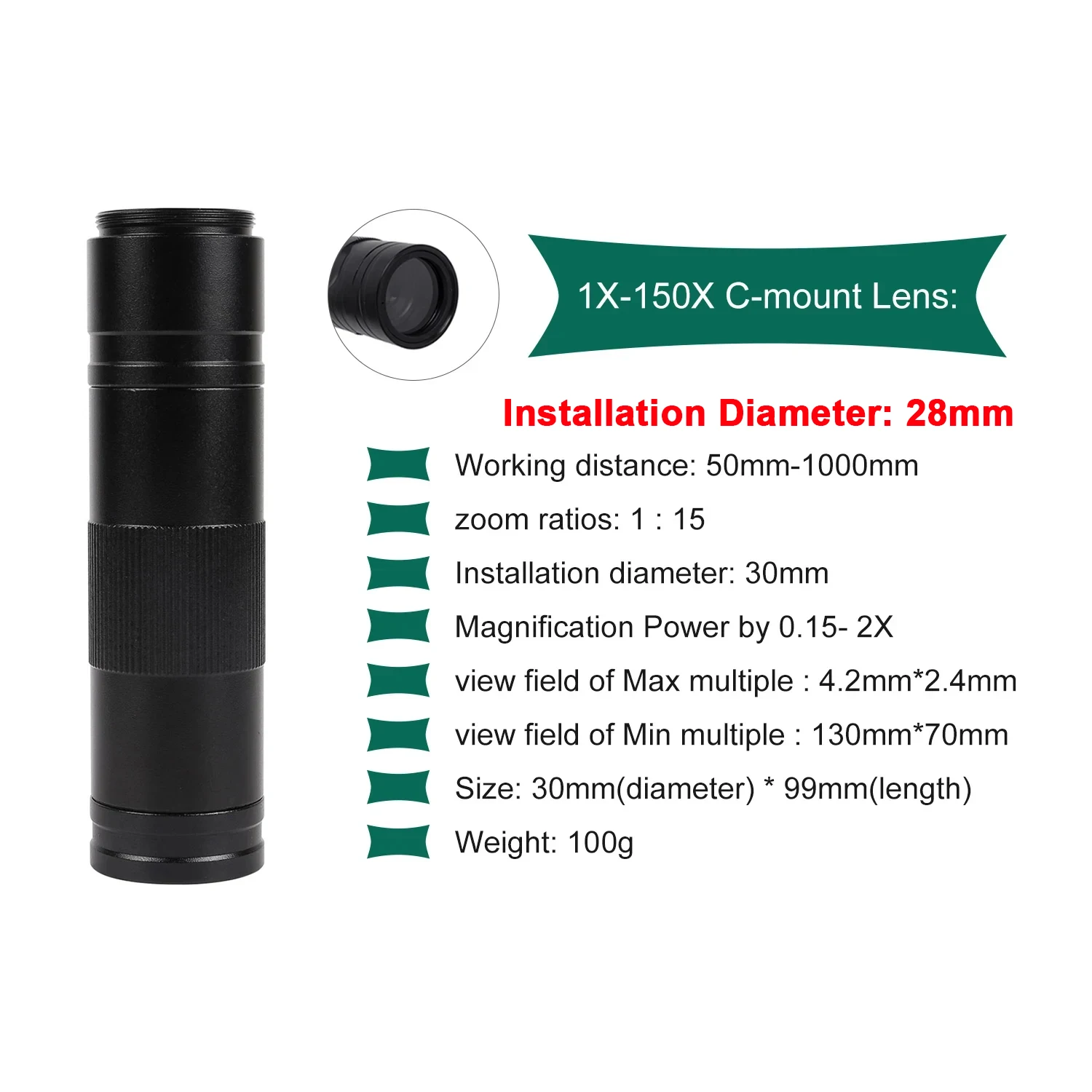

150X Lens Specifications:

Mounting diameter: 28mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification: 0.15-2X (approx. 1-150X on screen)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Dimensions: 99mm (length)
Weight: 100g
Compatible camera size: 25mm

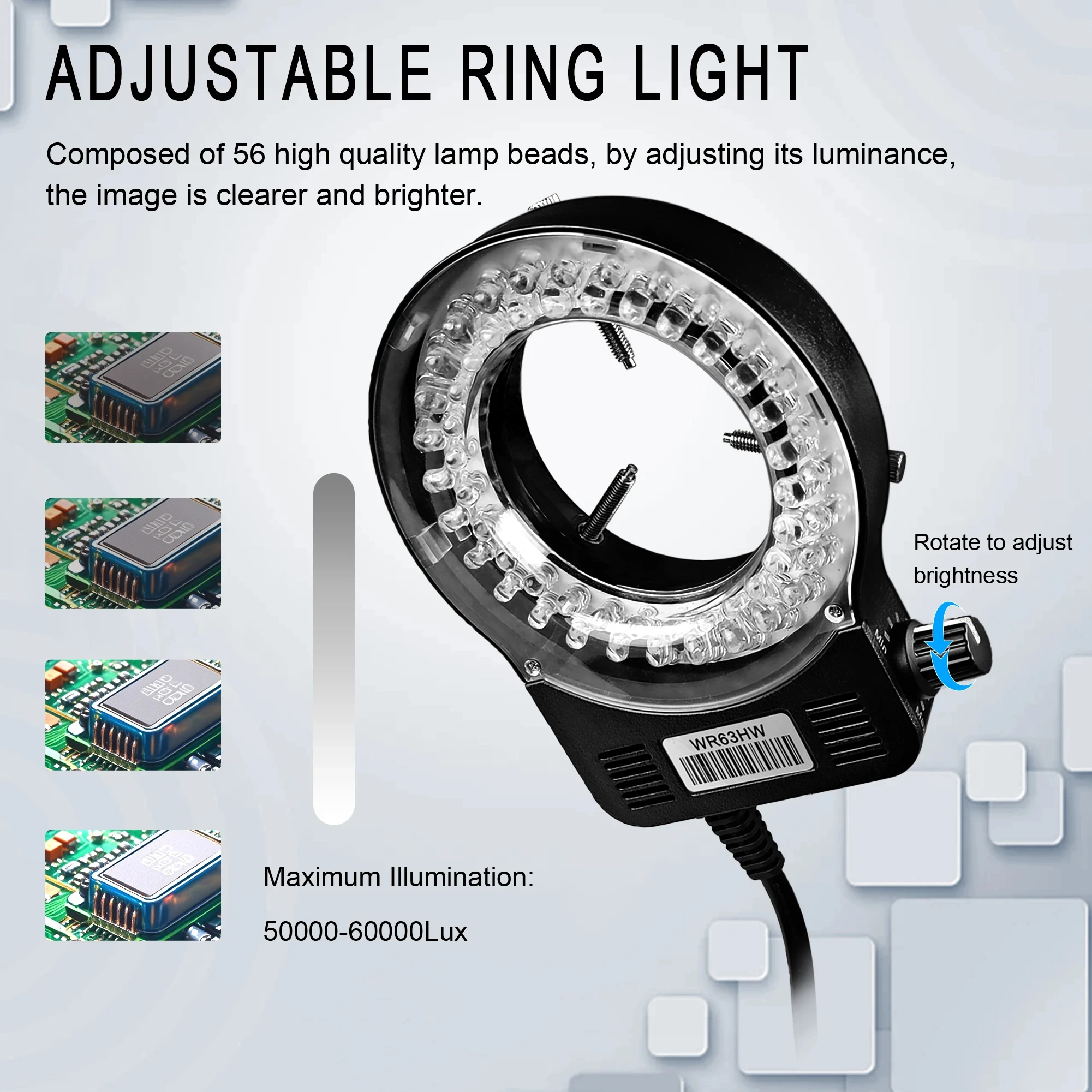

Ring Light Specifications:

Material: Plastic
Color: Black/White
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power Input: 110V-220V
Output Voltage: DC12V/1A
LED Quantity: 56
Lifespan: 100,000 hours
Color Temperature: 6500K
Effective Distance: 50-300mm
Inner Diameter: 63mm
Outer Diameter: 97mm
Light Color: White

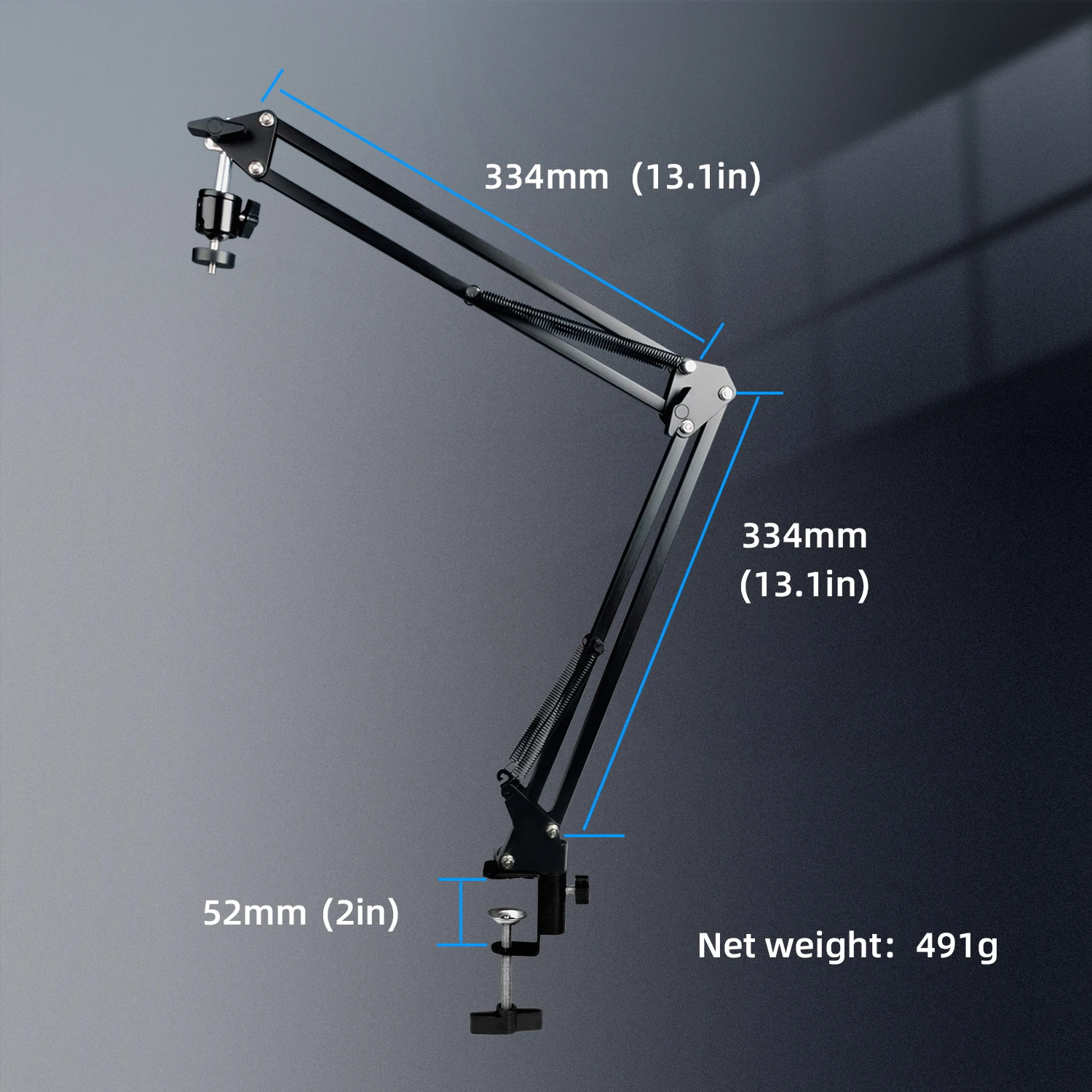

Folding Stand Specifications:

Material: Aluminum alloy
Dimensions: 34*32cm
Weight: 540g
Maximum bottom mounting size: 50mm
Functions: Microscope stand, microphone live streaming stand, mobile phone stand
