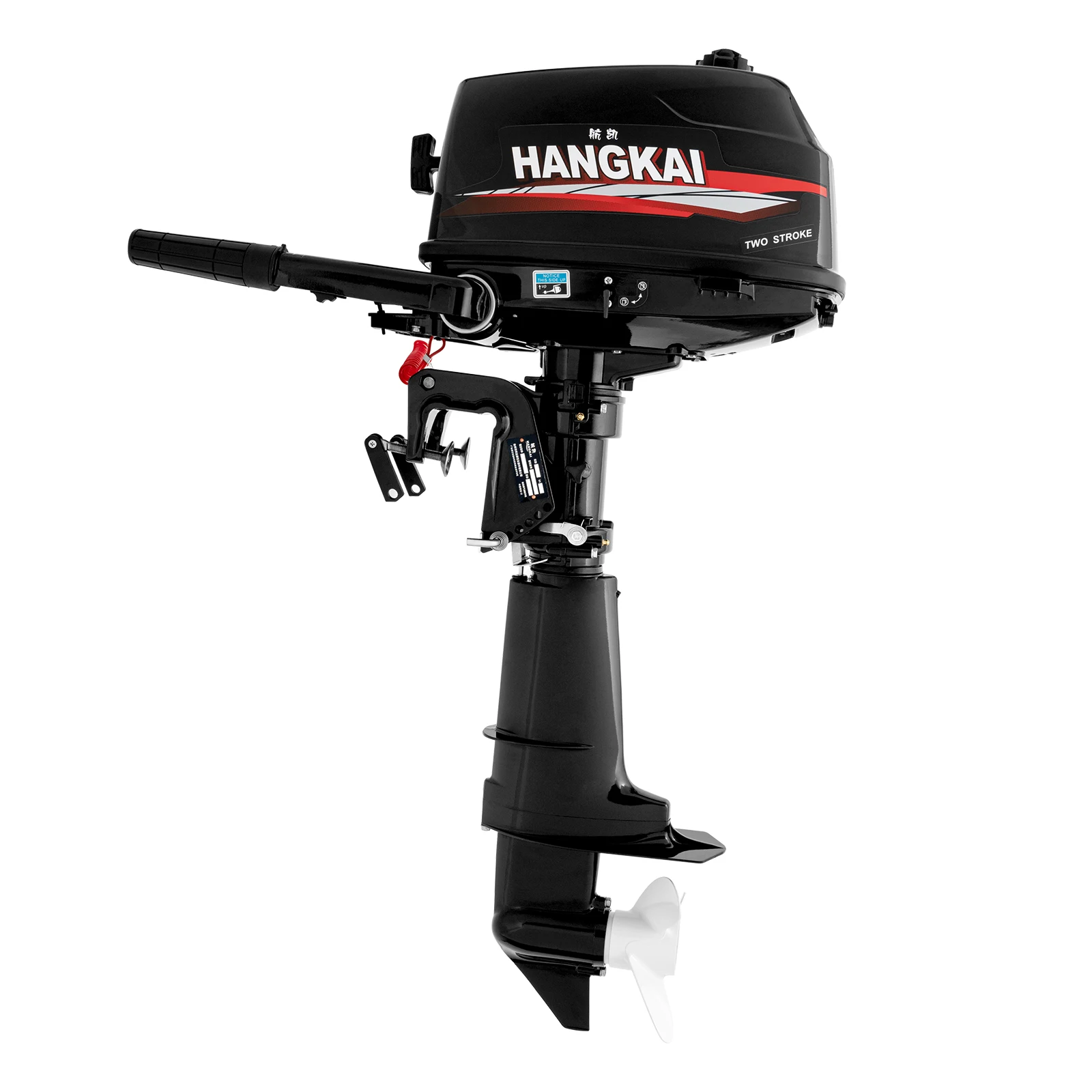

Portable 6HP 2-Stroke Outboard Motor with 360° Steering, Water-Cooled, for Small Boats & Inflatable Boats

Description

The ignition system of this outboard motor has a CDI ignition system. So you can start the motor quickly and safely, which saves your time and is very convenient to use. This outboard adopts an international standard air intake system and compression ratio, which can effectively improve combustion efficiency and thus reduce fuel consumption. It also has a 360-degree steering function that allows you to reverse the boat without shifting gears. It is suitable for a variety of small watercraft, such as fishing boats, dinghies, and inflatable boats.

Application

The outboard motor is suitable for a variety of small watercraft, such as fishing boats, dinghies, and inflatable boats.

Key Features

Easy to Drive: The main rod is made of aluminum, and its lightweight will not increase the entire weight of your boat and the difficulty of driving.

CDI Ignition System: This outboard motor features a CDI ignition system. You can start the motor quickly and safely. It saves your time and is convenient to use.

Energy-saving and Money-saving: This outboard adopts an international standard air intake system and compression ratio, which can effectively improve combustion efficiency and thus reduce fuel consumption. It is energy-saving and money-saving.

High Efficiency: The outboard motor with a superior engine water cooling system can overcome huge water resistance, increase driving speed and improve its efficiency.

360-Degree Steering Function: This outboard has a 360-degree steering function that allows you to reverse the boat at ease without shifting gears.

Tilt Function: This item has a tilt or lift function, and can be used for shallow water operation for your convenience.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Specifications

Model: Two Stroke 6HP

Engine Position: Outboard

Displacement: 102CC

Cylinder:1

Max. Output: 4.4kw

Full Throttle Operating Range (rpm): 4500-5500

Idling Speed: 1000±100r/min

Gear Positions: F-N-R

Ignition System: CDI

Starting System: Manual Start

Trim and Tilt System: Manual Tilt

Control System: Tiller Control

Cooling Method: Water-cooling

Recommended Outboard Engine Oil: 2-Stroke Outboard Engine Oil

Recommended Gear Oil: Professional Gear Oil

Gear Oil Volume: 195ml(6.6 fl.oz.)(Cut off by Pressing the Button on the Carburetor)

Thrust: 300-750kg/661-1653lbs, Speed: 20-10 km/h ( Depending on the Environment, Water, Hull Load) The heavier the Load, the Slower the Speed.

Spark Plug: 25.0Nm(18.4 ft-lb) (2.55 kgf-m)

Engine Oil Discharge Bolt: 18.0Nm(13.3 ft-lb) (1.84 kgf-m)

Gear Ratio: 2.08 (27:13)

Mixed Rating: Fuel : Oil (50:1)

Standard Fuel Tank Capacity: 12L Within 2.5L

Bore×Stroke: 5.5*4.3cm/2.17*1.69"

Dimensions: 49*32*106cm/19.29*12.6*41.73"

Package Size: 112*62*38.5cm/44.09*24.41*15.16"

Net Weight: 20.74kg/ 45.72lbs

Gross Weight: 25.9kg/57.1lbs

Package Included

1x Outboard Motor

1x Funnel

1x Fuel Oil Mixing Bottle

1x Water Pump Impeller

1x Split Pin

1x Flameout Roop

1x Start Roop

1x Installation Tool Kit

1x User Manual

All Accessories for Assembly
