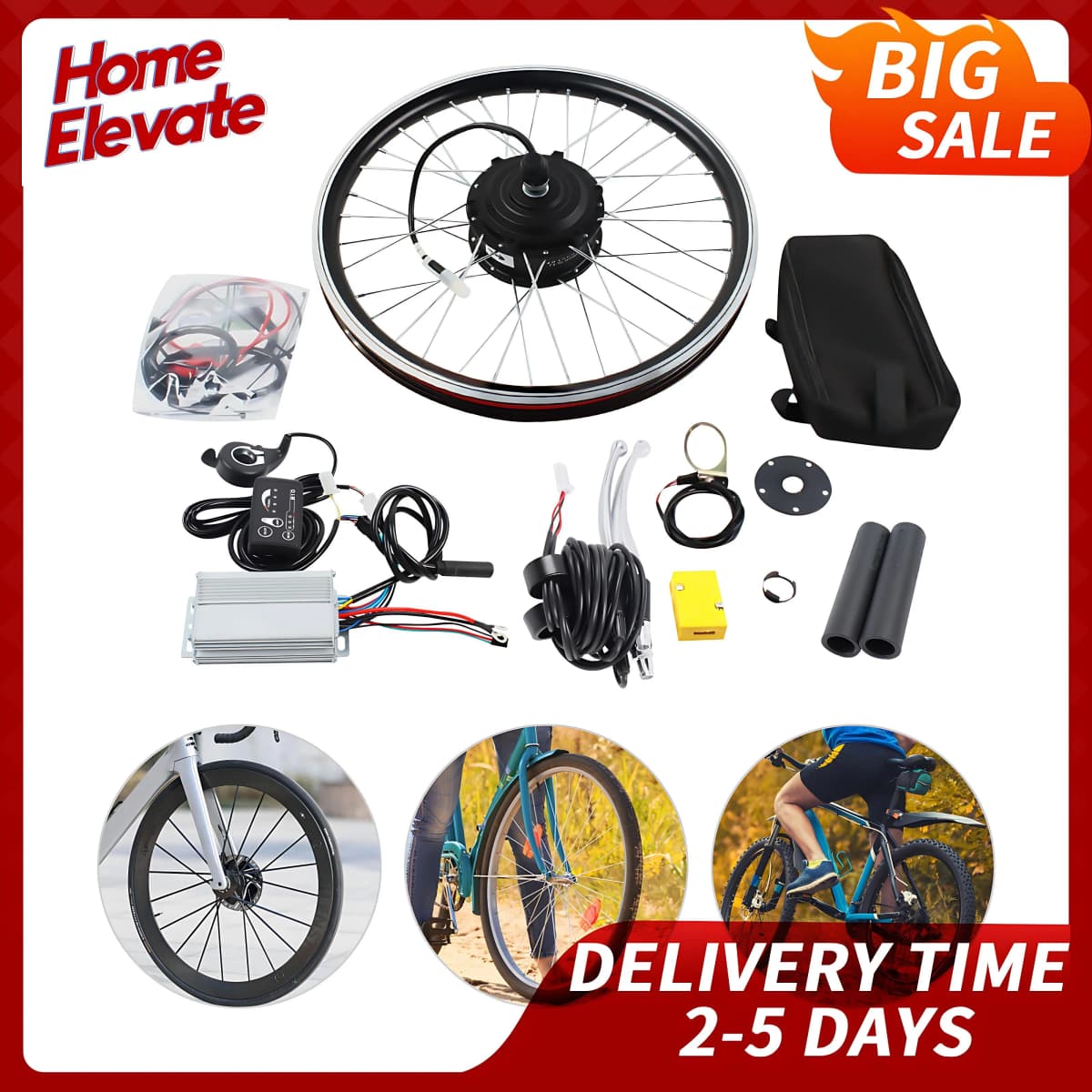

36V 250W Electric Bike Conversion Kit 20" Front Wheel Brushless Hub Motor with LED Display Controller for 20x1.75-2.125" Tire

Application
It is suitable for a 20-inch bike. It can be mounted as a power unit on the front wheel of the types of two-wheeled, mountain, beach, and off-road bikes. It is suitable for cyclists who like challenges, DIY modification of beach, and off-road bikes.

Specification
Materials: Aluminum, Iron, Copper, Magnetic Steel
Process: Baking Paint
Color: Silver, Black
Style: Modern
Assembly Required: Yes
Installation Posituon:
Applicable Wheel Size: 20 Inches
Motor Type: Brushless Toothless Motor
Hand Brake Type: Disc Brake/V-Type Brake
Voltage: 36 V
Power: 250W
Empty Speed: 43km/26.72mile/h
Load Speed: 35-38km/21.75-23.61mile/h
Gear Adjustment: 3 Gears
Assist: 5 Magnetic Point Assist Sensor, Pedal Assist Sensor
Brake Lever: Power Cut-off Brake Lever
Throttle: Thumb Throttle
Display: SW-810 LED Display
Wiring Mode: Waterproof Wire for Outgoing Motor, Common Wiring for Other
Efficiency: ≥82%
Climbing Angle: 12°
Rated Speed: 440PRM
Rated Torque: 40N.m
Front Fork Open Size: About 100mm/ 3.94 in
Load-Bearing Capacity: ≤140kg/308.64 lb
Brake Line Length: 1.8m/5.9ft
Motor Diameter: 14.25cm/5.61 in
Motor Width: 10 cm/3.94 in
Package Size: 51*50*24cm/20.08*19.7*9.45 in
Gross Weight: 6.05 kg/13.34 lbs
Net Weight: 5.75 kg/12.68 lbs

Package Included
1 * Motor Front Wheel
1* Controller
1 * Power-off Brake Lever
1* LED Display
1* Thumb Throttle
1* Power Sensor
1 * Controller Bag
1* English Manual
1*7 Speed Flywheel
Other Accessories for Assembly

Notes
1.Please note that this product is only suitable for two-wheeled bicycles, not for three-wheeled or multi-wheeled bicycles.
2.This package does not include batteries, chargers, or tires. Please bring your own DC36V lead-acid or lithium battery, appropriate charger, and 20-inch tires.
3.Please note that the size of the amperage determines the storage capacity of the battery, which in turn determines how long the battery will last. The battery (not included) interface must match the interface of our controller.
4.Please note that while connecting the controller to the wires, please make sure that you connect the right colors to the controller. Otherwise, the controller may be broken.
5.Please note that the power and voltage of the battery (not included) you buy should be consistent with our set. When installing, make sure that the wiring is not reversed.Otherwise, it may damage the product.
6.This product is not waterproof, please do not ride in the rain.
7.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
