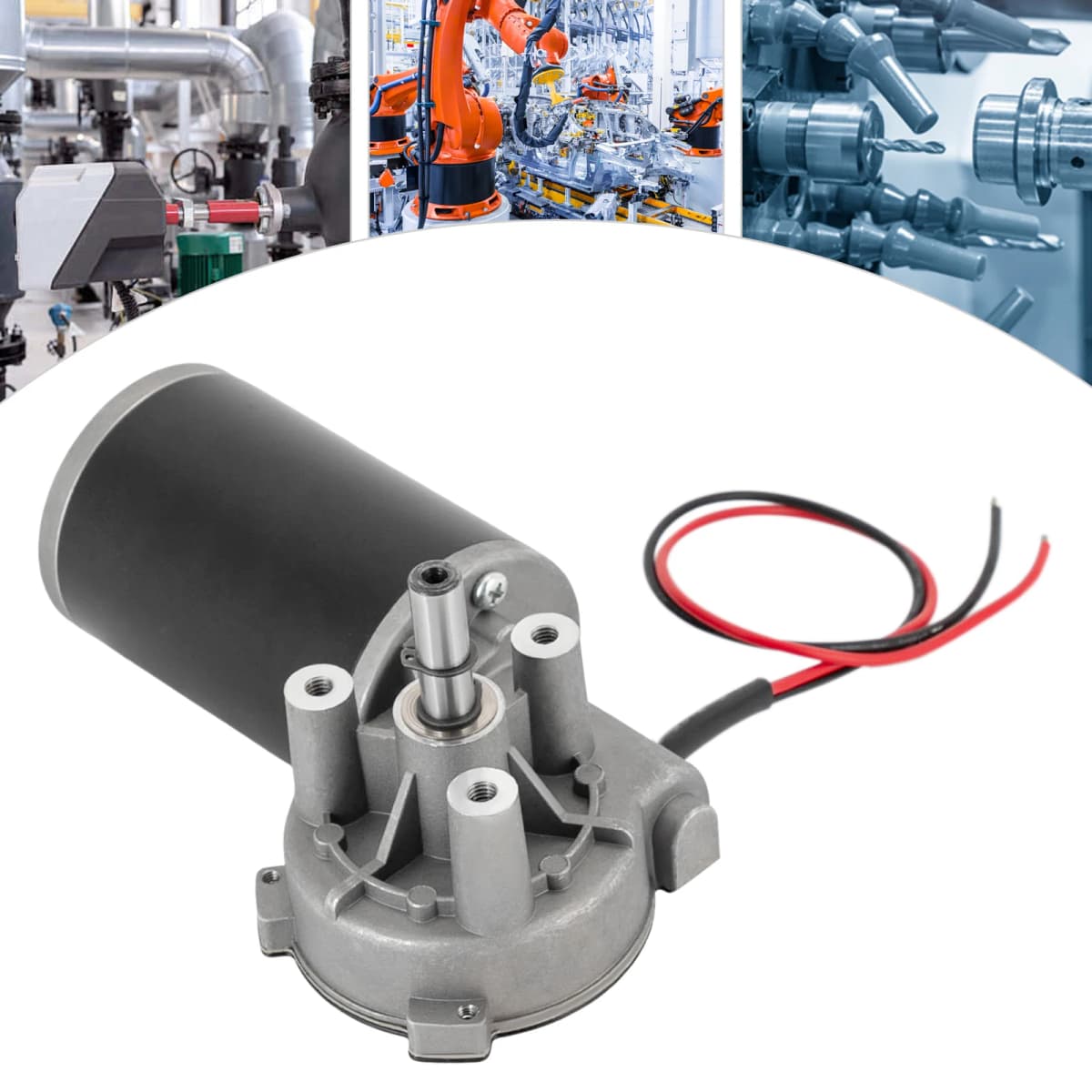

80W DC Gear Motor Electric Reductor Motor Left Position Reduction Variable Speed 70kg Load 220RPM

Description

DC reduction motor is an electric drive device that integrates efficient power output and precise deceleration function. Our motor can reduce the original speed of the motor while significantly increasing torque, making it suitable for situations that require smooth operation and high torque output. Its compact structural design facilitates installation, while its high efficiency and low noise characteristics further enhance the overall performance and user experience of the device.

Key Features

Sturdy and Durable: The product is made of high-quality aluminum, copper, and iron, using baking paint technology, with high strength, wear resistance, and long service life.

Powerful Function: With 80W power and 220RPM speed, this product provides excellent work performance. The motor adopts PWM speed control technology, featuring high conversion efficiency and a wide speed control range, improving your work efficiency.

Stable Performance: Adopting the original semiconductor chip, brass turbine worm gears, and double ball bearings, the product has been tested by voltage, current, function, and many other tests before leaving the factory to ensure the stability and reliability of the circuit.

Easy & Safe to Use: By adjusting the positive and negative direction of the wiring, you can easily change the direction of rotation of the motor, increasing flexibility in use. The motor has a power failure self-locking function to enhance the safety of your use.

Outstanding Load Bearing: The gear can withstand up to 154.32 lbs,  providing you with more powerful operating performance to use with confidence.

Easy to Carry & Store: Thanks to its compact size (2.48" in diameter) and lightweight (2.87 lbs), you can take it to the workplace and use it without taking up much space.

Easy to Clean: The smooth surface and simple structure allow you to easily remove dust from the surface of the product with a towel.

Customer Service: We aim to provide high-quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.

Details

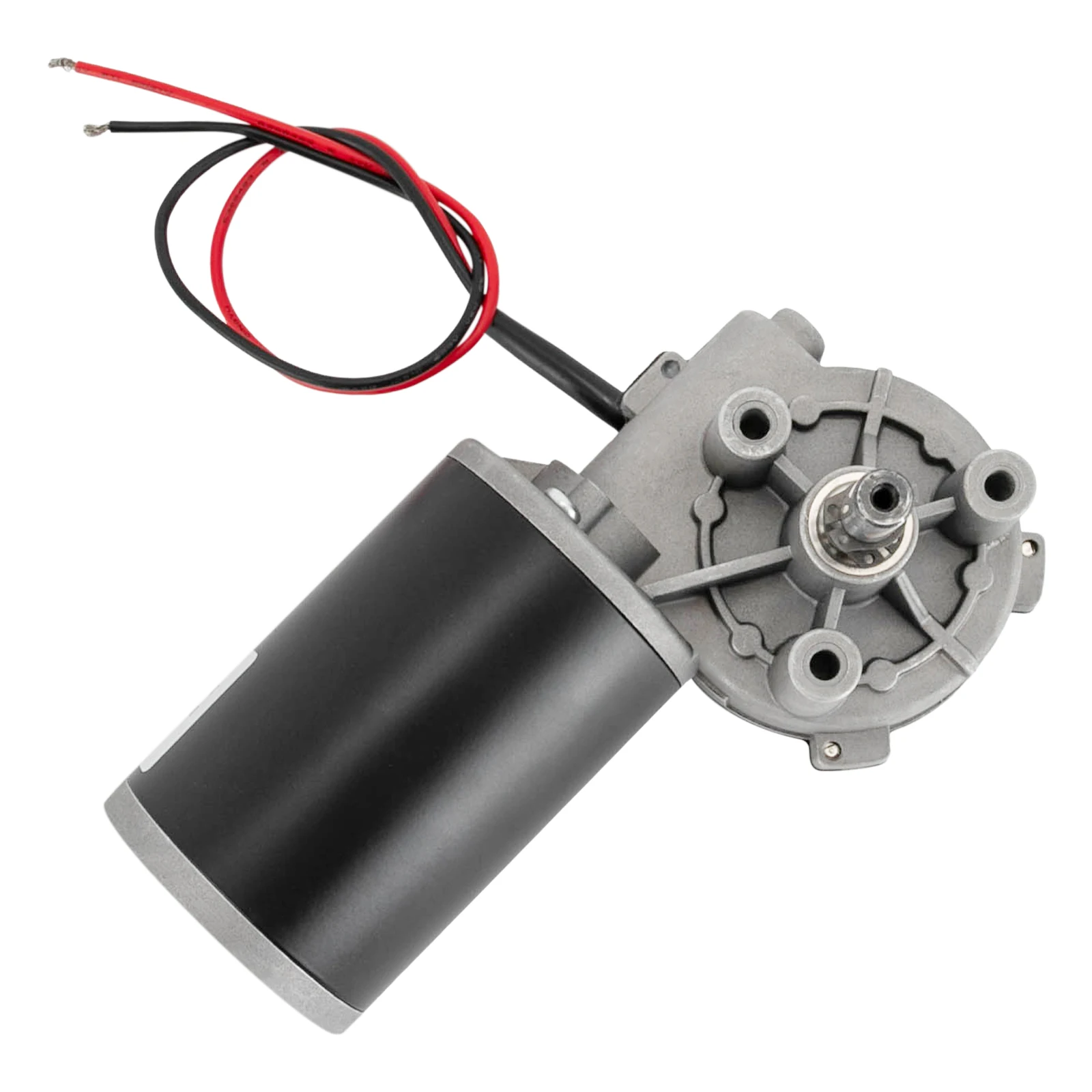

Power Cable:It has black and red distinct colors for easy connection without confusion.

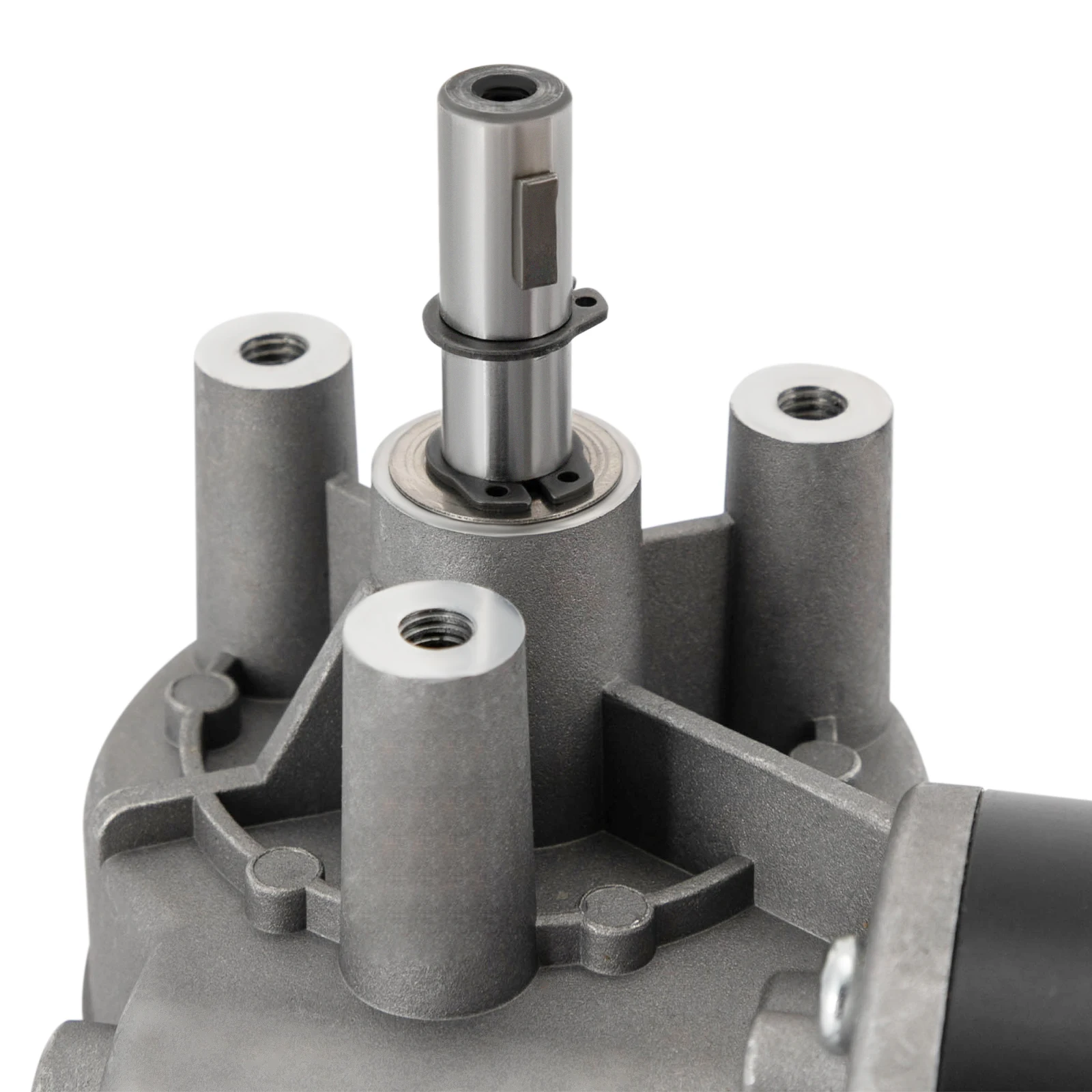

Smooth Edge: The round and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

Application

It can be widely used in packaging, printing, textile, dyeing, chemical, medical, pharmaceutical, and other engineering work, as well as advertising, office, instrumentation, stage lighting, transmission, automatic warehouse, parking door security, automatic doors and windows, conveyor, vending machine, feeder, calender, extruder, peeling machine, blender, cargo lifts, food machinery, and other equipment.

Specifications

Style: Modern

Shape: Column

Color: Black, Silver

Material: Aluminum, Copper, Iron

Surface Treatment: Baking Paint

Power Source: Wire Connecting

Motor Position: Left

Voltage: 24VDC

Power: 80W

Speed: 220 RPM

Load Capacity: 70kg/ 154.32 lbs

Motor Diameter: 63mm/2.48 in

Working Temperature Range: -30~60°C/-22~140°F
Overall Product Height: 16.86cm/ 6.64 in
Package Size: 22*12*10cm/ 8.66*4.72*3.94 in
Gross Weight: 1.5kg/ 3.31lbs
Net Weight: 1.3kg/ 2.87lbs

Package Included
1* DC Reduction Motor

Notes
1.Please note the compatibility of the product you purchased.
2.Please note that it is strictly prohibited to block the motor, long-time blocking makes it easy to burn the motor.
3.The motor will heat up after working for a while. This is a normal phenomenon and does not affect the life of the motor and normal use. Please do not touch the motor shell with your hands when the motor is working to avoid burning.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
