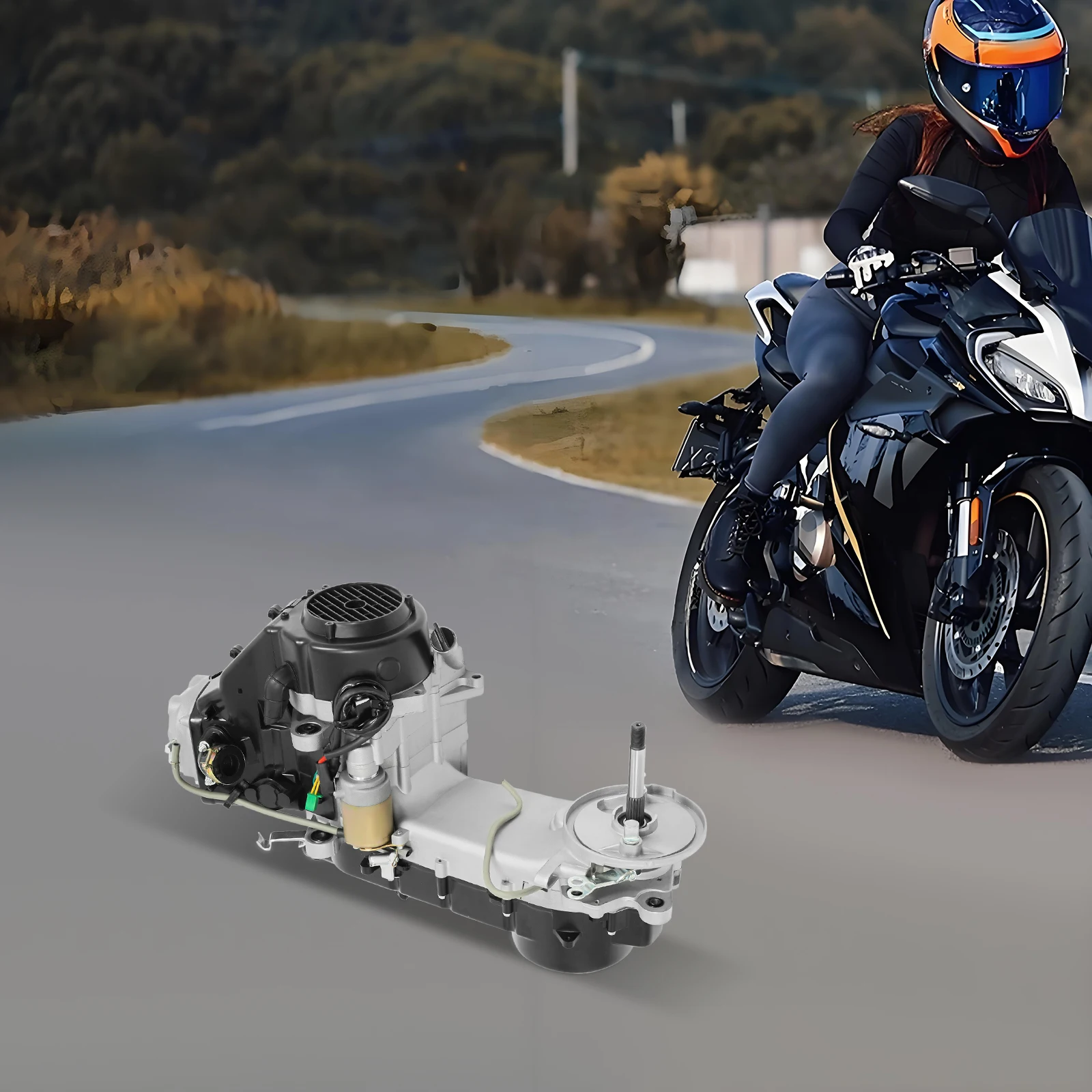

4-stroke 150CC CVT Engine Long Case Scooter Motor Kit 1400W Electric/Kick Start Engine for GY6 125CC-150CC Drive Vehicles

4-stroke 150CC CVT Engine Long Case Scooter Motor Kit 1400W Electric/Kick Start Engine for GY6 125CC-150CC Drive Vehicles

Specifications

Applicable Model: 150cc GY6 11" Long Case Engine Size Scooters, GY6 125cc Long Case Engine Vehicles, Most China Made 150cc Two-wheel Drive Vehicles, and Other Two-wheel Drive Vehicles,

Condition: New

Color: Black+Silver

Material: Copper, Aluminum, Plastic, Aluminum Alloy

Engine Type: GY6 Single Cylinder 4-Stroke

Engine Oil Type: SF15W-40 (Not Included)

Carburetor Model: PD24J

Carburetor Type: Horizontal Vacuum Carburetor

Spark Plug Model: A7TC

Ignition Type: CFW

Ignition: CDI

Cooling Type: Air Cooled

Clutch Type: Shoe-type Automatic Centrifugal Dry Clutch

Transmission: CVT

Speed: 8 Gears

Start Method: Electric/Kick

Belt: 835 Belt

Way of Use: Direct Replacement

Displacement: 150cc

Max. Power: 6kw/7500 RPM

Rated Power: 5.6kw/7000 RPM

Max. Torque: 7.6N·m/6500 RPM

Min. Stable Idle Speed: 1700±150 RPM

Piston Diameter: 57.4mm/2.26in

Piston Stroke: 57.8mm/2.28in

Bore & Stroke: 57.4*57.8mm/2.26*2.28in

Compression Ratio: 9.2:1

Fuel No.: ≥87#
Lubrication Capacity: 1.2L/0.26gal
Cylinder Working Volume: 149.6ml/0.03Gal
Gross Weight: 28.5kg/62.83lbs
Net Weight: 27.08kg/59.7lbs
Package Size: 72*45*31.5cm/28.35*17.72*12.4in

Features
Build to Last: The product is built from premium aluminum, aluminum alloy, iron, and plastic, exhibiting sturdy construction, high strength, and rust resistance, and is hard to wear and deform, ensuring a long applicable life.

Good Compatibility: This product is compatible with the 150cc GY6 11" long case engine size scooters, GY6 125cc long case engine two-wheel drive vehicles, most China-made 150cc two-wheel drive vehicles, and other two-wheel drive vehicles, so it can be compatible with the adapted models.

Excellent Heat Dissipation: The product is designed with powerful air-cooling, which is able to cool down the temperature quickly. In addition, the outside of the cylinder is covered with a metal heat sink, which allows the heat generated by the engine to be released directly into the air when the cooling fan blows air through the heat sink.

Highlights
Brand New Condition
High Flow Oil Pump
Direct Fit Replacement
High Stability
Aluminum Alloy Cylinder Head & Body
CVT Transmission
Crankshaft Connecting Rod with Large Bearings
With Lubricating Oil Strainer

Notes
1.Please confirm that the product fits your car before purchasing.
2.We strongly recommend professional installation.
3. Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.

Fits(As a Reference)
For 150cc GY6 11" Long Case Engine Size Scooters, GY6 125cc Long Case Engine Vehicles, Most China Made 150cc Two-wheel Drive Vehicles, and Other Two-wheel Drive Vehicles,

Package Included
1* Scooter Engine Motor
1* Carburetor
1* CDI
1* Starter Solenoid
1* Coil
1* Kick Start Lever
