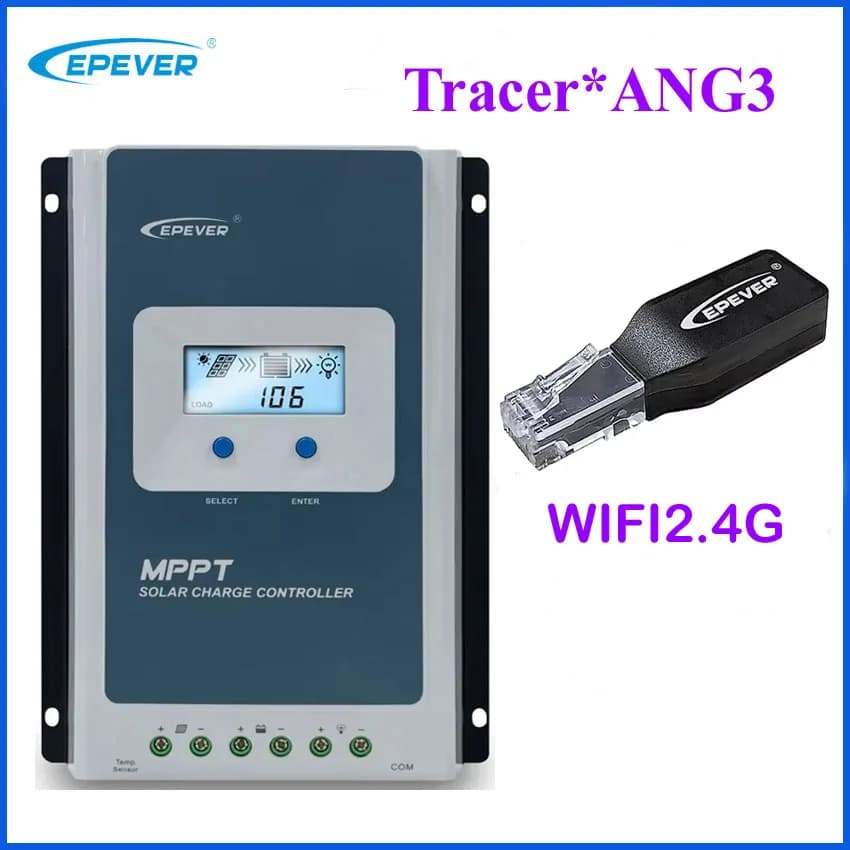

EPEVER New Generation TracerANG3 10A 20A 30A 40A with WIFI2.4G Mobile App 12V24V MPPT Solar Charger Regulator No Battery Working

EPEVER New TracerANG3 10A 20A 30A 40A 12V24V MPPT Solar Charge Controller Suppor No Battery Working Mode

Overview:

The Tracer-AN G3 MPPT Solar Controller is the next step in solar management technology, providing substantial improvements over previous models. As a cutting-edge solar power controller, it ensures maximum energy harvest through its MPPT technology, adapting to various solar conditions with precision. The controller supports a wide range of battery types and offers enhanced safety features, including overcharge protection and automatic system voltage recognition, which enhances its versatility in different solar power setups.

New to the G3 series are its expanded communication features, allowing for seamless integration with monitoring devices and software, ensuring you have comprehensive control and visibility over your solar energy system. With its robust construction and user-friendly interface, the Tracer-AN G3 empowers both novice users and experienced professionals to optimize their solar installations efficiently. Whether you're aiming to increase the sustainability of your home or optimize a large-scale solar operation, the Tracer-AN G3 brings high efficiency and smart technology directly to your fingertips.

Product Highlights:

Constant voltage output function

Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%

Maximum DC/DC conversion efficiency of 98%

Supports multi battery types including lithium batteries

Battery temperature compensation; Stable self-activation function

LCD screen for battery parameter setting

Comprehensive electronic protection

Self-consumption lower than 10mA

Multiple load work modes

Parameter setting via the PC software, APP, or remote meter

RS485 communication interface with optional 4G or Wi-Fi modules

Steps: Connect solar system in this order: 1.battery--> 2. load--> 3.PV array, and disconnect solar system in the reverse order >3. >2. >1.

Battery must be connected first! Never connect soalr panel array to controller Without/Before connect battery.

DO NOTconnect any inverter/wind/Alternator or Charger into the charge controller directly ! Youshouldconnect with battery and add fuse.

If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)

How to program for Lithium Battery?

Via Remote Meter (Accessories needed: MT52)

Via PC Software (Accessories needed RS485 cable :CC-USB-RS485-150U )

Via Phone APP (Android or IOS), (Accessories needed：WIFI or BLE)
