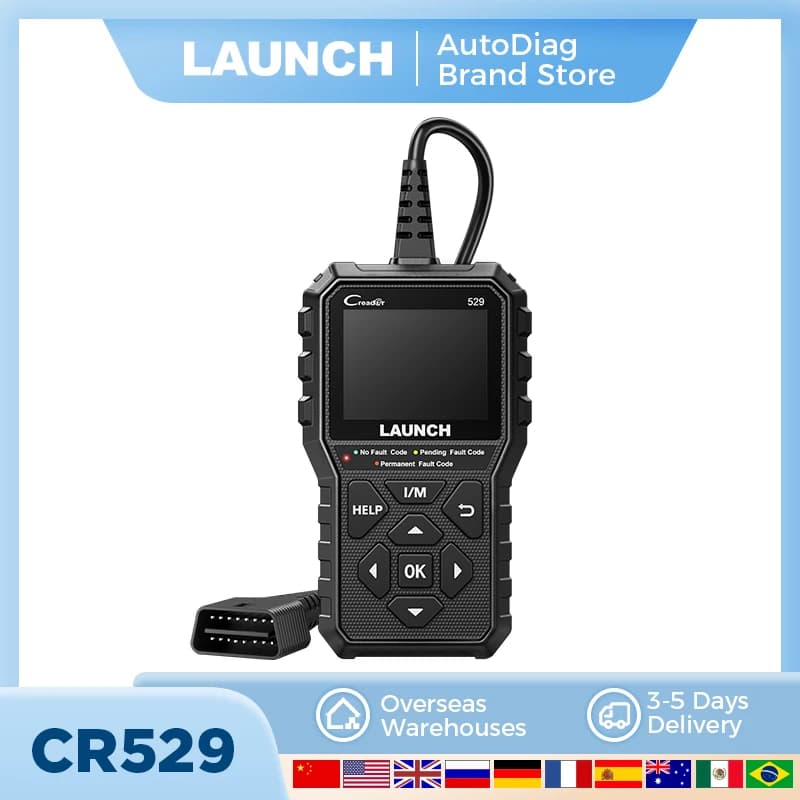

LAUNCH Creader 529 OBD2 Scanner Code Reader CR529 Automotive Diagnostic Tool OBDII Code Reader Fault Code Read OBD2 Scan Tool

Must Read Before Buying

✅LAUNCH CR529 is an OBD2 scanner for Engine check,  it can NOT test ABS, SRS(airbag), or any other systems, and it can NOT do any other special functions.

✅To avoid the incompatibility between the car model and the product, please consult customer service before placing an order about whether your car model is compatible.

LAUNCH CReader 529 DIY OBDII Scanner for Engine

——A newly released advanced OBDⅡ DIY Code Reader for Engine Check.

[Functions of LAUNCH CR529]

1. Read & Clear engine error codes
Turn off 'Engine Check' MIL.

2. Live Data / Freeze Frame
When emission-related faults occur, certain vehicle conditions are recorded, so it can better locate the abnormal position and find the cause of the abnormality when it is repaired.

3.I/M Readiness
It indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

4. VIN Code Reading Automatically
It can read the VIN code from the car ECU automatically.

5.Hard(memory) Codes Reading

6. Pending Codes Reading

7. Oxygen Sensor Test
CR529 allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's onboard computer.

8. On-Board Monitor
It allows you to view the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle's control module memory.

9. Vehicle Information
The option displays the vehicle identification number (VIN), the calibration identification, the calibration verification number (CVN), and other information about the test vehicle.

[See How Your Car React]

Want to watch what the sensors are reporting to ensure everything is reading inputs? Or want to make sure if any adjustments are needed to get the car running in normal condition? Now LAUNCH CR529’s Live Data screen comes in handy:
​
​Ignition Time: This tells you the speed at which the spark is igniting the fuel mixture.
​Vehicle Speed: This shows you the exact speed at which the vehicle is running (km/h and m/h).
​Engine RPM: Displays the number of revolutions made around the axis within a minute.
​Absolute Throttle Position: Helps you understand the air intake of the engine.
​Mass Air Flow: It’s a sensor that reads the mass flow rate of the air entering the combustion engine.
​And more.
​Even better, the data is presented in graphic format, which makes all the above much easier to monitor and evaluate.

[CR529 offers DTC Lookup Library]

You don't need to search the definition of the error code online.
​
​Go to DTC Lookup menu, and input the error code, it will show the definitions.

[Other Features]

1. Record & Replay
Record all issues while doing the diagnostic work, and you can later on check the records related wherever, whenever

2. HELP Shortcut Key
Comfortably help you to resolve most basic issues in a second with tips.

3. LED Indicator
Quick and easy way to identify your vehicle’s status visually, via its Green, Yellow, and Red LED lights.

4. Print Via Computer
You can connect it to your computer and print the diagnostic report.

5. Update Via Computer
You can connect to your computer and update it via the Internet.
​
​The upgrade process is straightforward and can be easily done via a USB cable.
- Visit LAUNCH’s website. Download and install the update tool (Windows XP, 7, 8, & 10).
​- Connect the scanner to the computer via the USB cable.
​- Register the scanner using its serial number.
​- Fill in the required information and click [upgrade].
​
​*Note: please make sure the internet connection is strong and stable while updating.

6. 3-Foot-Long Diagnostic Cable
You can drive your car, while the scanner reads data on the seat next to you.

[Car Coverage]

CR529 supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN (Controller Area Network). This scanner can work on most domestic, European, and Asian OBDII-compliant models manufactured from 1996 and newer.

[Supported Languages]

English, French, Spanish, German, Portuguese, Russian, Japanese.

[The Difference between CR529 and CR319]

[Update and Warranty]

Lifetime Free Update.
​Five-year Warranty.

[Warm Tips]

1. Plug & play, no need to upgrade it before use;
​2. Must be 16 PIN OBD II port
​3. Can only be updated via a PC (compatible with Windows XP, 7, 8 & 10, but not the iOS system).

[Product Display]
