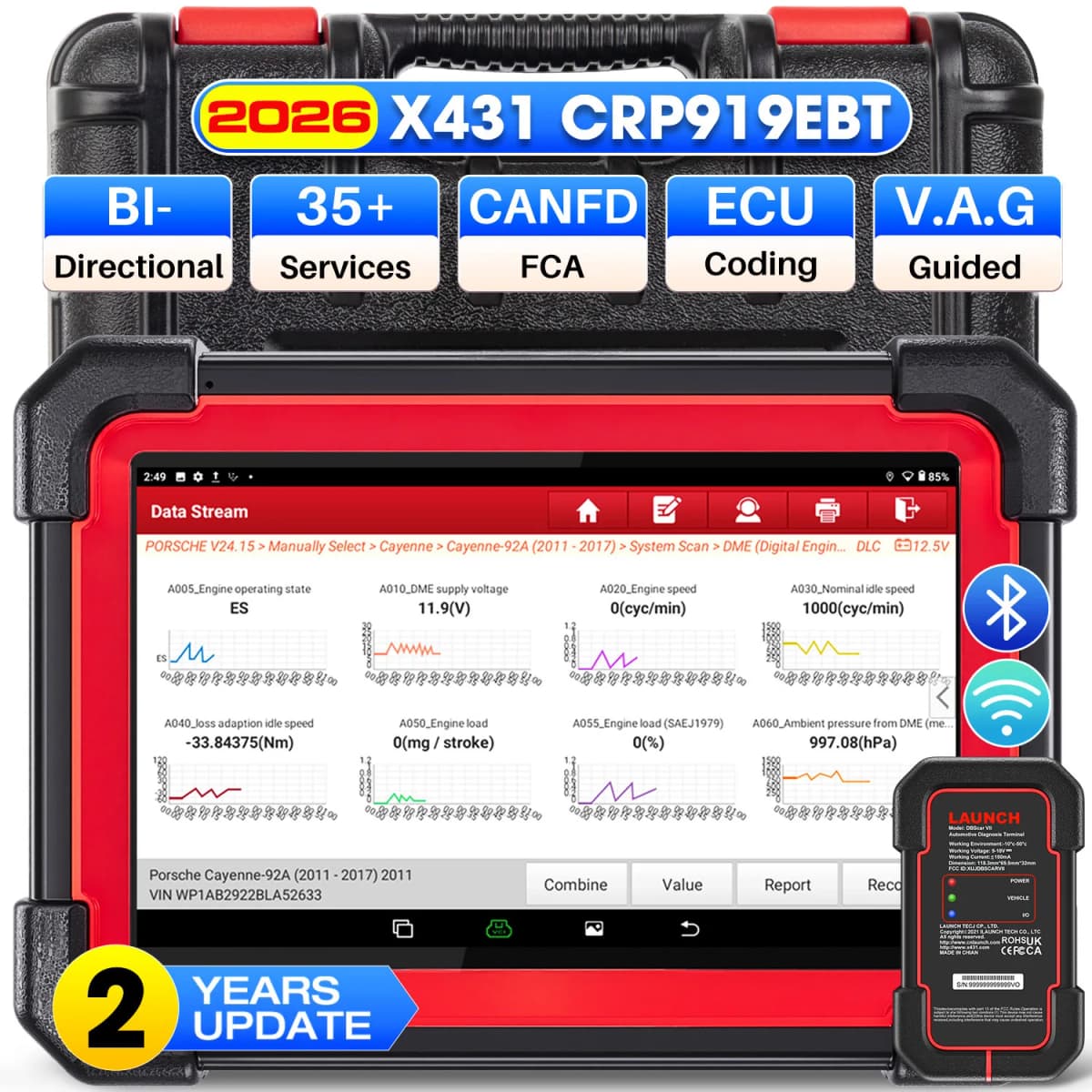

LAUNCH X431 CRP919E BT OBD2 Scanner Full System Car Diagnostic Tools ECU Coding 31+ Service FCA CANFD DOIP Bidirectional Scan

LAUNCH X431 Creader Code CRP919E BT Full System Diagnostic Tools + A/F TPMS DPF IMMO 31 Reset +CANFD For GM after 2020 / DIOP + ECU Coding + Active Test + 2 Year Free Update 9 Languages OBD2 Scanner Code Reader

Two Version of LAUNCH CRP919E BT in Sale now :

Type 1 is Global version , it works in Global , NO IP limited !

Type 2 is EU version, it works in all europe countries only . it is with EU IP limited , can not work out of Europe , pls note !
The EU Version is special for Europe Customers , the price is cheaper than Global version , pls choose this version if you are from Europe .

The packing list of them are same , do not worry !

Pls choose the correct version to order !!!

LAUNCH CRP919E BT supports Languages :

English, Italian, Simplified Chinese, Traditional Chinese, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Serbian, Finnish, Swedish, Czech

Solve language barriers, switch for free..

LAUNCH CRP919E BT supports CANFD and DIOP protocol , it supports For GM after 2020 and other New cars ! Also Supports FCA AutoAuth !!!

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

For Onix 2020-2024, For Tracker 2020-2024, For Suburban 2021-2024, For Tahoe 2021-2024, For Montana 2024, For Silverado 2024, For Electra E5 2024, For Escalade 2021-2024, For Escalade ESV 2021-2024, For Sierra 2024, For Yukon 2021-202.2/2024, For Yukon XL 2021-202.2/2024, and For Chrysler Models including For Grand For Cherokee(WL) 2021-20203, For Grand For Wagoneer 2022-2024

DOIP :

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH X431 PRO3S+ V5.0 SmartLink C HD save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with For BMW (F&G chassis), For Volvo models (2018 later), For Land Rover & For Jaguar models (2017 later).

( Note : this is car list that CANFD and DIOP supports , X431 PRO3S+ SmartLink C HD also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check ）

FCA/SGW AutoAuth :

FCA SGW Access: For the 2018+ FCA vehicles (For Fiat, For Chrysler, For Jeep, For Alfa Romeo, etc.) equipped with the Security Gateway module, the LAUNCH X431 PRO3 ACE car scanner can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.

For Renault SGW Access: Serve 2019+ For Renault SGW vehicles include for CLIO V, for CAPTUR II, for CAPTUR II CN, for MEGANE IV ph2, for ESPACE V ph2, for TALISMAN/SM6 ph2, for NEW ZOE, for ARKANA CN, for XM3/NEW ARKANA, for NEW SANDERO/LOGAN, etc. Unloking security gateway to perform service function, active test, coding, programming, etc.

Note : This Function need have the account in FCA Website first .

LAUNCH CRP919E BT Supports ECU online Coding Function

* Online Coding: this LAUNCH scan tool can directly access the online vehicle repair data to do high-level repairs.

* Offline Coding: read the code from the original module, and then write the code for the new module,for example ,write a VIN to new ECU.

* Component Matching:Matching,relearn ,Cali-b-ration, or initia-lization adaptive data for certain components after repair or replacements,such as: suspension cali-bration ,seat matching ,sunroof initia-lization,gearbox matching,injector cali-bration, transmission adap-tion.Delete Adapt-ation Data, Tank Cali-b-ration,Height sensor system cali-bration,PSM Sensor Cali-b-ration ,etc.

* Re-trofit/Modi-fication: for example, re-trofit battery with different type, Upgrading the headlights, taillights, and interior lighting to LED lights,etc.

* Unlock the hidden features:for example,disable auto start-stop, disable daytime running light, disable safety belt chiming ,delete transport mode,delete transmission adaptive value.setting speed limits,etc.

LAUNCH CRP919E BT Supports Active Test & Bi-directional control

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

LAUNCH CRP919E BT Supports Full System Diagnose Function

The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.

It supports the detailed Function :

--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition
--ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.
--Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.

For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

LAUNCH CRP919E BT supports 31+ Kinds of Special Reset Service Functions

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D ）

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

4> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

5> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

6> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

7> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

12> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

13> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

14> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

15> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

16> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

17> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

18> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

19> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

20> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Ac System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

22> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

23> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

24> Language Change

This function is used to change system language of vehicle center console.

25> AF Reset

This function is applied to set or learn airlfuel rate parameters.

26> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

27> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

28> Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

31> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

The other Function of LAUNCH CRP919E BT :

1. Auto VIN Scan
2. 4-in-1 Live Data Stream
3. DTC Look up
4. Remote Diagnose Function
5. Diagnostic Report
6. Diagnostic Report print & Share
7. Online Repair Sources
8. MALL Function : can subscribe the new vehicles directly .

LAUNCH CRP919E BT Supports Car list :

For ASTONMARTIN , For AUDI , For AUSTHOLDEN , AUTOSEARCH , For BAIC( For BAIC Motor/ For BAIC Senova/ For BAIC Weiwang/ For BAIC EV) , For BENZ( For Mercedes/ For Maybach) , For BMW( For BMW/ For BMW Brilliance/ For Rolls-Royce/ For Mini) , For BXFIAT , For BXGM , For CHANGAN , For CHANGCHENG , For CHANGHE( Changhe/Changhe For Suzuki) , For CHRYSLER( For Chrysler/ For Dodge/ For Jeep) , For CITROEN( For Citroen/Dongfeng For Citroen) , For DAEWOO , For DAIHATSU , DEMO , EOBD2 , For FERRARI , For FIAT( For Fiat/ For Abarth/ For Alfa Romeo/ For Lancia/Nanjing For Fiat) , For FUTIAN , For GAZ , For GM( For GM/ For Chevrolet/ For Cadillac/ For Buick) , For HMAZDA , For HONDA( For Honda/ For Acura/ Dongfeng For Honda/Guangqi For Honda) , For HUACHEN , For HYUNDAI , For INDIANMAHINDRA , For INDIANMARUTI , For INDIANTATA , For IVECO , For JACTY( For JAC/ For JAC Ruifeng) , For JIAO , For JOYLONG , For KIA , For KOREAHYUNDAI , For KOREAKIA , For LANDROVER( For Jaguar / For Land Rover) , For LUXGEN , For MASERATI , For MAZDA( For Mazda/China For Mazda) , For MITSUBISHI( For Mitsubishi/GAC For Mitsubishi) , For MYHRTY , For NISSAN( For Nissan/ For Infiniti/ For Nissan GTR/Dongfeng For Nissan/ For Vucina) , For OPEL , For PERODUA , For PEUGEOT( For Peugeot/Dongfeng For Peugeot) , For PORSCHE , For PROTON , For QIRUI_TY , For RENAULT( For Renault/ For Dacia ) , For ROVER , For JINLONG , For SAAB , For SAICMG , For JPISUZU , For SAICROEWE , For SEAT , For SGM(China For GM/China For Chevrolet/China For Cadillac/China For Buick) , For SKODA , For SMART , For SPRINTER , For SSANGYONG , For SUBARU , For SUZUKI , For TOYOTA( For Toyota/ For Lexus/China For Toyota) , For USAFORD( For Ford/ For Lincoln/China For Ford) , For VAZ , For VOLVO( For Volvo/ For Lynk & Co) , For VW( For Volkswagen/ For Bentley/ For Bugatti/ For Lamborghini) , For ZHONGTAI , For ZHONGXING

LAUNCH CRP919E BT Technical Specifications

Operating system: Android 10.0
Processor: 2.0GHz, quad core
Memory: 4GB
Storage: 64GB
Display screen: 7-inch, LCD screen
Resolution: 1024 * 600
Camera: 8 megapixel rear mounted
Wi Fi: 2.4GHz, 5GHz
Battery: 6300mAh, 7.6V

LAUNCH CRP919E BT Packing List

1 * CRP919E Android Tablet
1 * VCI bluetooth connector
1 * Diagnostic Cable
1 * OBDII 16pin connector
1 * Data USB Cable
1 * DC Power Charging Cable ( with US , UK and EU charger )
1 * User Manual
1 * Quick Start Guid
1 * Plactis package
