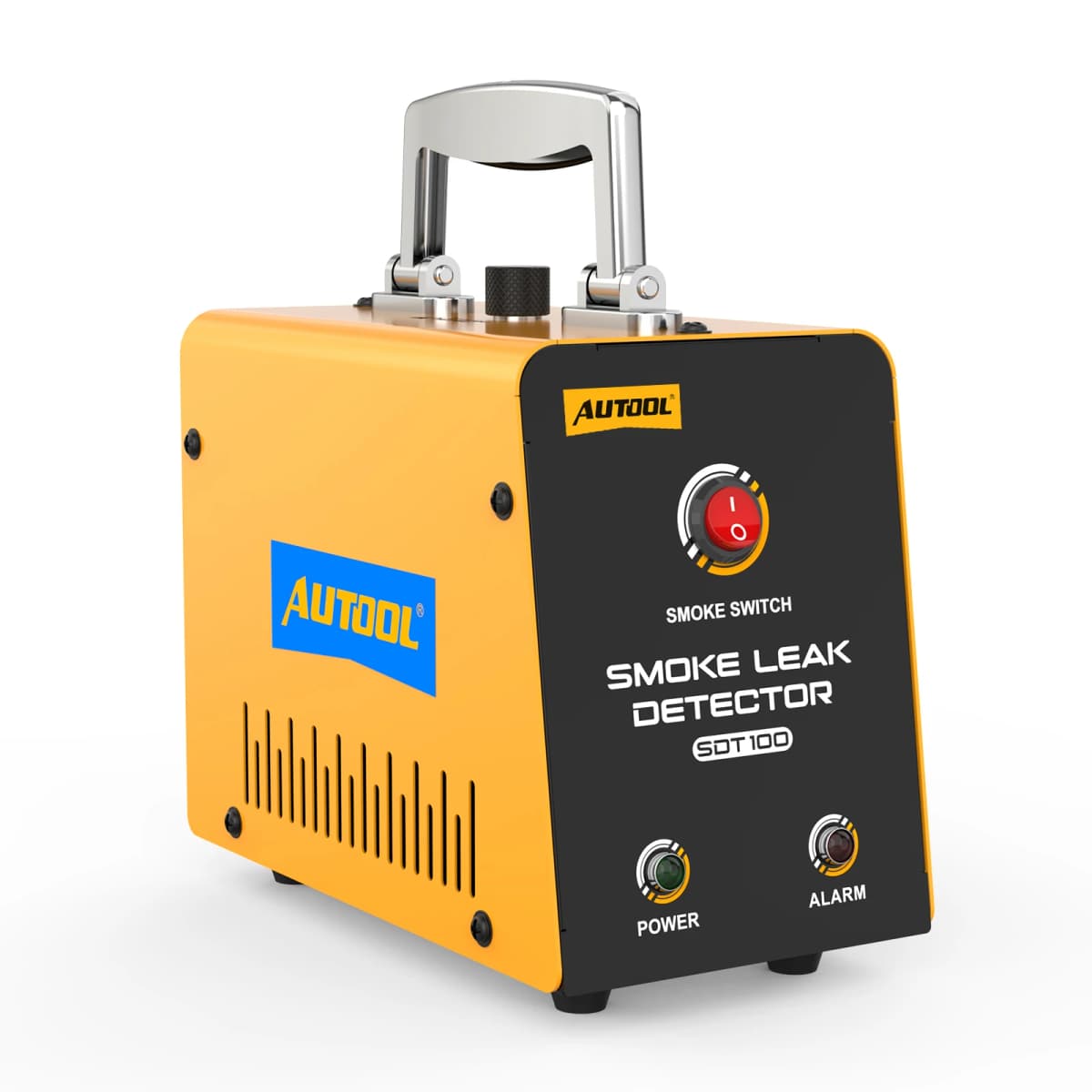

AUTOOL SDT100 12V Smoke Machine Leak Detector Oil Fuel Pipe Vacuum Leakage Detector Auto EVAP System Auto Diagnostic Tools

The SDT100 Smoke Leak Detector is specifically designed for detecting leaks in vehicle air and fuel systems. It is suitable for all cars, motorcycles, snowmobiles, off-road vehicles, dune buggies, light trucks, and speedboats. When used in conjunction with a diagnostic tool, it can quickly diagnose engine faults in vehicles.

How to do leakage test ?

1. Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.

4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

AUTOOL SDT100 Car Smoke Leak Detector Features :

[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

[BUILT-IN AIR PUMP] No need to connect other gas supply equipment,

convenient to complete the test work at any location.

[Overheat & Anti-frost protection] The detector has smart protector. If it exceeds working limit,for e.g over 75℃. It will power off automatically.

[3 years warranty] For damage caused by non-human factors, we promise to resend parts for free within 3 years.

SDT100 SPECIFICATIONS

Working theory : Low oxygen combustion

Power supply : DC 12V battery

Air pressure output : Built-in air pump

Rated Output pressure : 0.1Mpa~O.15Mpa

Rated power : 48W

Product weight : 1.6kg

Gross weight : 2.7kg

Packing List :

1pc * AUTOOL SDT100 Car Smoke Leak Detector Main Unit

1pc * EVAP Special Connector

1pc * Standard Cone Adapter

1pc * Airbag Accessory

1pc * Power Cord Clamp

1pc * Valve Core Wrench

1pc * Test Oil Refill Bottle(oil not included)

1pc * Smoke Hose
