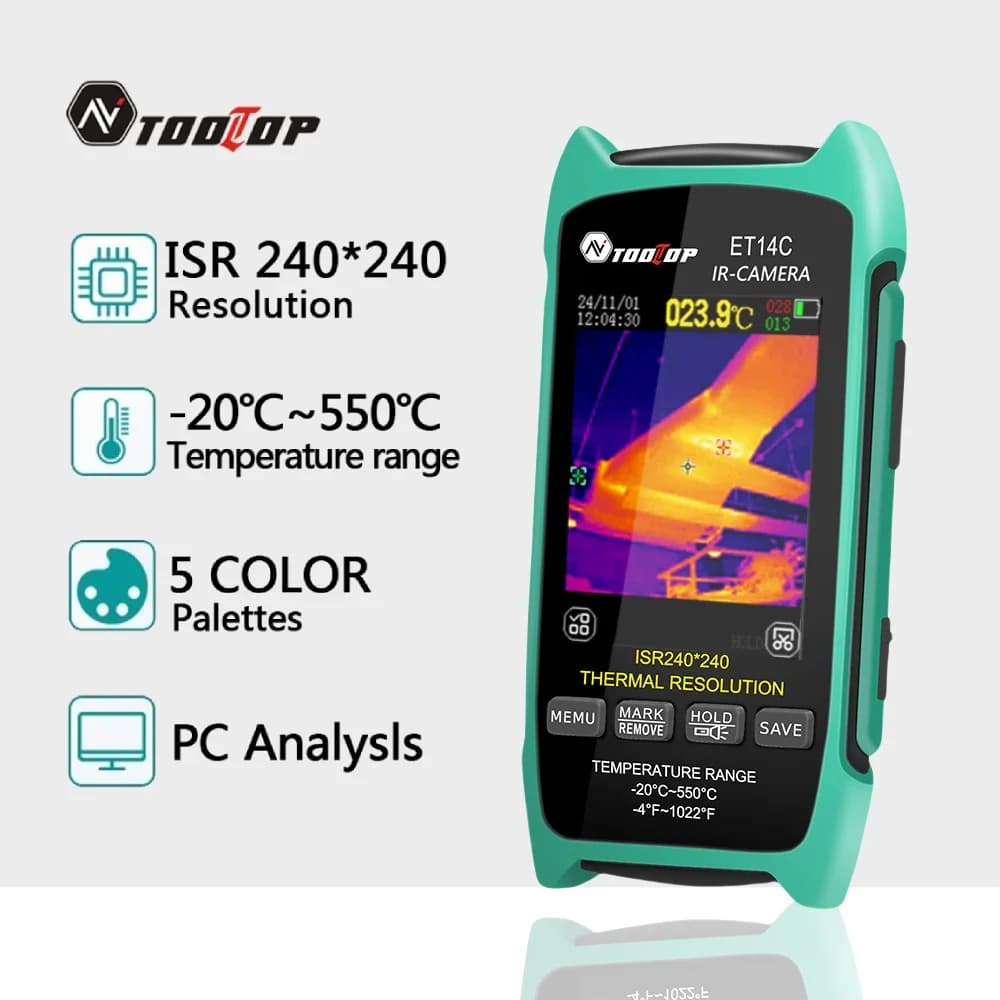

TOOLTOP ET14C Portable Thermal Imaging Camera 2.8-inch ISR 240*240 Infrared PCB Thermal Imager with Macro Lens HVAC Repair

Note:

1.In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-2seconds. This is a normal phenomenon, so please don't worry.

2.PC SoftwareDownload: http://doctuchuang.eirbio.cn/FR02E_EN/IR-DMM.zip

3.For PCB circuit board inspection, it is recommended to buy the version which containing a macro lens

Features:

ISR240x240 Thermal Camera

Upgraded imaging pixels of 240x240 and 25hz image capture frequency, providing clearer and more detailed thermal images. With optional macro lens.

PC Software Analysis

allows for the transfer and analysis of thermal images under USB Mode

Detachable Lithium Battery

Up to 8 hours of continuous use. The universal 18650 battery design allows for easy replacement, eliminating concerns about battery aging.

Widely Applications

for Home appliance overhaul, circuit board inspection, power supply and electronic equipment maintenance. It's an ideal choice for electronics and maintenance technicians

Compact and Portable

with a 2.8-inch large screen and innovative stand design, this device offers convenience and versatility for all your viewing needs.

Specifications:

Thermal imaging parameters
Image capture frequency: 25Hz
Thermal imaging pixels: ISR 240x240
Field of View : 50.0°(H) × 50°(V) /72.1°(D)
Emissivity: 0.1 – 0.99 adjustable,(0.95 by default)
Temperature range: -20℃ ~ +550℃
Gain mode: Auto Gain
Color palette: Iron Red, Rainbow, Fusion, White Heat, Red Heat
Accuracy: ±2℃or±2%
Measurement resolution: 0.1℃/0.1℉
Photos Taking and viewing: support
Macro Lens: Optional, no need to install, move the macro lens left and right during use.
Macro lens working distance: about 2.5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)

Other parameters of the equipment
Display type: 2.8-inch, 240 * 320 resolution
USB interface: Type-C USB
Storage capacity: 7.5MB
lmage storage format: BMP
Battery Type: Detachable 18650 Lithium-ion battery
Languages: Chinese,English,German
Storage temperature: -20～60℃（-4～140℉）
Operating temperature: 0～50℃（32～122℉）
Operating Humidity: ＜85%RH （ non-condensing ）
Size: 134 mm * 64mm * 28 mm
Weight: Host weight: 180g (including battery)
packaging weight: 380g

Package List:

1 x Thermal Camera
1 x USB Cable
1 x English Manual
1 x Storage Bag
1 x Macro Lens
