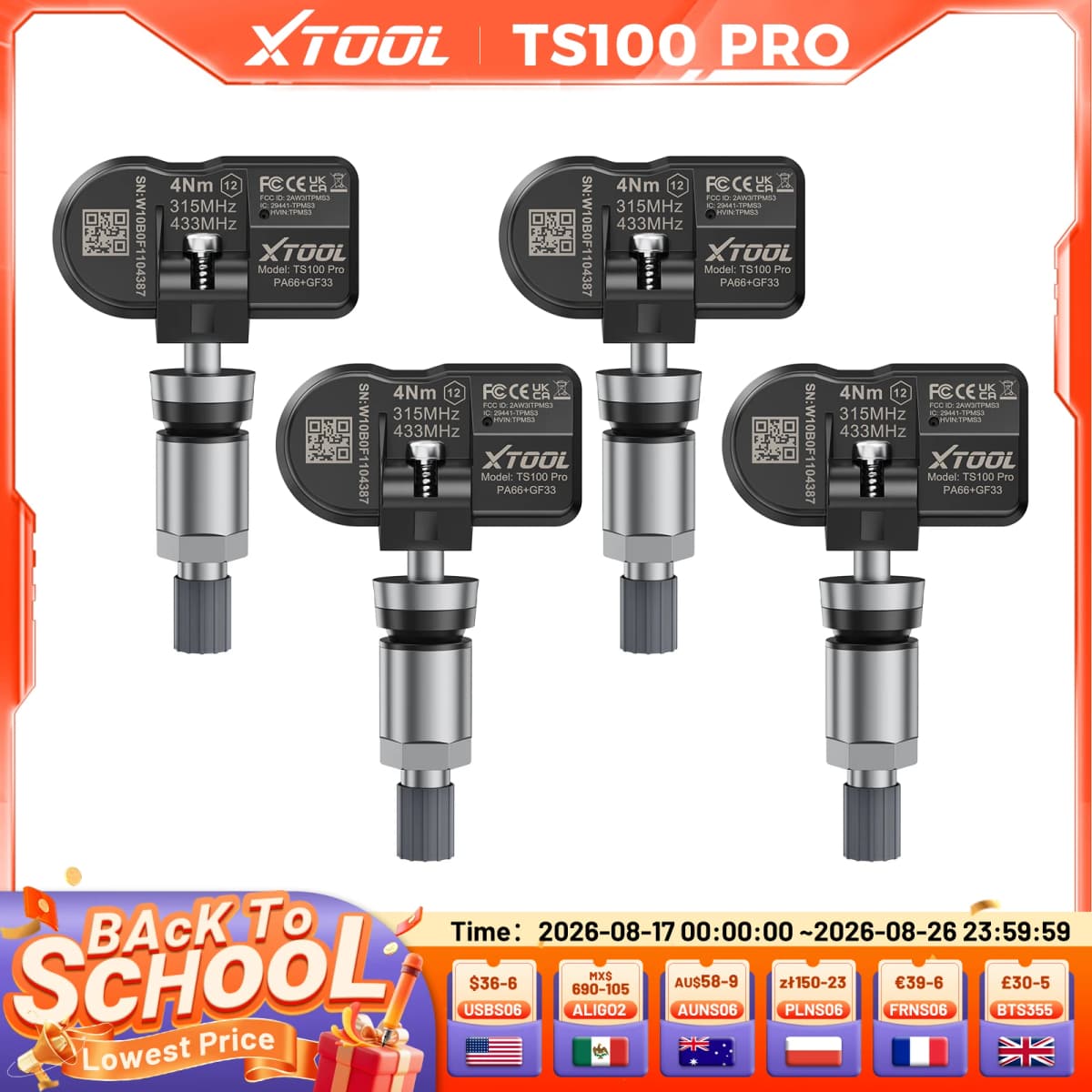

XTOOL TS100 PRO 4PCS Upgraded TPMS Sensor 315Mhz/433MHz Tire Pressure Monitoring Tester Programmed by XTOOL TP150/IP819TP

XTOOL STROE Tips:

1. Our devices are authorized by XTOOL and are guaranteed to be 100% brand new
​
​2. The initial language is English. If you need to use other languages, please send us the serial number (on the back of the device) so that we can authorize you.
​
​3. Function query website:
https://www.xtoolonline.com

​4. 2-5 days delivery to the United States, France, Germany, Poland or other EU countries.
​
​5. 24h service: If you encounter problems when using certain functions, please contact our customer service for help

XTOOL TS100 Tire Sensor

✅2-in-1 Sensor Feature:
A single sensor services nearly every TPMS-equipped vehicle, reducing repair costs and boosting installation efficiency — no relearn required. The MX-Sensor can be 100% cloned with the original sensor ID and installed in the same position.

✅98% Vehicle Coverage:
Offering the latest and most extensive coverage, the MX-Sensor supports 98% of OE sensors on the market and covers up to 90% of vehicles from North America, Europe, and Asia. It’s designed to fit almost all wheel types on the road.

✅Durability and Performance Features:
Weighing only 12 g, the TS100 tire pressure sensor offers a tire pressure monitoring range of 0 to 900 kpa and can operate in temperatures ranging from -40 °C to 125 °C. Its high-performance battery ensures a lifespan of up to 5 years

✅Easy To Use:
The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.

✅Solid & Durable:
Equipped with an automotive grade battery, a replaceable aluminum/rubber valve stem to withstand cold, hot and resistance corrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.

✅Warranty:
XTOOL guarantees each sensor to be free from material and manufacturing defects for 24 months or 24,000 miles. Each sensor is marked with a series number to ensure quality control from the factory to installation

NOTE: ONLY Programmed by XTOOL TPMS TOOL! Other Brands Tool Cannot Work

Tire Sensor Installation Guide

1.Loose the Tire:Take down valve cap and valve core, deflate the tire.
Use wind pressure shovel to strip tire rubber cover tire away from rim.
Attention：please let the cycle valve via 180°face to wind pressure shovel.

2. Dismount the Tire:Clamp the tire on tire changer, adjust cycle valve to relative to tire separated plug 1 o'clock location, insert tire tool and lift the tire bead on installation plug to remove tire bead.
Attention: In the whole removal process must abide by this beginning location

3.Remove TS100 tire pressure sensor Remove the valve cap, nut, washer from cycle valve rod, then remove TS100 tire pressure sensor module from rim.

4.Install TS100 tire pressure sensor and cycle valve：
Step1. Connect cycle valve and TS100 tire pressure sensor subject firmly.
Attention: Make sure the parts are connected firmly.
Step2. Remove the valve cap, nut and washer from cycle valve.
Step3. Valve rod across the valve opening, let TS100 tire pressure sensor
located in rim interior, assemble washer, nut on valve rod fist at last.
Step4. Use 4.0 N•m torque screw up nut, then assemble bonnet back on valve rod.

5.Install tire：
Put tire on the rim, make sure the valve is
facing the separation head at 180 ° angle
on the rim.
Attention: Should abide by change tire
machine manufacturer instruction to
install tire on rim.

Why choose XTOOL TS100 sensor?

1.Easy to install
2.Easy to Program with XTOOLTP15O/IP819TP
3.Most cost-effective
4.Turn off TPMS light
5.Program up to 8 sensors at the Same Time(for two cars)
6.Certified to Meet for SAE Standards
