Xhorse VVDI Key Tool Max Pro Multi-Language Remote Programmer Adds CAN FD, Voltage and Leakage Current Functions

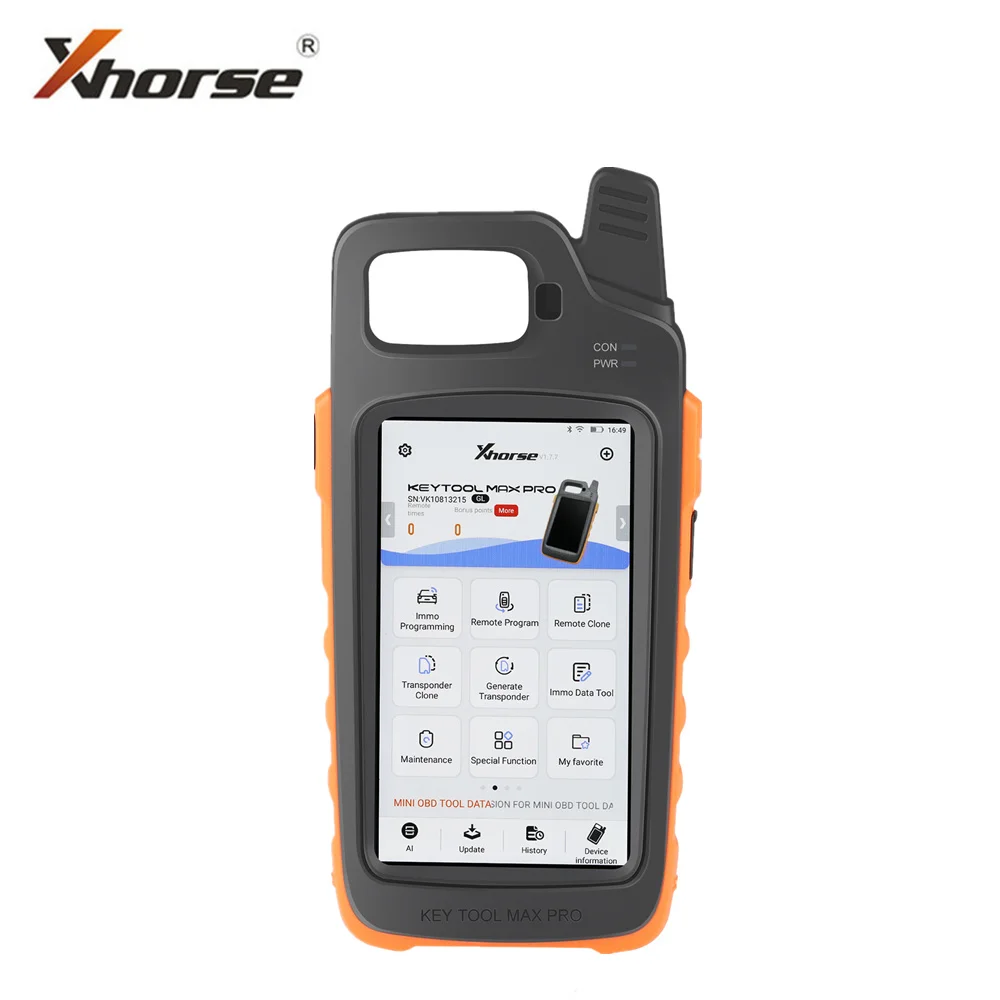

Xhorse VVDI Key Tool Max Pro  Remote Programmer
Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset.
VVDI Key Tool Max Pro Highlights:
1.Combines functions of Key Tool Max+Mini OBD Tool
The remote/transponder function is the same as the previous
Support Generate transponder and remote.etc
2.Add New for BMW CAS3 and for Toyota Models
For BMW CAS3 Key Programming (Comming soon)
Partial for Toyota Models Key Programming (Comming soon)
3.Language: English
(App language has no limitation. Free to switch now, database language is English)
4.Free to get ID48 96bit function.
How to get free ID48 96bit function? Please use VVDI Max Pro to generate new Xhorse remote key 10pcs, after collect points,2 hours later, server will open ID48 96bit function free.
5.Built-in CAN_FD Module,Comes with Integrated CAN FD for GM Vehicles
6.Supports forToyota H all keys lost with 8A AKL adapter
7.Control Xhorse Condor/Dolphin key cutting machines
8.Support partial forToyota 8A/4D Add Key /All Key Lost
*Currently not supported: 8A-A9 type all key lost, 4A/8A-AA type add/all key lost

Key Tool Max Pro Features:
Key Tool Max Pro designed with locksmiths in mind this device has all the staple featues of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable allowing programming directly through the Key Tool Max Pro rather than needing a separate programmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

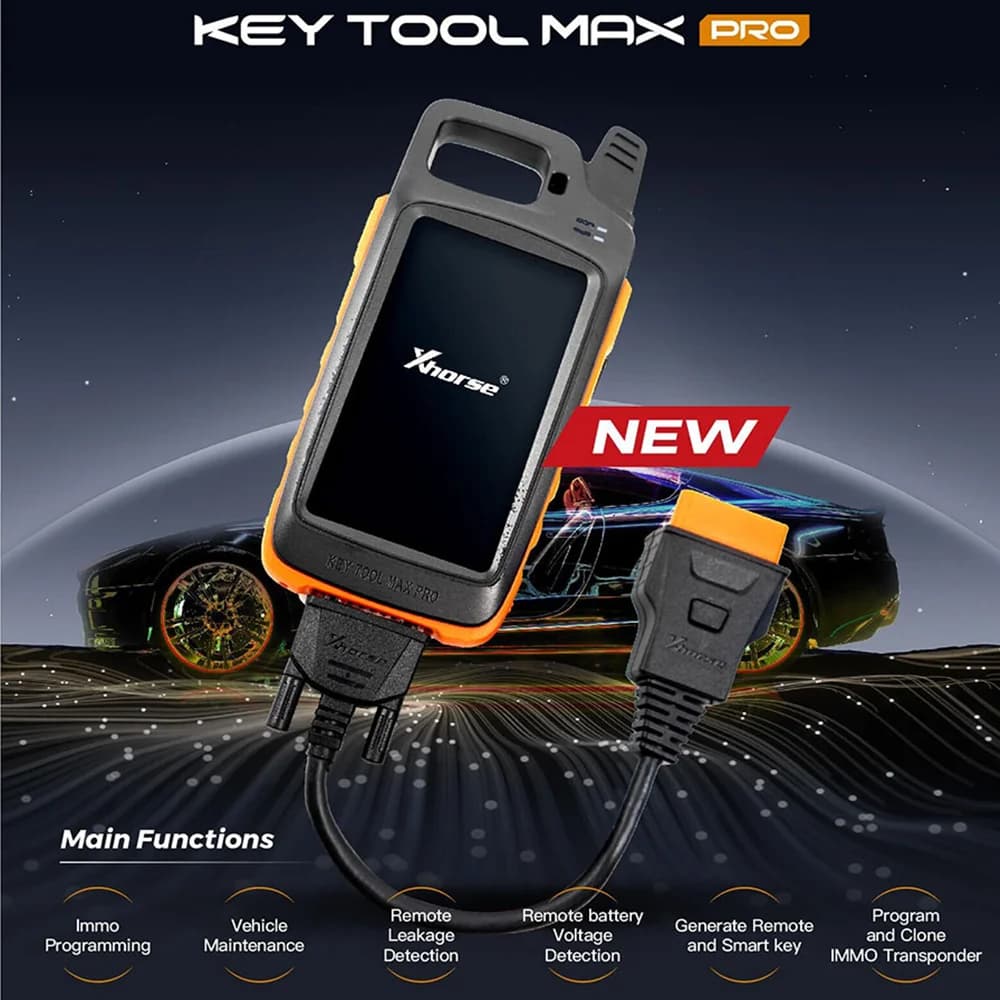

Key Tool Max Pro Functions list:
1.Immo Programming
2.Vehicle Maintenance
3.Service Light Reset
4.Remote Signal Detection
5.Remote Battery Voltage Detection
6.Generate Wired/Wireless Remotes and Smart Keys
7.Program / Clone Transponders Using Xhorse Super Chips
8.Generate Special Transponders
9.Renew Remotes
10.Recognize and Clone Access Cards
11.Generate and Clone Fixed Code Garage Remotes
12.Frequency Detection and Remote Cloning
13.Control Xhorse Key Cutting Machines
NEW - forBMW CAS3\forToyota Models Programming
To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add programming feature of BMW CAS3 and some Toyota models.
Support for BMW CAS3+and lower modules
CAS1 IMMO system
EWS IMMO system
CAS2 IMMO system
ECU ISN
CAS3/CAS3+IMMO system
Instrument mileage repair

Newly Added OBD Module
KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.
Built-in CAN_FD Module, Expanded Function:
Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.
Read Voltage and Leakage Current:
This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.
Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)
Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V
Xhorse VVDI Key Tool MAX PRO vs Key Tool Max

Key Tool Max Pro Parameter:
Battery capacity: 3375mAh
Battery life>6 hours
Standby time>5 days
Recharging current: 1500mAh
Brightness>400nlts
Screen resolution: 1280*720P
Camera resolution: 800W
WIFI & Bluetooth: 802.11a/ b / g / n / ac & 4.2 BLE
PCB Display:

Package List:
1pc x KEY TOOL MAX PRO deivce
1pc x OBD to DB15 cable with light
1pc x Remote programming cable
1pc x Leakage detection cable
1pc x USB cable
1pc x User Manual
