Upgraded NanoVNA-F V2 Vector Network Analyzer 50kHz-3000MHz HF VHF UHF VNA Antenna Analyzer 4.3" Measur S-Parameter Voltage SWR

Upgraded NanoVNA-F V2 Vector Network Analyzer 50kHz-3000MHz HF VHF UHF VNA Antenna Analyzer 4.3 inch with 5000mAh,Measuring S-Parameter Voltage SWR, Phase, delay, Smith Chart

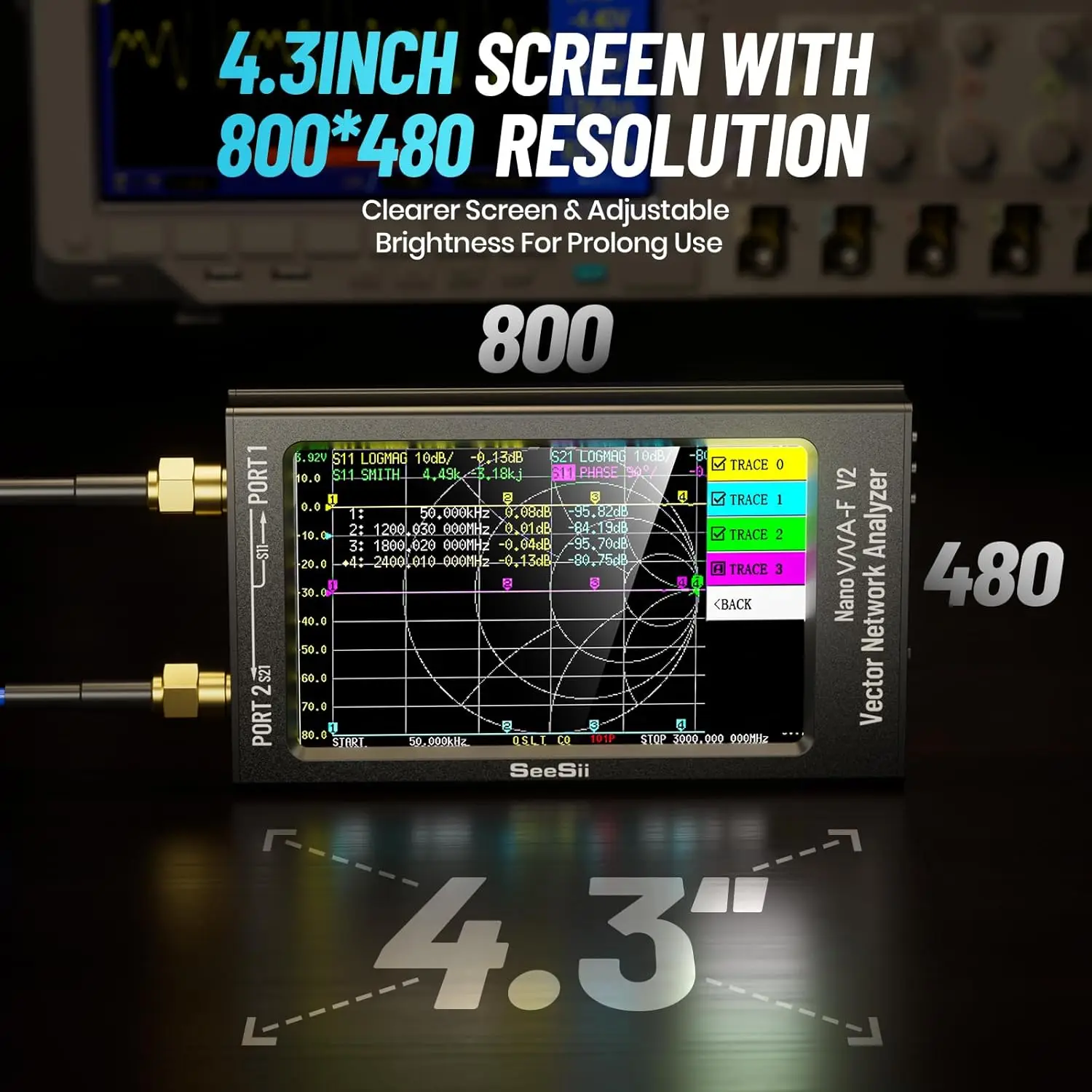

【4.3 inch Large Touch screen and powerful function】Handheld Vector Network Analyzer using 4.3-inch IPS TFT LCD screen, with a larger view angle and can be seen clearly in strong outdoor light.which can measure S-parameter, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on.

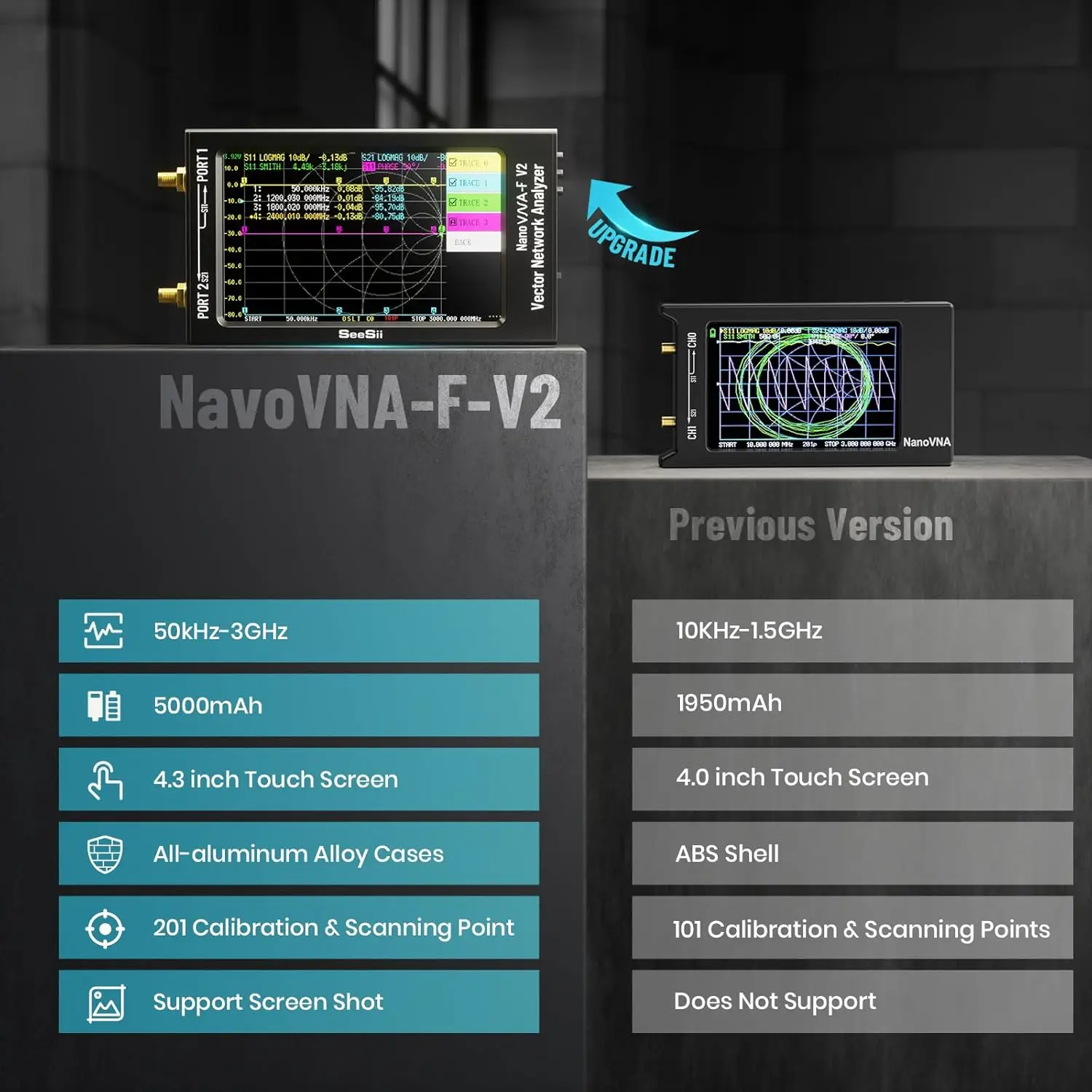

【Higher Capacity Battery,and Longer Standby time】 Upgraded the large capacity 5000mAh / 3.7V lithium battery, longer standby time, and extended USB interface. Typically, it can be used as a mobile power source to charge Android or Apple phones when not in use. The IC is charged by high current 2A, and the charging time is shorter.

【Upgraded Aluminium Housing 】 Standard aluminium shell to protect SMA head and reduce the interference of external electromagnetic wave to instrument.

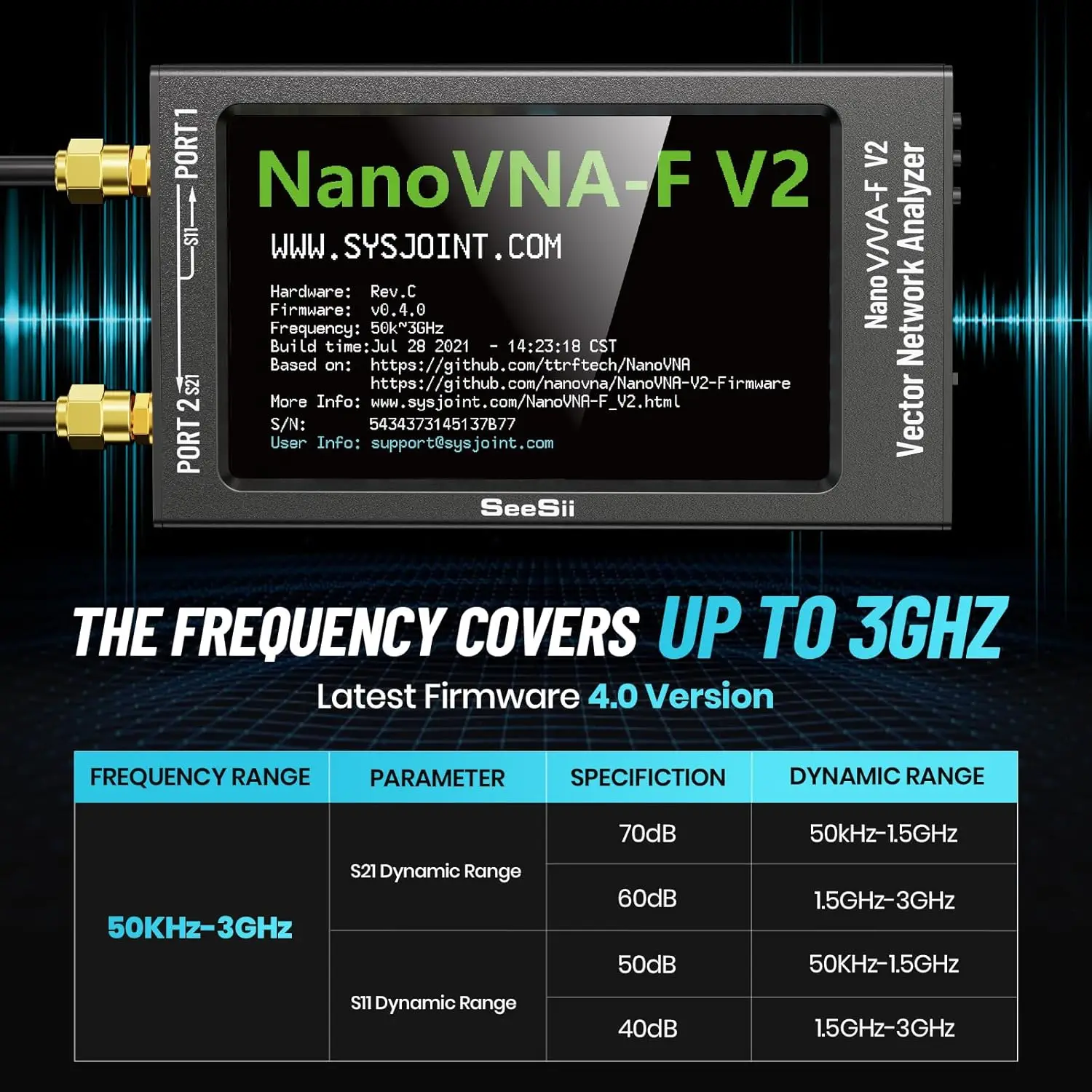

【Measurement Range】 The NanoVNA-F measurement range is 50k-3GHz. You can go to the official website to update and expand the frequency to 10Khz-1.5Ghz.The harmonic expansion of the output signal of the clock chip SI5351 is used to measure the frequency to 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (the standing wave ratio is less than 1.02).
