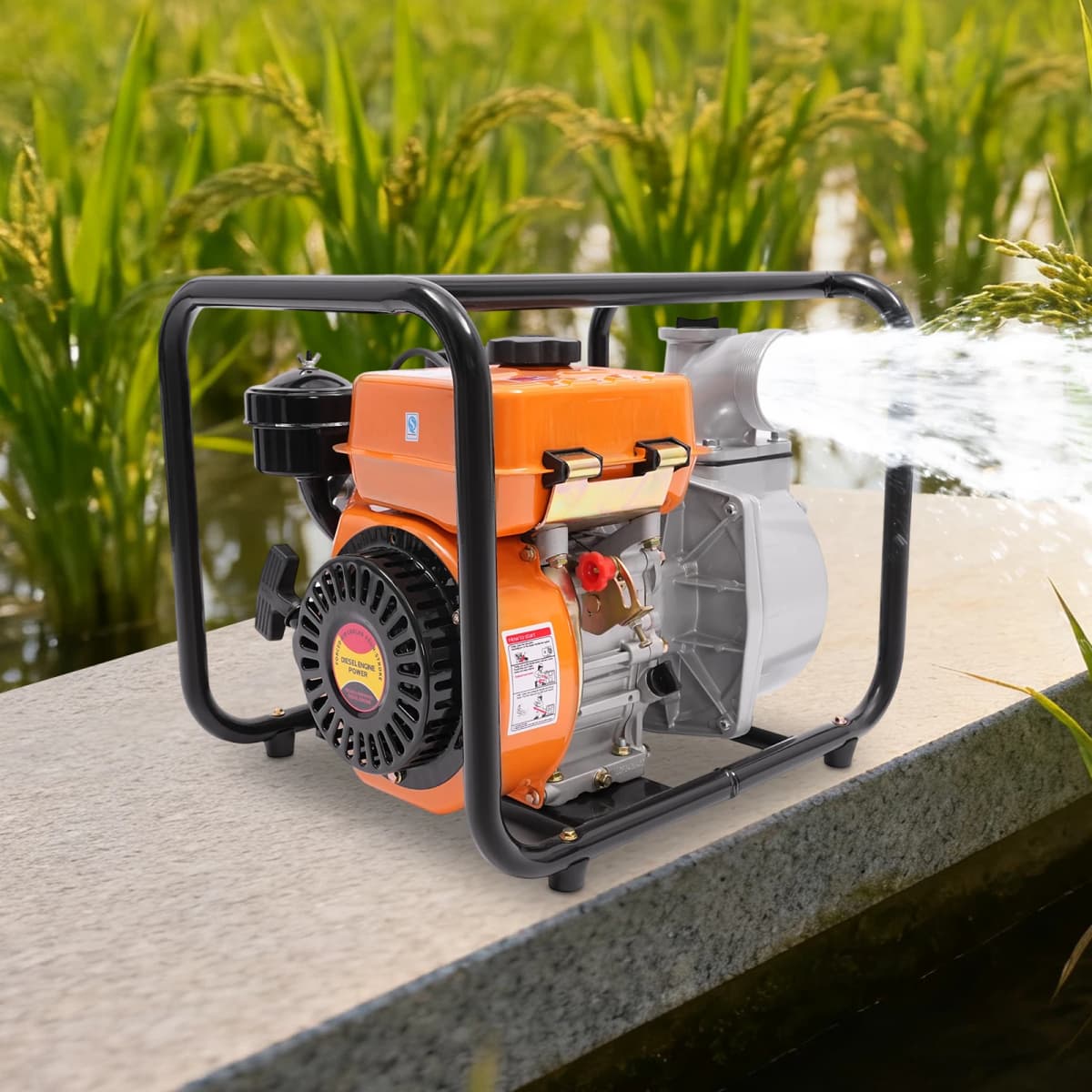

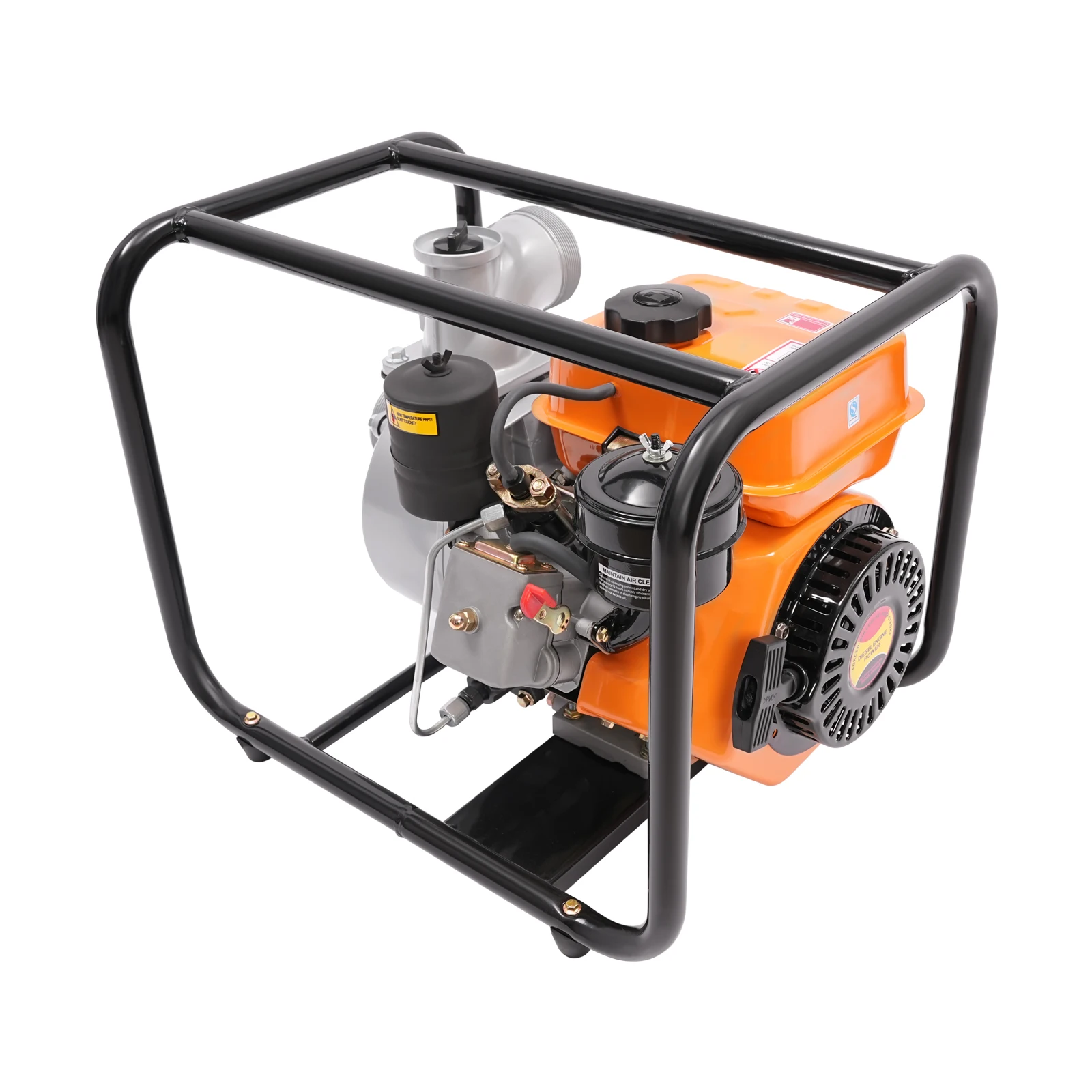

4-Strok Water Pump Diesel Water Transfer Pump with 4L Fuel Tank Diesel Water Pump Water Lifting & Drainage Equipment for Farm Garden Irrigation4-Strok Water Pump Diesel Water Transfer Pump with 4L Fuel Tank Diesel Water Pump Water Lifting & Drainage Equip

Description

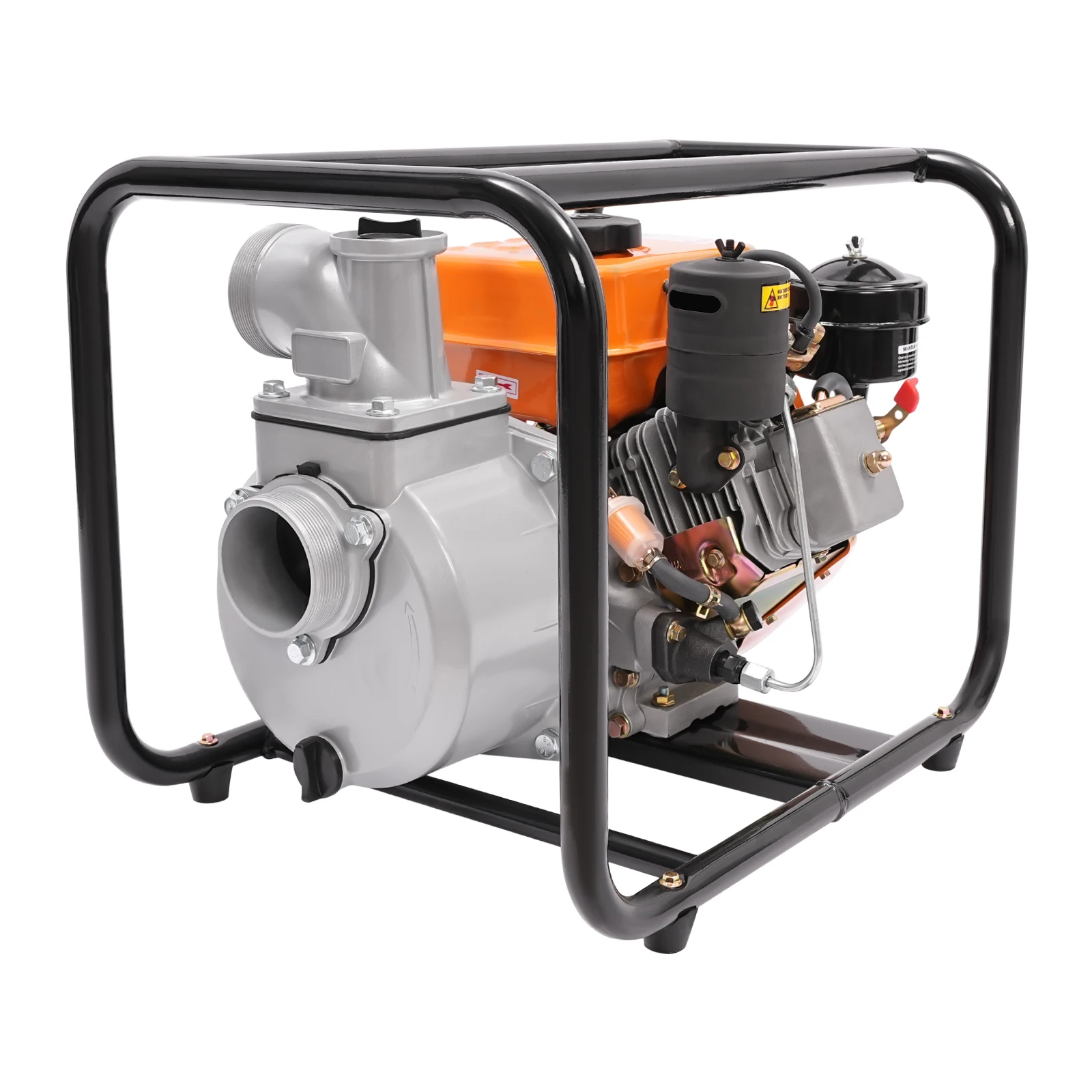

This water pump is precision cast from high-grade aluminum, and its excellent resistance to pressure and corrosion ensures that the product remains stable and less prone to deformation in extreme environments. The high power of 2.3kw and 3600rpm allows for quick pumping of water from rivers or reservoirs, providing plenty of power to achieve high head irrigation in your garden or farm. The filter reduces impurities in the water, preventing the machine from clogging and prolonging its life. It will be a good assistant for your irrigation work.

Key Features
Sturdy and Durable: High-quality aluminum and die-casting process make this product corrosion-resistant, wear-resistant, not easy to deform, and can ensure long-term use.

High Efficiency: The powerful 2.3KW engine with a displacement of 196cc makes the rotational speed up to 3600rpm and the flow rate up to 40 m³/h, which can quickly pump water from rivers or ponds. With a suction height of 22.97ft and a total lift height of 85.3ft, which allows you to irrigate your farmland effortlessly and increase efficiency.

Large Capacity: The fuel tank has a capacity of 1.06 gal and can be operated for 2 hours after refueling, avoiding the burden of frequent refueling.

Powerful Pumping Tool: Whether you're looking for a solution for industrial or farm water supply, this pump is a trusted choice. It serves as a garden water source as well as a sprinkler for the kids. You can use this product to pump water from ponds, reservoirs, rivers, and other water-lifting projects.

Customer-friendly Design: The pump comes with a 24.61ft long water pipe, which not only serves as a link between the water source and the destination, ensuring efficient and stable water transfer but also saves you money by avoiding the burden of buying it separately.

Excellent Heat Dissipation: There are many heat dissipation holes on the surface of the product, which can dissipate heat quickly and prevent the engine from burning after a long time of use.

Good Sealing: This product comes with multiple seals to ensure good sealing and reduce water leakage.

Easy to Carry: The 20.28*15.55*16.73 compact structure and the top handle make it convenient to take to different workplaces.

Effortless Cleaning: Thanks to the smooth surface and simple structure, you can easily wipe off the dirt on it with a soft cloth.

Details

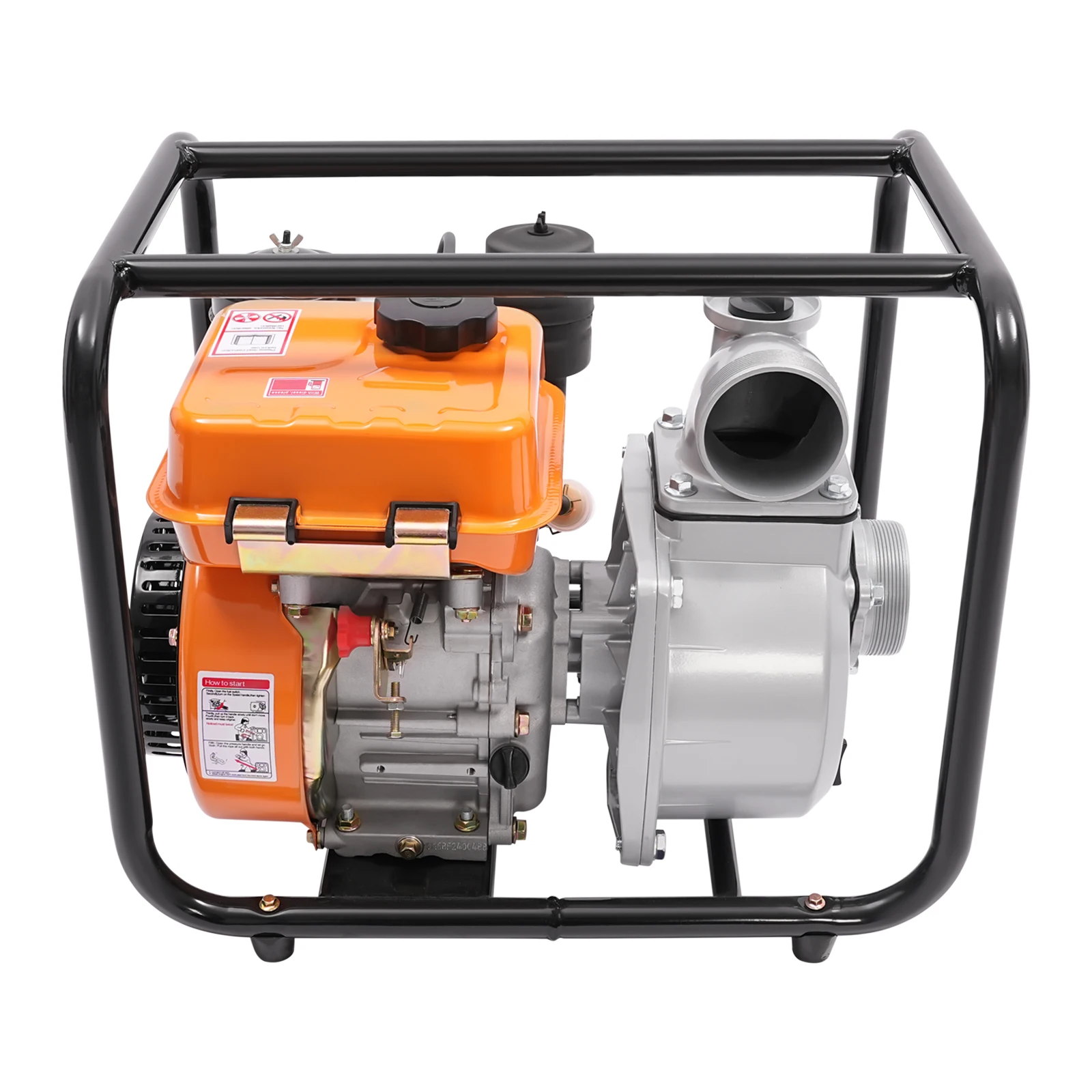

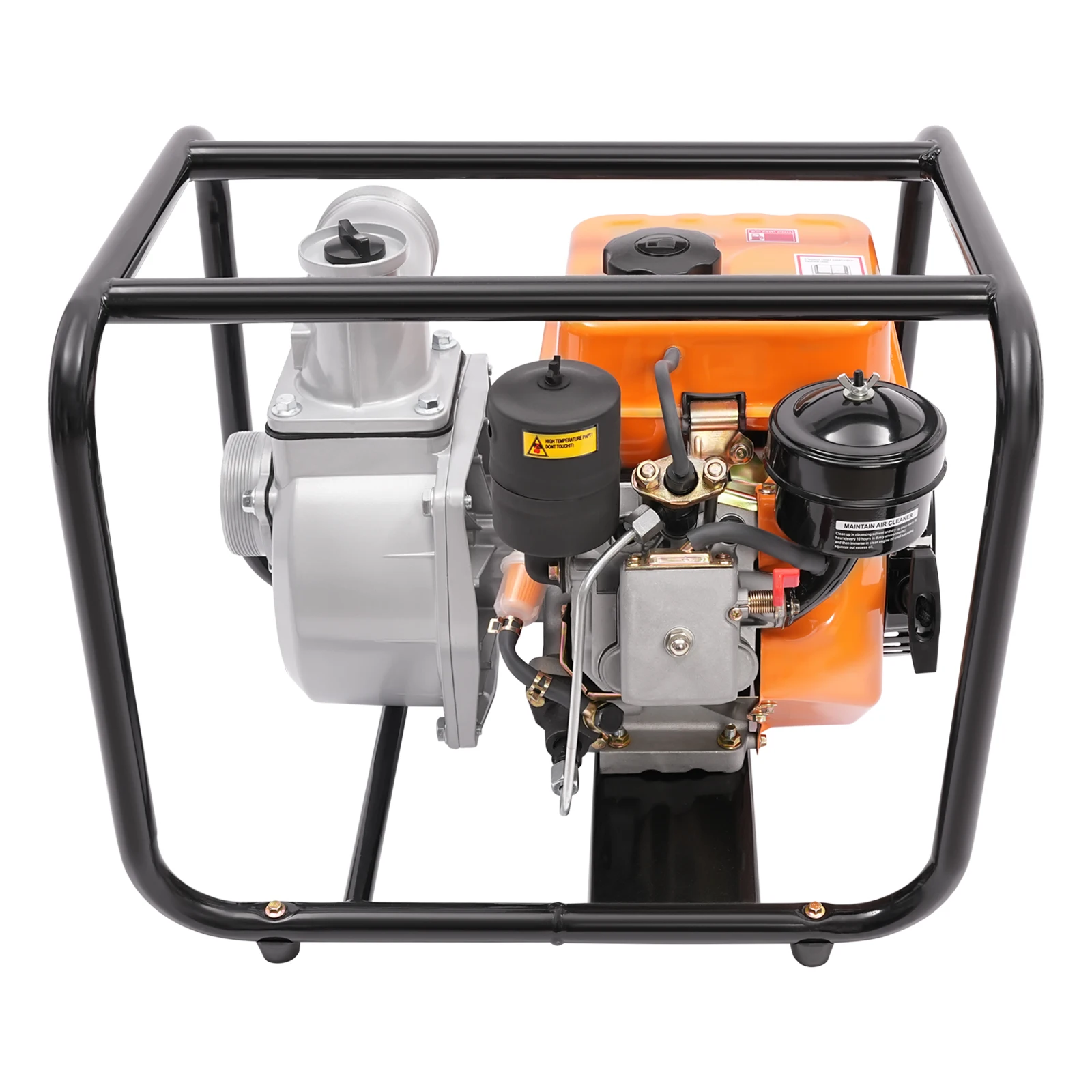

Rectangular Frame: It can make the machine more stable and not easy to shake when running.

T-Shaped Starting Handle: It is easy to grip and pull to start the engine.

Single Cylinder: It allows the crankshaft to rotate at a more even angular speed and the engine to run smoother.

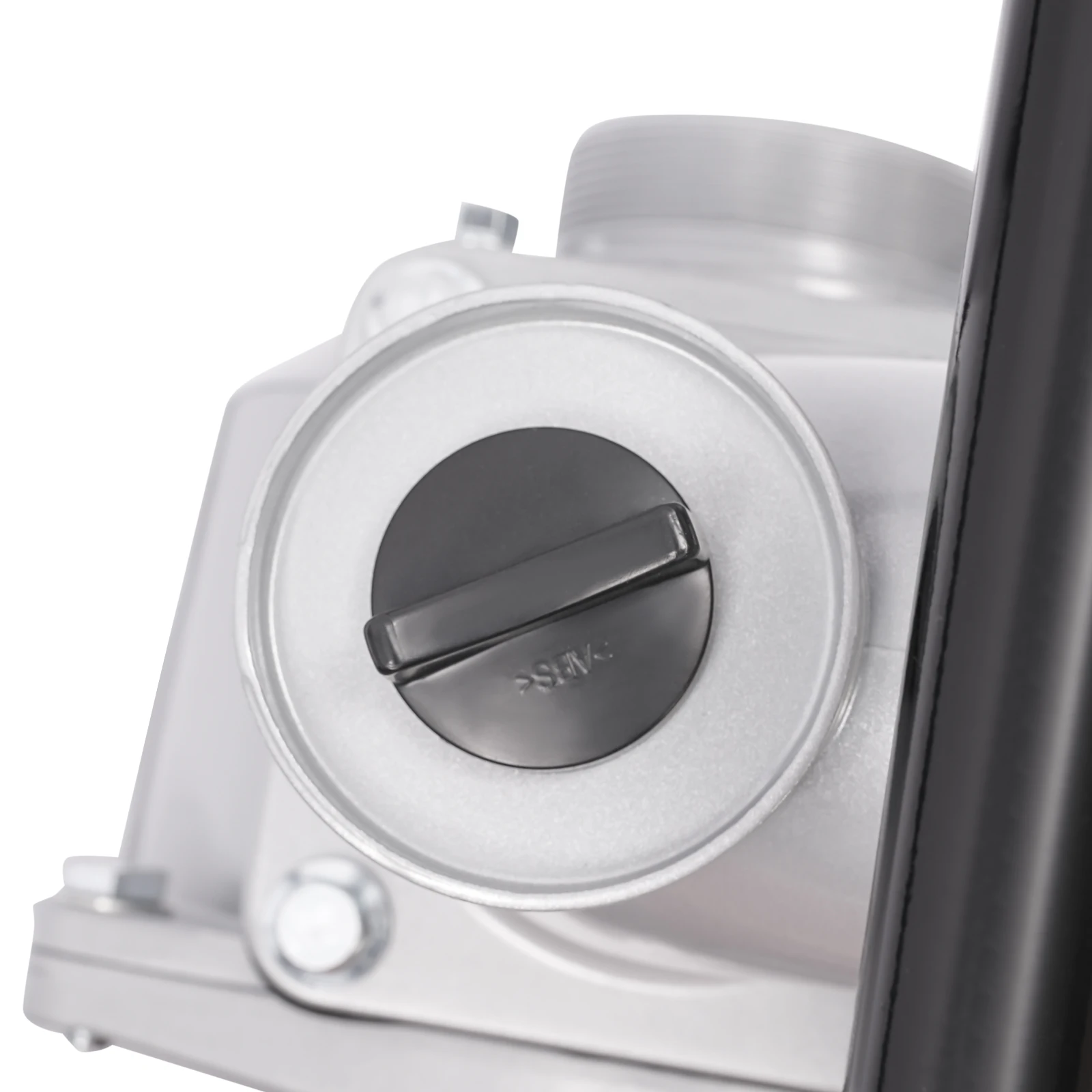

Inlet Filter: It can help filter impurities in water, prevent clogging of the machine, and reduce cleaning trouble.

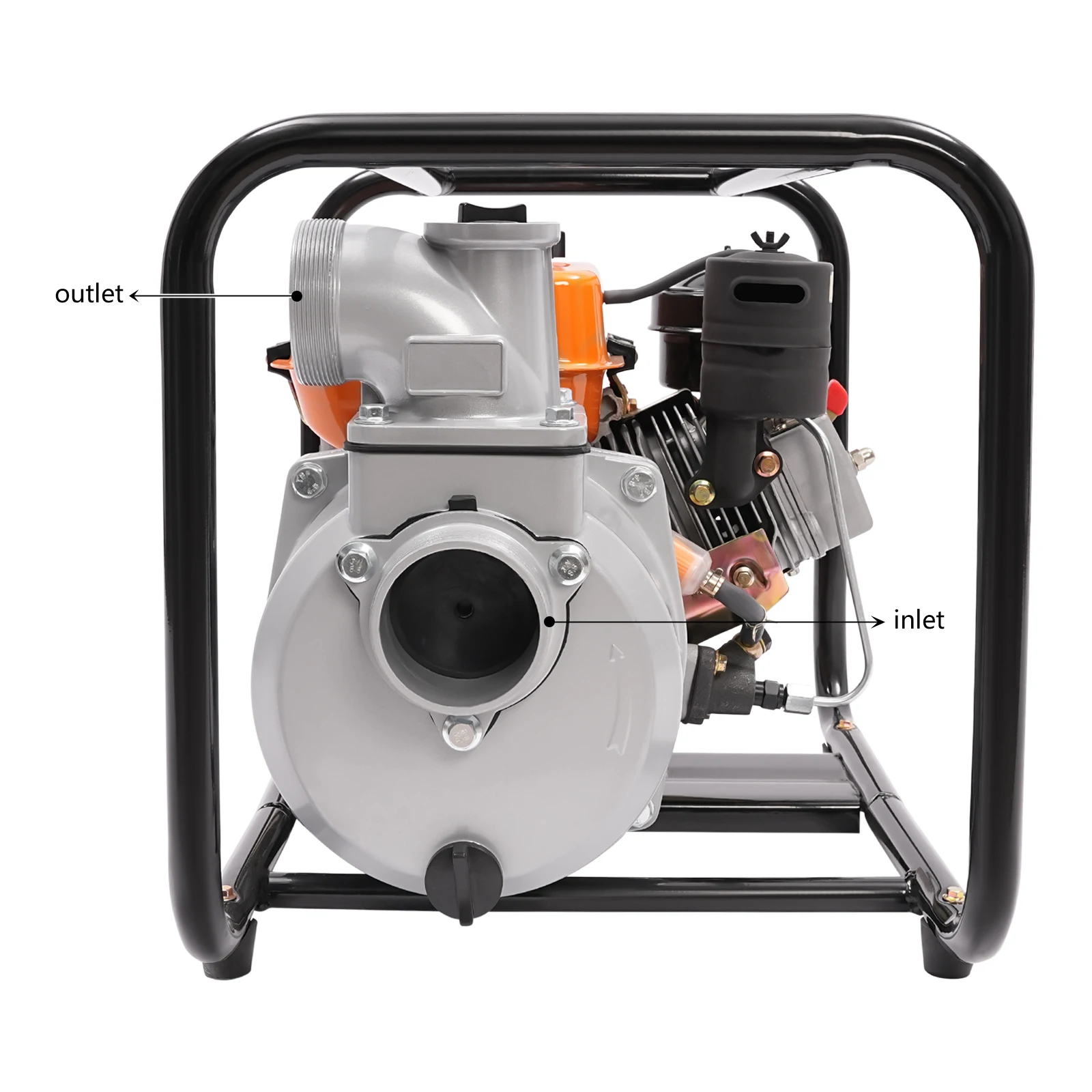

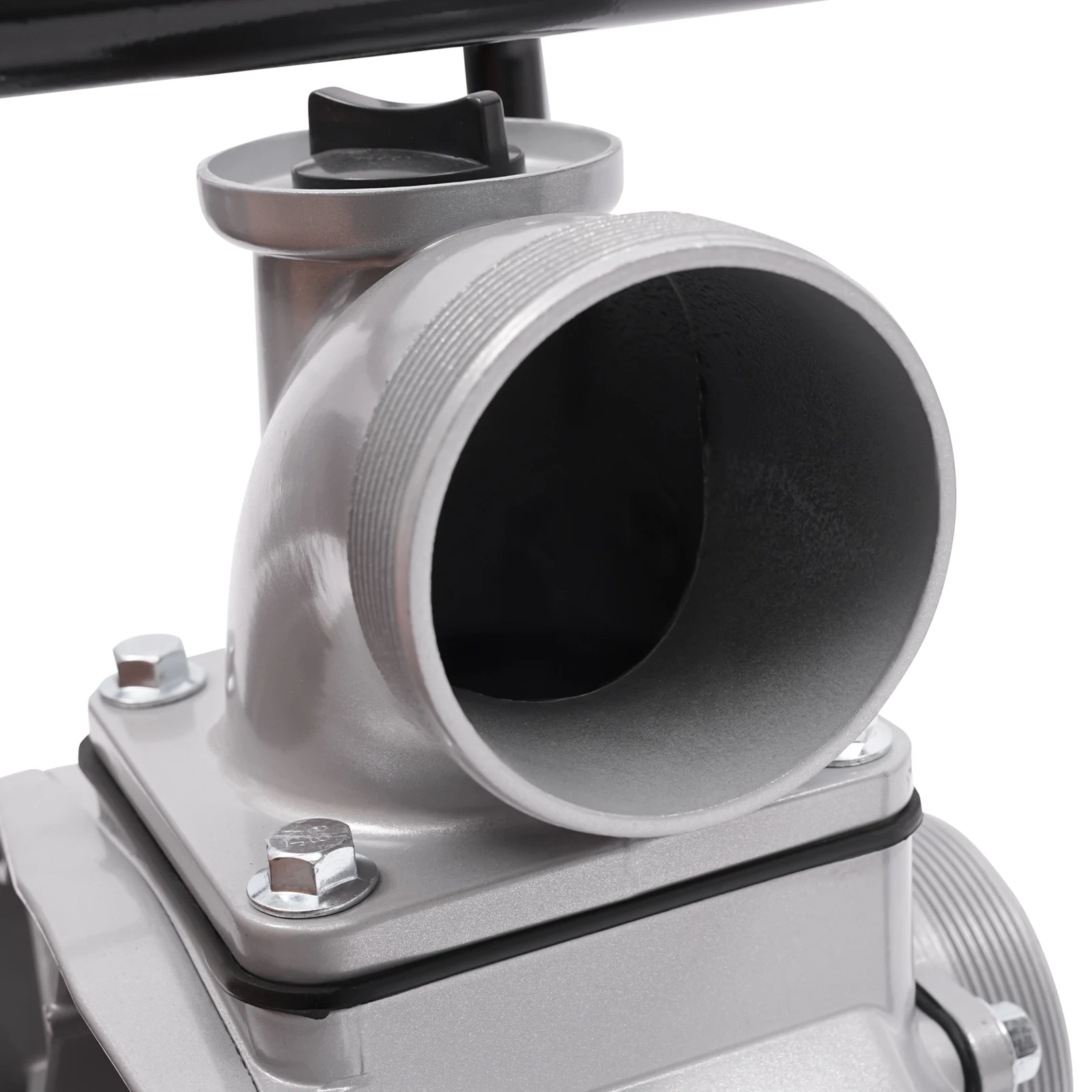

Large Inlet&Outlet: The 3-inch inlet and outlet make it easy to connect to a water pipe, allowing for a high flow rate.

Application
It can be used in vegetable garden and flower garden pumping and irrigation, field pumping and drainage work, and so on. It can be used in river ponds, reservoirs, rivers, and other water-lifting projects.

How to Operate
Ⅰ. Lay the machine flat and fill it with oil, just enough to have oil dripping out(too much/too little oil will affect operation).
Ⅱ. Add 0# diesel fuel.
Ⅲ. Fill the pump head section with water just until there is water overflowing from the spout.
Ⅹ. Twist the red switch (turn to ON position).
Ⅴ. ①Adjust the throttle switch to the left.
② Adjust the air vent to the left.
③Adjust the oil switch to the right.
Ⅵ. Pull a small section of the pull disc line out first, and then pull the pull disc quickly to start the machine.
Ⅶ. Connect the water inlet pipe.
Ⅷ. Connect the water outlet.

Specifications
Model: 168F
Color: Black, Orange
Assembly Required: Yes
Style: Modern
Material: Aluminum
Process: Die-casting
Engine Type: Four-stroke, Air Cooling, Single-cylinder
Power Source: Diesel-powered
Ignition Mode: Compression Ignition
Starting Method: Hand-pull start (It can be Changed to Electric Start)
Fuel Type: 0#
Displacement: 196CC
Fuel Tank Capacity: 4L/1.06Gal
Full Fuel Running Time: 2H
Lubrication Way: Splash Lubrication
Lubricating Oil Capacity: 0.8L/0.21Gal
Lubricant Type: 10w40
Engine Power: 2.3 kW
Speed: 3600rpm
Max Suction Lift: 7m/22.97ft
Max Lift: 26m/85.3ft
Max Flow: 40 m³/h
Noise: 75dB
Inlet/Outlet Diameter: 7.6cm/3in
Water Pipe Length: 7.5m/24.61ft

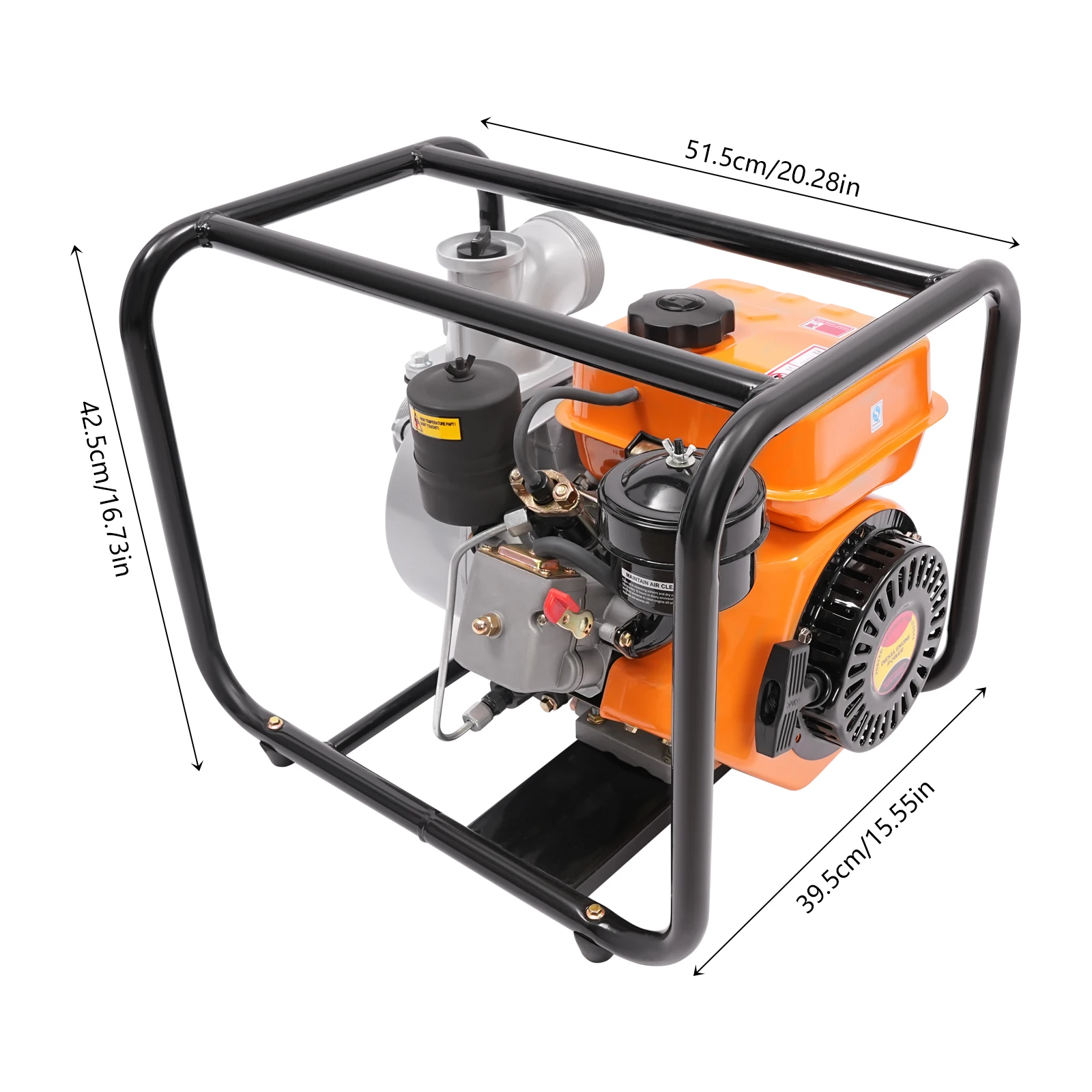

Product Size: 51.5*39.5*42.5cm/20.28*15.55*16.73in
Gross Weight: 34.68kg/76.46lbs
Net Weight: 30.44kg/67.11lbs
Package Size: 52*41*44.5cm/20.47*16.14*17.52in

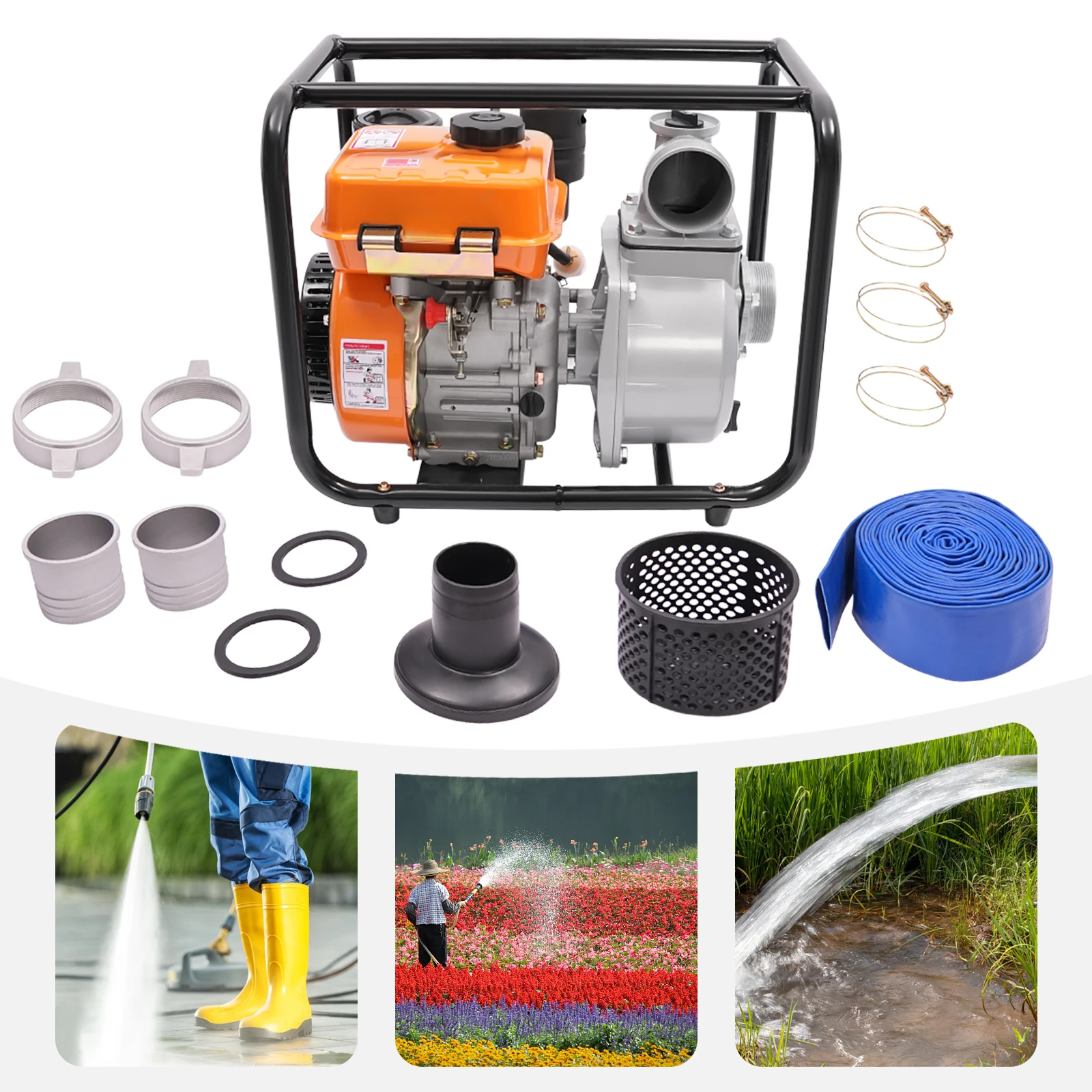

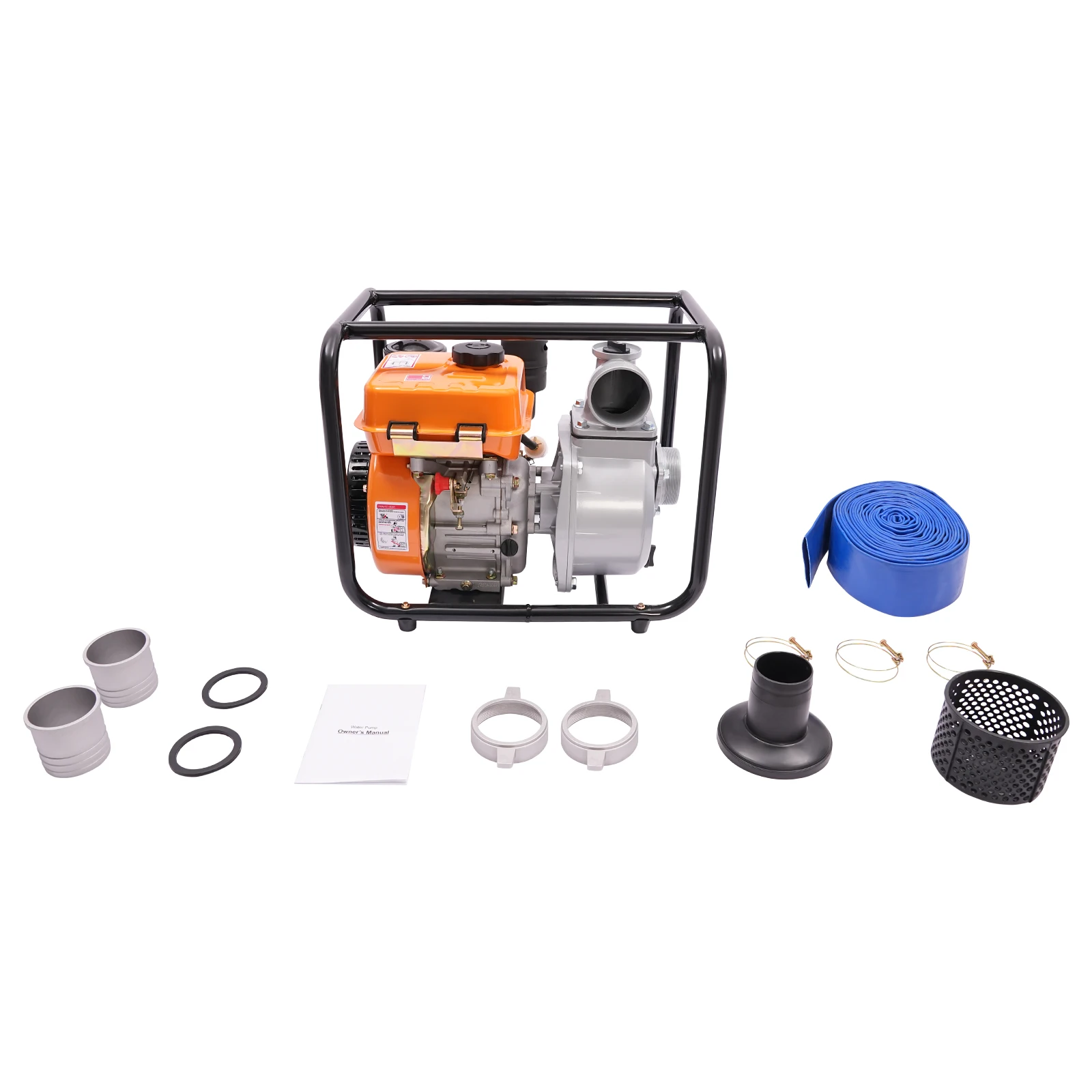

Package Included
1*Water Pump

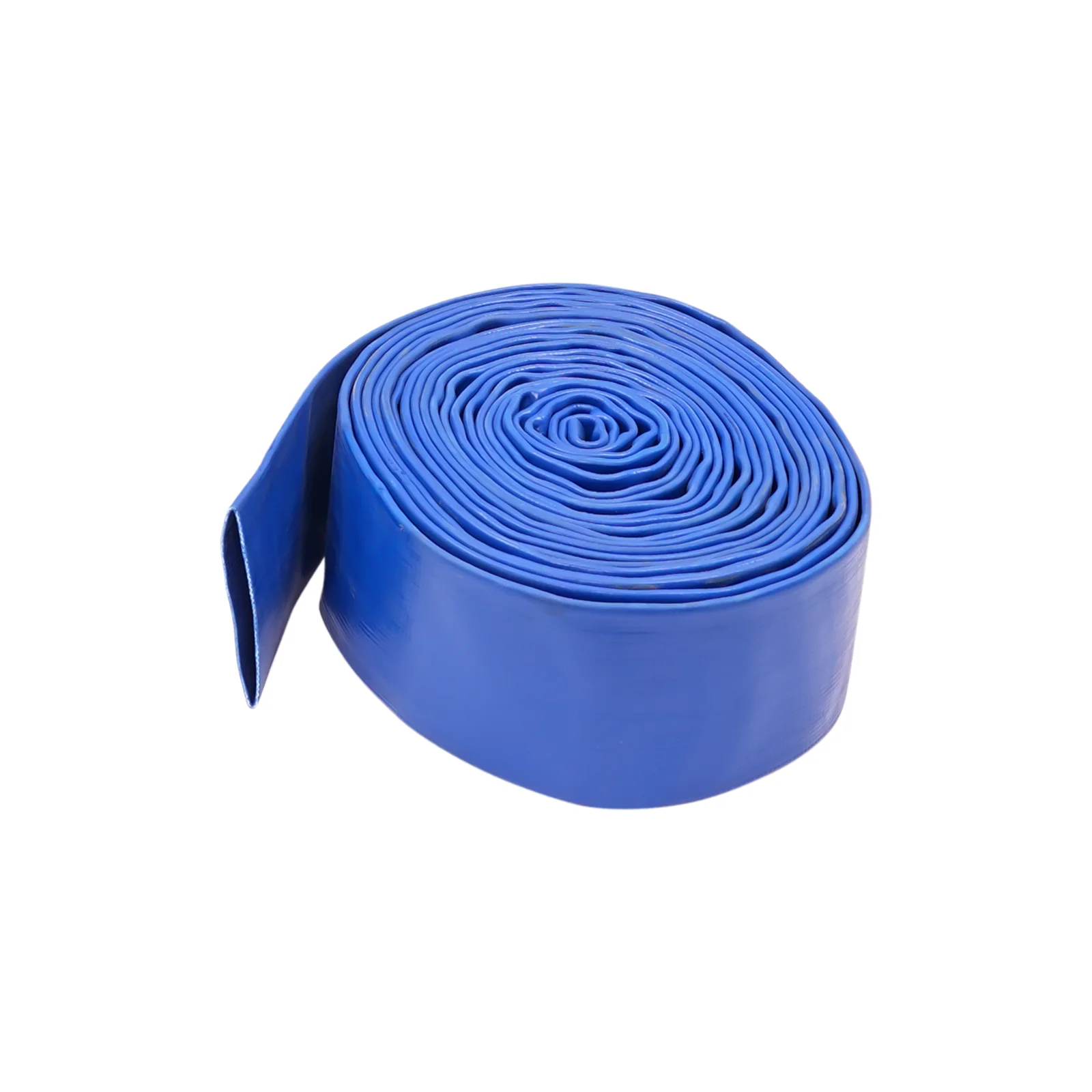

1*Water Pipe
1*English&German&French&Portuguese Manual

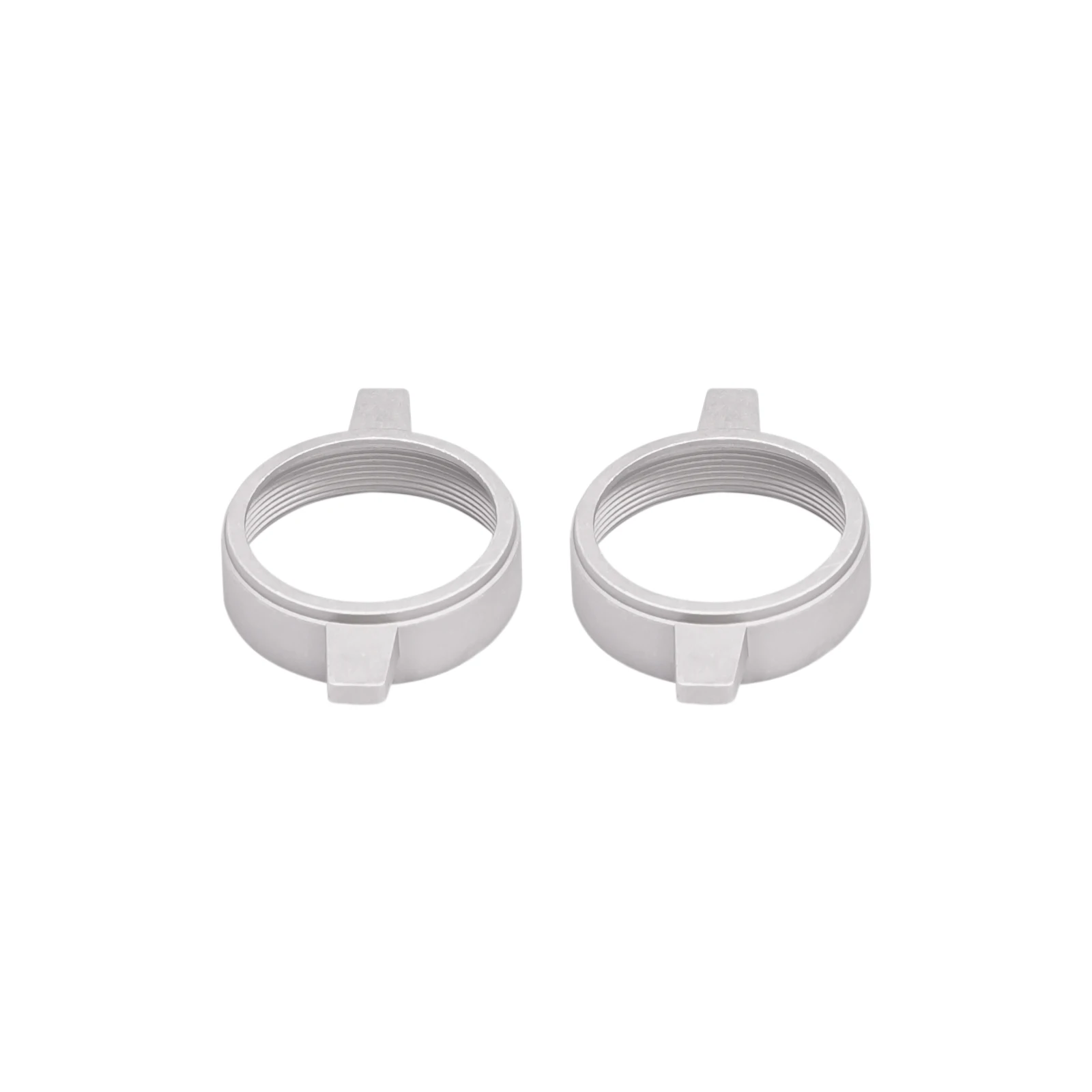

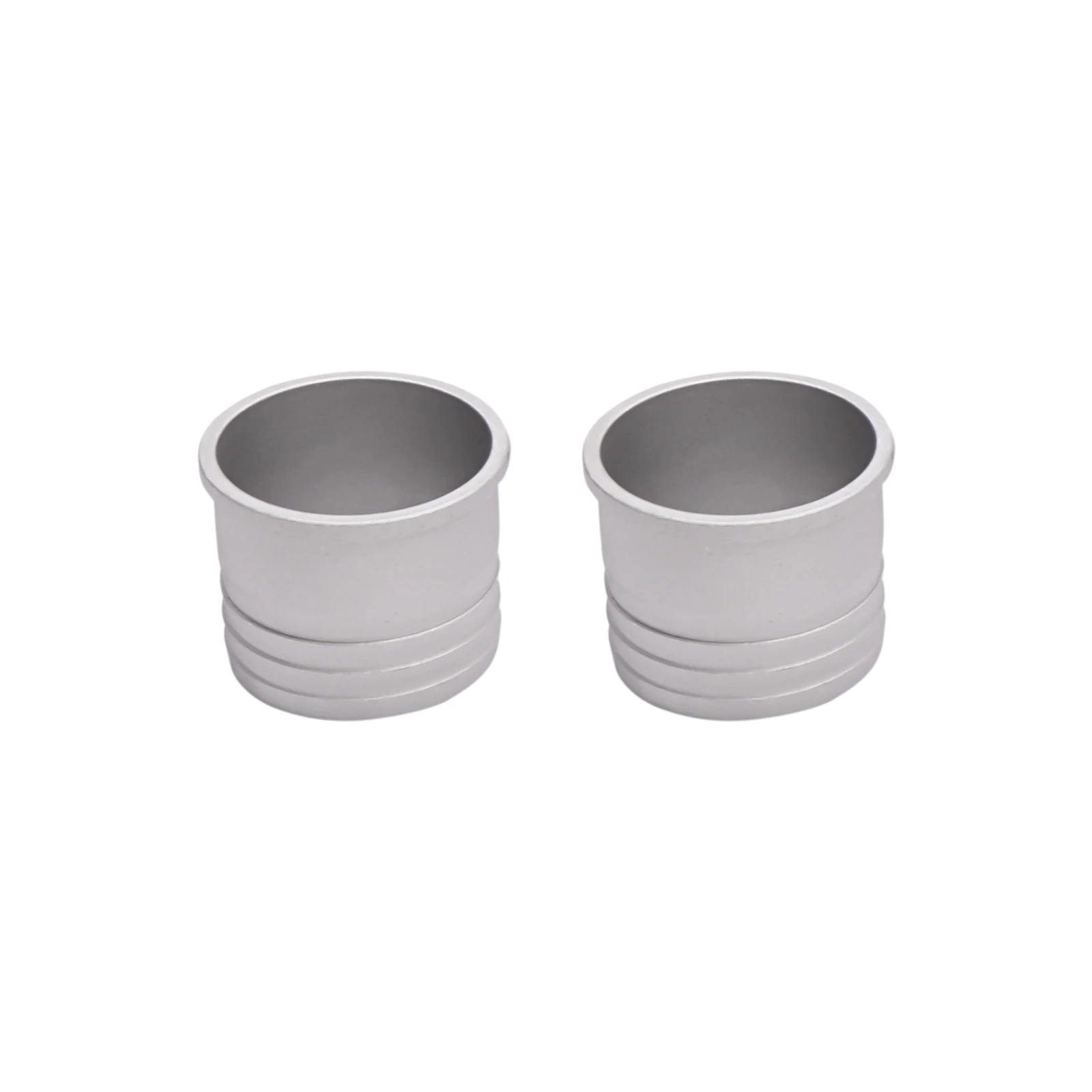

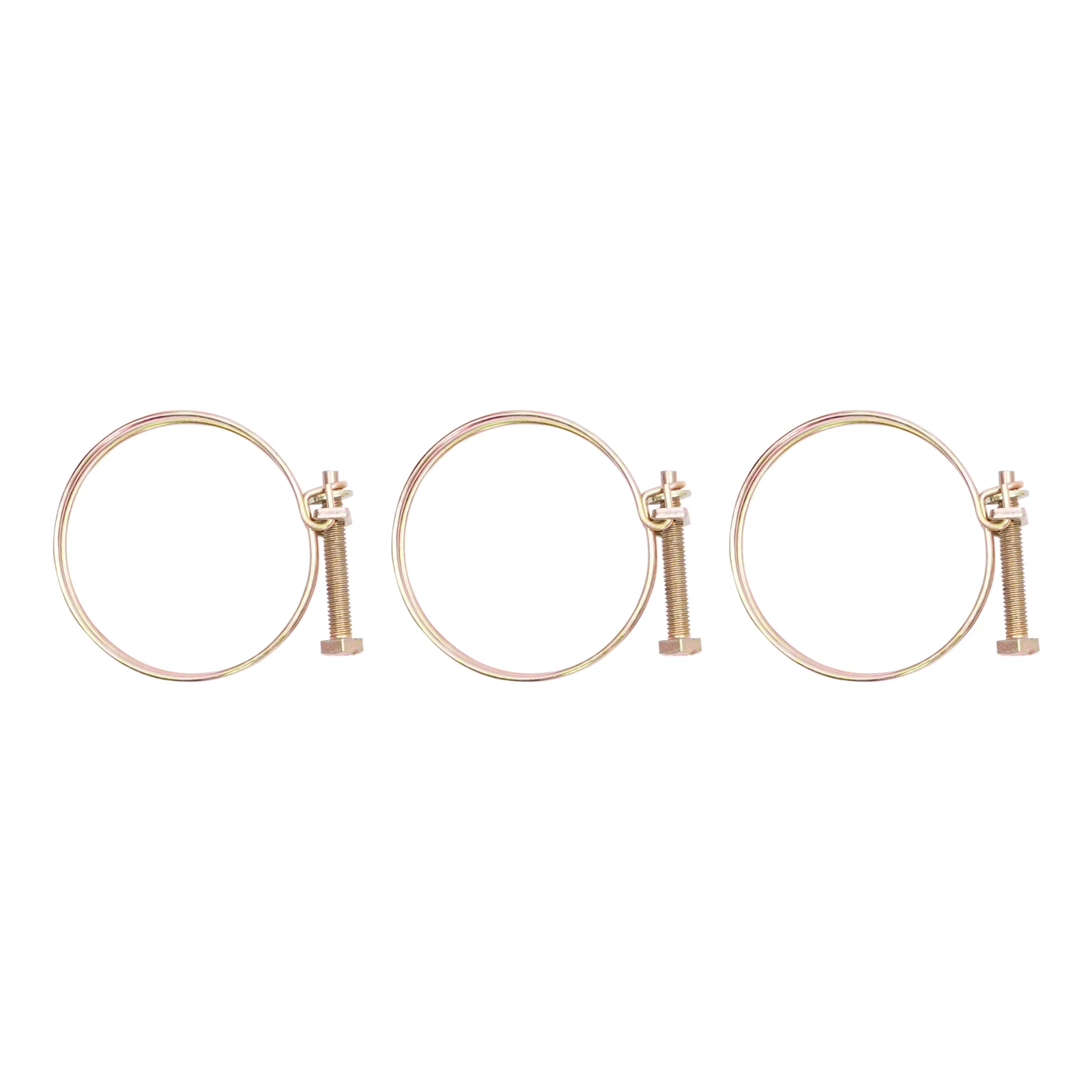

All Accessories for Assembly


Notes
1.Please use the 0# diesel and guarantee the diesel is clean. Please use 10w40 lubricating oil and keep the oil quantity within the specified range.
2.The air filter must be kept clean by cleaning or replacing the filter element regularly.
3.Please read the user manual carefully before use and pay special attention to the safety precautions included.
4.Please do not touch the high-temperature parts of the body. For the safety of you and others, please prohibit fireworks.
5.The muffler outlet should not be facing the operator.
6.The first time you use the break-in period of 5-10 hours, you need to change the oil, otherwise the impurities in the oil during the break-in period will jam the crankshaft.
7.When diesel engine is in continuous operation, crankcase temperature must not exceed 194°F and heating should be stopped for 15-20 minutes before continuing operation. When adding diesel fuel, it must be cooled before proceeding.
8.Diesel engine is prohibited to stop at high speed, it should be stopped when the throttle is set to the lowest!
9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
