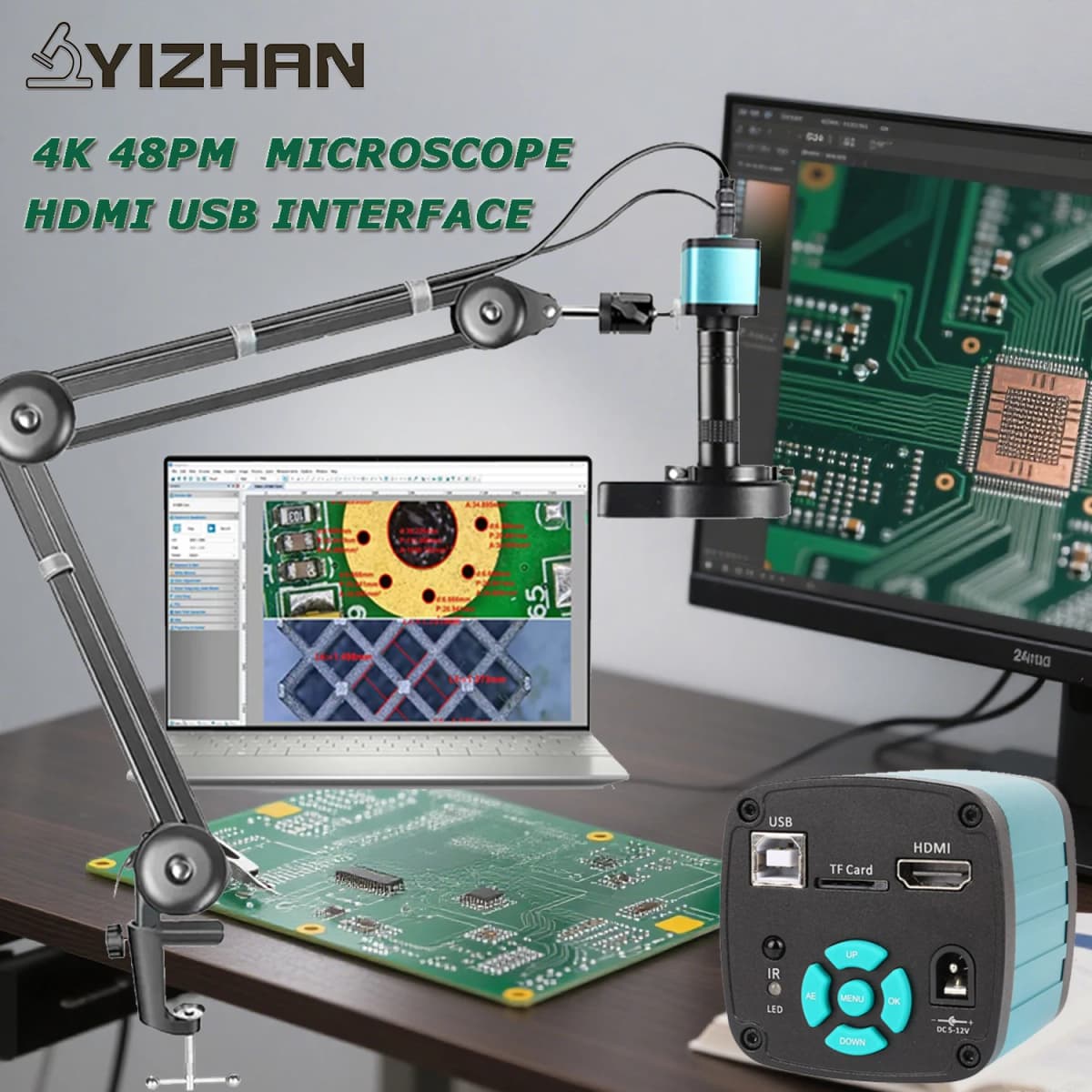

YIZHAN 48MP 4K Digital Electronic Microscope For Soldering HD 1080P HDMI Camera USB Software 1-150x Lens Upgrade Articulated Arm

Microscope software download address.

https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

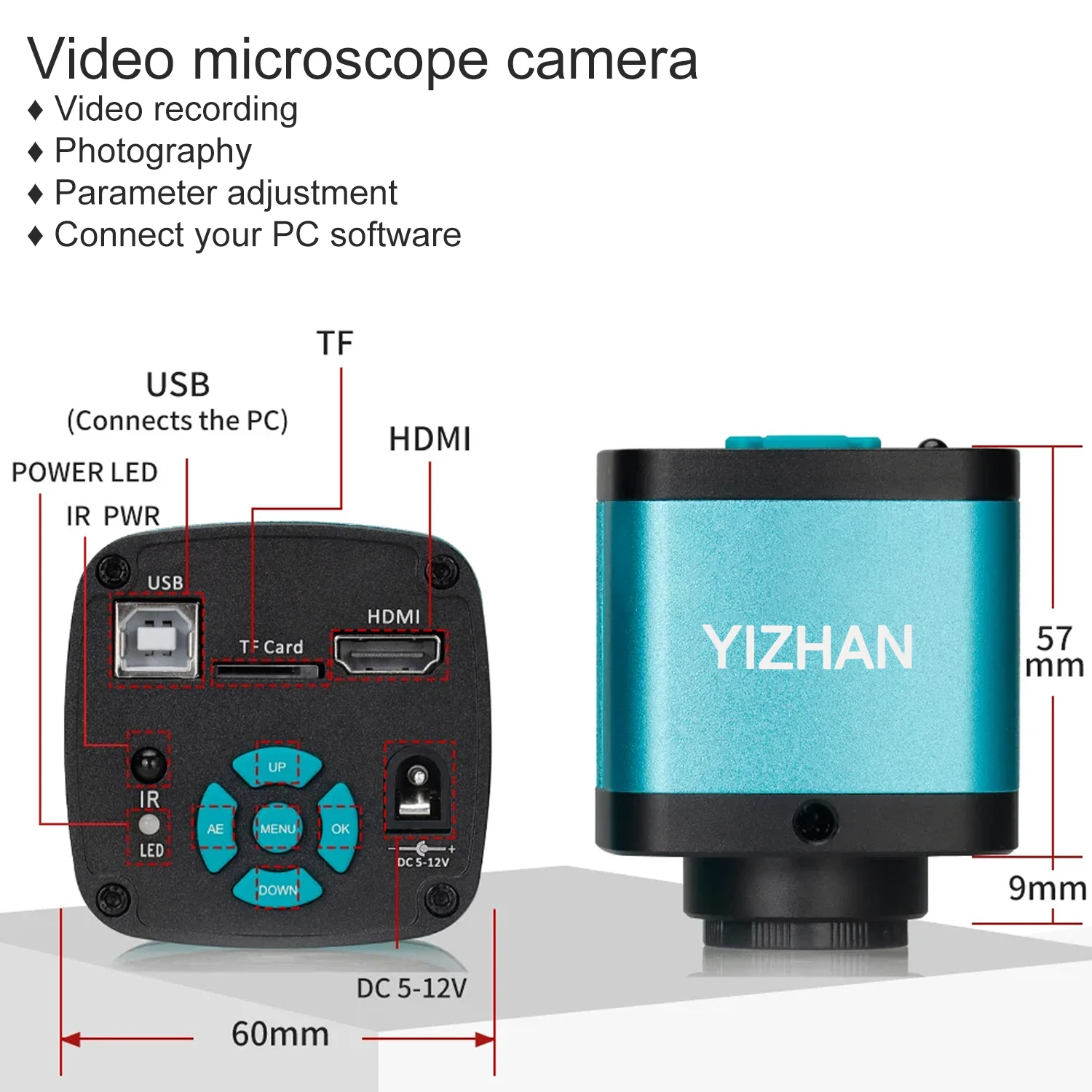

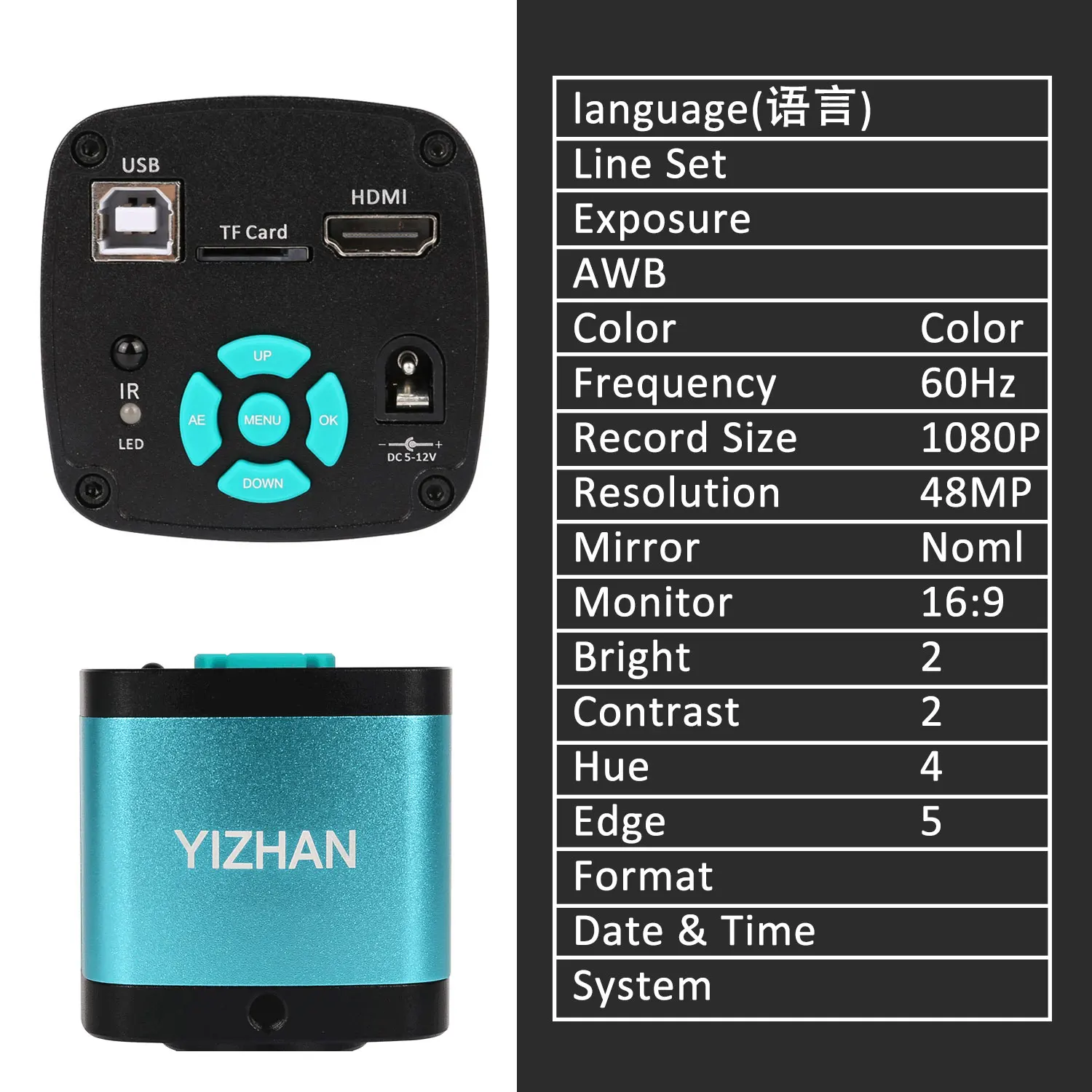

YIZHAN XHU4002 4K 48MP Microscope Camera (HDMI USB)
Model: Camera with HDMI USB2.0 two output
Image sensor: Sony IMX327 sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

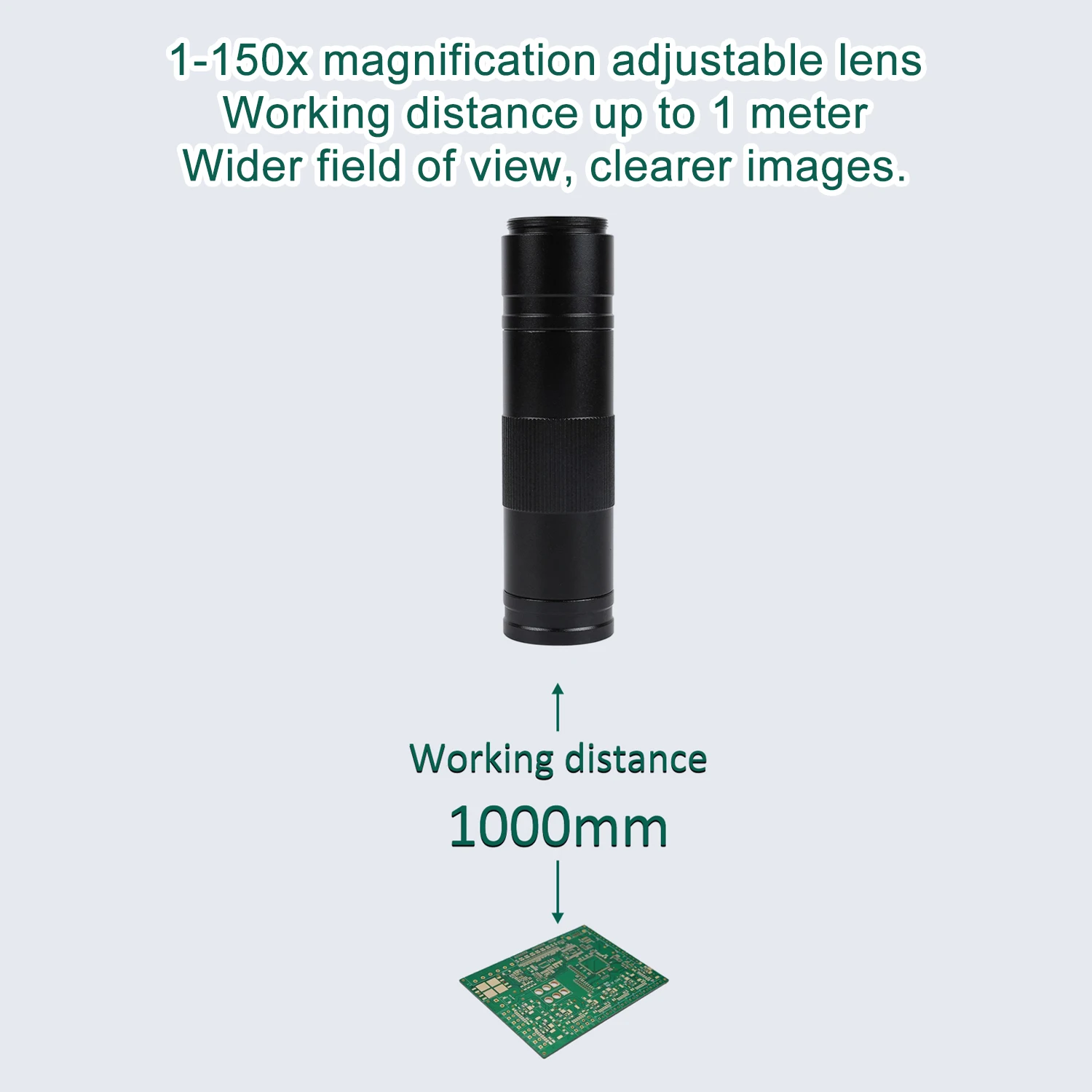

1X-150X C-mount Lens:
Working distance: 50mm-1000mm
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

56 bright white LED bulbs：
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm

Adjustable bracket ：
size: 400mm+390mm
Maximum thickness of bracket installation: 50mm
It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

List of packing：
1 x Microscope Camera Set
1 x 150X lens
1 x 56 led ring light
1 x Stand

YIZHAN XHU3011 4K Microscope Camera With Sony IMX678 Sensor(HDMI USB-C)
◆Using 8.29 million pixel Sony IMX678 CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Split screen function
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

Specifications:
Sensor: 1/1.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional
Remote control: support
Packaging size: 145*130*70mm

Package includes:
1*XH3011 camera
1*US/EU plug
1*HDMI cable
1*Type-C cable
1*remote control

YIZHAN XHU4006 4K Microscope Camera With Sony IMX415 Sensor(HDMI USB-C)
◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/2.8-inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames image output;
◆4K video recording;
◆4K photography;
◆One-click freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment:
◆Support manual/automatic white balance, red, green and blue are adjustable;
◆Provides 16 line drawing functions, with adjustable line color, thickness and position:
◆Provide center crosshair display/off;
◆Support TF card storage, up to 64GB;
◆Support remote control operation, take pictures without shaking and the image will be clearer;
◆Support Chinese and English menu languages (default English);
◆Supports saving shutdown setting parameters;
◆Sturdy metal shell;

Specification

Sensor: 1/2.9-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 1.45μm X1.45μm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240(MJPG)
Lens mount: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, supports R, G, B adjustable
Storage: supports up to 64GB
Input voltage: DC 5V
Drawing: supports 16 straight lines, the color, thickness and position are adjustable
Centerline: Support
Menu language: English/Chinese/Traditional
Remote control: support

Strong Articulated Arm/Microscope Stand
