Sumry Hybrid Solar Inverter Pure Sine Wave 3600w 24v Dual Output with MPPT 120A 60-450v 50/60hz

Features:

​1 Pure sine wave solar inverter(on/off Grid)
​2 Output power factor 1.0
​3 WIF1&GPRS available forloS and Androide
​4 Inverter can run without battery
​5 One-key restoration to factory Settings
​6 Built-in Lithium battery automatic activation
​7 AC output voltage 120VAC

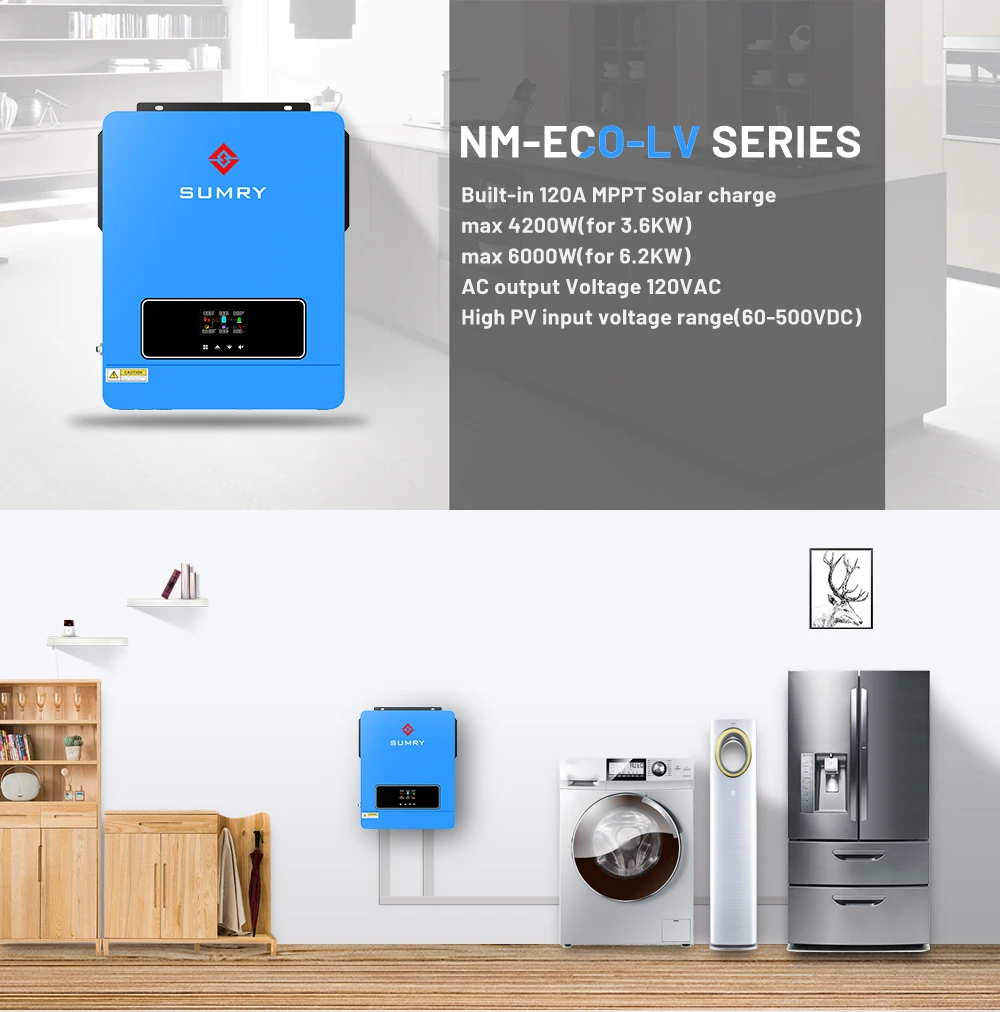

​8 Built-in 120AMPPT Solar charge:max 4200W (for 3.6kW)
​9 High PVinput voltage range(60~500VDC)
​10 Built-in anti-dust kit for harsh environment
​11 Smart battery charge design to optimize battery life
​12 Dual output

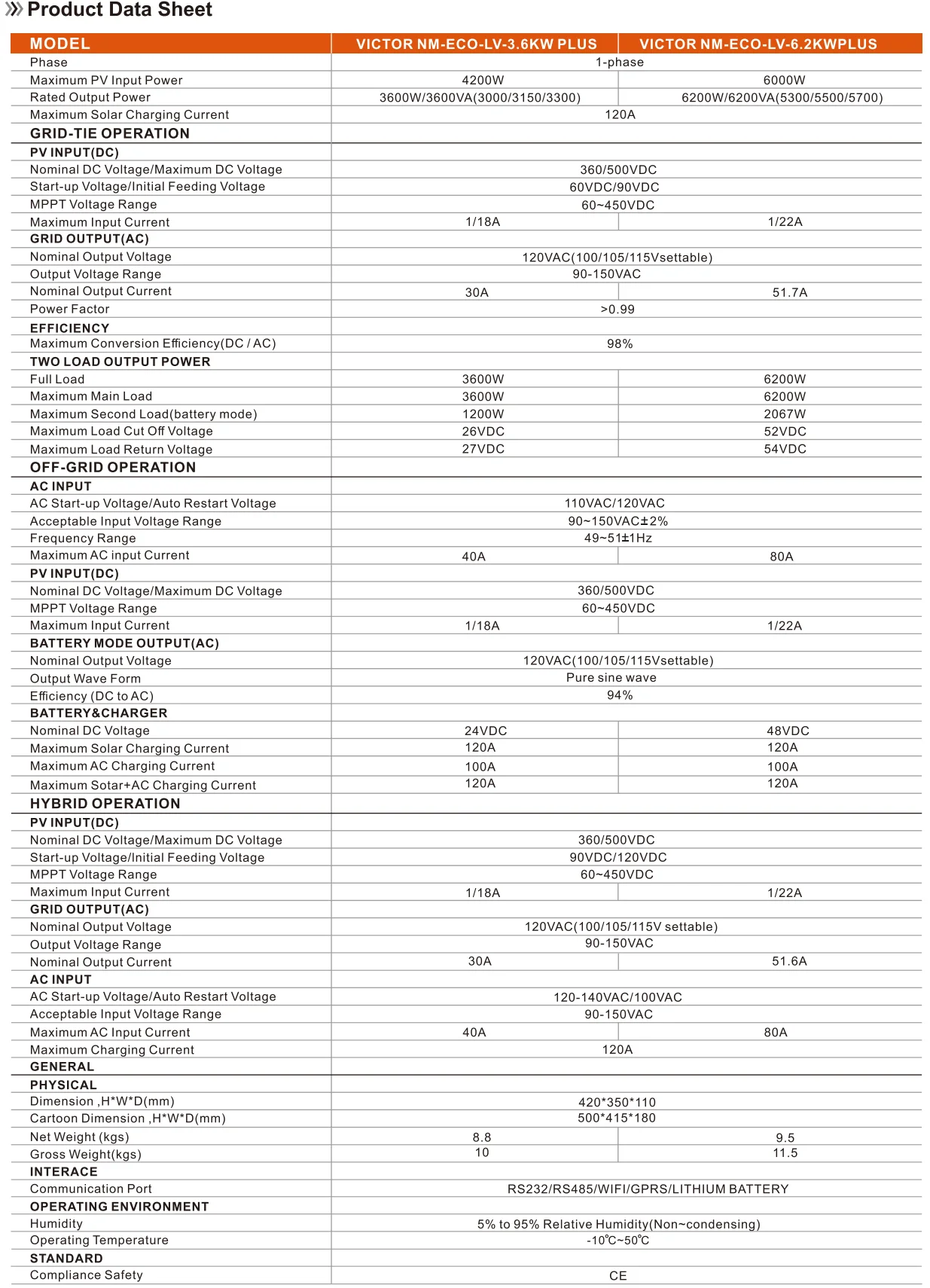

SUMRY ECO LV 3.6KW Specifications

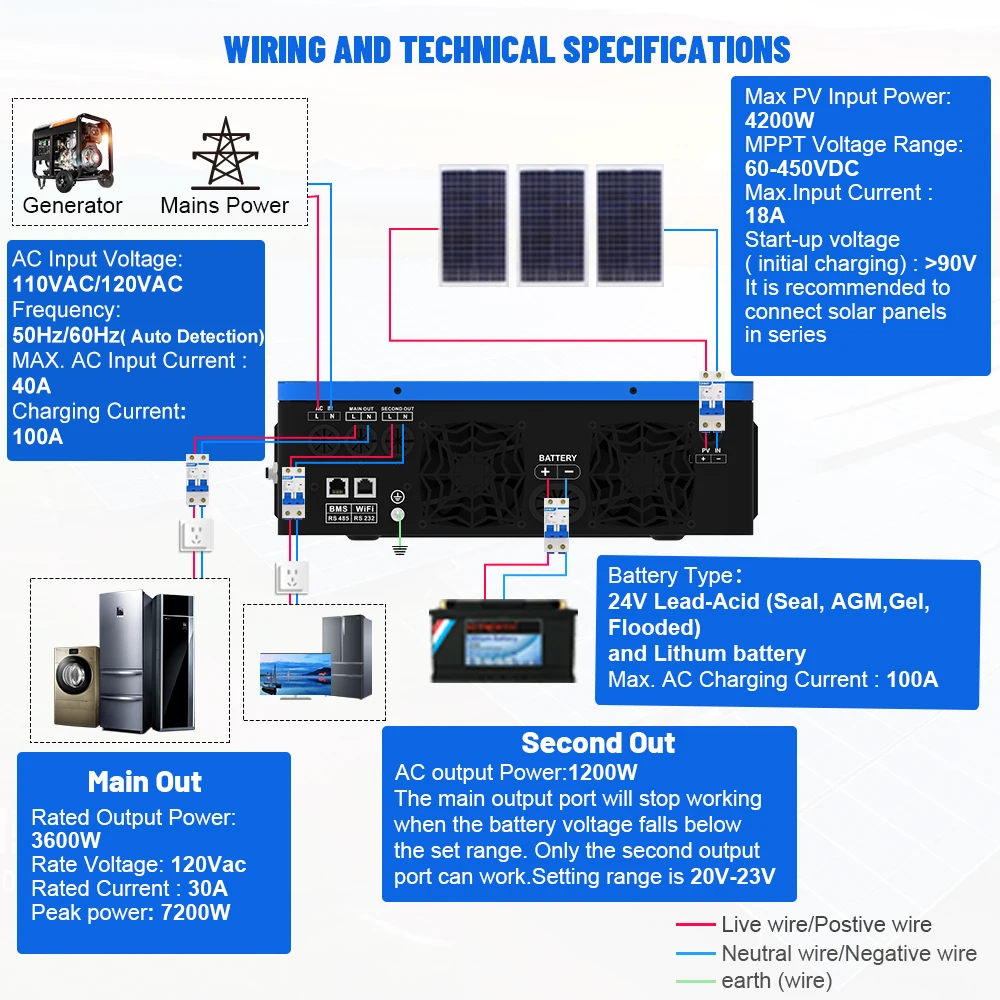

INSTALLATION STEPS

Firstly :

you need to install a circuit breaker between the battery and the inverter, open the breaker after successful installation, then connect 24v the battery , close the circuit breaker, and measure the voltage on the battery side of the inverter.

Secondly :

install a circuit breaker between the PV input and the inverter, turn on the circuit breaker after successful installation, make sure the battery voltage is normal, let the machine connect to solar energy, then close the circuit breaker between the PV input and the inverter, at this time, the inverter display will automatically light up and start charging, and then press the button on the bottom right corner of the inverter 1 to start the machine. Then check whether there is 110v/ or 120v voltage output from the inverter output.

Finally :

a circuit breaker needs to be installed between the AC input and the inverter, then a circuit breaker also needs to be installed between the output of the machine and the inverter. After successful installation, turn on the circuit breakers of the AC input and output, then connect the machine to the mains, turn off the mains input circuit breaker, and then turn off the circuit breaker of the output of the inverter after 2 minutes. This is the complete procedure for installing the machine.

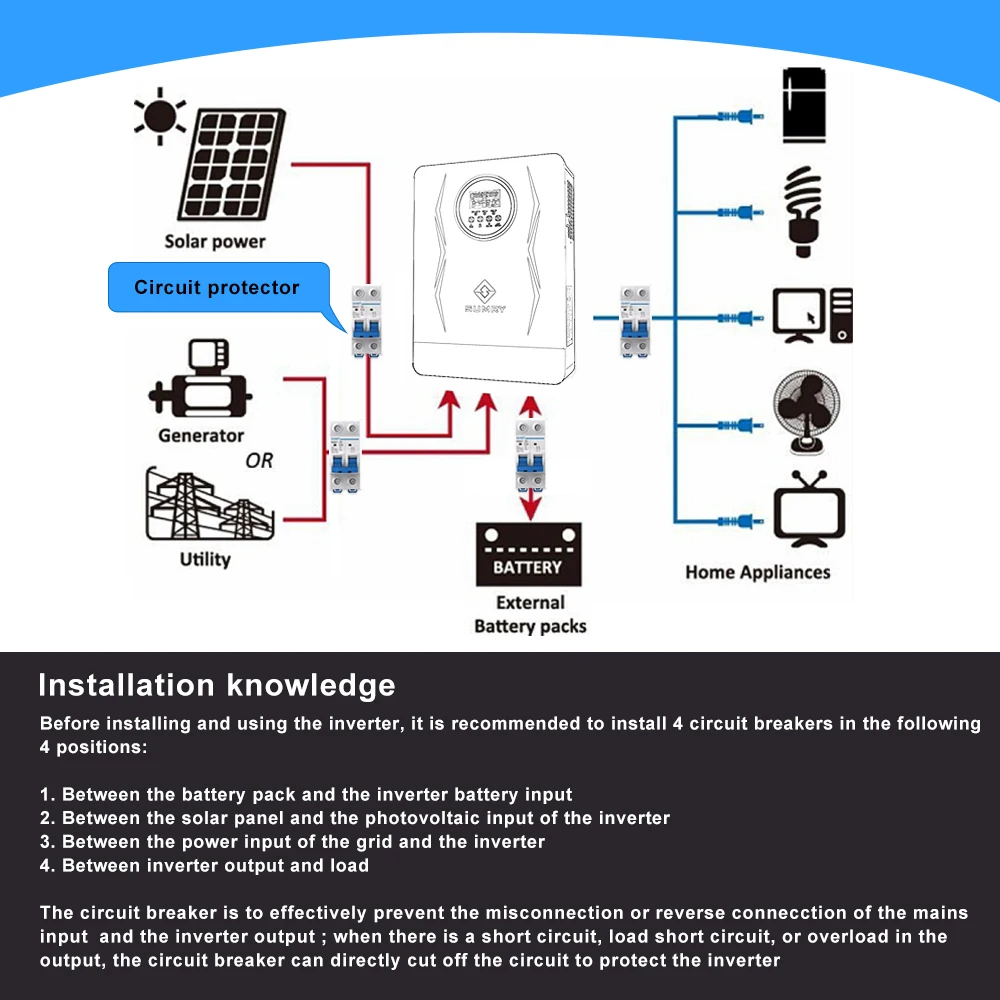

CIRCUIT BREAKER SPECIFICATION

Sumry eco lv 3.6kw is 3600w, you need to install a 2P100A specification circuit breaker between the battery and the inverter, a 2P20A specification circuit breaker between the photovoltaic input and the inverter, a 2P50A specification circuit breaker between the utility input and the inverter, and then a 2P30A specification circuit breaker on the output of the inverter.

PURE SINE WAVE INVERTER

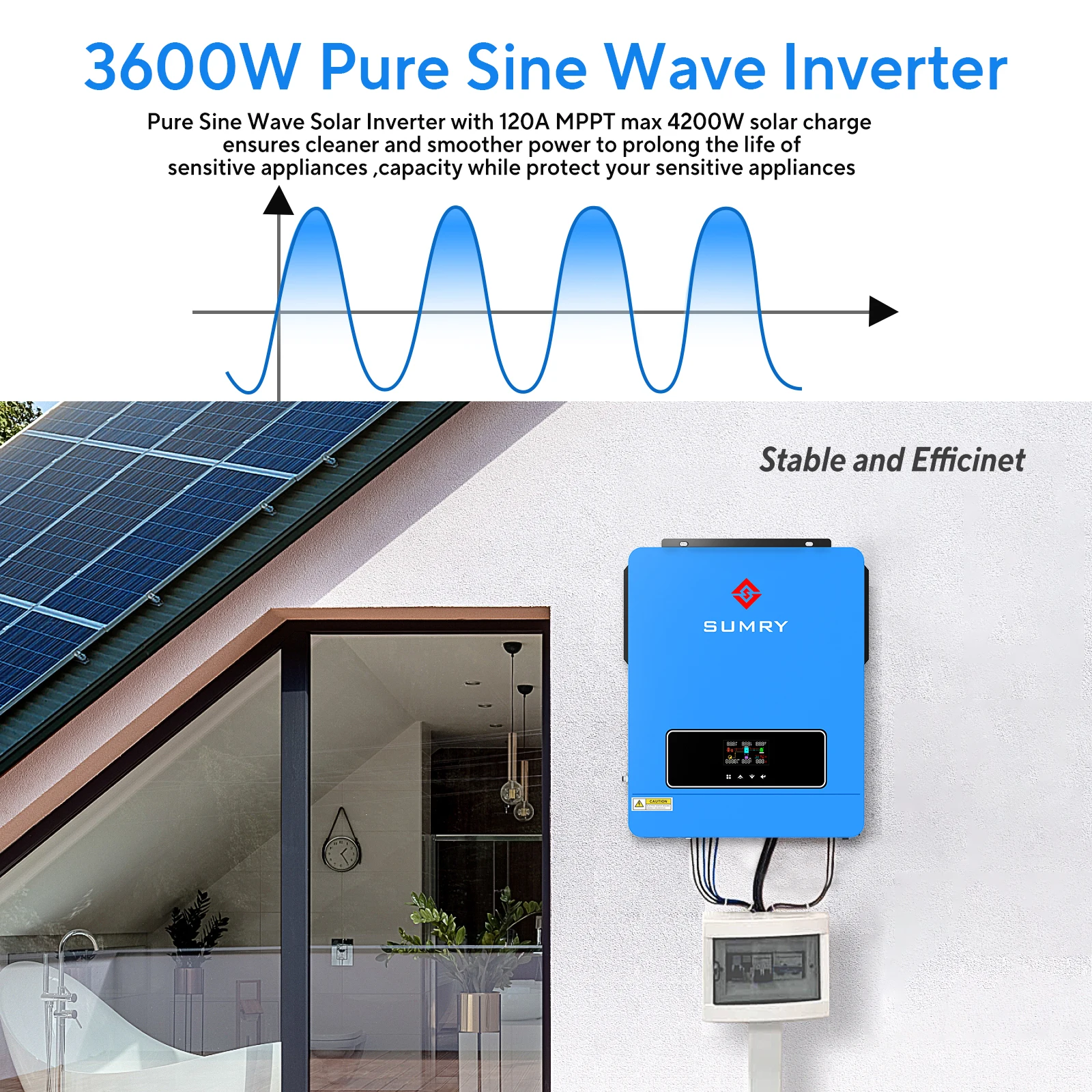

On/Off-Grid Solar Inverter Built-in 120A MPPT Charge Controller, Pure Sine Wave Inverter Single-phase output 110VAC,  max 4200W solar charge，it can ensure cleaner and smoother power to prolong the life of sensitive appliances ,capacity while protect your sensitive appliances。new all-in-one inverter combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package.

MULTI-FUNCTUON INVERTER

combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

TECHNICAL PARAMETERS

120A MPPT Solar Charging Inverter,High PV input voltage range of 60~500VDC ，AC output voltage 120VAC，max 4200W solar charge，50/60HZ frequency,24V battery voltage .

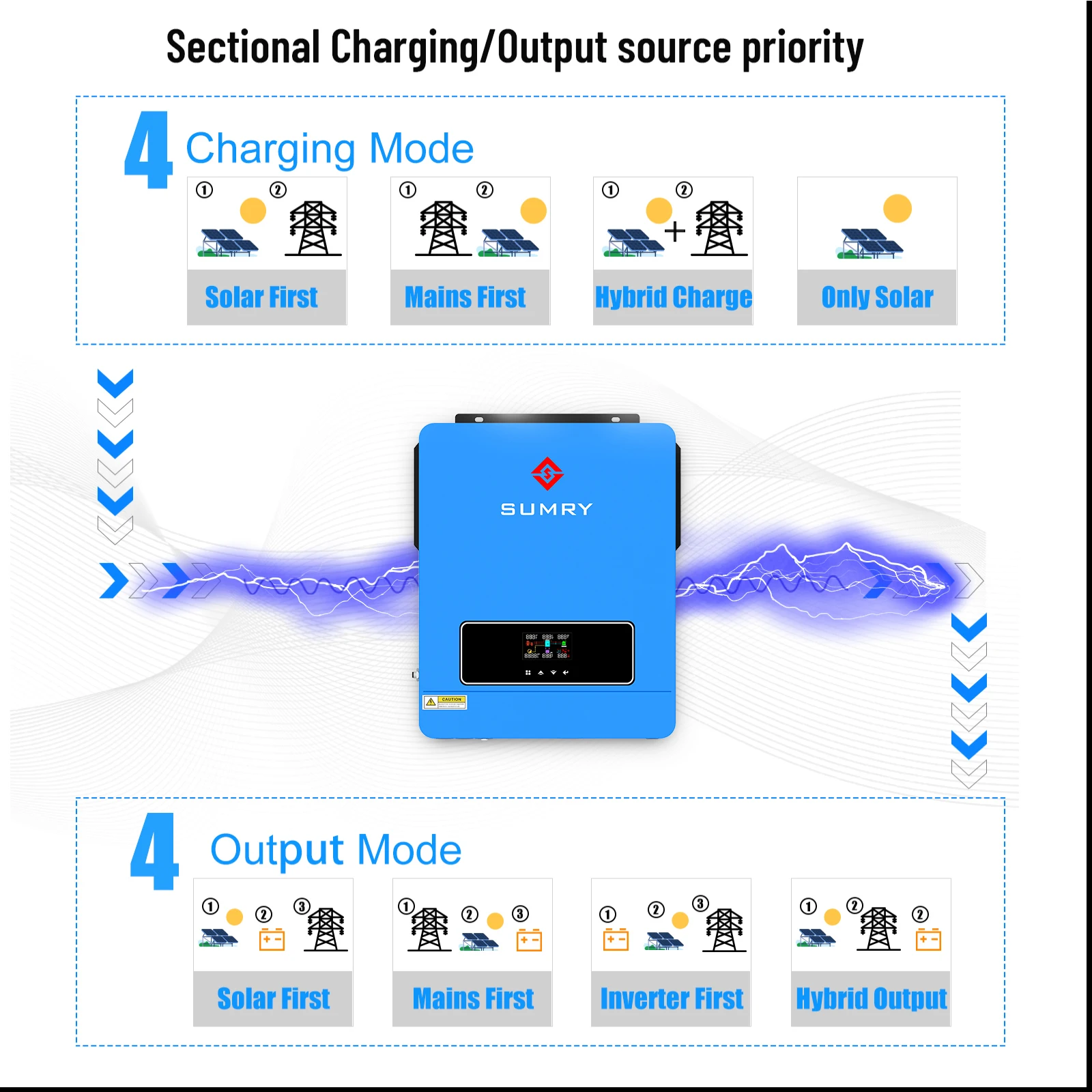

VERSATILE WORKING MODES

Customize the priority of power inputs and outputs with 4 charging modes(Only Solar, Mains First, Solar First, Mains&Solar) and 3 output modes(Solar First, Utility First,SBU First ). This inverter charger offers efficient power management for personalized energy consumption.

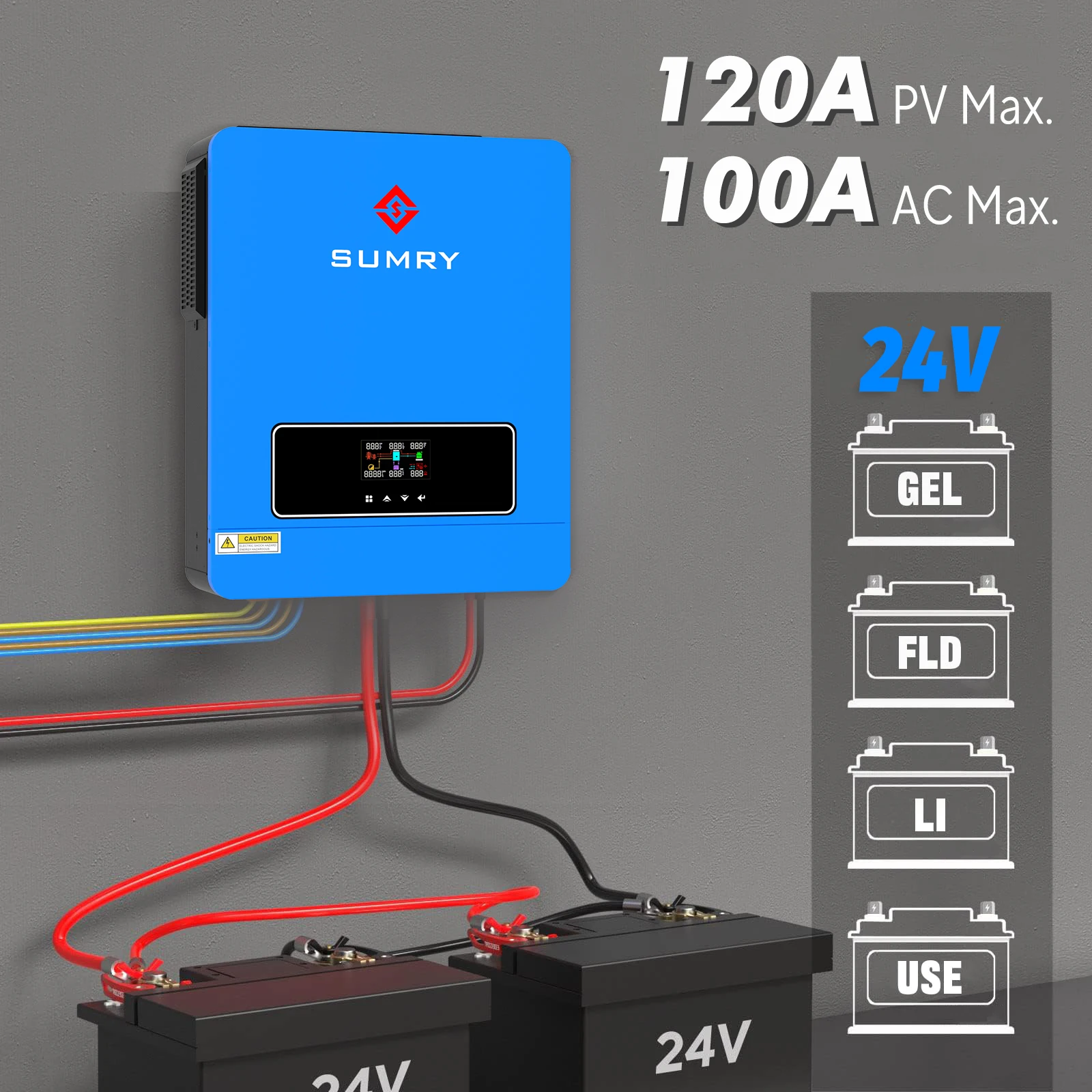

COMPATIBLE WITH VARIOUS BATTERIES

Sumry inverter supports most batteries in the market, like Lithium battery, gel battery, LifePO4 battery, Lead-acid battery, AGM battery, and so on.

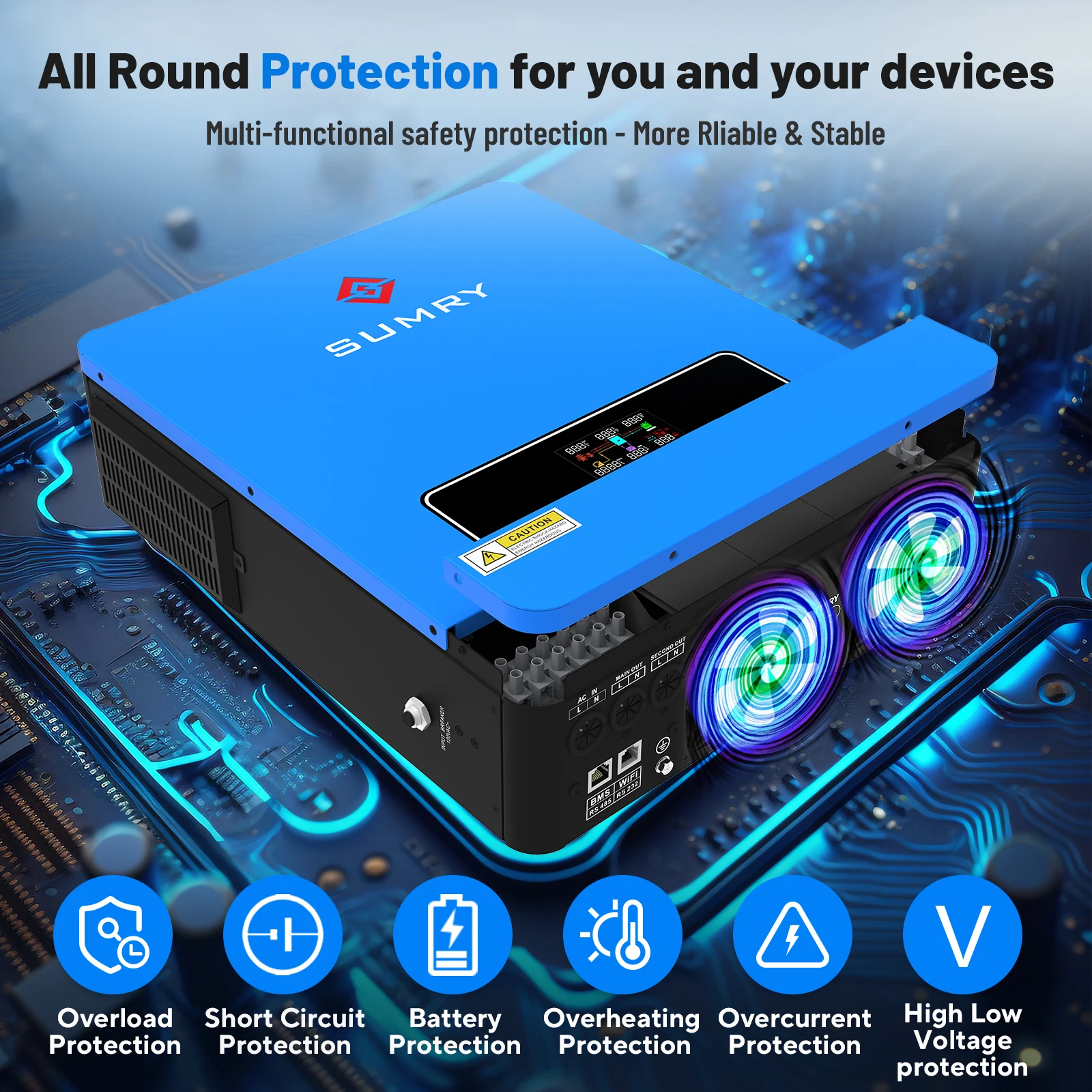

ALL-ROUND PROTECTIONS

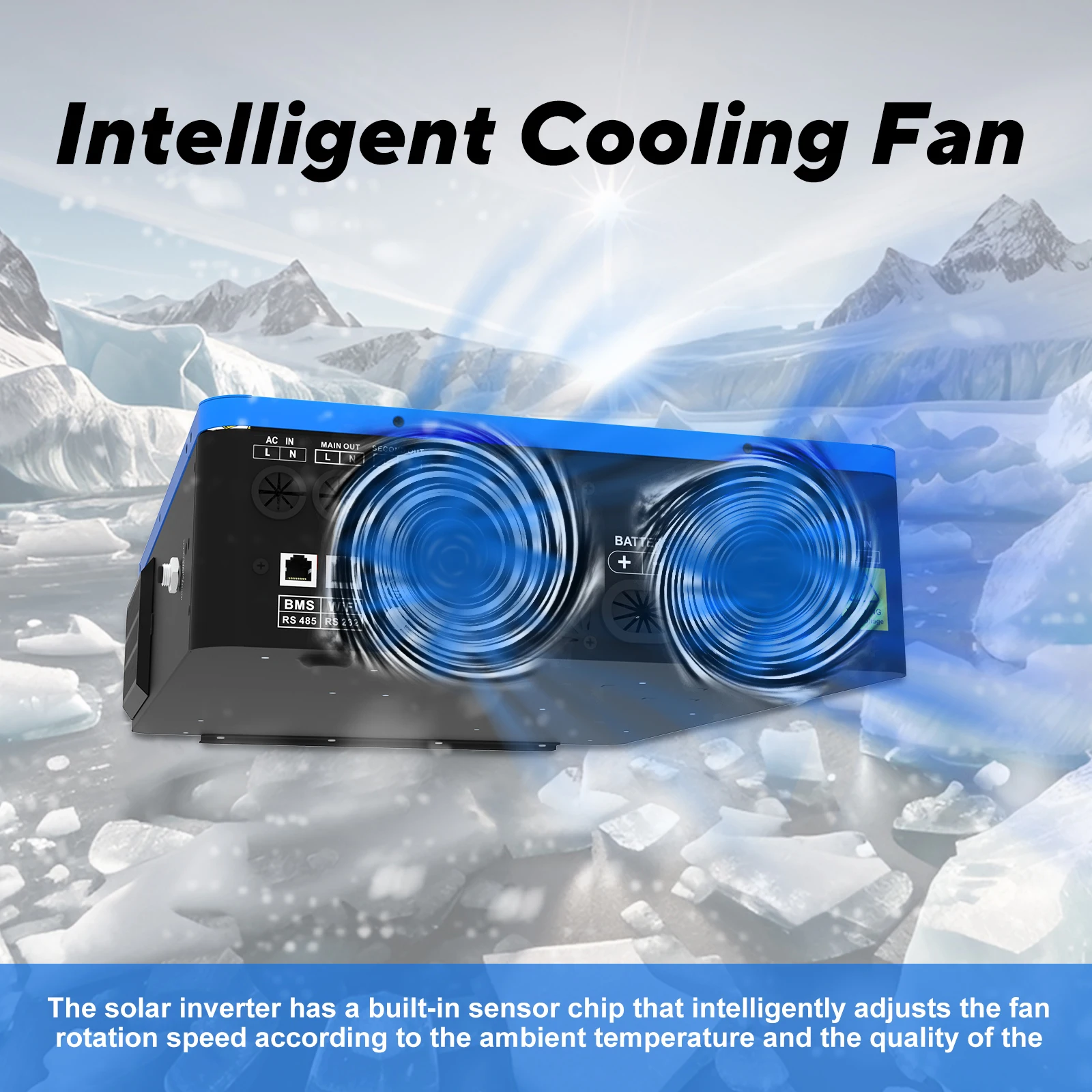

sumry inverter charger provides four charging stages, safeguards against overload, over-temperature, and short circuits, and features automatic restart. It includes intelligent fans that enhance battery performance, reduce heat, and increase system longevity. A cold start function is also available.

DIVERSIFIES USES

Inverter with Smart battery charger design for optimized battery performance; Compatible with mains voltage or generator power; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads.

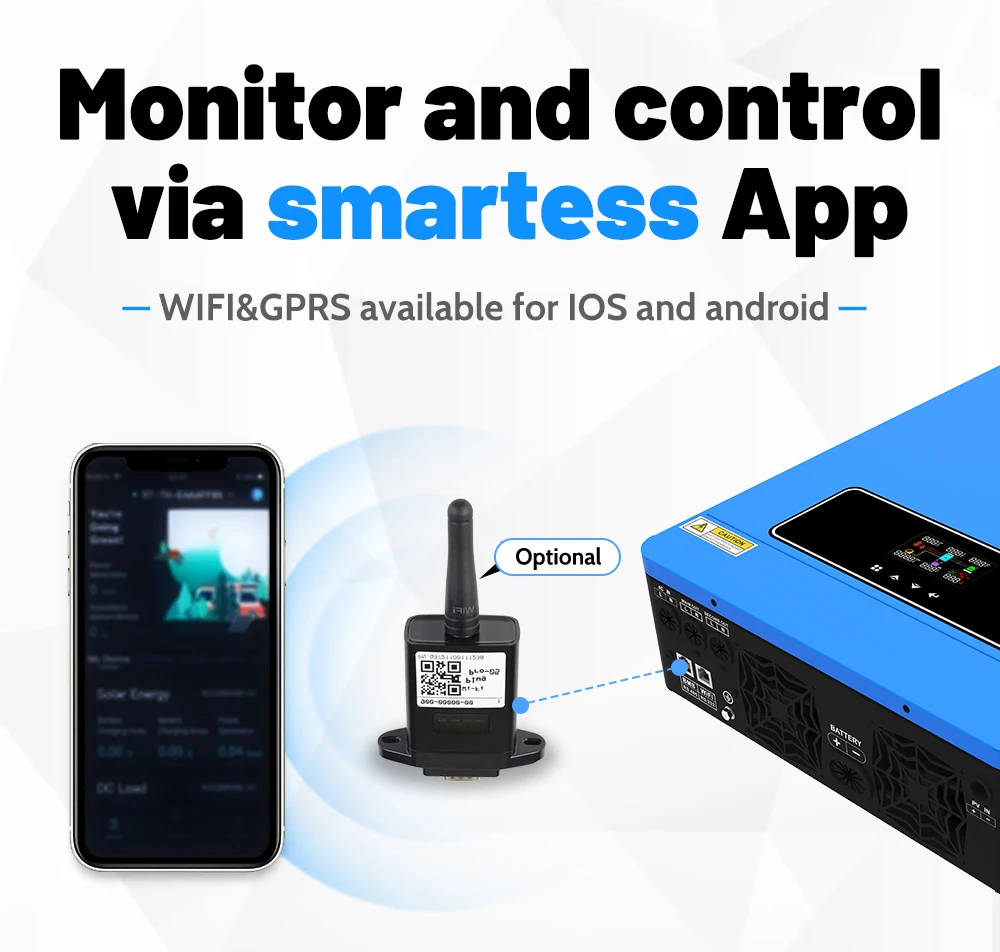

WIFL OR BATTERY BMS COMMUNICATION

SUMRY eco lv series machine has two communication ports.

one is RS232 communication port, used for wifl module communication, wifl module is mainly used for remote monitoring, as long as the inverter near the router, your mobile phone can connect to the network, and then mobile phones anywhere on the planet can be monitored, and at the same time it can be used to set up the machine some of the basic parameters, so if you want to communicate through wifl module.

So if you want to communicate via wifl module, please contact us to buy wifl module separately.

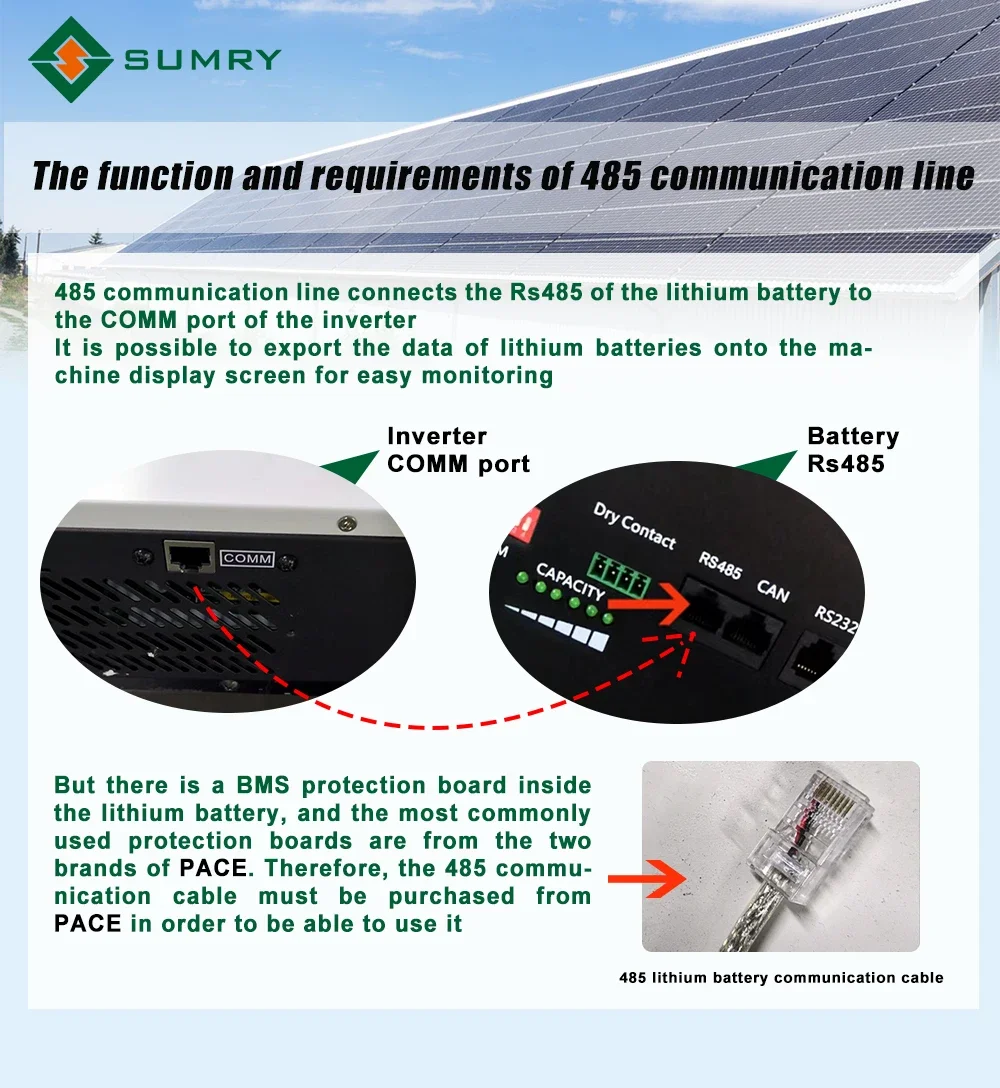

The other communication port is RS485 for lithium battery BMS communication, if you want to choose lithium battery BMS communication, then you must choose the communication protocol PACE or PYLONTECH.
