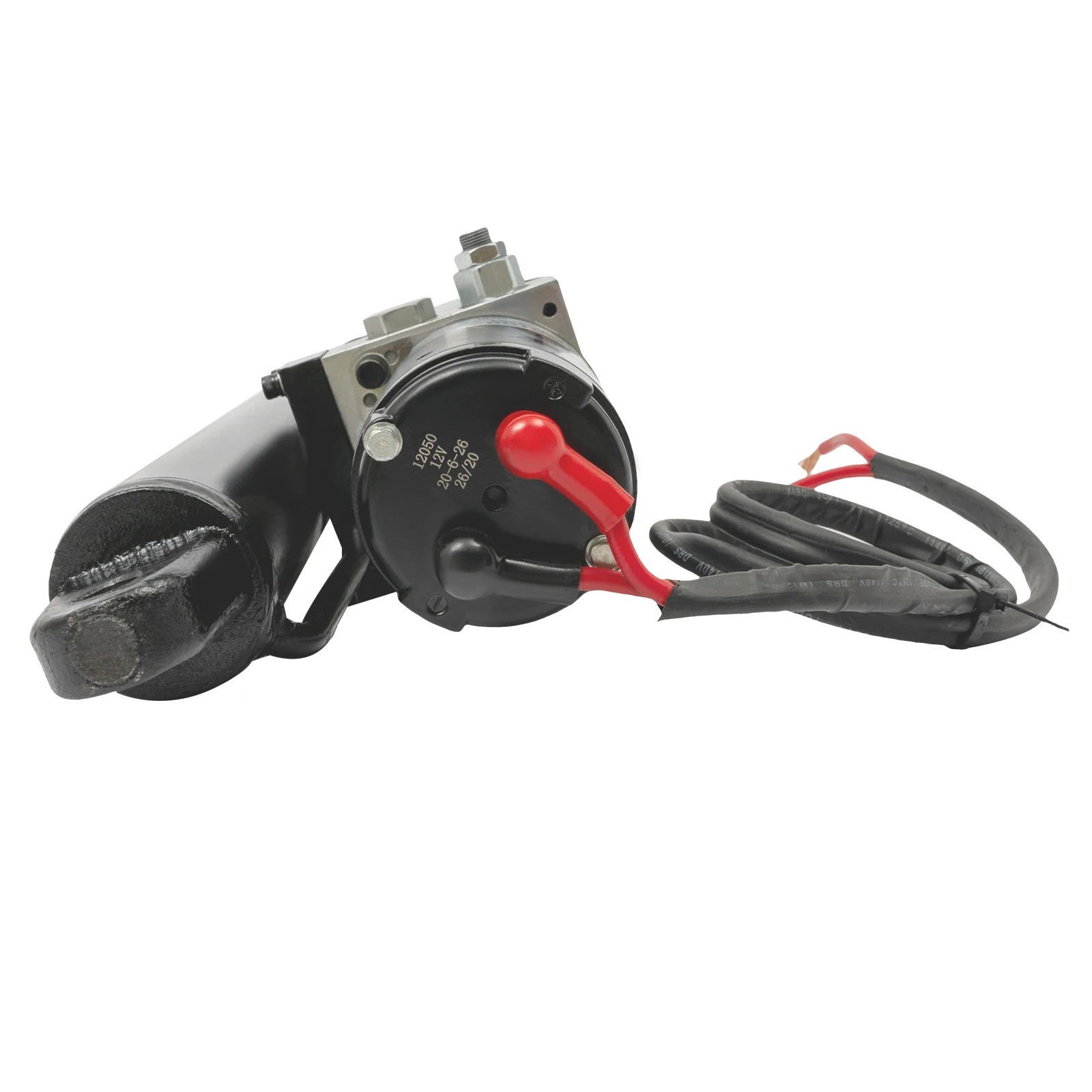

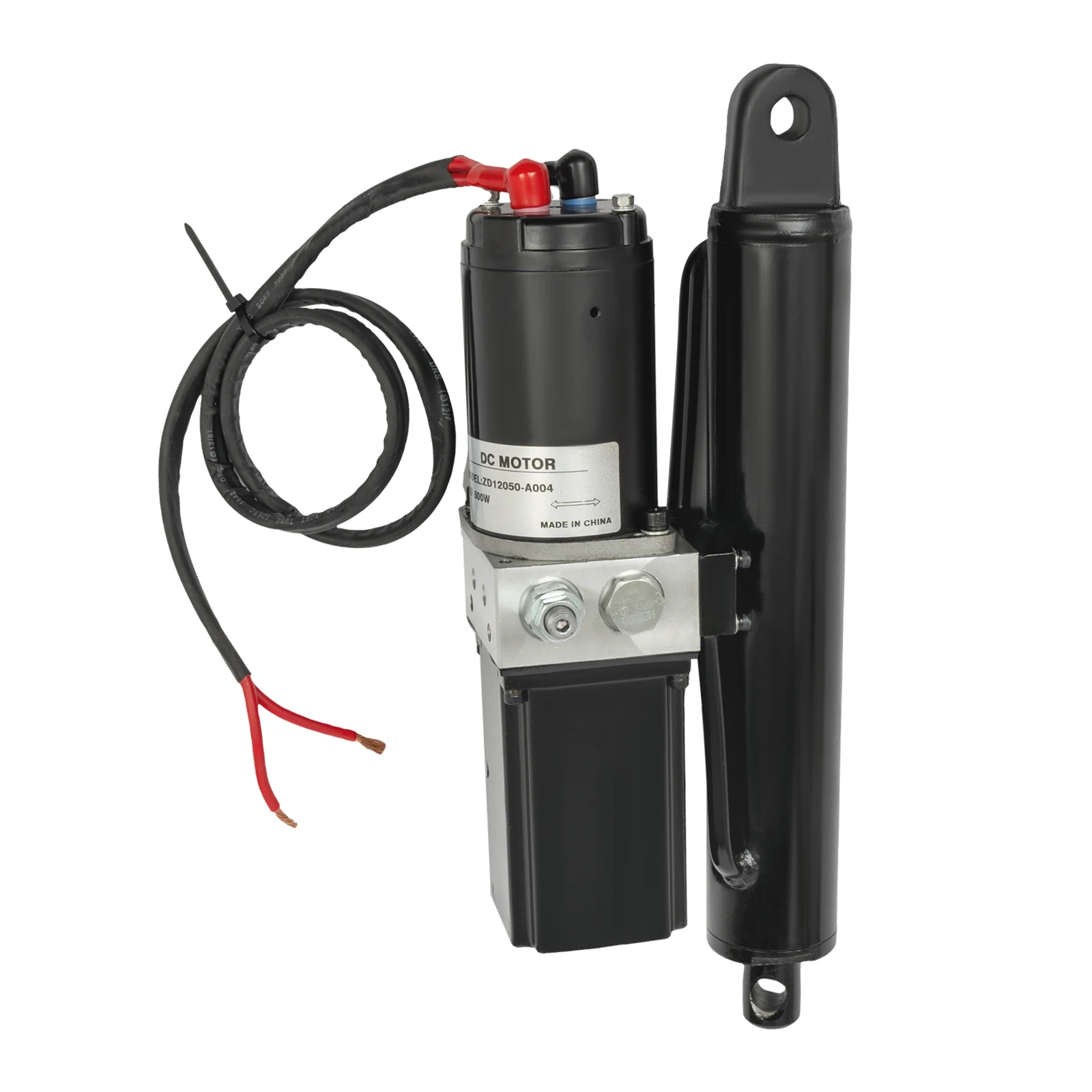

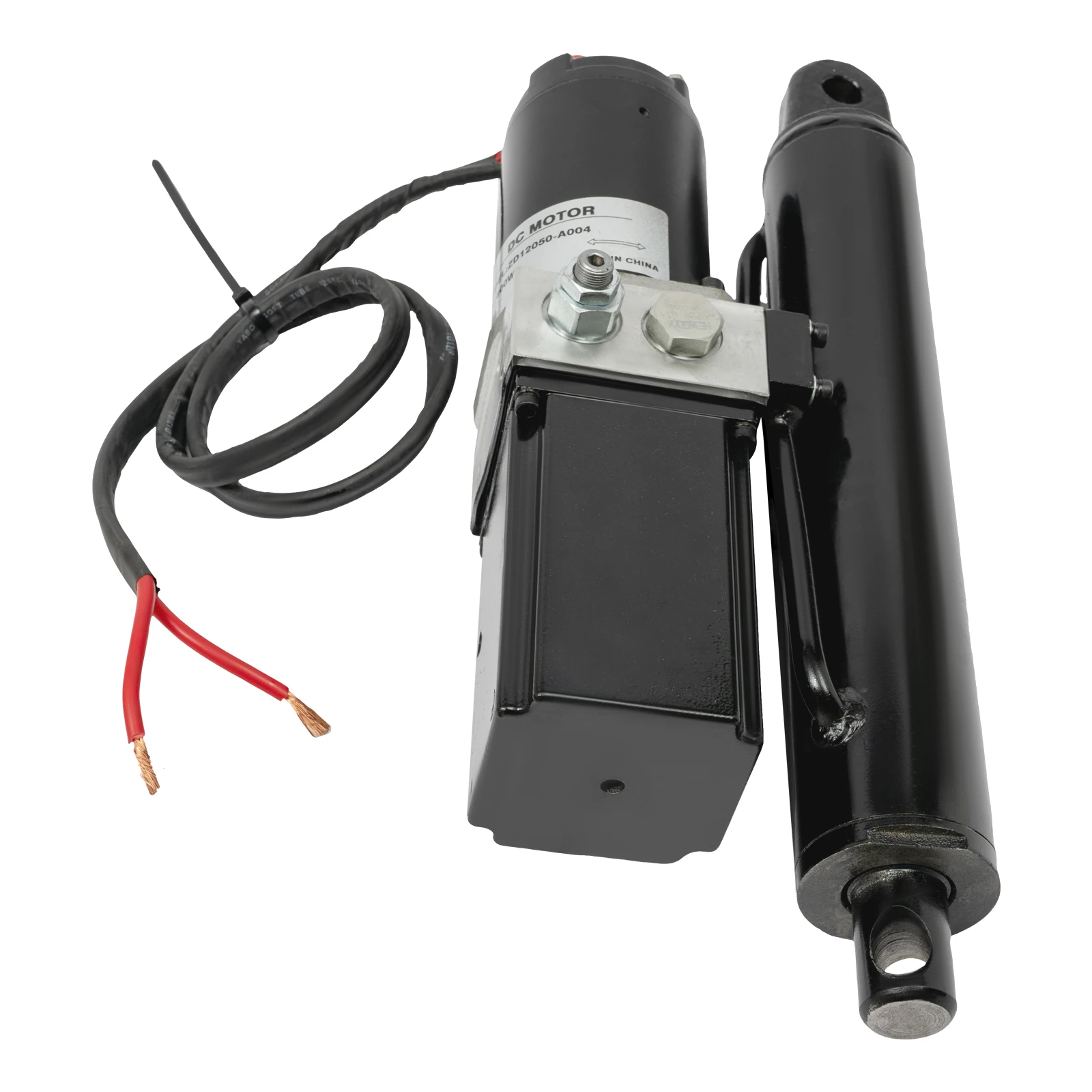

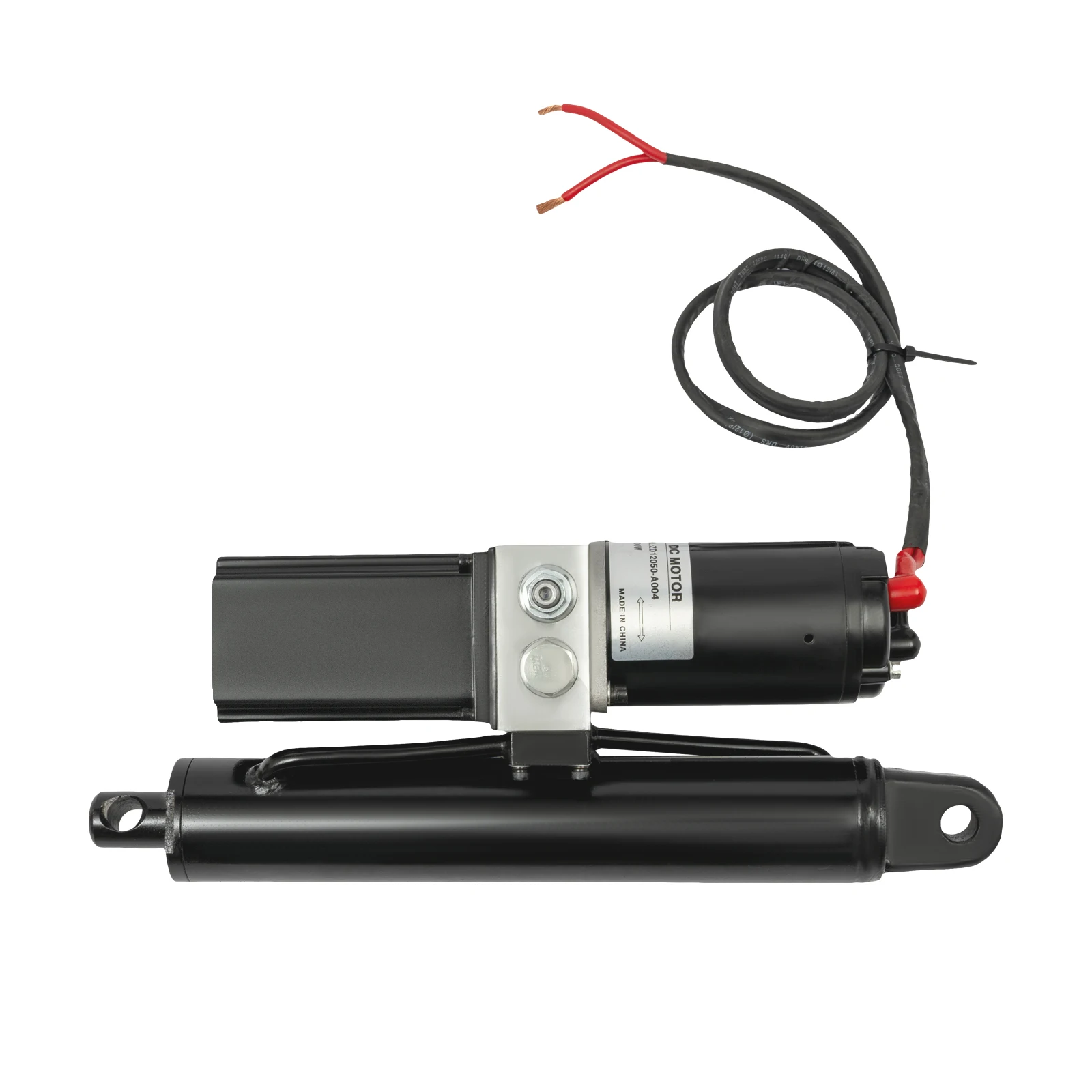

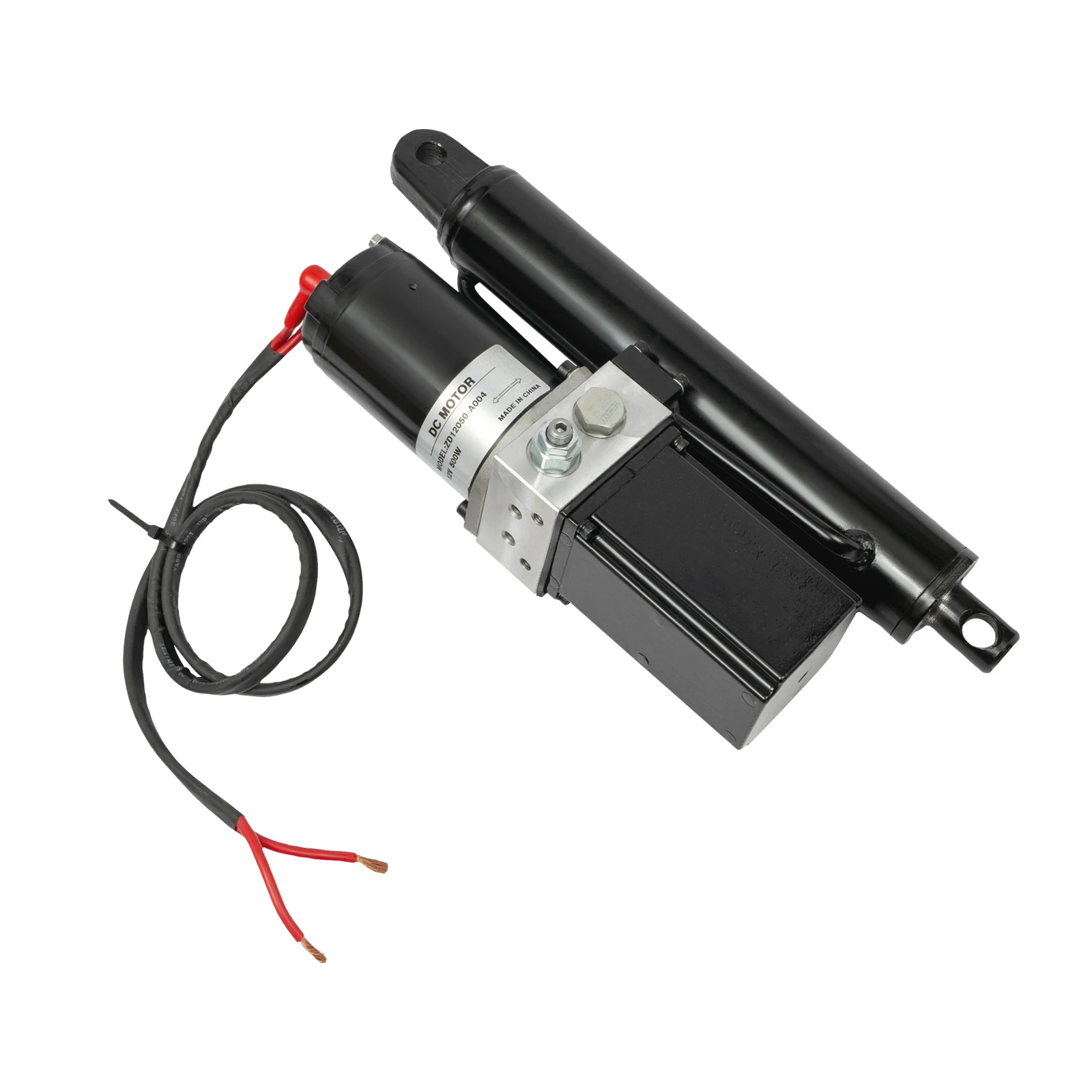

800W Electric Hydraulic Actuator DC12V 0.65CC for Electric Power, Machinery, Metallurgy, Mining, Petroleum, Chemical Industry

Description

The electro-hydraulic actuator stands as an effective tool of engineering, harmoniously fusing electrical promptness with hydraulic accuracy. It serves as the conductive force behind intricate automation and heavy machinery, where nuanced force application and meticulous control are vital. This actuator operates akin to a conductor's wand, orchestrating complex mechanical maneuvers with exceptional finesse.

Application

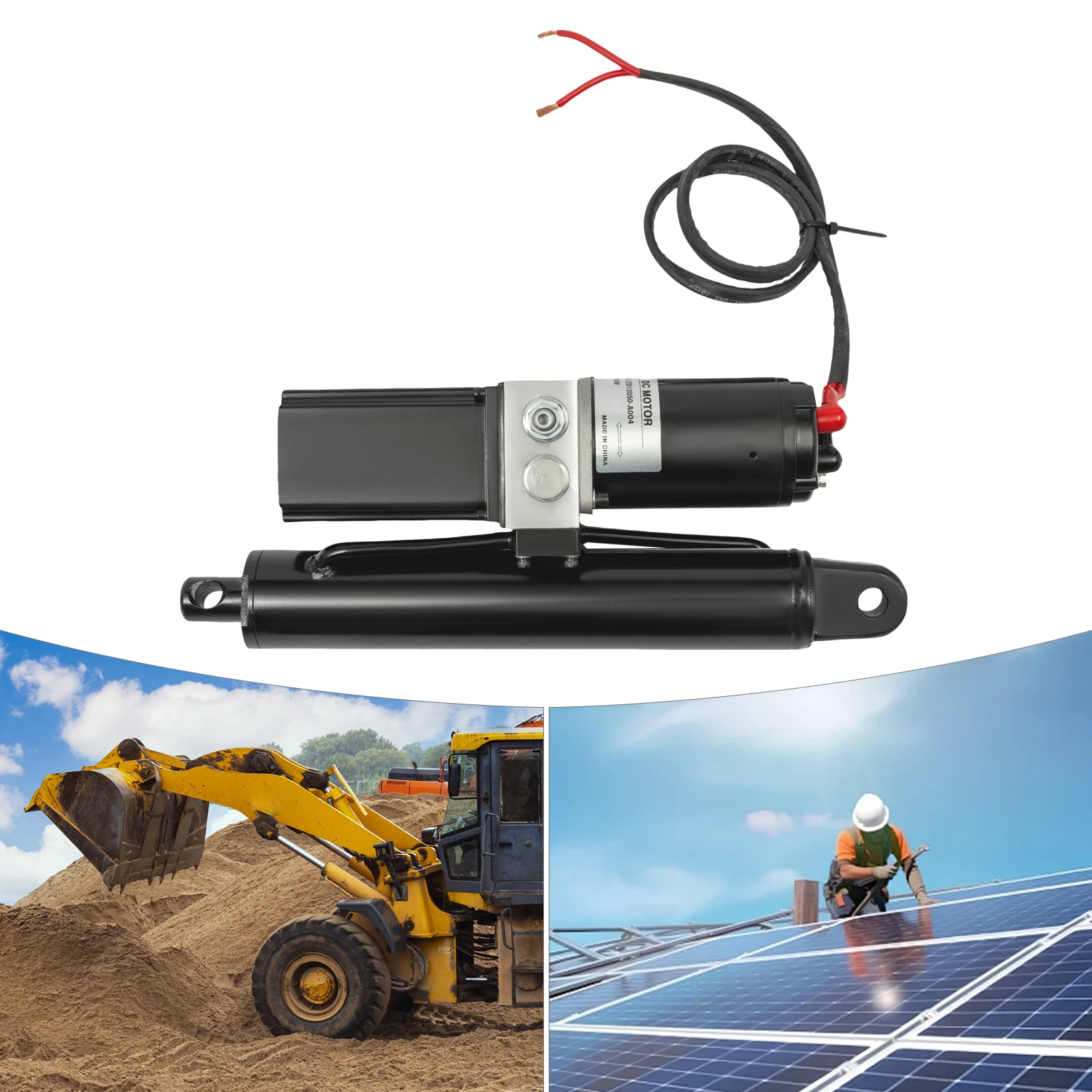

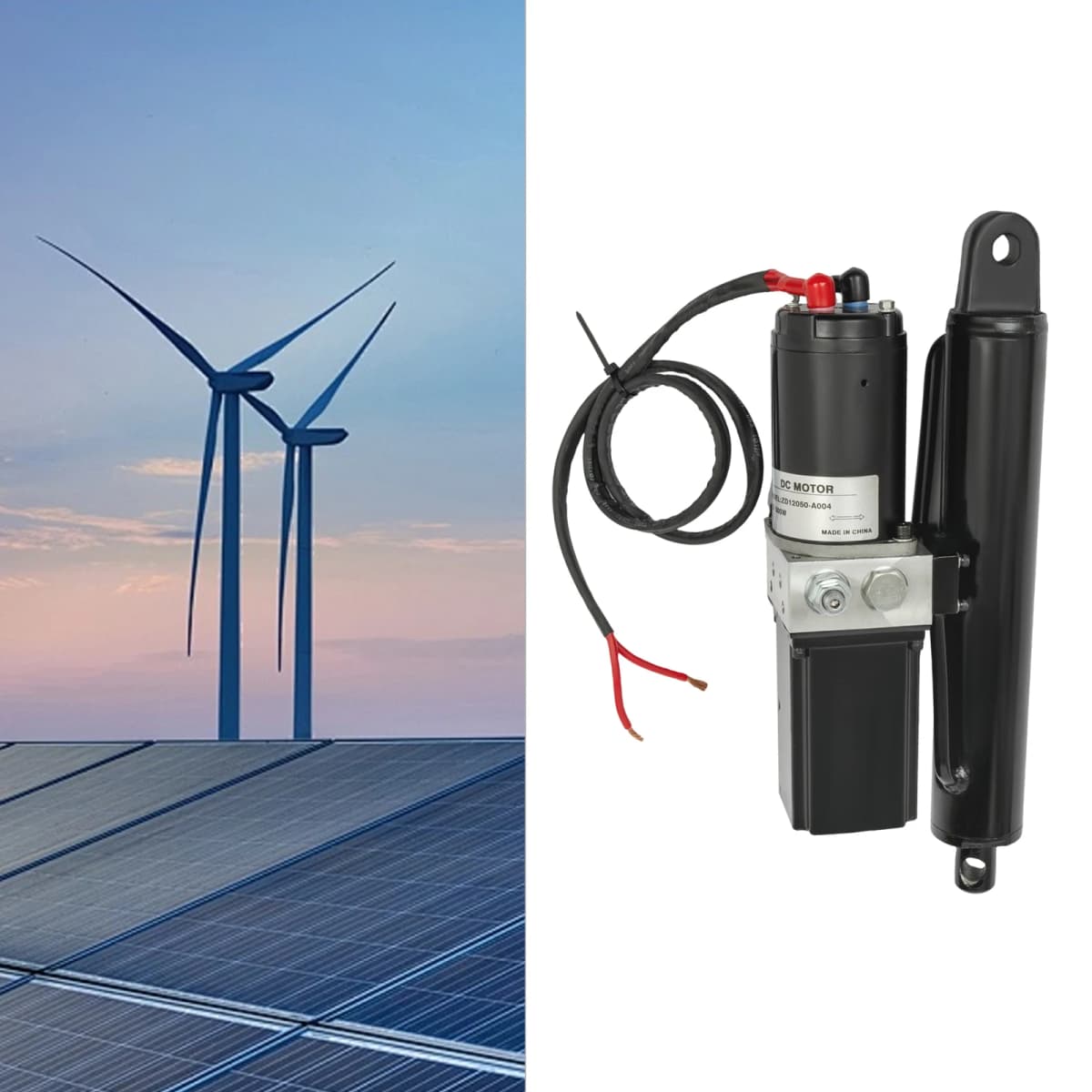

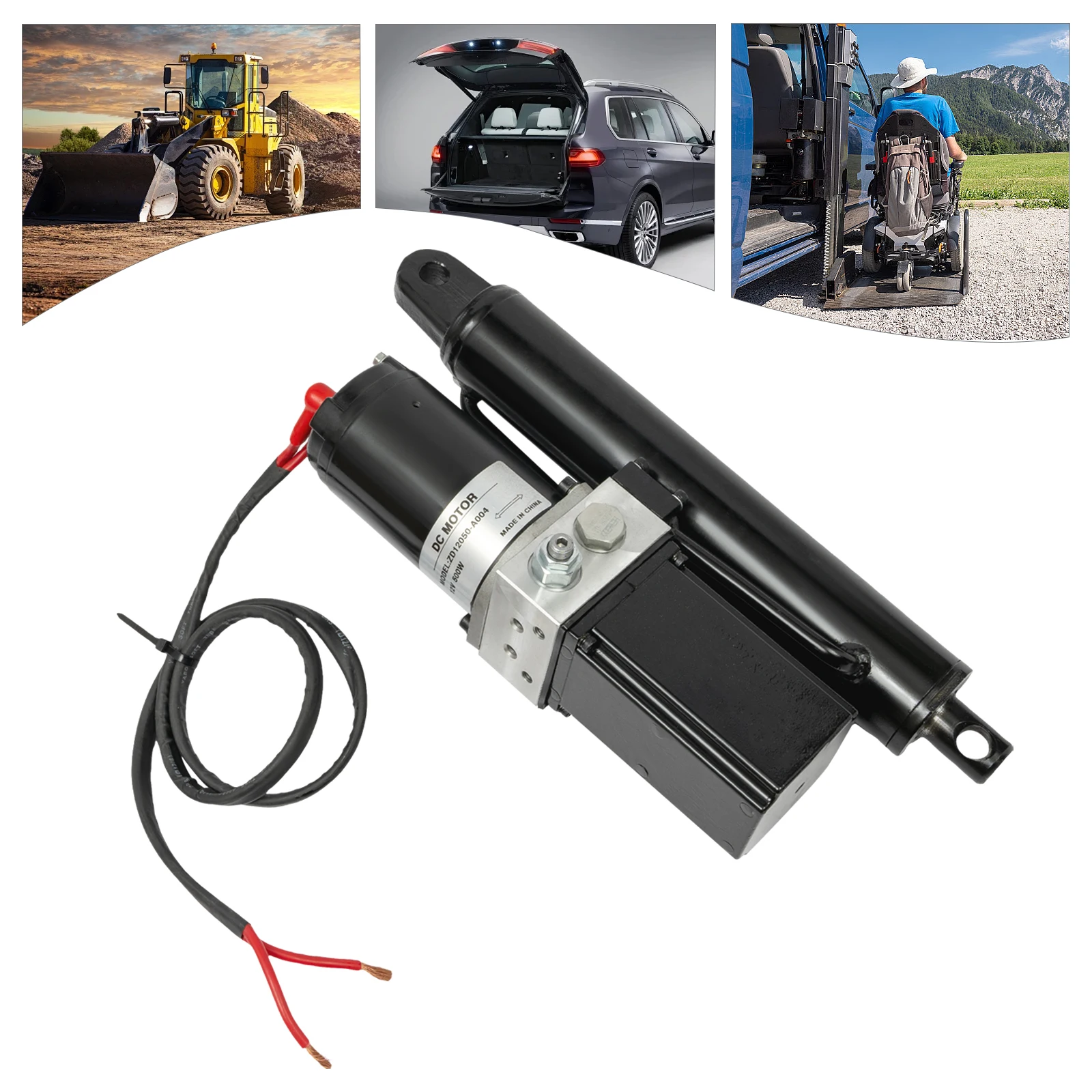

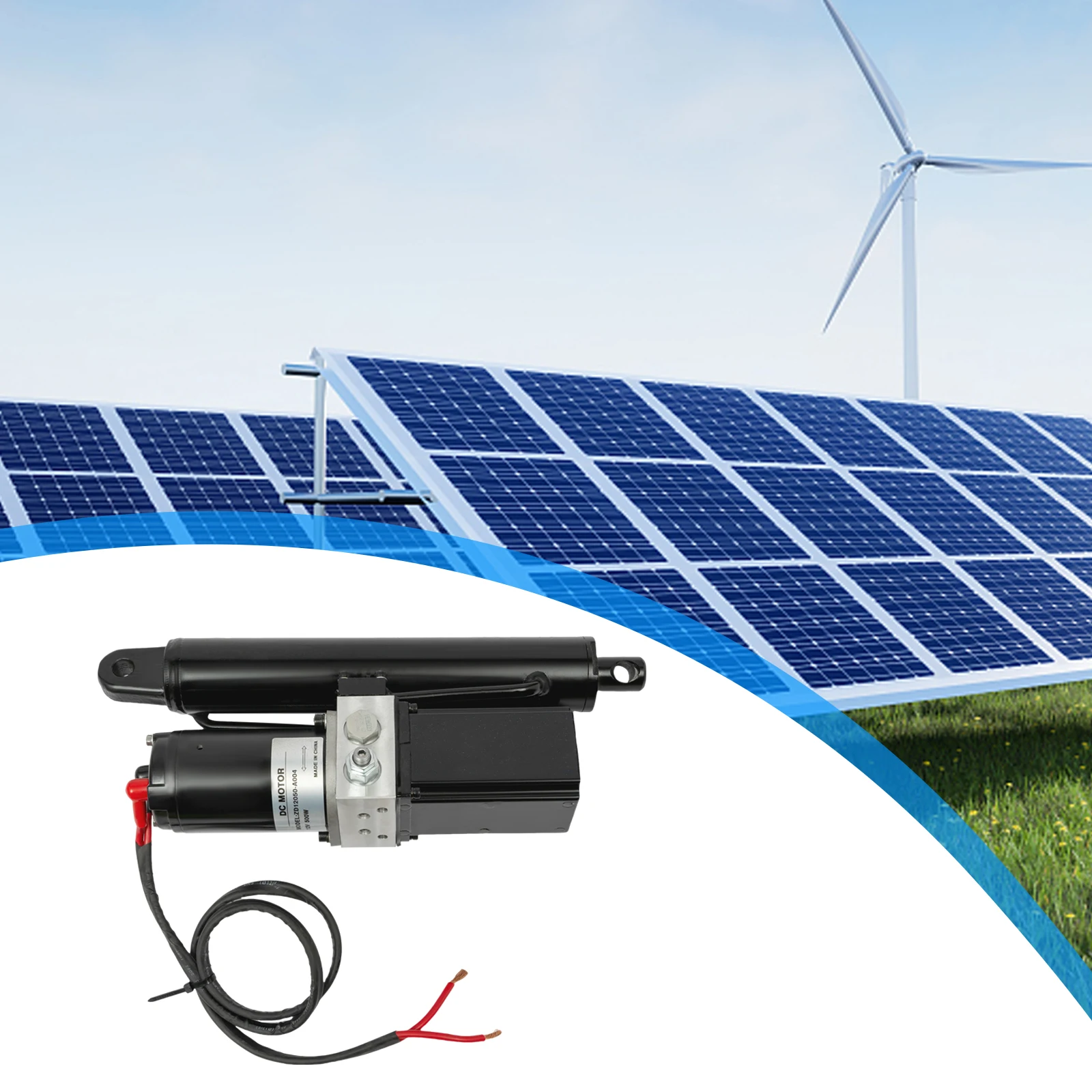

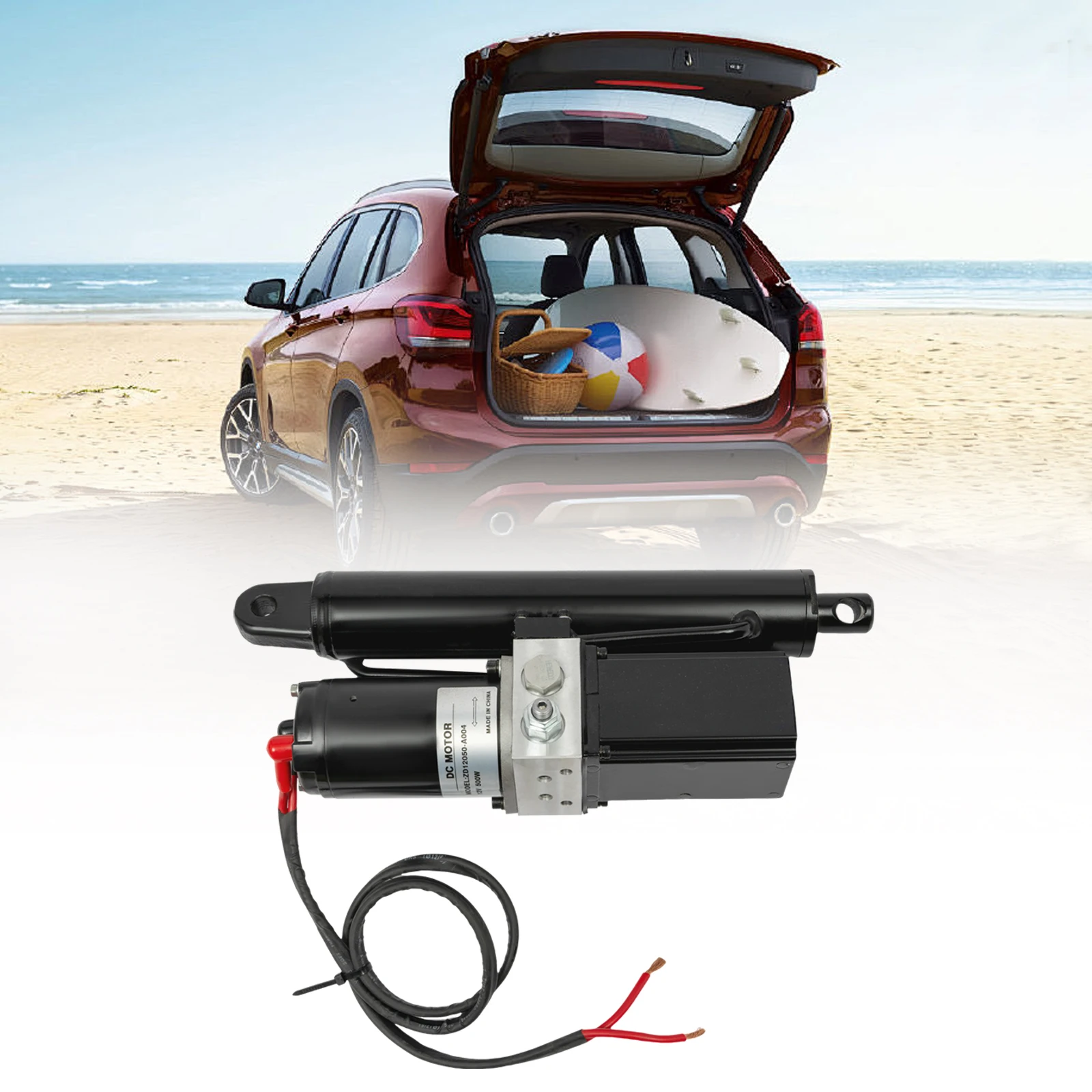

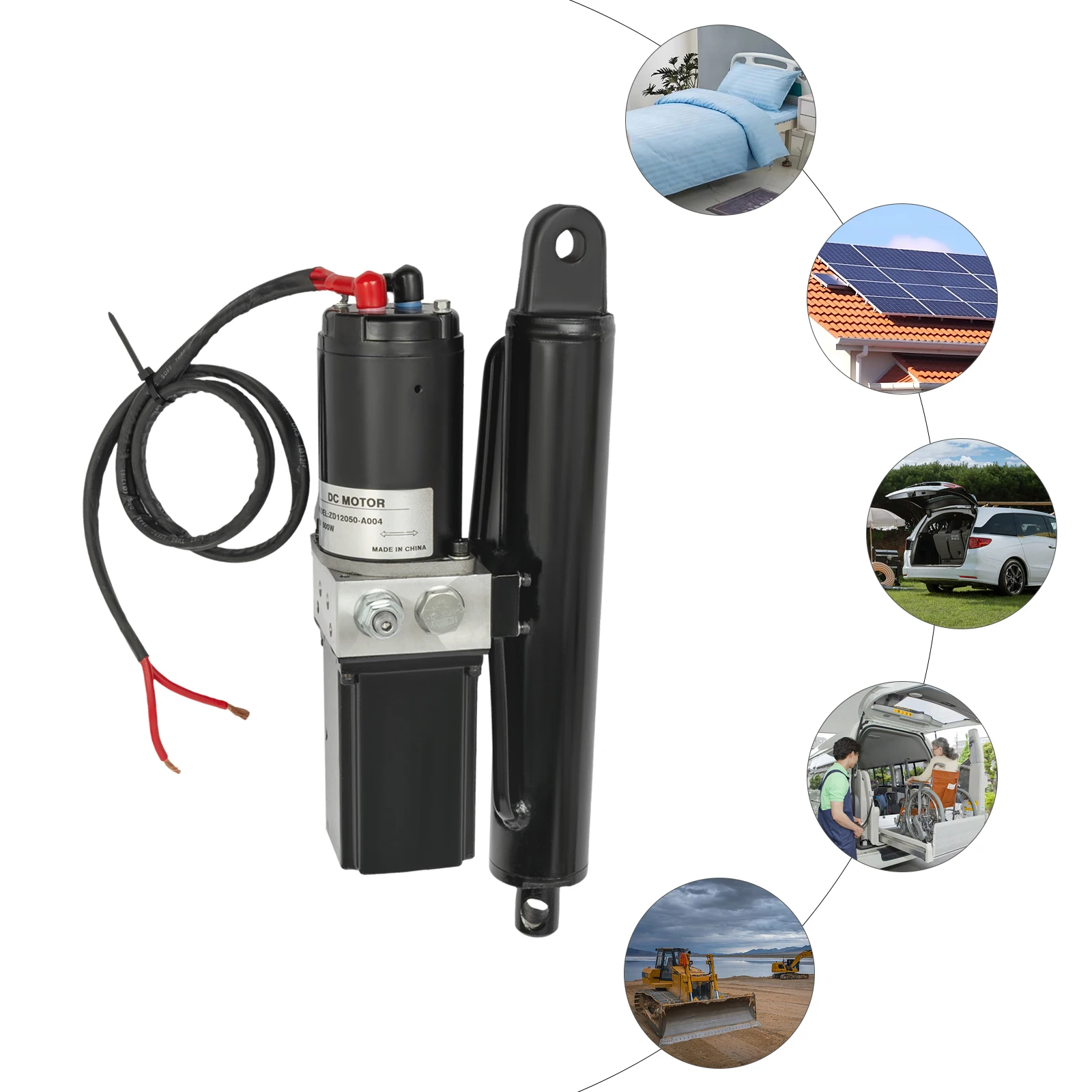

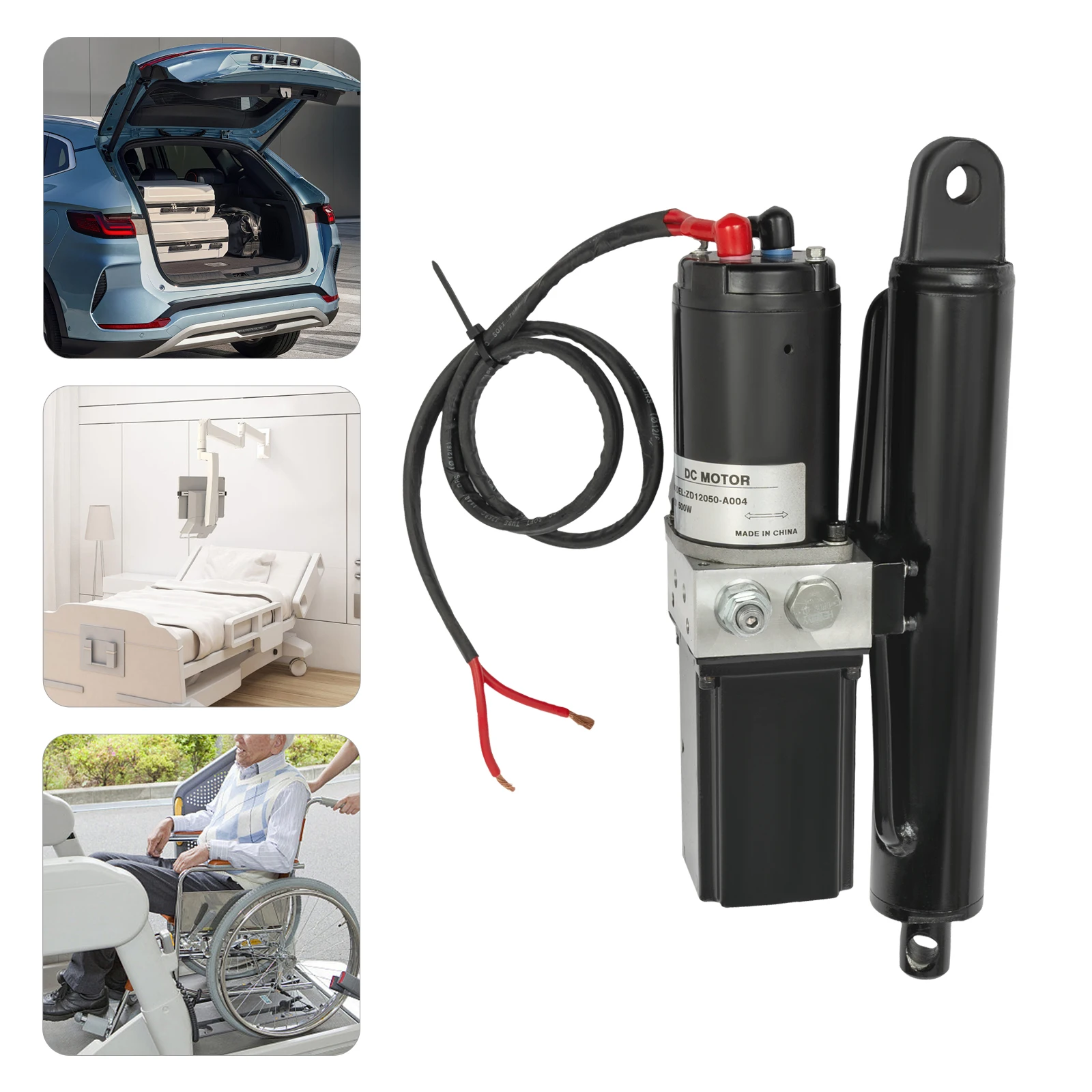

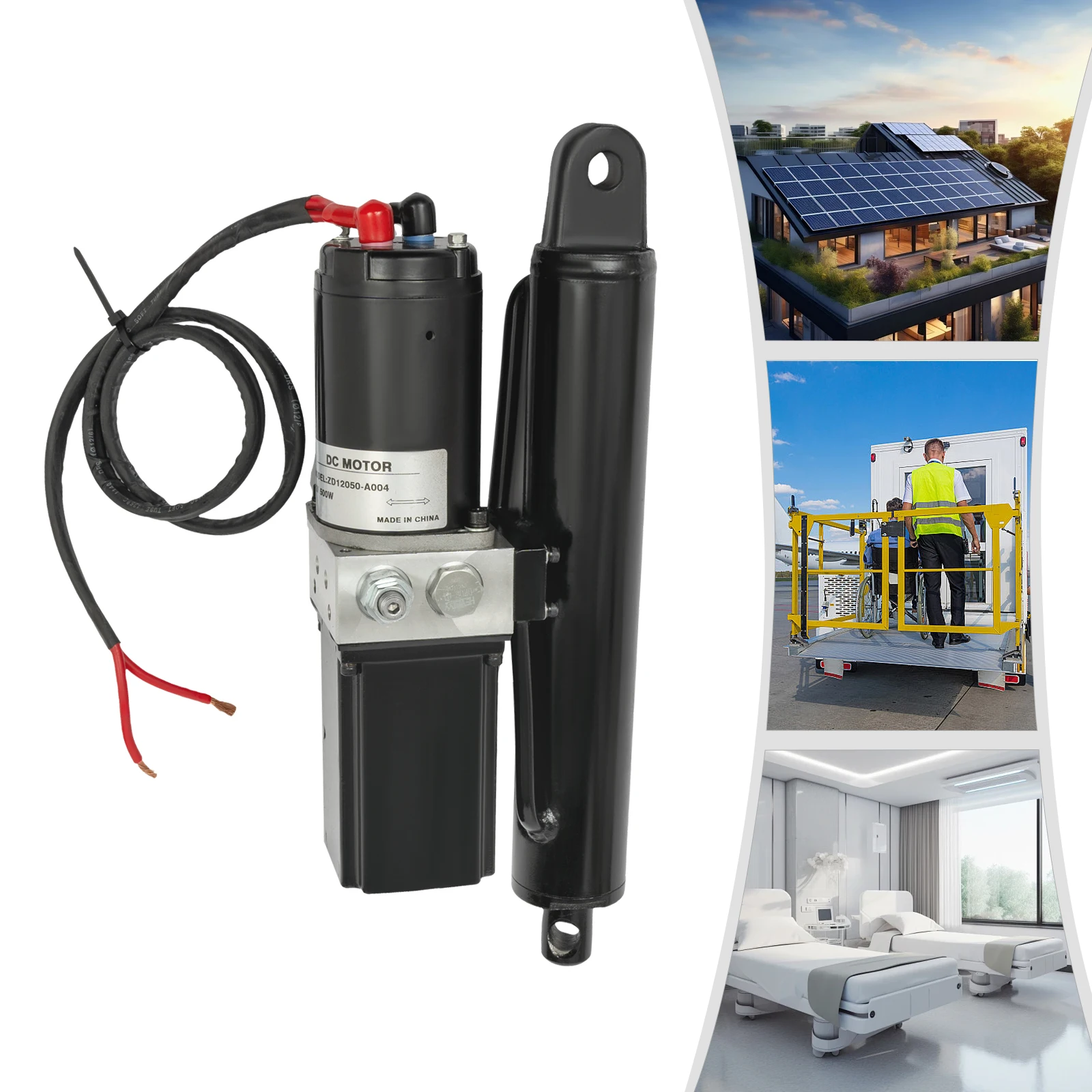

It is used in electric power, machinery, metallurgy, mining, petroleum, chemical industry, transportation, lifting, construction, food and feed processing, dump trailers, lifting platforms, solar tracking systems, wheelchair lifts, and other fields.

Specification

Color: Black

Material: Steel, Copper

Process: Finishing

Voltage: DC12V

Power: 800W

Speed: 2850rpm

Displacement: 0.65cc

Loading Speed: 25mm/0.98in/s

Max. Thrust in Straight Direction: 2T/4409 lbs

Support Force: 2T/4409 lbs

Max. Load Capacity: 2T/4409 lbs

Cylinder Stroke: 200mm/7.87in

Cylinder Diameter: 50mm/1.97in

Center Distance between Two Holes: 38.5cm/15.16in

Rod Diameter: 28mm/1.1in

Bore Diameter: 16mm/0.63in

Use Frequency: 2.5Min Work, 2.5Min Intermittent

Waterproof Rating: IP54

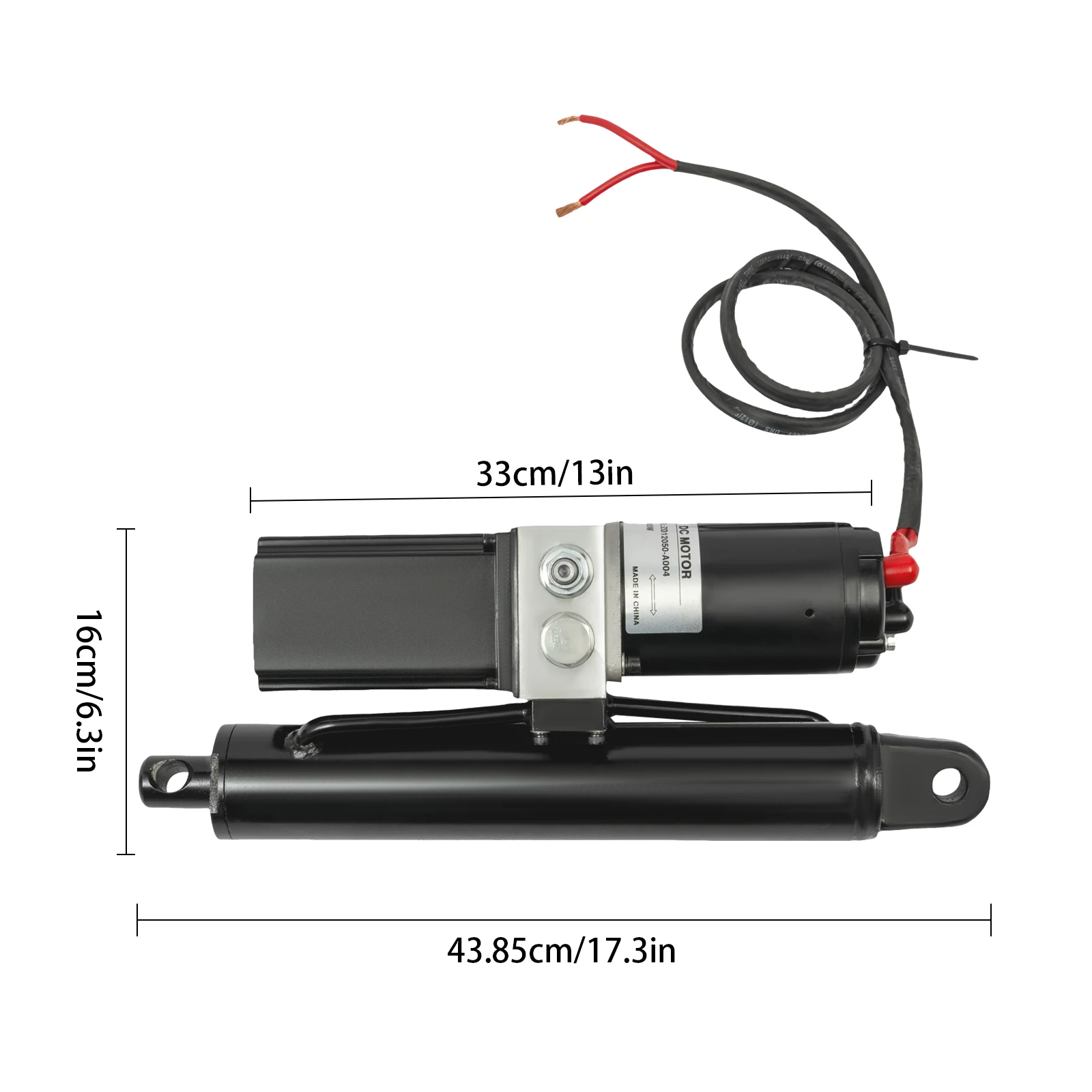

Product Width: 16cm/6.3in

Retracted Length: 43.85cm/17.26in

Extended Length: 63.85cm/25.14in

Package Size: 60*20*13cm/23.62*7.87*5.12in

Gross Weight: 15kg/33.07lbs

Net Weight: 12kg/26.46lbs

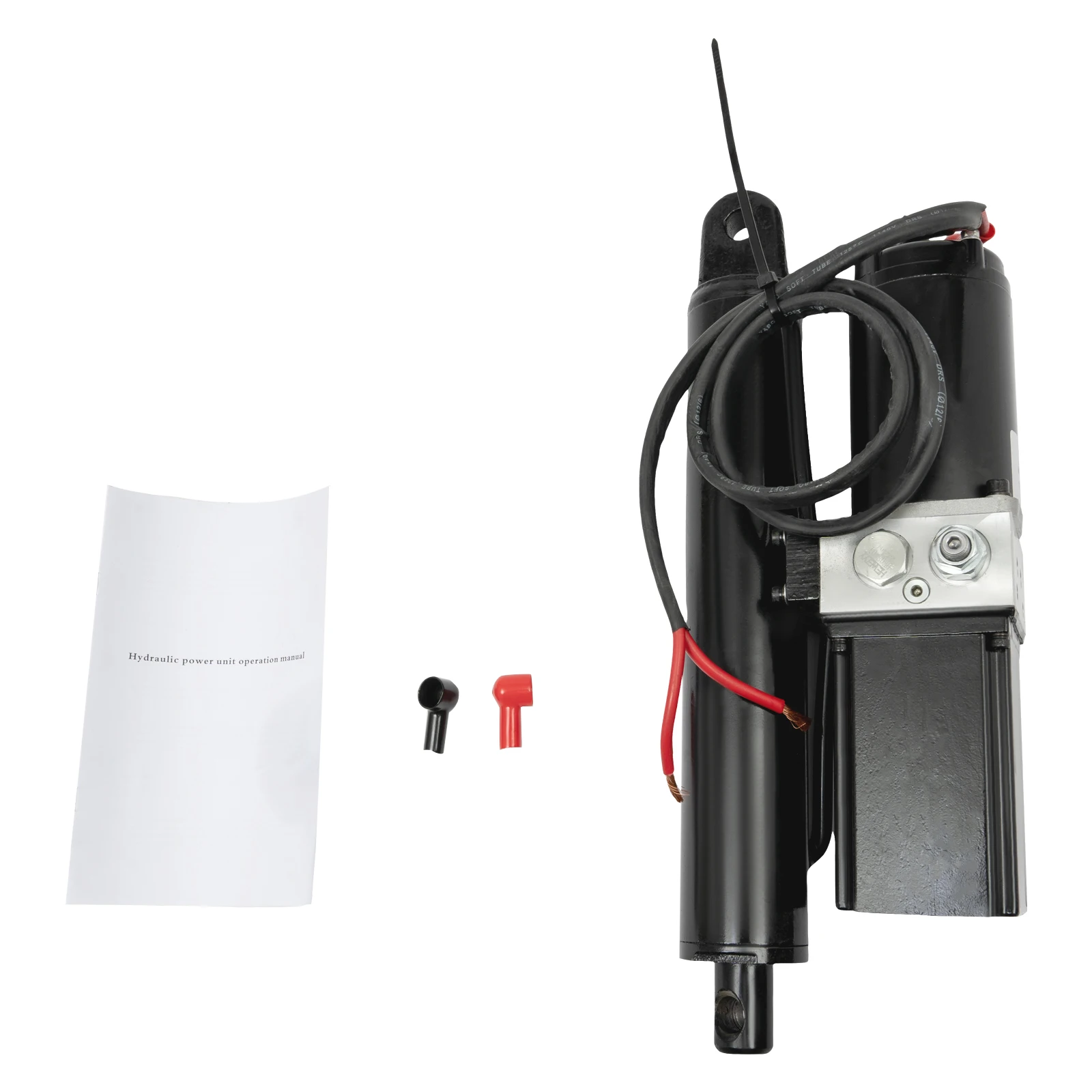

Package Included
1* Electro-hydraulic Actuator
All Accessories for Use

Notes
1.Please check the specifications before purchasing.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
